Plan No.581024

Compact Design with Full Sized Amenities

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the main level create a spacious and open feeling. The pocket doors leading into the master suite can either be closed for privacy or can provide a large 5' wide opening. The modern walk-in shower provides both easy access and eliminates maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a sitting area, a dual vanity and a large walk-in closet. This design also features a spacious coat closet in the entrance along with a main floor laundry room and powder room for guests. The basement can be finished to include an additional two bedrooms and a full bathroom. Also available with 2x4 exterior walls. Please see plan no.580896 for crawlspace or slab foundation version and plan no.580928 for 2 bedroom version.

Specifications

Total 1024 sq ft

  • Main: 1024
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 32
  • Depth: 32

Roof

  • Max Ridge Height: 22'-9
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 8.00/12

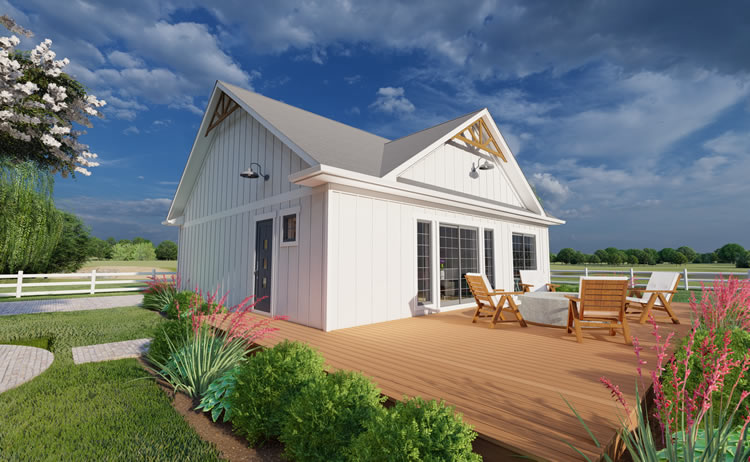

Full Rendering – westhomeplanners.com

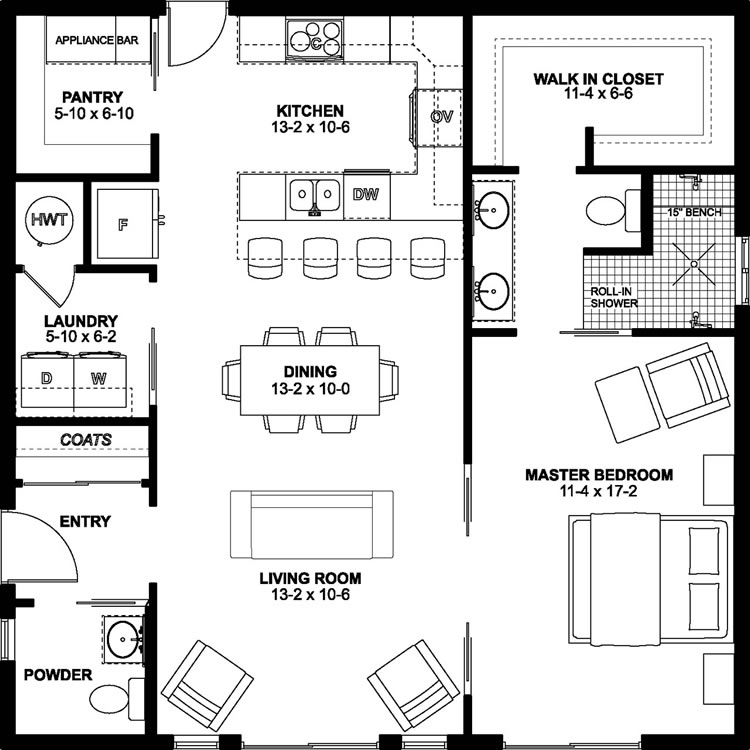

MAIN Plan – westhomeplanners.com

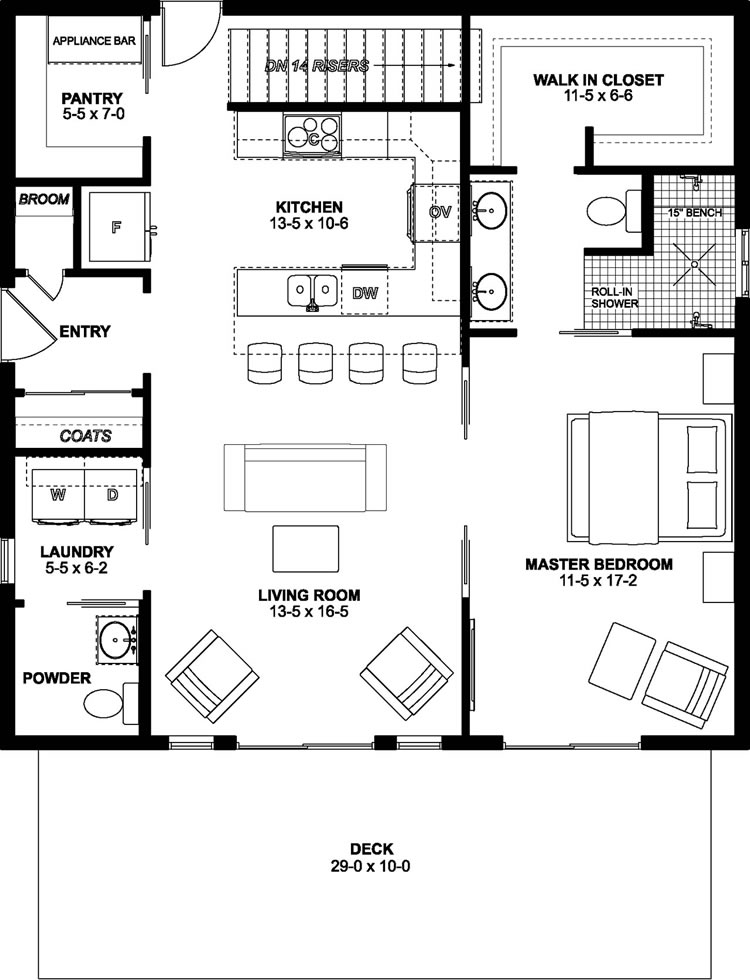

Alternate Master Bathroom – westhomeplanners.com

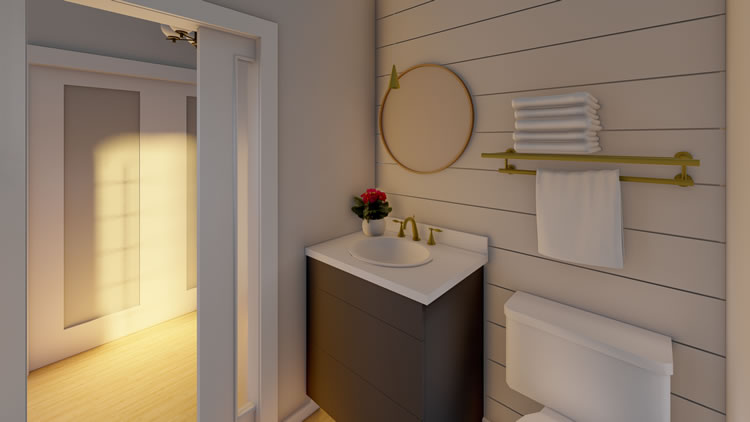

Powder Room – westhomeplanners.com
Master Bedroom – westhomeplanners.com

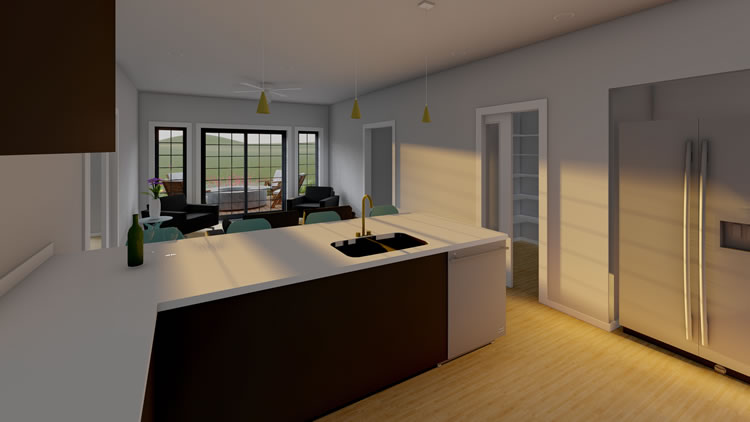

Kitchen to Pantry – westhomeplanners.com
Master Bedroom Sitting Ar – westhomeplanners.com
Laundry Room – westhomeplanners.com

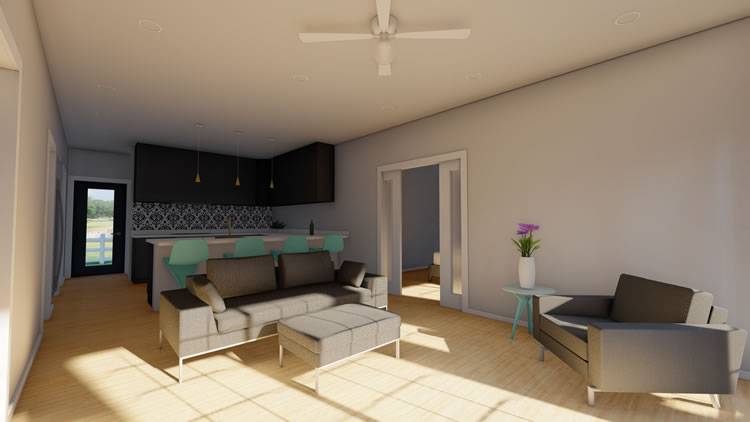

Living Room – westhomeplanners.com
Master Bathroom – westhomeplanners.com
Living Room to Entry – westhomeplanners.com
Living Room to Bedroom – westhomeplanners.com

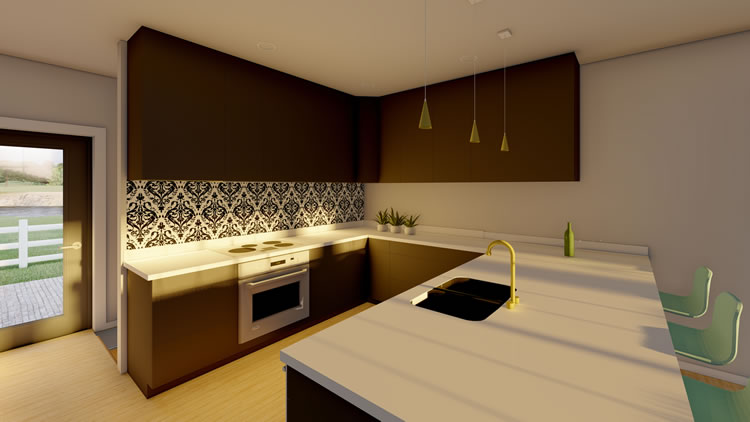

Kitchen – westhomeplanners.com

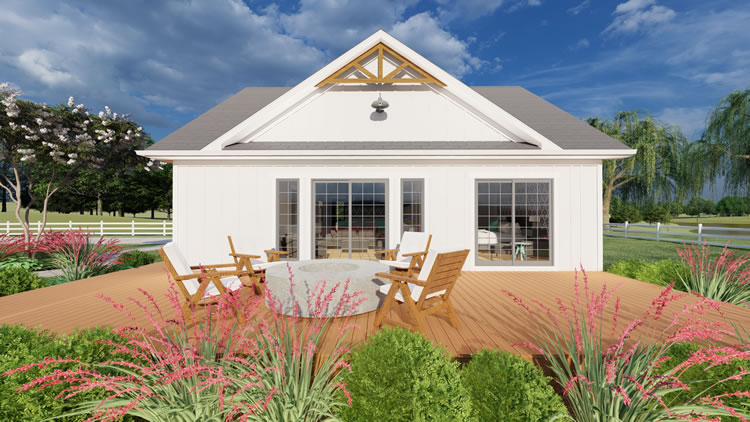

RIGHT Elevation – westhomeplanners.com
