Plan No.580928

Compact Design with Full Sized Amenities

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats up to four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the home create a spacious and open feeling. The pocket doors leading into the master suite and guest room can either be closed for privacy or can provide a large 5' wide opening. The modern walk-in shower in the master suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a dual vanity and a large walk-in closet. This design also features a covered front porch, double garage, mudroom/laundry room and a full bath for guests. Also available with 2x4 exterior walls.

Specifications

Total 928 sq ft

  • Main: 928
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 492

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'-0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'-0

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 58'-0
  • Depth: 32'-0

Roof

  • Max Ridge Height: 19'9
  • Primary Pitch: 8.00/12
  • Secondary Pitch: 8.00/12
Full Rendering – westhomeplanners.com

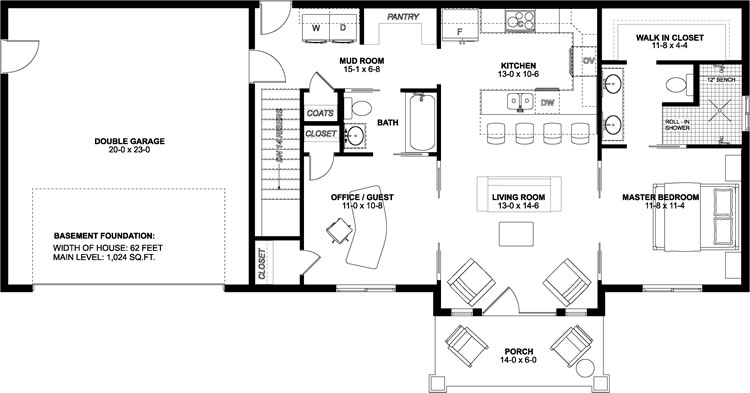

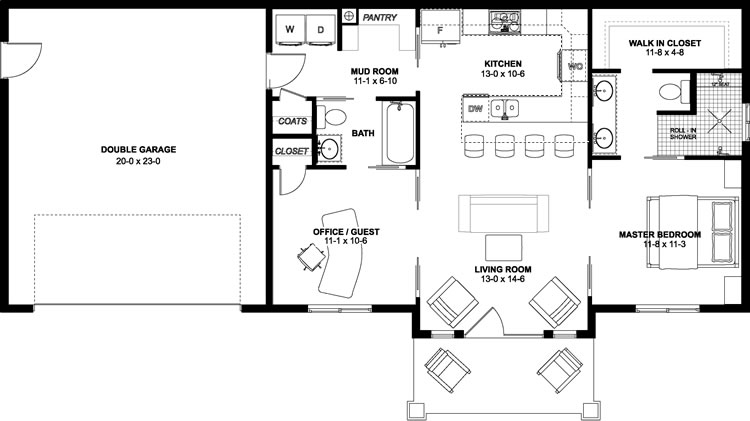

MAIN Plan – westhomeplanners.com

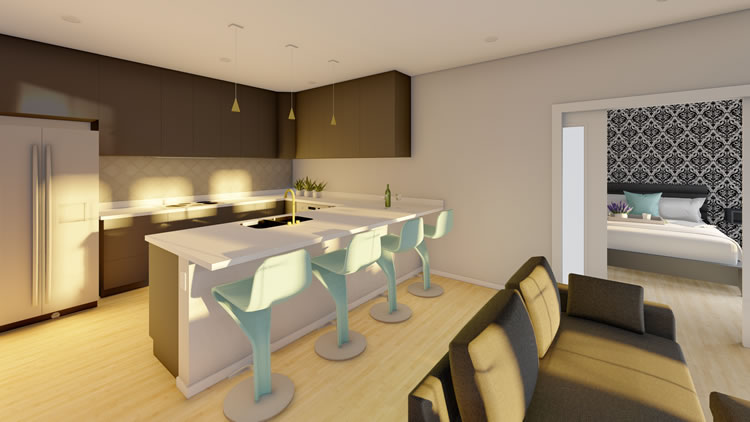

Living Room to Kitchen – westhomeplanners.com

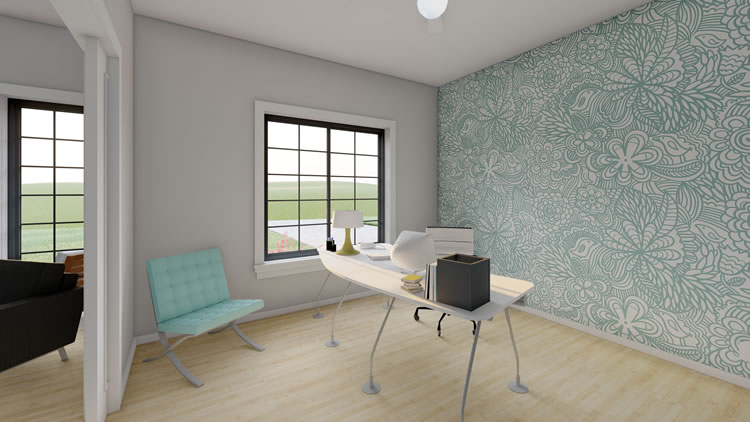

Guest Room / Office – westhomeplanners.com
Living Room to Master – westhomeplanners.com
Office to Master – westhomeplanners.com

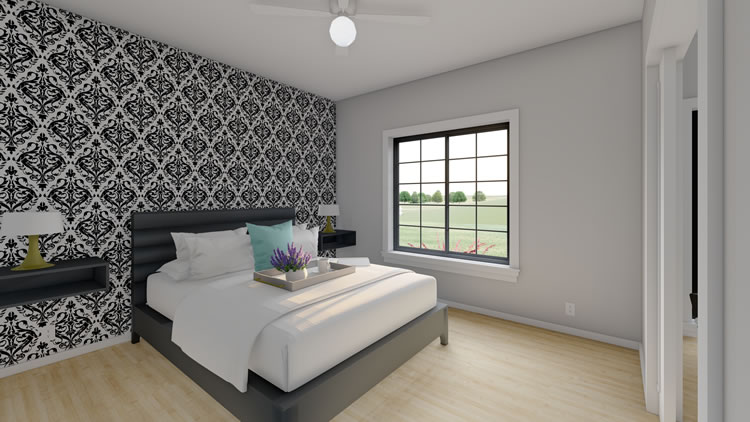

Master Bedroom – westhomeplanners.com
Guest Bath – westhomeplanners.com
Master Bath – westhomeplanners.com
Laundry / Pantry – westhomeplanners.com

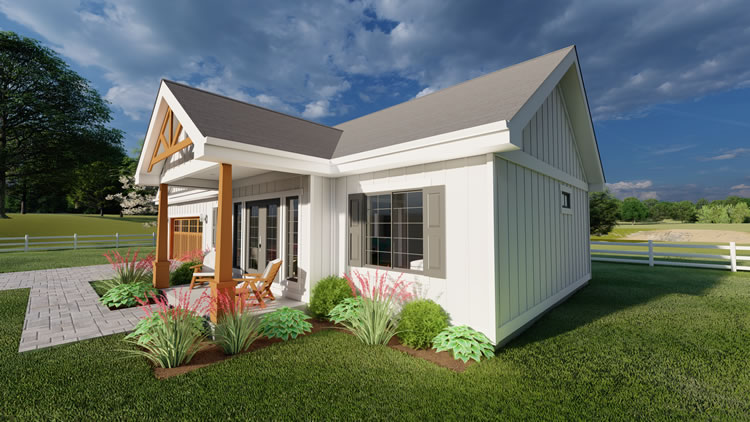

Right Elevation – westhomeplanners.com

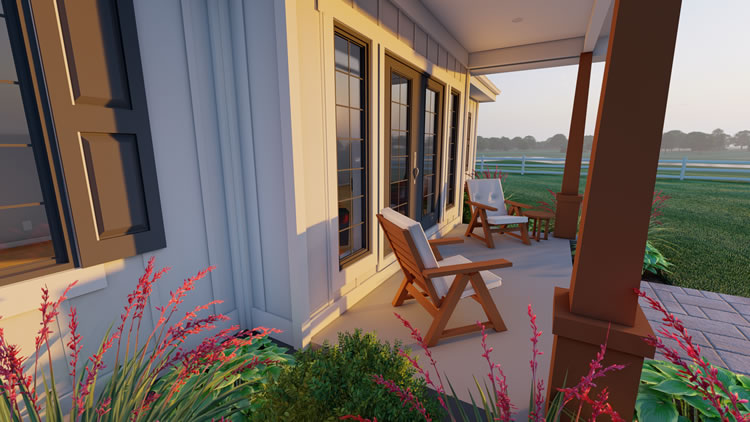

Front Porch – westhomeplanners.com
Front Elevation – westhomeplanners.com
