Plan No.862081

Split Bedroom Beauty

This split bedroom plan offers tall ceilings throughout main living area and the Master Wing. Optional upgrades include fireplace and built-ins at the Great Room, and marble perfume ledges, plant ledges, and glass wall at shower. Plan is ideal for lots with a view to the rear. To change from block walls to 2 x 6 or 2 x 4, 2 x 4 walls to 2 x 6, or frame walls to block walls, call for a quote.

Specifications

Total 1802 sq ft

  • Main: 1802
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 612

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 54'0
  • Depth: 67'2

Roof

  • Max Ridge Height: 23'10
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12

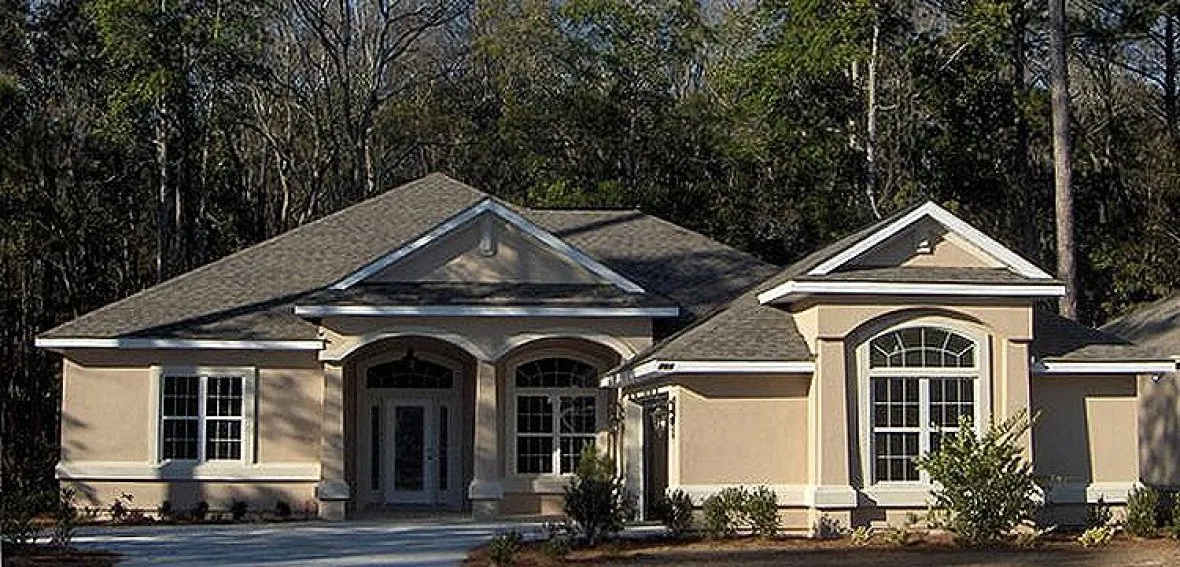

Full Rendering – westhomeplanners.com

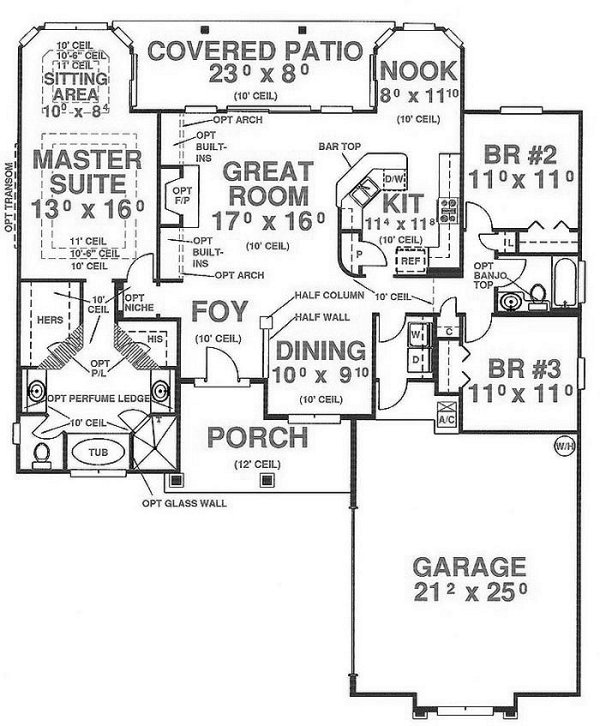

MAIN Plan – westhomeplanners.com
Artist's Rendering – westhomeplanners.com

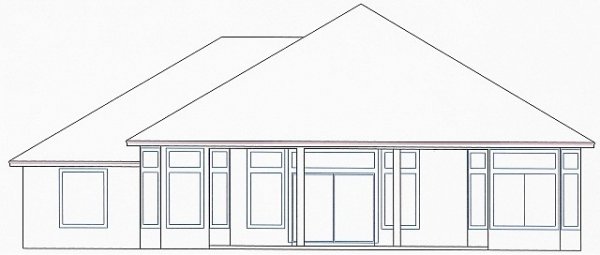

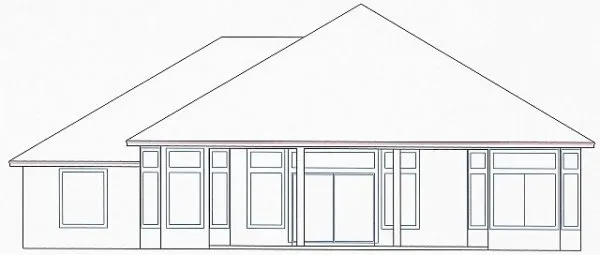

REAR Elevation – westhomeplanners.com

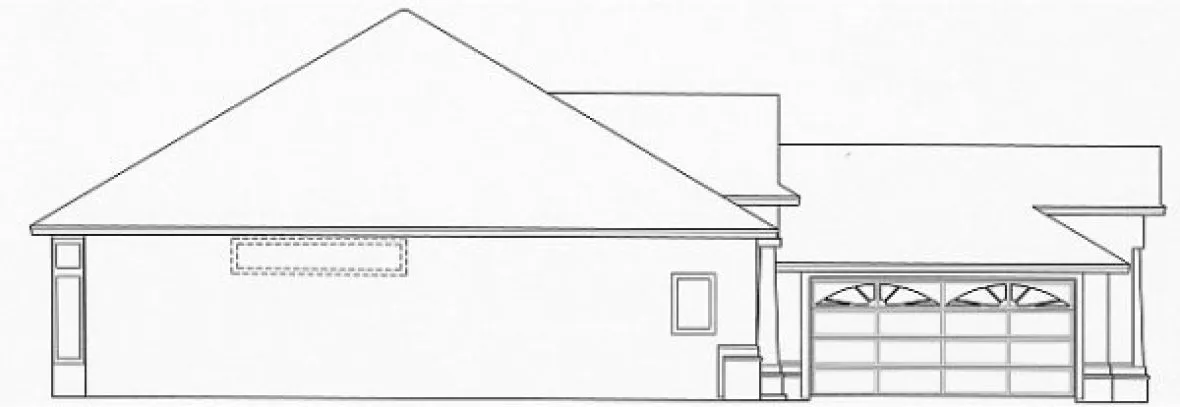

LEFT Elevation – westhomeplanners.com

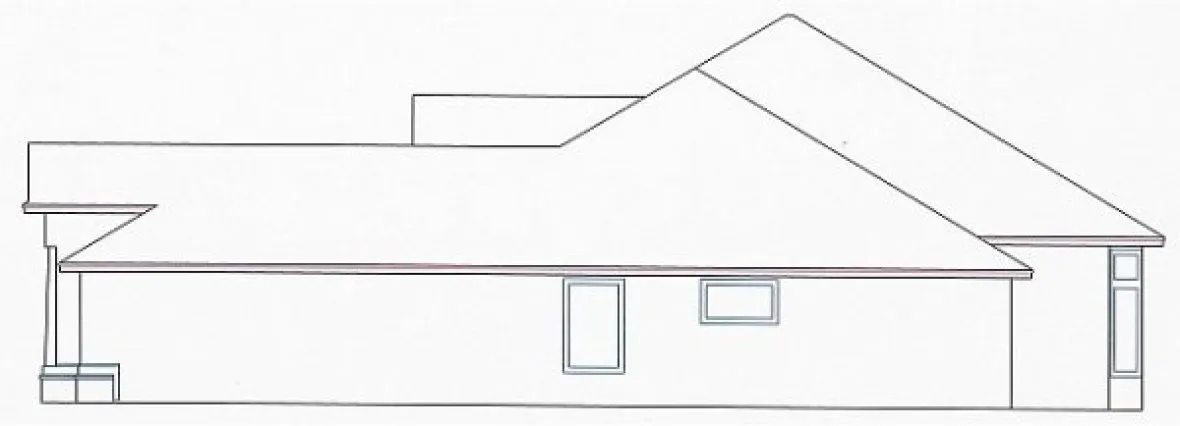

RIGHT Elevation – westhomeplanners.com
