Plan No.521941

Enchanting A-Frame

In the northern woods or on the southern coast---this enchanting A-frame will be the perfect retreat. Whether called upon to serve as a ski lodge or a summer haven, you will find great livability in its simple design. The first floor has a living and dining area and a corner kitchen. A private bedroom and a full bath round out this floor. The second level is devoted to a spacious loft that looks out not only over the living room, but through the picture windows and beautiful views beyond.

Specifications

Total 810 sq ft Rooms Ceiling Height Details Footprint
Main: 576   Bedrooms: 1   Main: 8'0   Max. Ridge Height: 22'0 (Main Fl to Peak)   Width: 24'0
Second: 234   Baths: 1   Second: 8'0   Primary Roof Pitch: 12.00/12   Depth: 24'0
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x4
Loft/Bonus:

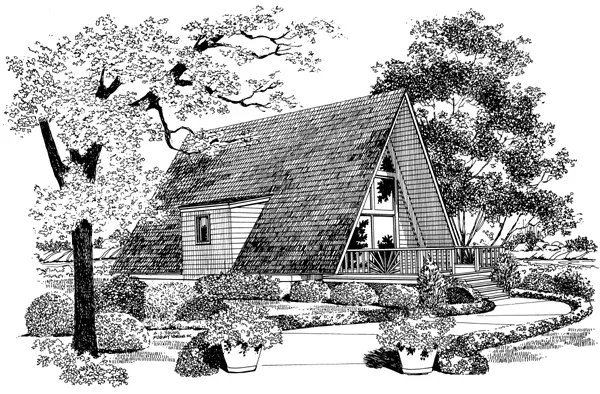

  Full Rendering

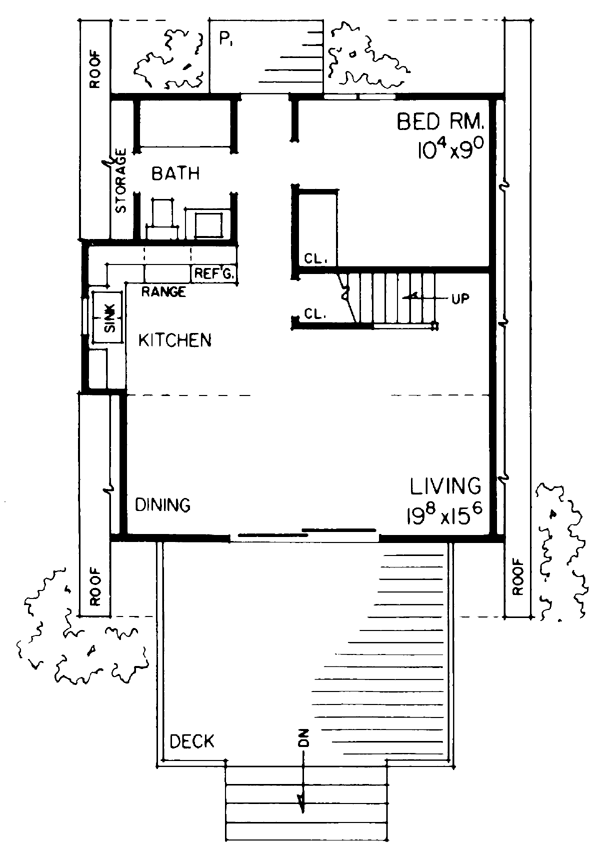

  MAIN Plan

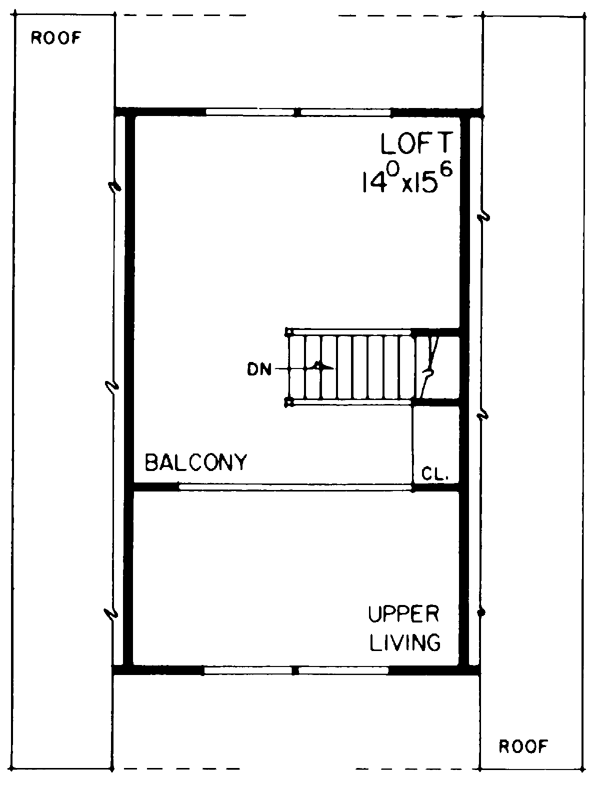

  SECOND Plan

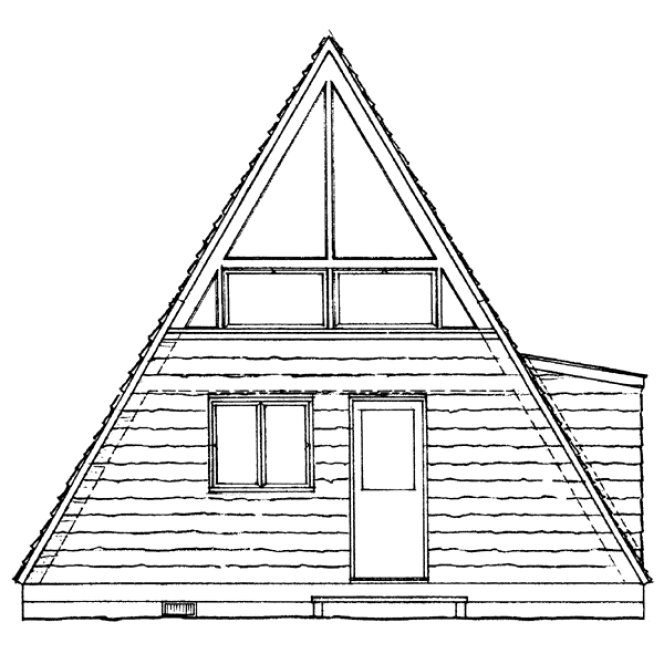

  REAR Elevation
