Plan No.417022

Garage Apartment

This single level garage apartment is ideal for a vacation home, guest quarters or an in-law suite. The breakfast/sitting area provides a cozy place to relax. The laundry area is conveniently located near the kitchen.


Total 665 sq ft Rooms Ceiling Height Details Footprint
Main: 665   Bedrooms: 1   Main: 8'0   Max. Ridge Height: 17'0 ()   Width: 40'0
Second:   Baths: 1   Second:   Primary Roof Pitch: 6.00/12   Depth: 36'0
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: 8.00/12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x4
  Full Rendering

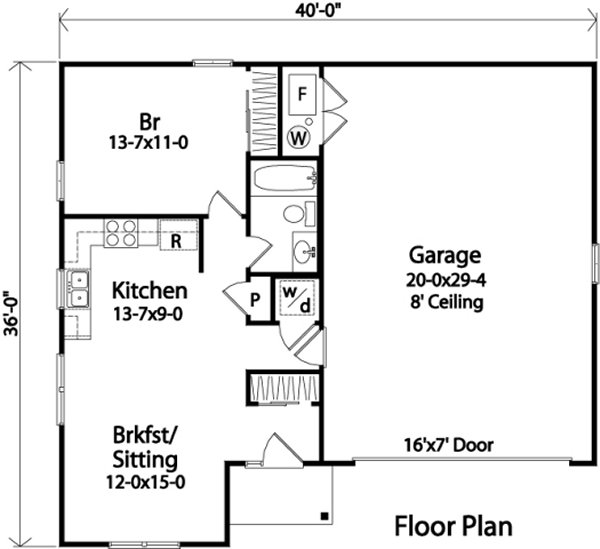

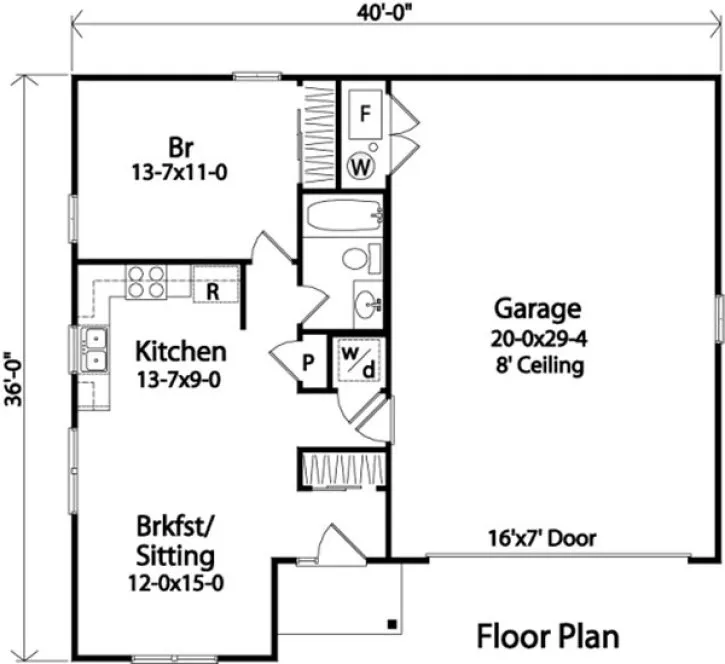

  MAIN Plan

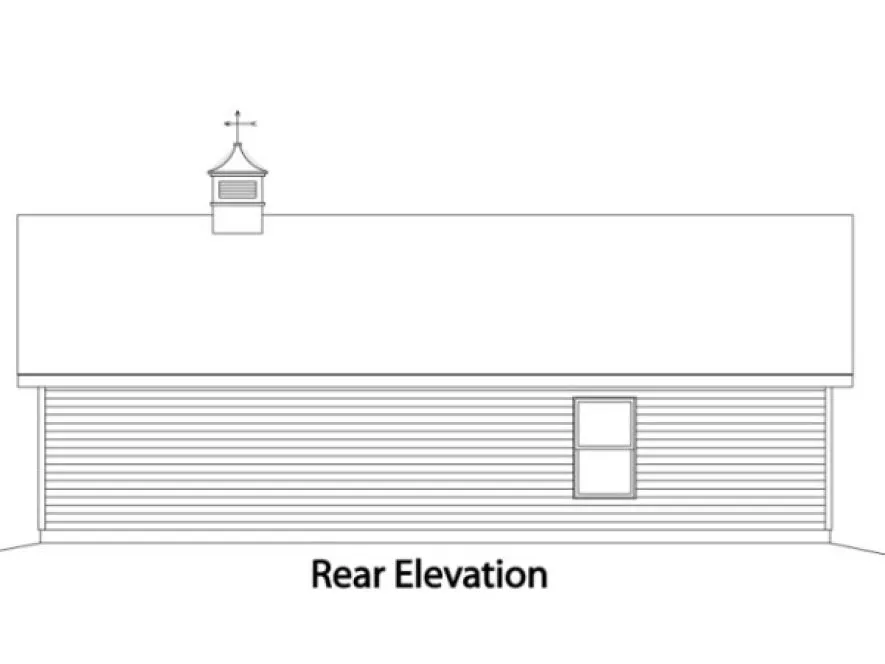

  REAR Elevation

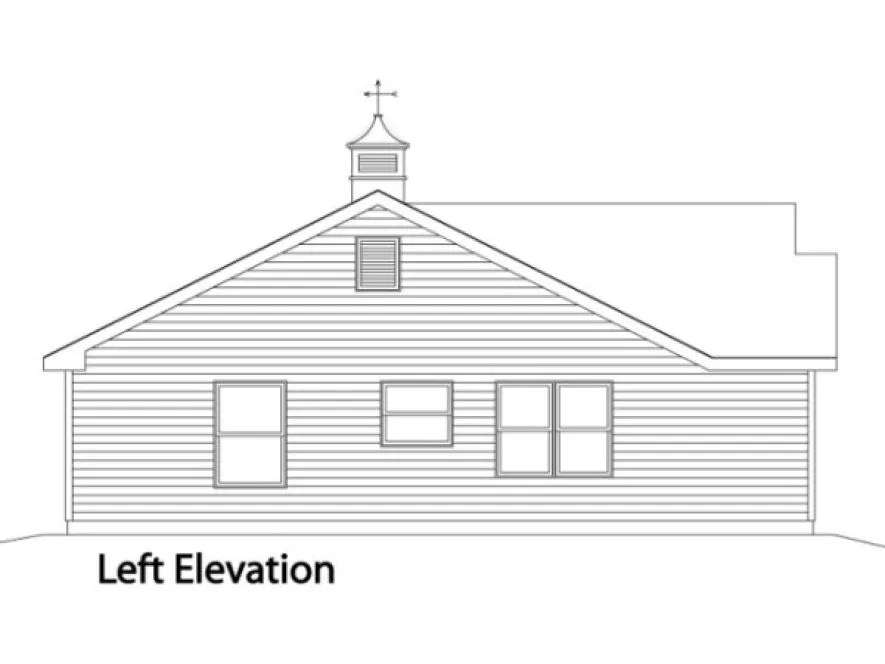

  LEFT Elevation

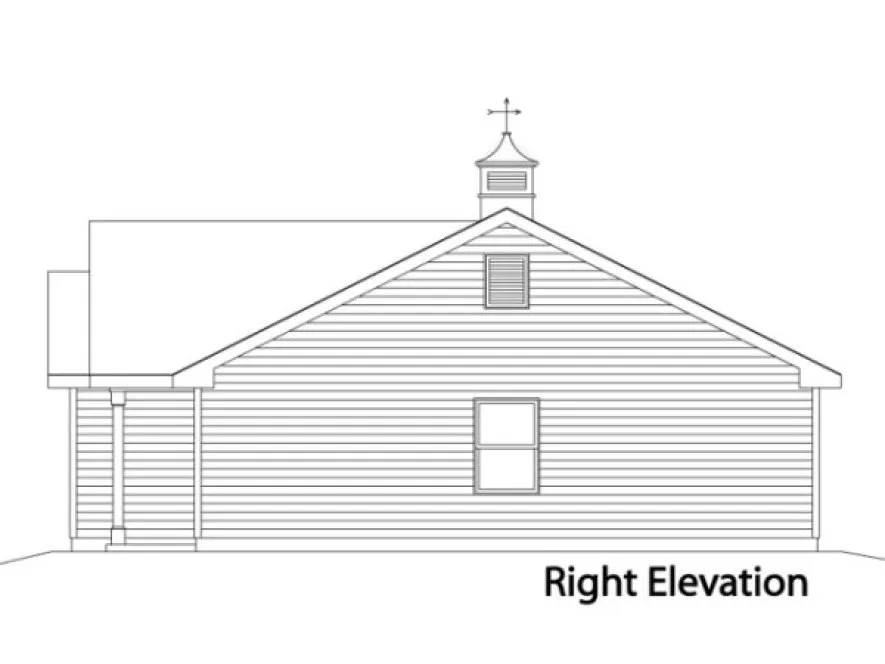

  RIGHT Elevation
