Plan No.750552

Additional Information: Carport = 635 sq. ft., Covered Deck = 1316 sq. ft. and Covered Patio = 1315 sq. ft. Main Floor area combined living and garage/storage = 2441 sq. ft.

Specifications

Total 2550 sq ft

  • Main: 486
  • Second: 2064
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 3521

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 12'0
  • Second: 9'0+
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 12'0

Details

  • Exterior Walls: 2x6
  • Garage Type: 4 Car Garage
  • Width: 58'11
  • Depth: 106'0

Roof

  • Max Ridge Height: 38'11
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 3/12

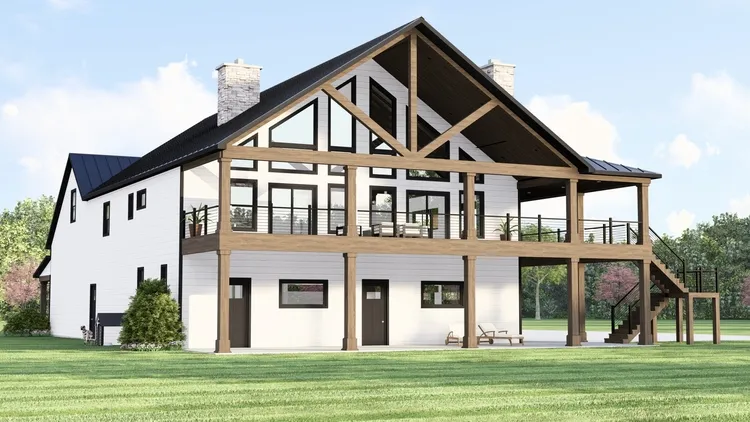

Full Rendering – westhomeplanners.com

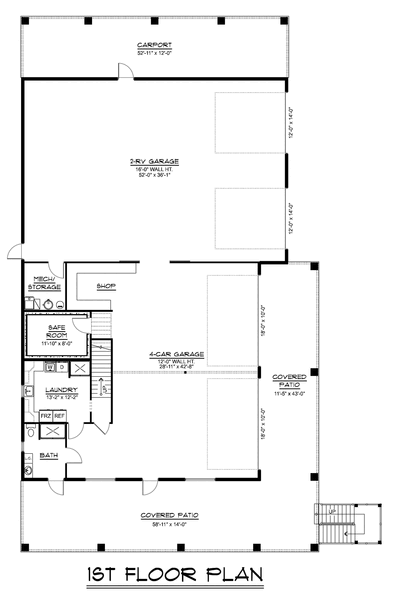

MAIN Plan – westhomeplanners.com

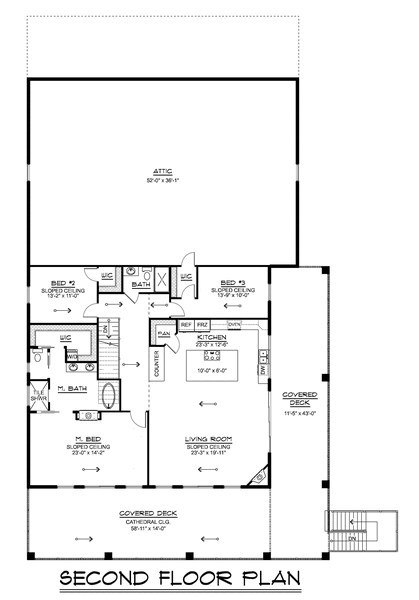

SECOND Plan – westhomeplanners.com

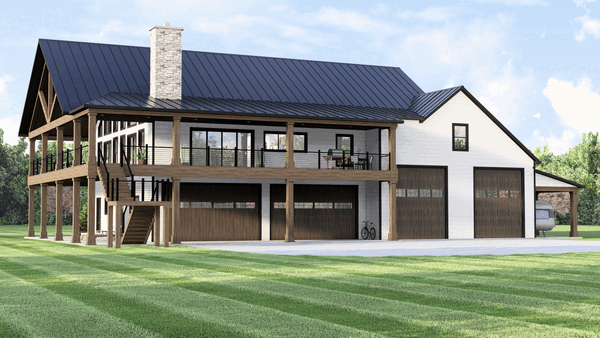

Front & Right – westhomeplanners.com

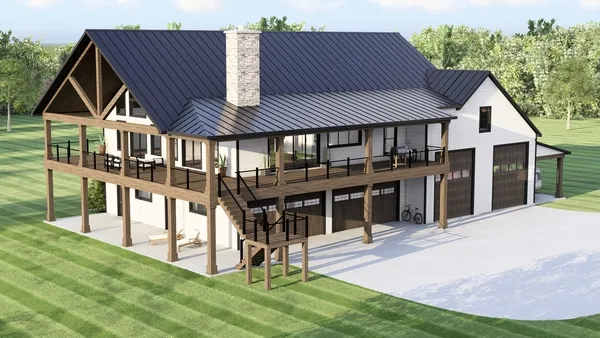

Aerial View – westhomeplanners.com
Aerial View – westhomeplanners.com

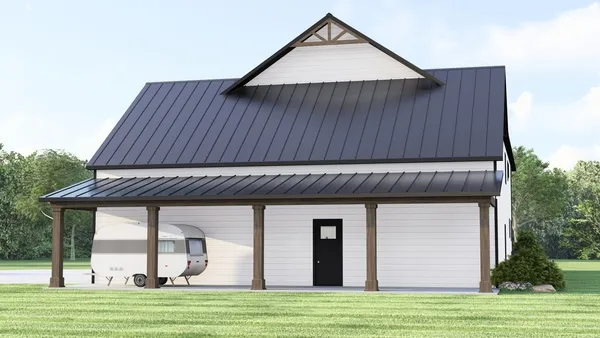

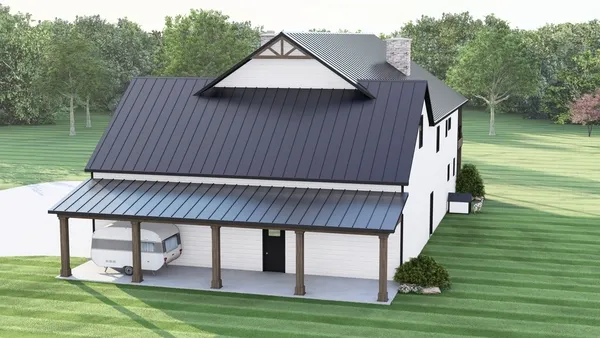

Rear & Carport – westhomeplanners.com
Right & Rear – westhomeplanners.com
Front & Right – westhomeplanners.com
Bedroom 2 – westhomeplanners.com
Bedroom 3 – westhomeplanners.com

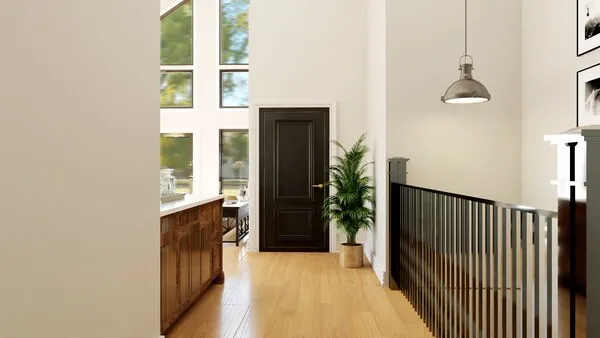

Entry – westhomeplanners.com
Kitchen Island – westhomeplanners.com
Kitchen to CoveredDeck – westhomeplanners.com

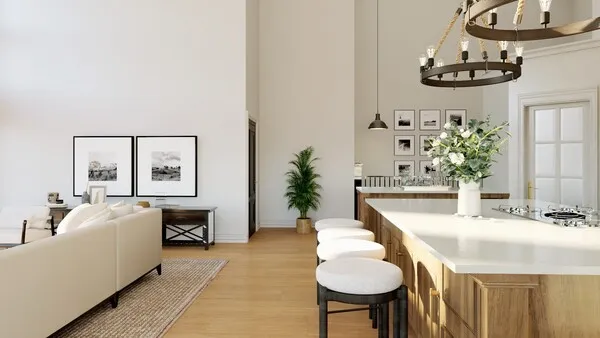

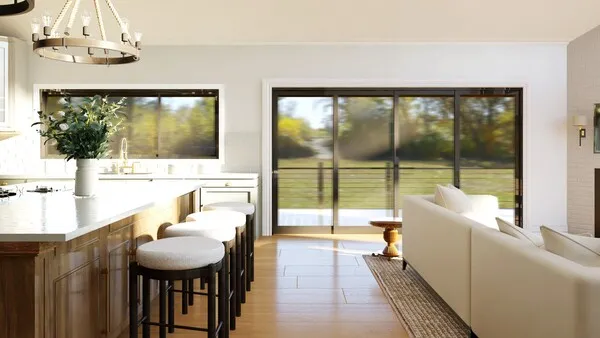

Kitchen to Living – westhomeplanners.com
Kitchen – westhomeplanners.com

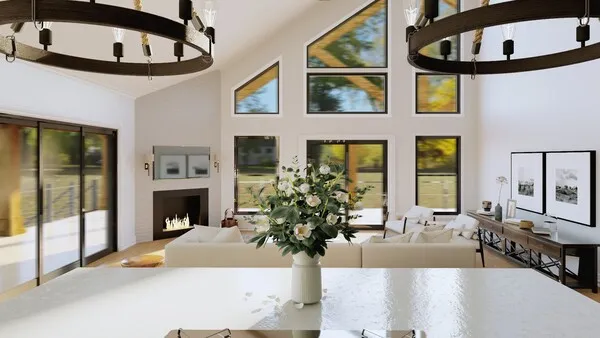

Living – westhomeplanners.com

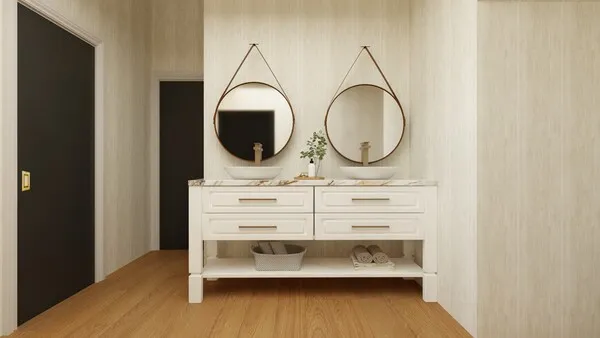

Master Bath – westhomeplanners.com
Master Bath – westhomeplanners.com

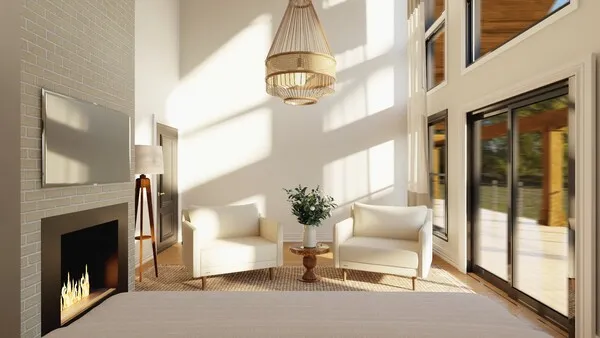

Master Bdrm Fireplace – westhomeplanners.com
Master Bdrm Sitting – westhomeplanners.com

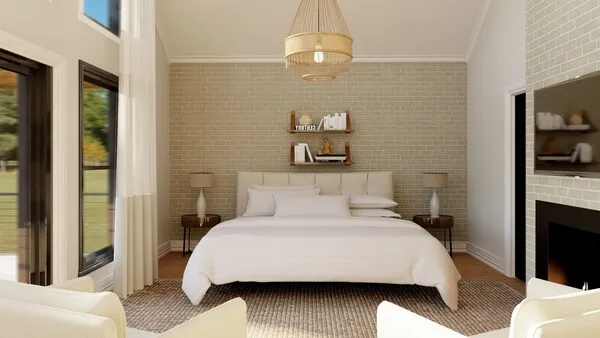

Master Bedroom – westhomeplanners.com
