Plan No.752923

Specifications

Total 3292 sq ft

  • Main: 1386
  • Second: 1906
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 605

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0+
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 46'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 31'11
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 10/12

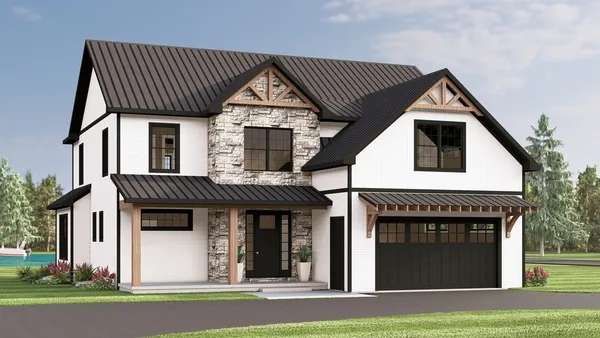

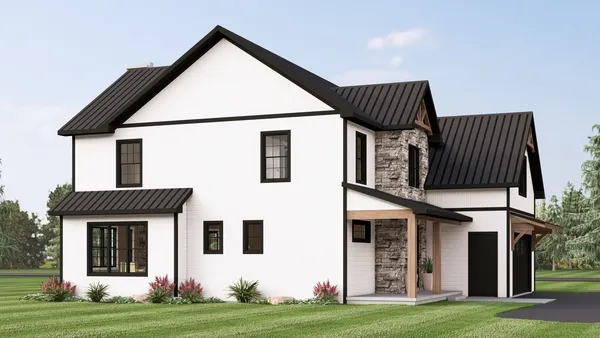

Full Rendering – westhomeplanners.com

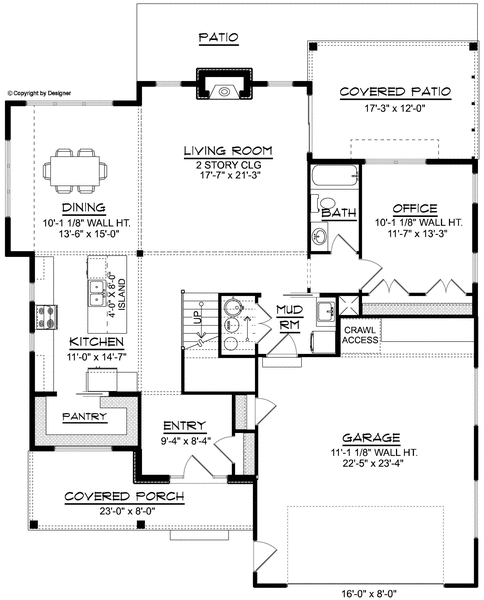

MAIN Plan – westhomeplanners.com

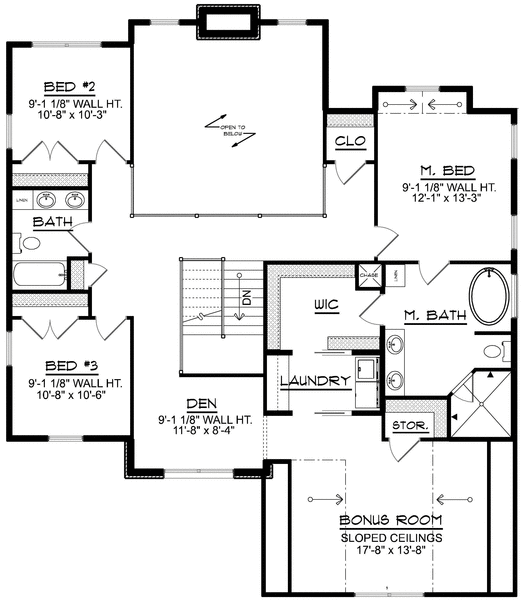

SECOND Plan – westhomeplanners.com

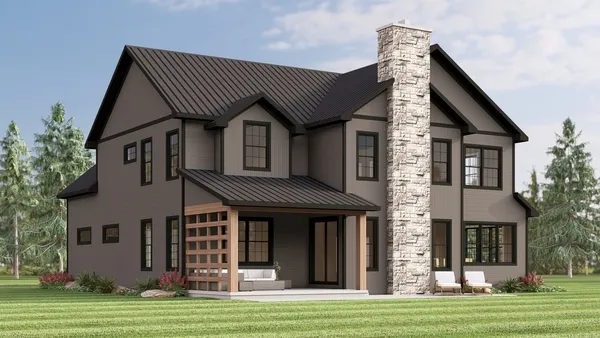

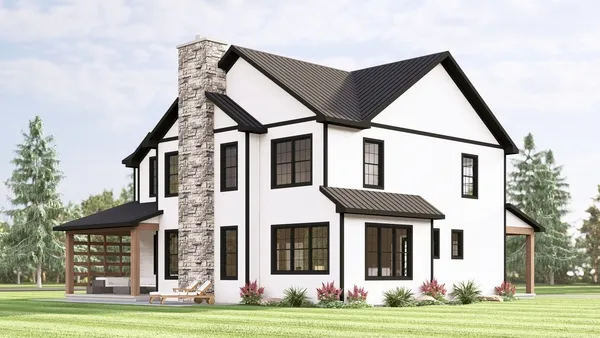

Rear & Left – westhomeplanners.com

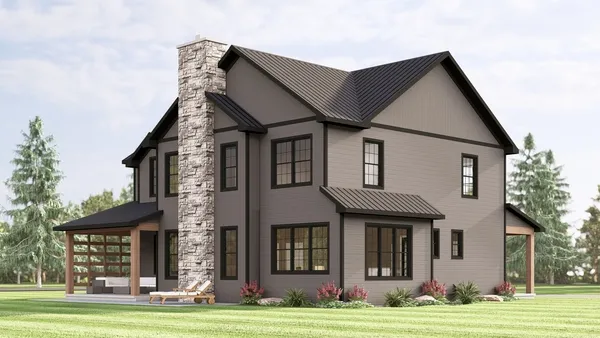

Right & Rear – westhomeplanners.com
Right – westhomeplanners.com

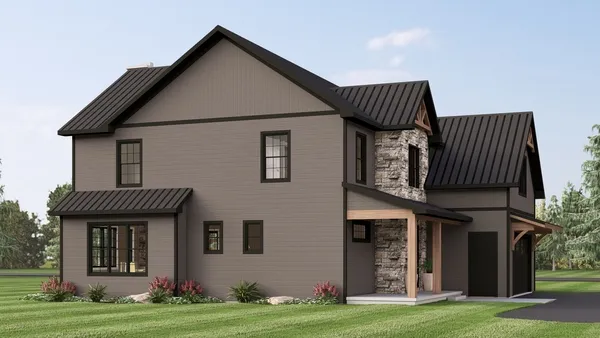

Front Alt. Exterior Finish – westhomeplanners.com

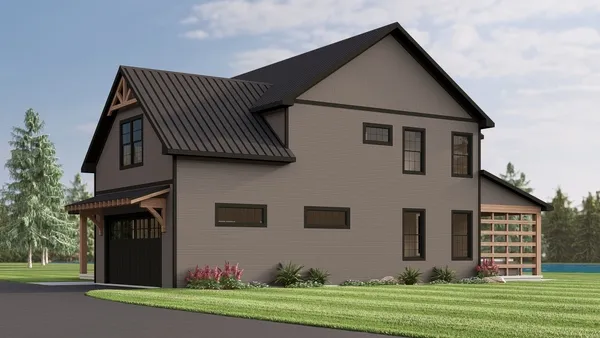

Left – westhomeplanners.com
Rear & Left – westhomeplanners.com
Right & Rear – westhomeplanners.com
Front & Right – westhomeplanners.com
Left – westhomeplanners.com
Master Bedroom – westhomeplanners.com

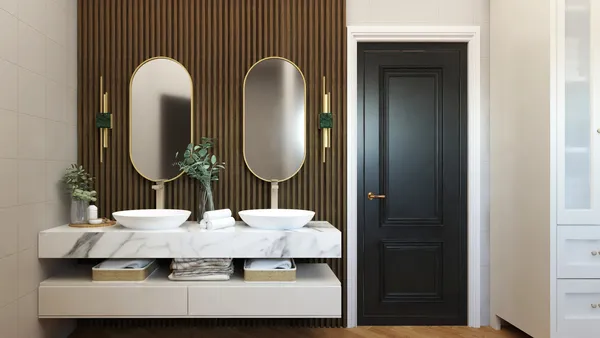

Master Bath – westhomeplanners.com
Master Bath – westhomeplanners.com

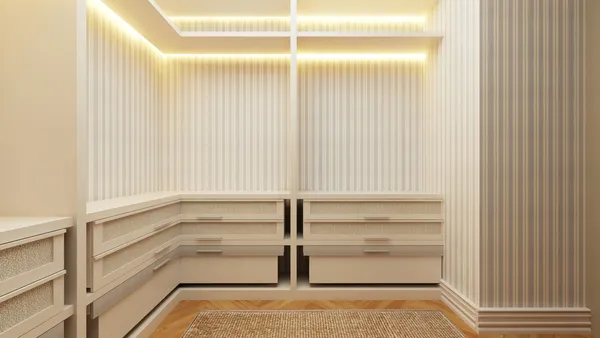

Master Walk-in Closet – westhomeplanners.com
Master Walk-in closet – westhomeplanners.com
Upstairs Balcony Hallway – westhomeplanners.com
Kitchen & Entry – westhomeplanners.com

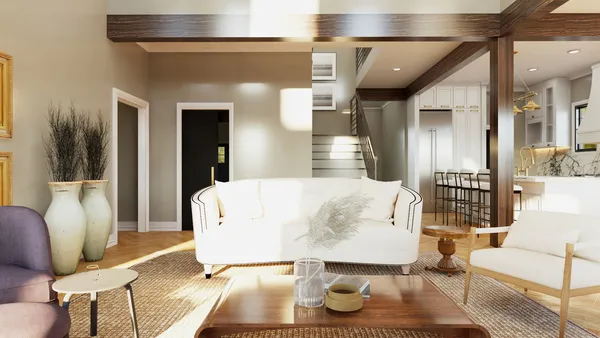

Living – westhomeplanners.com
Living to Dining – westhomeplanners.com
Kitchen & Dining – westhomeplanners.com

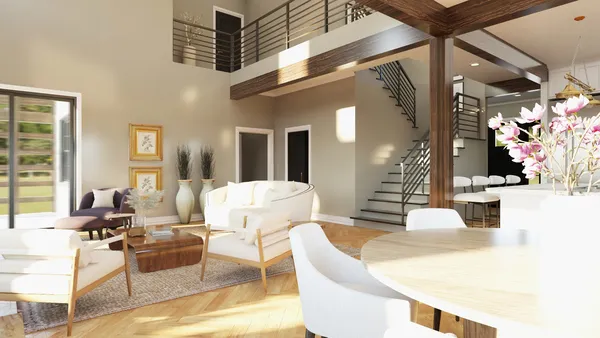

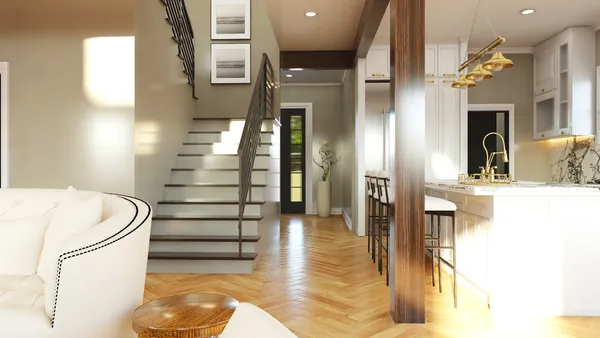

Living & Staircase – westhomeplanners.com

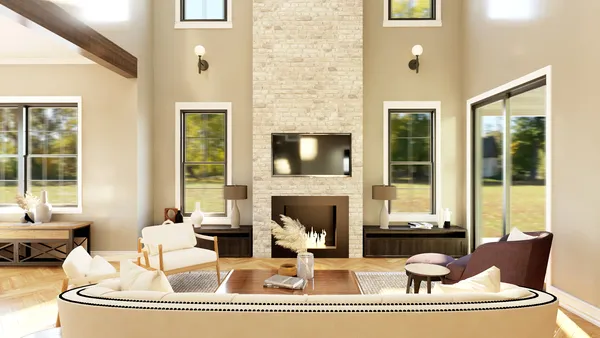

Two-storey High Living – westhomeplanners.com

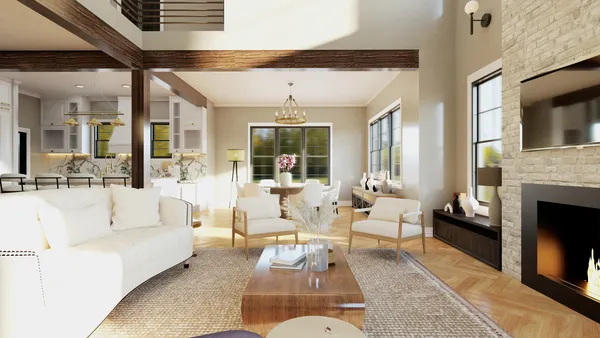

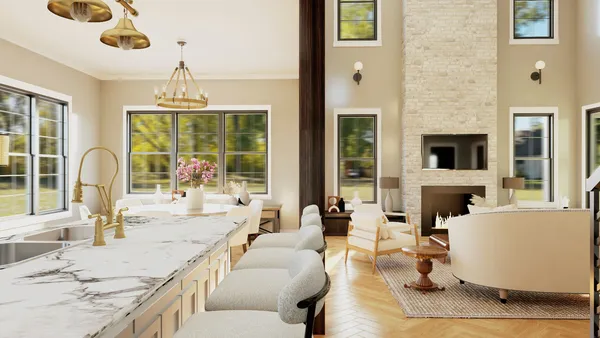

Kitchen, Dining & Living – westhomeplanners.com
Master Bedroom – westhomeplanners.com
