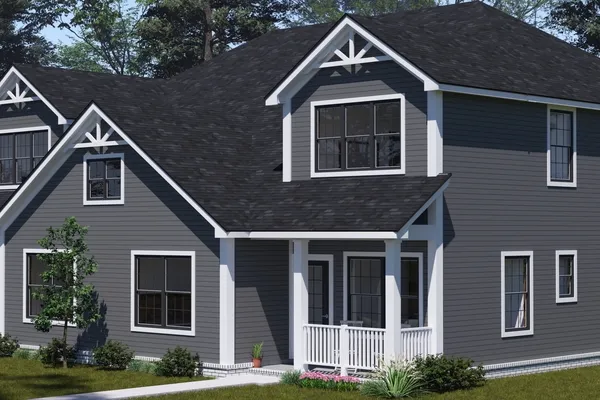

Great Family Duplex

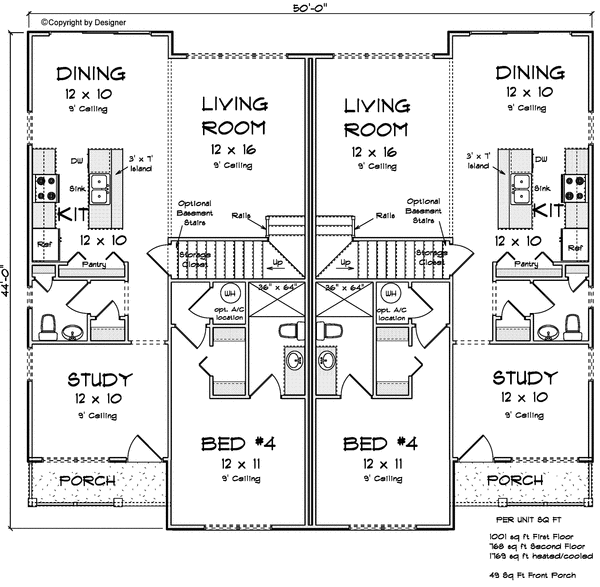

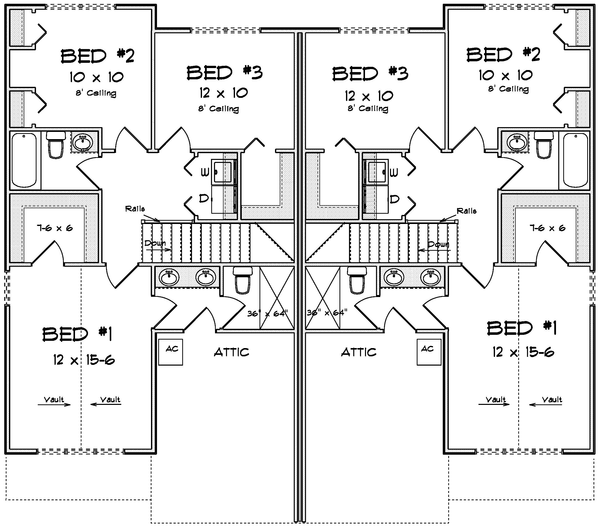

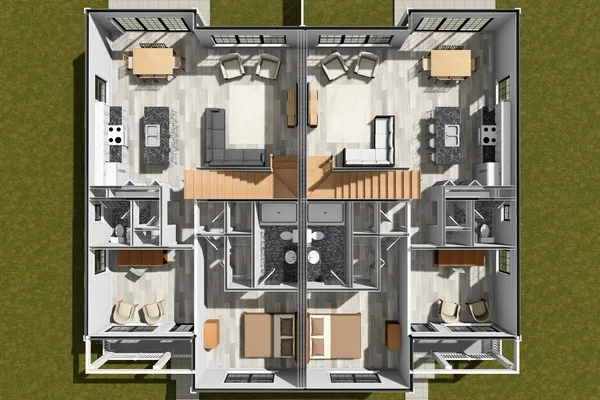

All plans have the following as a part of every plan; Slab foundation is standard (crawl space and basement foundations are available for an additional fee of $195.00 each), 2 x 4 stud construction exterior walls standard (2x6 option $195.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans files are emailed to the customer in PDF or CAD (Softplan, DWG or DXF) format. All plans are Unlimited Build. ADDITIONAL INFORMATION: Master Closet – 7-6 x 6, Master Bath – 12 x 5-4, Bathroom 1 – 7-6 x 5, Bathroom 2 – 5 x 5, Bathroom 3 – 5 x 10, Pantry – 6’ x 1’, Kitchen Island – 3 x 7. Each Unit: Main Floor = 1001 sq. ft., Second Floor = 768 sq. ft., TOTAL SQ. FT. per unit = 1769 sq. ft.
Specifications
Total 3538 sq ft
- Main: 2002
- Second: 1536
- Third: 0
- Loft/Bonus: 0
- Basement: 0
- Garage: 0
Rooms
- Beds: 8
- Baths: 6
- 1/2 Bath: 2
- 3/4 Bath: 0
Ceiling Height
- Main:
- Second:
- Third:
- Loft/Bonus:
- Basement:
- Garage:
Details
- Exterior Walls: 2x4
- Garage Type: none
- Width: 50'0
- Depth: 44'0
Roof
- Max Ridge Height: 27'4
- Comments: (Main Floor to Peak)
- Primary Pitch: 8/12
- Secondary Pitch: 8/12
