Plan No.804292

Beautiful Modern Duplex

This beautiful Duplex blends Contemporary and Modern Styles with a Traditional look. An open floor plan greets you from the Foyer as well as Garage access through the Laundry Room. The Kitchen includes a huge Island with Eating Bar and a Pantry closet, and is located between the Great Room and Dining Room. The Patio off of the Dining Room offers Outdoor Living with privacy. Entering off the Garage lies a Laundry and Powder Room and leads directly into the Kitchen. Upstairs, the Master includes a full Bathroom with a tub/shower and a Walk-In Closet. Two additional Bedrooms and a full Bathroom are located for optimal privacy. SPECIFICATIONS PER UNIT: Main Floor = 740 sq. ft., Second Floor = 722 sq. ft., Total finished = 1462 sq. ft., 1 Car Garage per unit = 261 sq. ft. Each unit has 3 Bedrooms, 2 Bathrooms and 1 Half Bath. ADDITIONAL ROOM SIZES: Front Porch: 8/0x6/0, Foyer: 6/4x5/6, Pantry: 2/0x3/2, Powder: 6/1x5/8, Laundry: 6/1x7/7, Master Bath: 7/6x8/2, Master Walk-in Closet: 4/2x8/2, Hall Bath: 8/9x5/0.

Specifications

Total 2924 sq ft

  • Main: 1480
  • Second: 1444
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 522

Rooms

  • Beds: 6
  • Baths: 4
  • 1/2 Bath: 2
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'6

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 40'0
  • Depth: 65'0

Roof

  • Max Ridge Height: 25'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 4/12
  • Secondary Pitch: 0/12

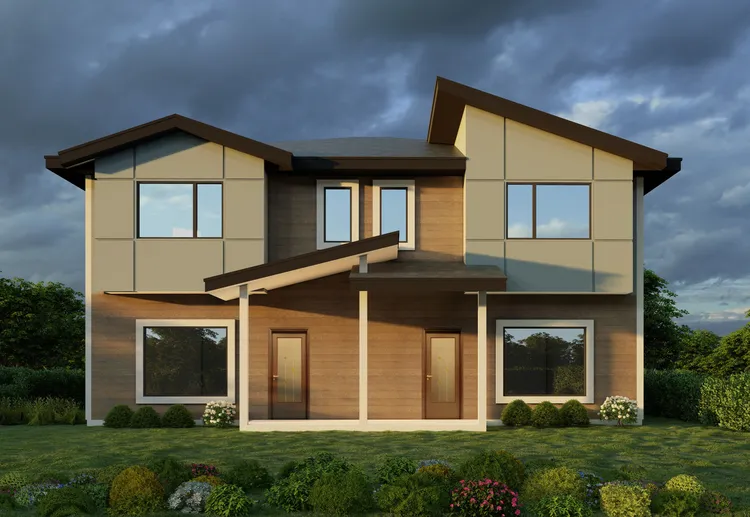

Full Rendering – westhomeplanners.com

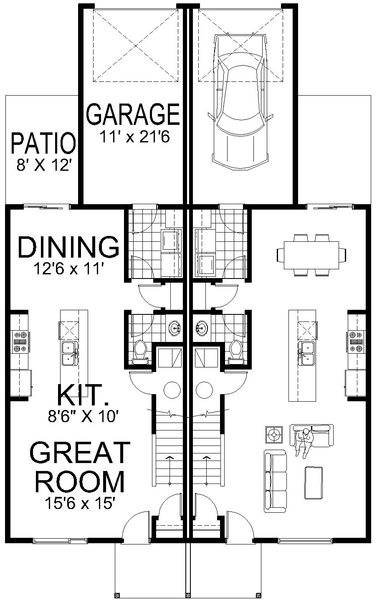

MAIN Plan – westhomeplanners.com

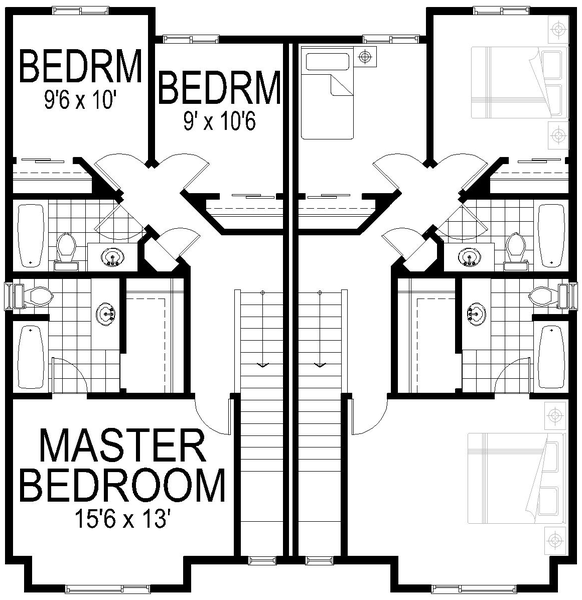

SECOND Plan – westhomeplanners.com

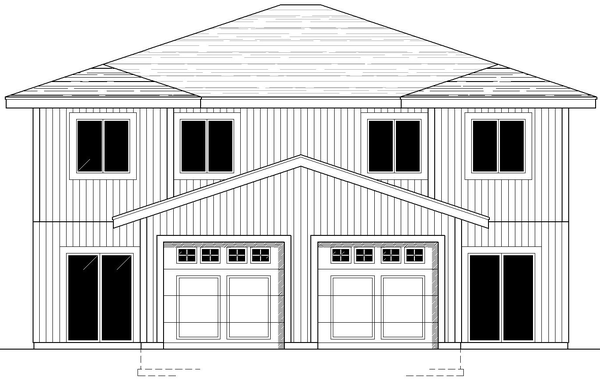

REAR Elevation – westhomeplanners.com
