Plan No.698122

Total Living Area may increase with Basement Foundation option. Single Build License issued on CAD File orders. Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Specifications

Total 2218 sq ft

  • Main: 1810
  • Second: 0
  • Third: 0
  • Loft/Bonus: 408
  • Basement: 0
  • Garage: 620

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 85'9
  • Depth: 52'0

Roof

  • Max Ridge Height: 22'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

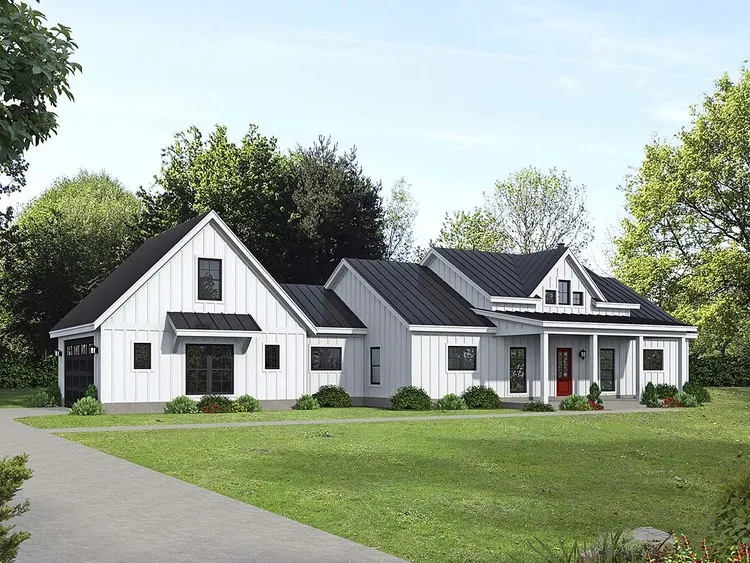

Full Rendering for House Plan #698122
 – westhomeplanners.com

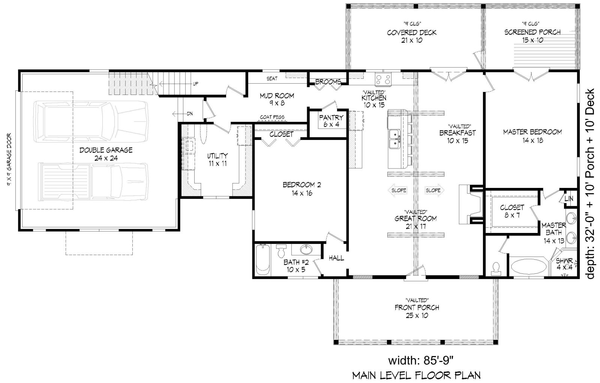

Main Floor Plan for House Plan #698122
 – westhomeplanners.com

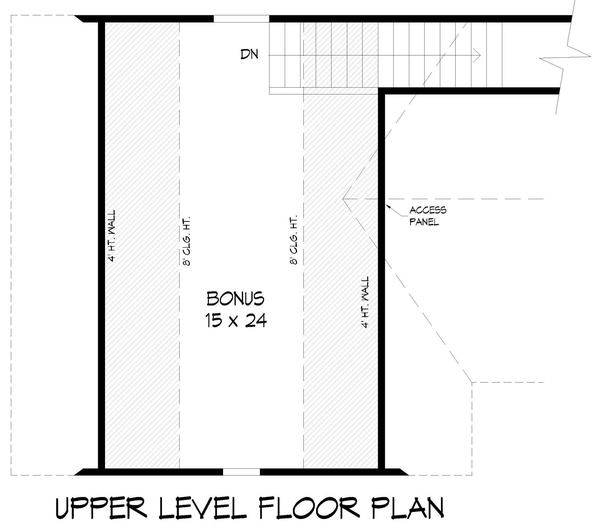

Attic Plan for House Plan #698122
 – westhomeplanners.com

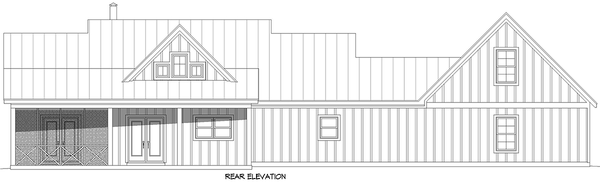

Rear Elevation for House Plan #698122
 – westhomeplanners.com

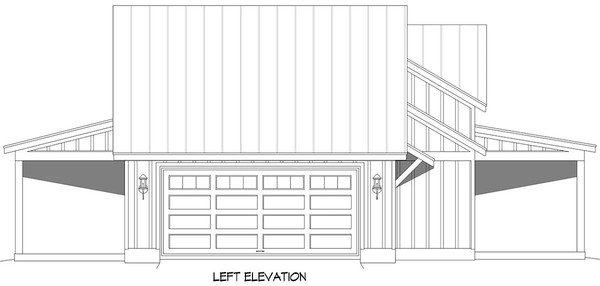

Left Elevation for House Plan #698122
 – westhomeplanners.com

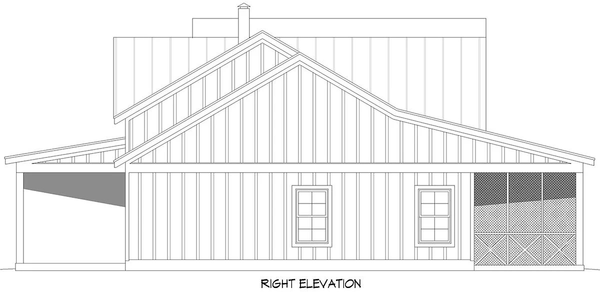

Right Elevation for House Plan #698122
FRONT Elevation – westhomeplanners.com
Other for House Plan #698122
