Plan No.433261

Split Layout for Privacy

The open Kitchen/Dining and Great Room are the heart of this house plan, offering a spacious and inviting area for entertaining everyone. Whether a family dinner or a gathering with friends, this space is perfect for creating lasting memories. The Kitchen has an island with a counter-high snack bar and lots of cabinets. French doors lead out onto the optional patio, to extend living space. The large Laundry Room is designed for functionality, with plenty of storage and a laundry sink. The Master Bedroom is large and contains a private bath and walk-in closet. The Master Bath has dual sinks, a tub/shower combo, and plenty of storage. Bedrooms 2, 3, and 4 share a compartment-style bath, so more than one person can get ready at the same time.

Specifications

Total 1623 sq ft

  • Main: 1623
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 528

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 70'0
  • Depth: 50'0

Roof

  • Max Ridge Height: 20'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

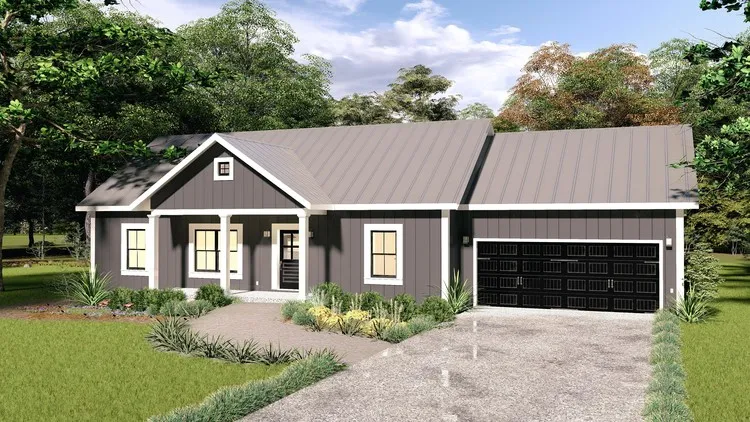

Full Rendering for House Plan #433261
 – westhomeplanners.com

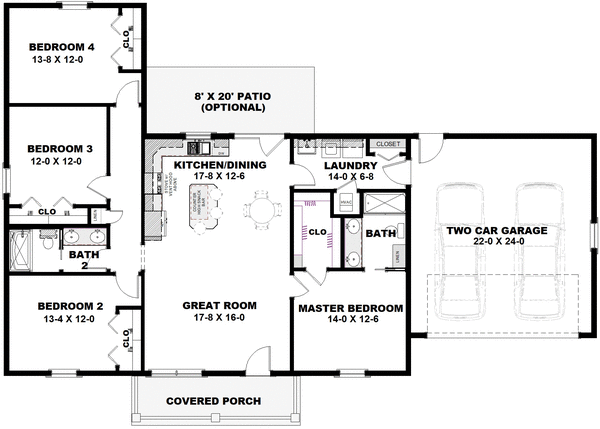

Main Floor Plan for House Plan #433261

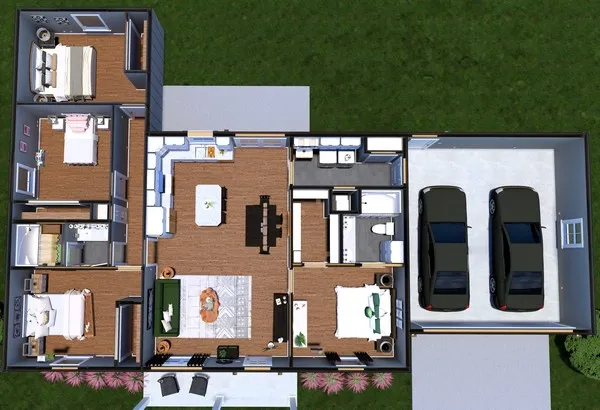

3D Floor Plan – westhomeplanners.com
ExteriorPhoto for House Plan #433261

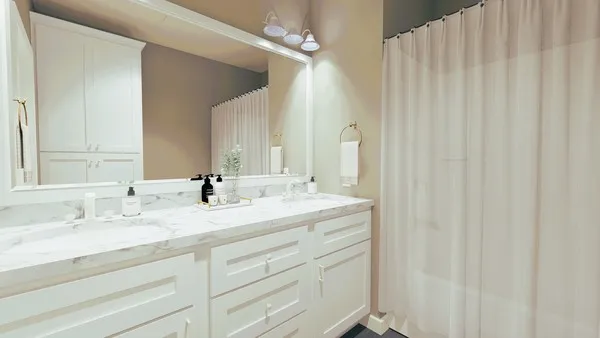

Master Bath – westhomeplanners.com
InteriorPhoto for House Plan #433261
Family Bath – westhomeplanners.com
InteriorPhoto for House Plan #433261
Bedroom 2 – westhomeplanners.com
InteriorPhoto for House Plan #433261
Bedroom 3 – westhomeplanners.com
InteriorPhoto for House Plan #433261
Bedroom 4 – westhomeplanners.com
InteriorPhoto for House Plan #433261
Great Room / Kit / Dining – westhomeplanners.com
InteriorPhoto for House Plan #433261
Great Room – westhomeplanners.com
InteriorPhoto for House Plan #433261
Laundry – westhomeplanners.com
InteriorPhoto for House Plan #433261
Master Bedroom – westhomeplanners.com
InteriorPhoto for House Plan #433261
 – westhomeplanners.com

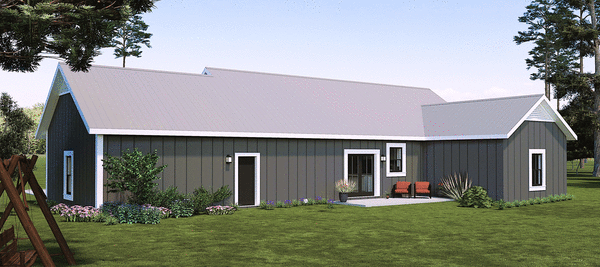

Rear Elevation for House Plan #433261
