Plan No.591131

799 SF Modern Garage Apartment Plan

This 799 SF modern black house plan offers a calming aesthetic and practical function. This plan features 9 foot ceilings, 2 beds each with generous closet, 1 bath and a double garage spannable with 16” deep joists.

Specifications

Total 1311 sq ft

  • Main: 145
  • Second: 654
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 512

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'0

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 32'0
  • Depth: 22'0

Roof

  • Max Ridge Height: 23'1
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 1/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

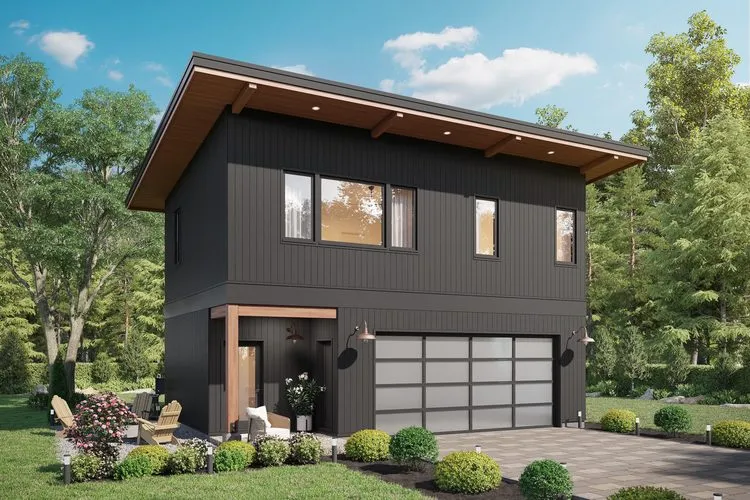

Full Rendering for House Plan #591131
 – westhomeplanners.com

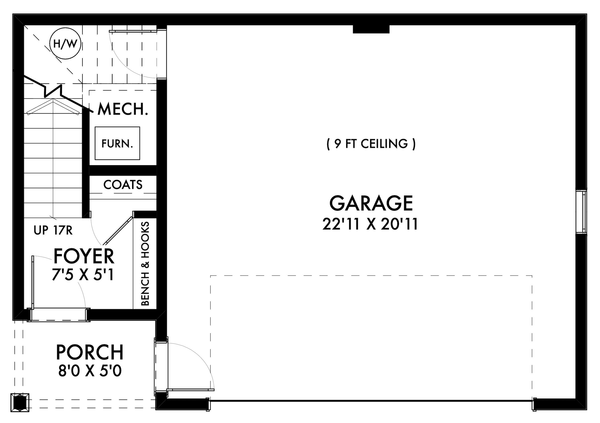

Main Floor Plan for House Plan #591131
 – westhomeplanners.com

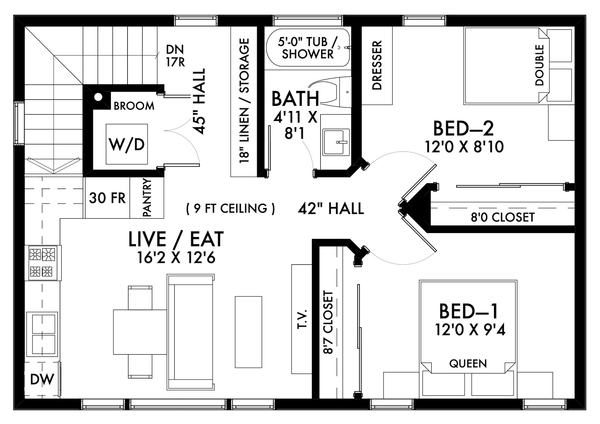

Second Floor Plan for House Plan #591131
Live / Eat – westhomeplanners.com
InteriorPhoto for House Plan #591131
 – westhomeplanners.com

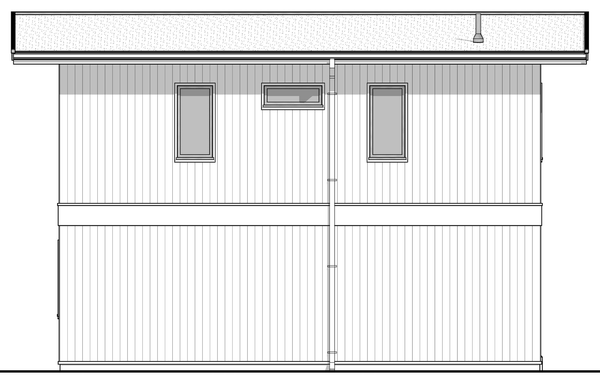

Rear Elevation for House Plan #591131
 – westhomeplanners.com

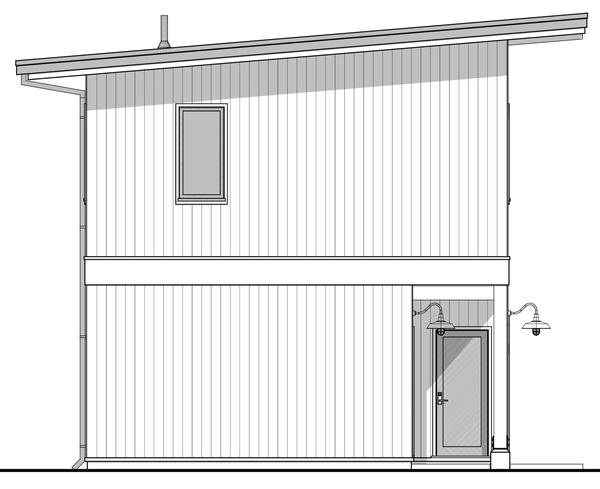

Left Elevation for House Plan #591131
 – westhomeplanners.com

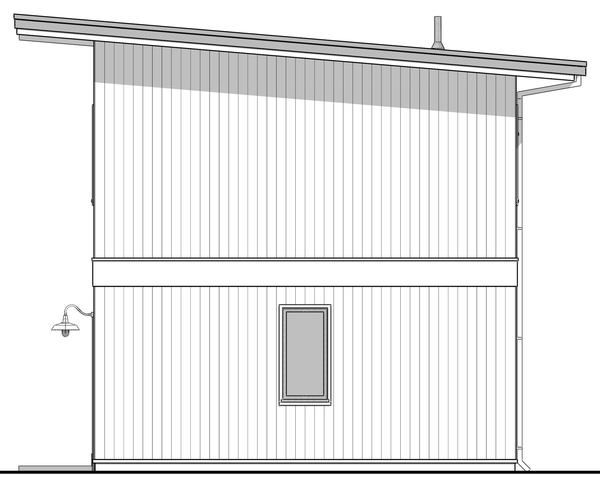

Right Elevation for House Plan #591131
FRONT Elevation – westhomeplanners.com
Other for House Plan #591131
