Plan No.809633

Spacious Apartment Garage with RV Bay

Gable end details give this design a Victorian flare. An oversized 4- plus car Garage makes a perfect staging area for the construction of your dream home. The open Living Area keeps everyone in on the action. The Kitchen is functional and flexible. The cleverly designed Bathroom is perfect for multiple users. The Bedroom is huge and has room to sit or to watch TV, and includes plenty of closet space. The Laundry is upstairs for convenience. A huge Playroom provides additional space for sleep or play.

Specifications

Total 3369 sq ft

  • Main: 1762
  • Second: 1607
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 1762

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 11'0-14'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 11'0-14'0

Details

  • Exterior Walls: 2x6
  • Garage Type: 4 Car Garage
  • Width: 48'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 28'1
  • Comments: (Finished Grade to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 12/12
 – westhomeplanners.com
Full Rendering for House Plan #809633
 – westhomeplanners.com

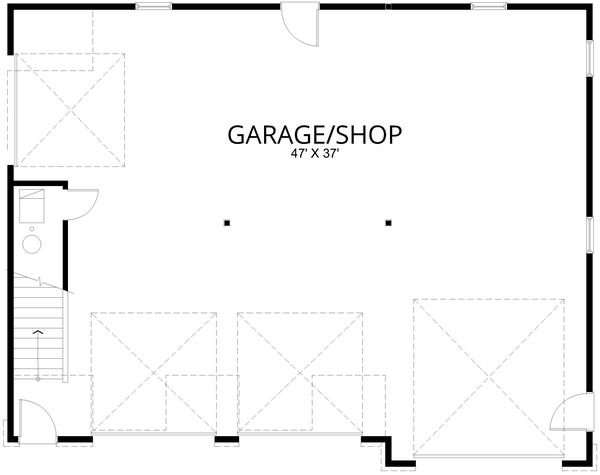

Main Floor Plan for House Plan #809633
 – westhomeplanners.com

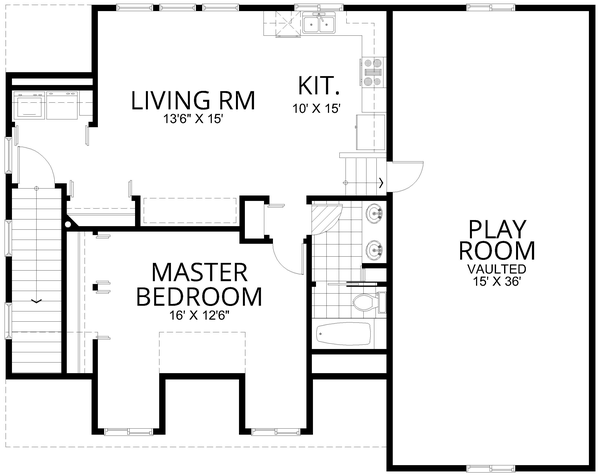

Second Floor Plan for House Plan #809633
 – westhomeplanners.com

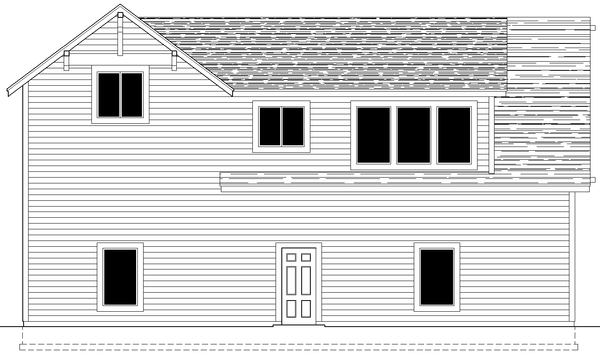

Rear Elevation for House Plan #809633
