Plan No.240501

All plans have the following as a part of every plan; Slab foundation, Crawlspace foundation, Basement foundation (unfinished), 2 x 4 stud construction, common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (DWG CAD). ADDITIONAL INFORMATION: Bathroom 2 – 8 x 4-2, Pantry – 3-4 x 2, Kitchen Island – 3 x 5-6. See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.

Specifications

Total 1050 sq ft

  • Main: 816
  • Second: 234
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0-17'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: none
  • Width: 24'0
  • Depth: 34'0

Roof

  • Max Ridge Height: 22'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

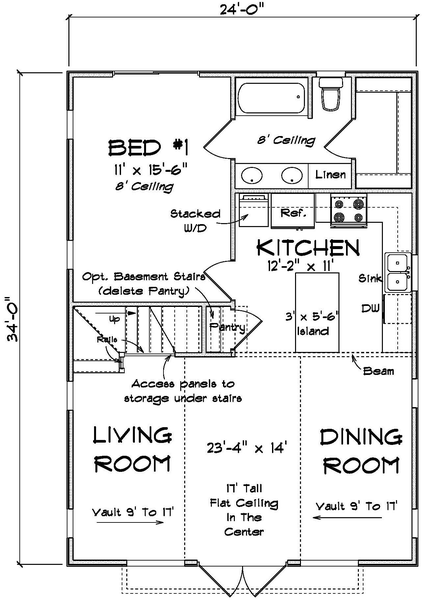

MAIN Plan – westhomeplanners.com

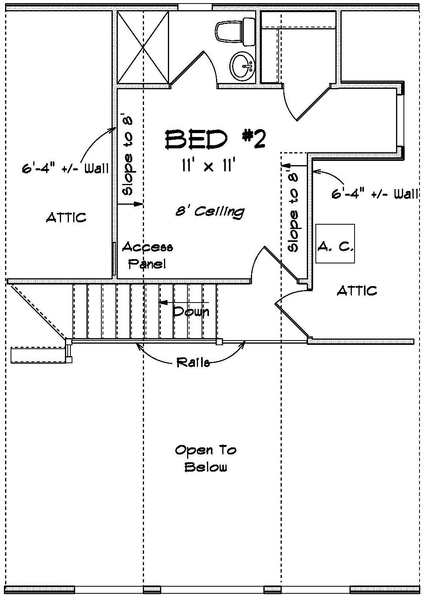

SECOND Plan – westhomeplanners.com
Front & Left – westhomeplanners.com
Front & Right – westhomeplanners.com
Rear & Left – westhomeplanners.com
Aerial View – westhomeplanners.com
REAR Elevation – westhomeplanners.com
3D Main Floor – westhomeplanners.com
3D Second Floor – westhomeplanners.com
