Plan No.249242

Main Floor Master Suite

All designs have the following as a part of every plan; Slab foundation, Crawlspace foundation, Basement foundation (unfinished), 2 x 4 stud construction, common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (SoftPlan, DWG or DXF). ADDITIONAL ROOM SIZES: Master Closet – 6-8 x 9, Master Bath – 12 x 8, Foyer – 5 x 10, Utility Room – 6-8 x 5-8, Bathroom 2 – 5 x 5, Bathroom 3 – 10 x 5, Bathroom 4 – 7-4 x 10-4, Rear Porch – 15-4 x 5-8, Pantry – 4 x 4, Kitchen Island – 8 x 3-4.

Specifications

Total 2429 sq ft

  • Main: 1422
  • Second: 1007
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 501

Rooms

  • Beds: 4
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath: 2

Ceiling Height

  • Main: 9'0-12'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 39'8
  • Depth: 62'0

Roof

  • Max Ridge Height: 26'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

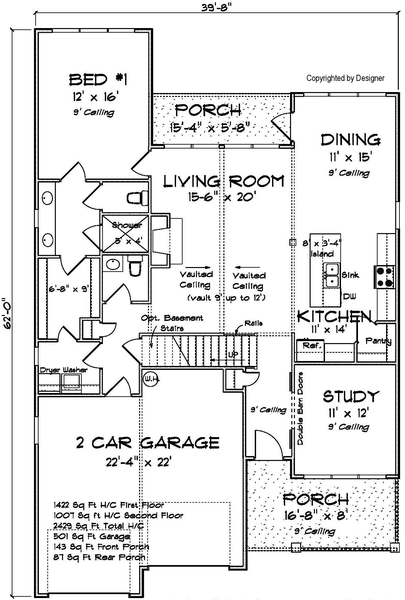

MAIN Plan – westhomeplanners.com

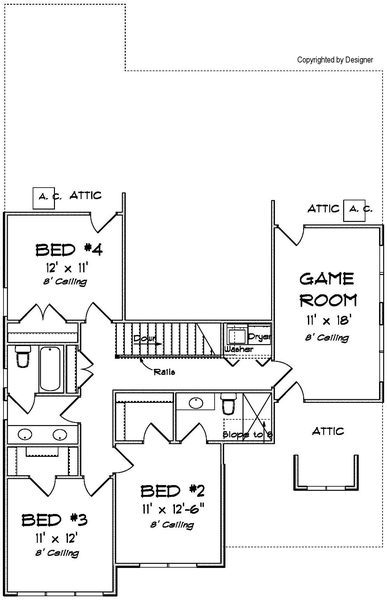

SECOND Plan – westhomeplanners.com
