Plan No.581226

Compact Design with Full Sized Amenities

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats up to four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the home create a spacious and open feeling. The pocket doors leading into the master suite and guest room can either be closed for privacy or can provide a large 5' wide opening. The modern walk-in shower in the master suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a dual vanity and a large walk-in closet. This design also features a third bedroom, a covered front porch, an oversized double garage, and a mudroom/laundry room. Also available with 2x4 exterior walls.

Specifications

Total 1226 sq ft

  • Main: 1226
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 522

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'-0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'-4

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 38'-0
  • Depth: 52'-0

Roof

  • Max Ridge Height: 21'-1
  • Comments: (From Grade)
  • Primary Pitch: 8.5/12
  • Secondary Pitch: 4/12
 – westhomeplanners.com
Full Rendering for House Plan #581226
 – westhomeplanners.com

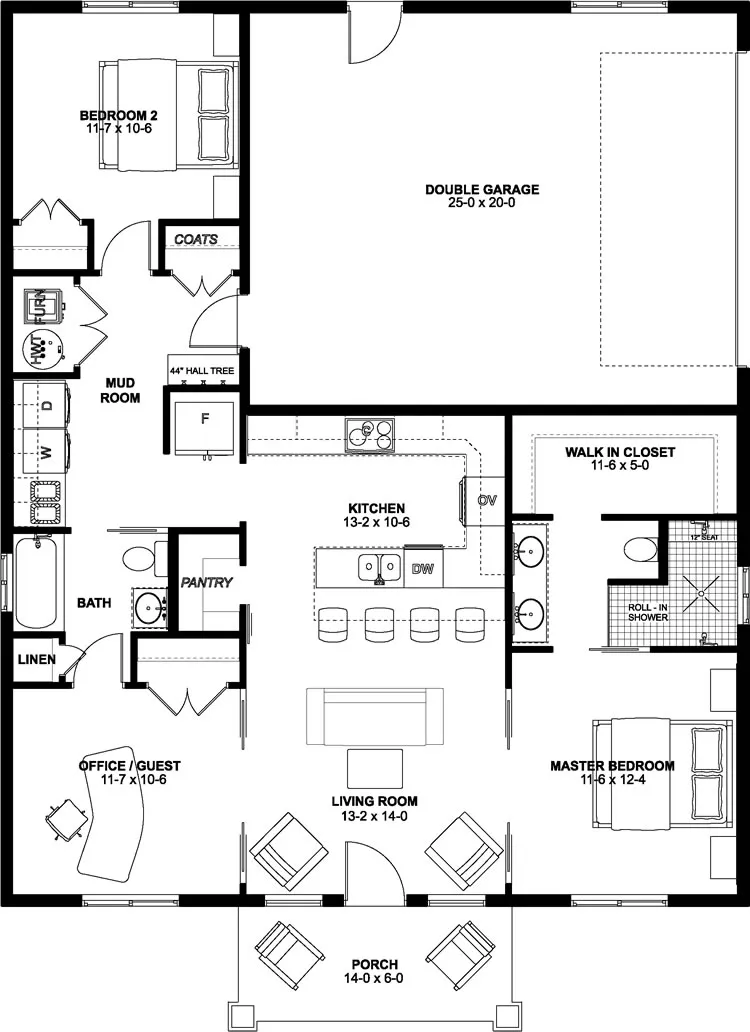

Main Floor Plan for House Plan #581226

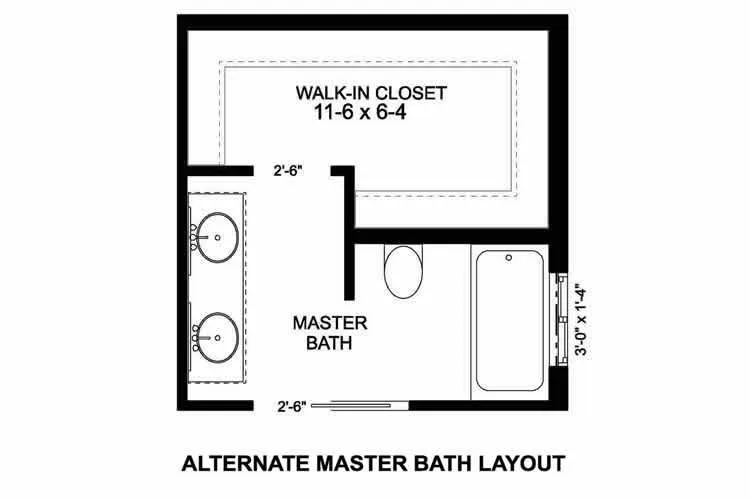

Alternate Master Bathroom – westhomeplanners.com
ExteriorPhoto for House Plan #581226

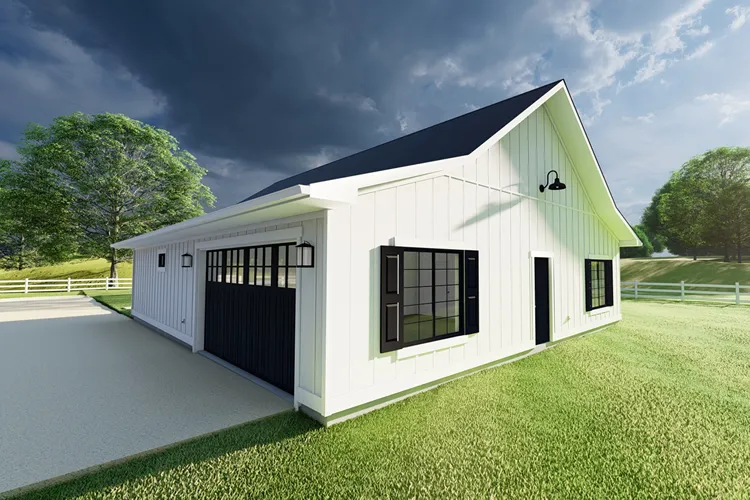

REAR Elevation – westhomeplanners.com
ExteriorPhoto for House Plan #581226
Living Room to Office – westhomeplanners.com
InteriorPhoto for House Plan #581226

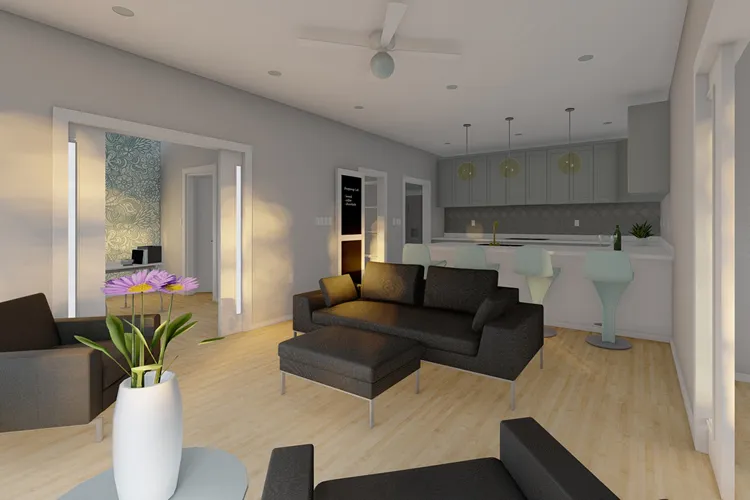

Living Room to Bedroom – westhomeplanners.com
InteriorPhoto for House Plan #581226

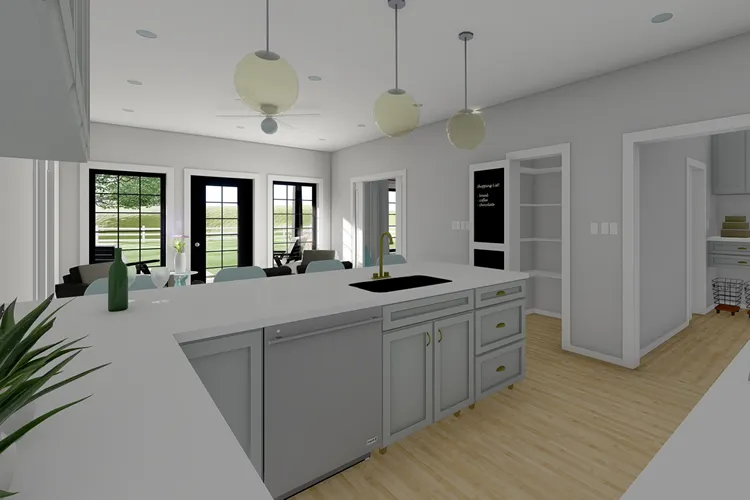

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #581226
Kitchen to Mudroom – westhomeplanners.com
InteriorPhoto for House Plan #581226

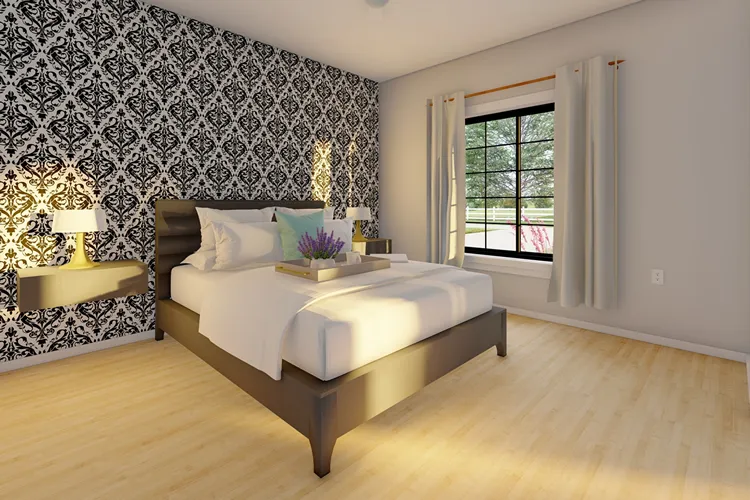

Master Bedroom – westhomeplanners.com
InteriorPhoto for House Plan #581226

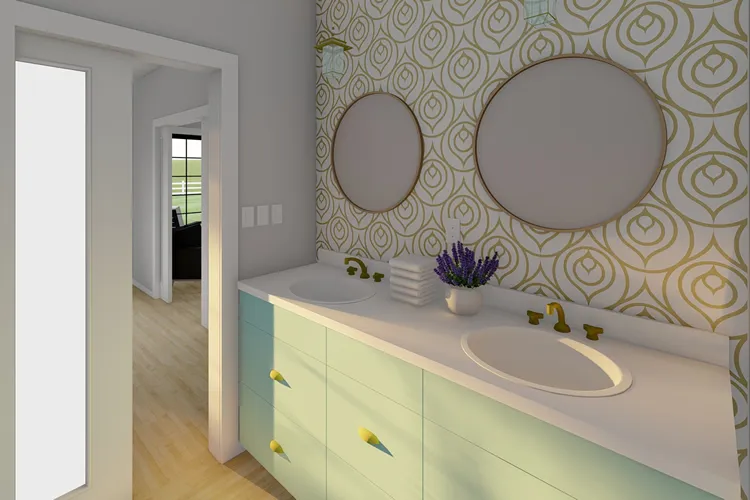

Master Bathroom – westhomeplanners.com
InteriorPhoto for House Plan #581226
Office to Living Room – westhomeplanners.com
InteriorPhoto for House Plan #581226
Office / Guest Room – westhomeplanners.com
InteriorPhoto for House Plan #581226
Spare Bathroom – westhomeplanners.com
InteriorPhoto for House Plan #581226

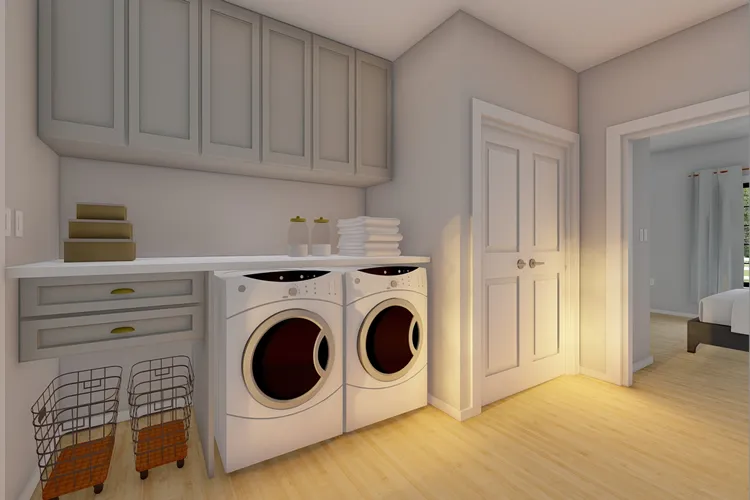

Laundry Room – westhomeplanners.com
InteriorPhoto for House Plan #581226
Mudroom – westhomeplanners.com
InteriorPhoto for House Plan #581226

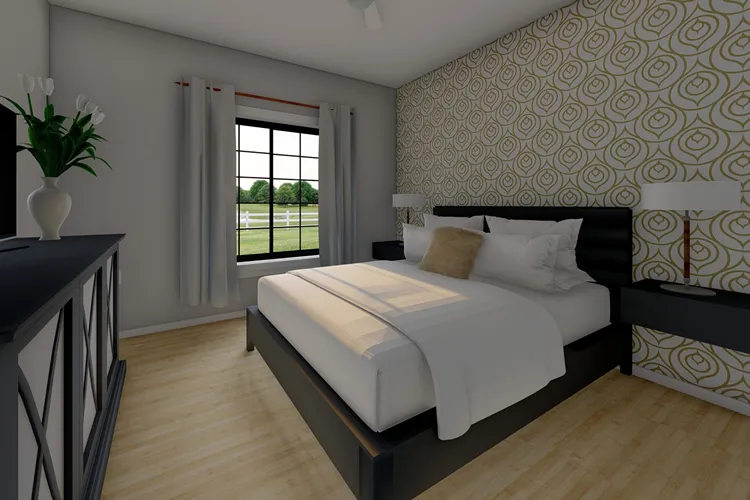

Bedroom 2 – westhomeplanners.com
InteriorPhoto for House Plan #581226
Garage – westhomeplanners.com
InteriorPhoto for House Plan #581226
