Plan No.308522

Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file. Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included. If you buy a materials list, it will only reflect the standard original plan. Total Living Area may increase with Basement Foundation option.

Specifications

Total 2258 sq ft

  • Main: 2258
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 595

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 66'2
  • Depth: 59'0

Roof

  • Max Ridge Height: 29'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 4/12
 – westhomeplanners.com

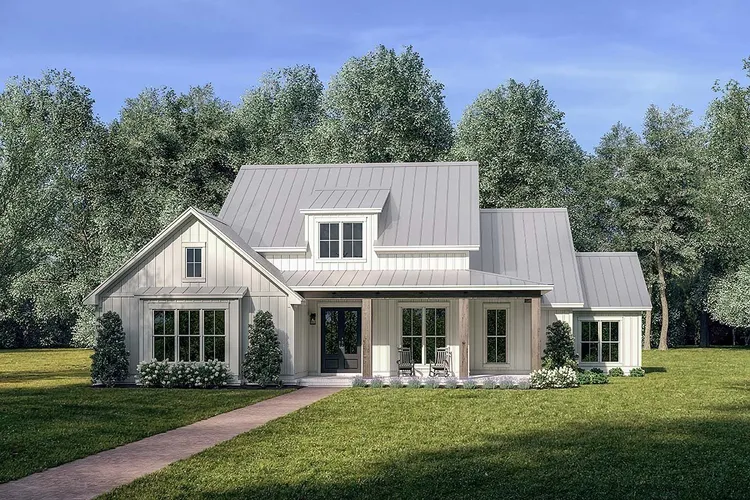

Full Rendering for House Plan #308522
 – westhomeplanners.com

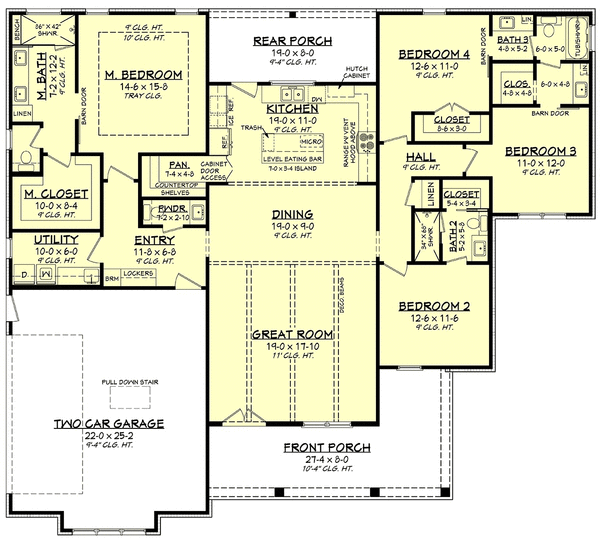

Main Floor Plan for House Plan #308522
Opt. Basement Stairs – westhomeplanners.com
ExteriorPhoto for House Plan #308522

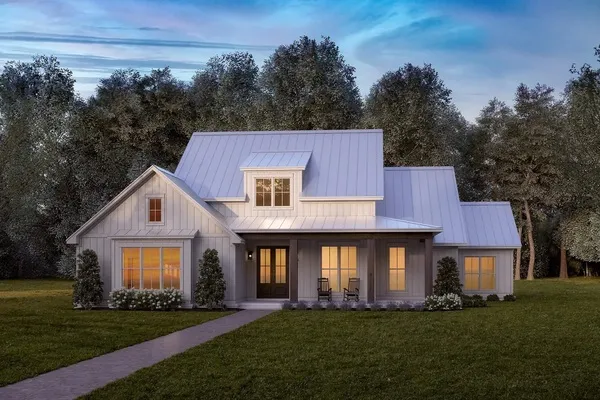

Dusk Rendering – westhomeplanners.com
ExteriorPhoto for House Plan #308522
Front Render – westhomeplanners.com
InteriorPhoto for House Plan #308522

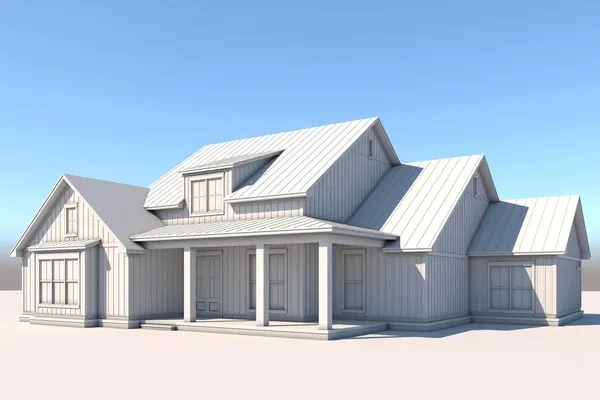

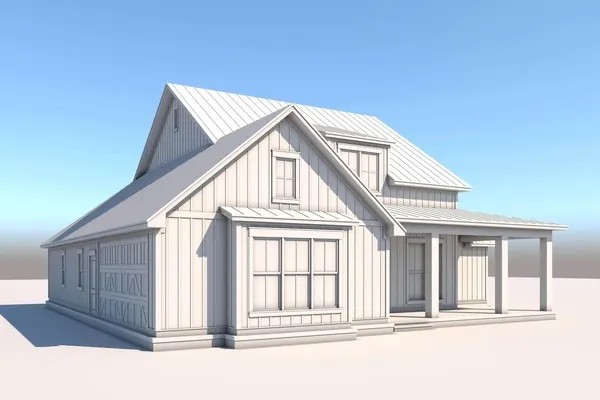

Front Left Render – westhomeplanners.com
InteriorPhoto for House Plan #308522

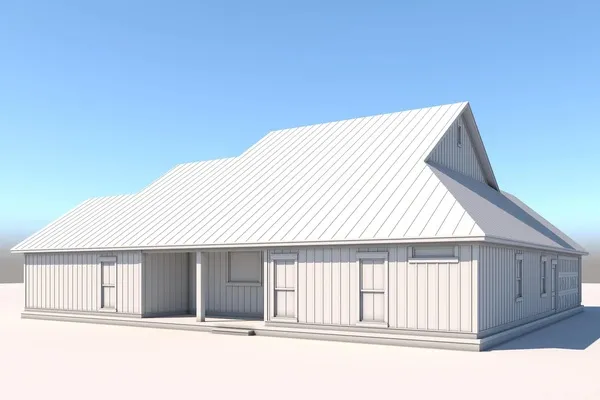

Rear Render – westhomeplanners.com
InteriorPhoto for House Plan #308522

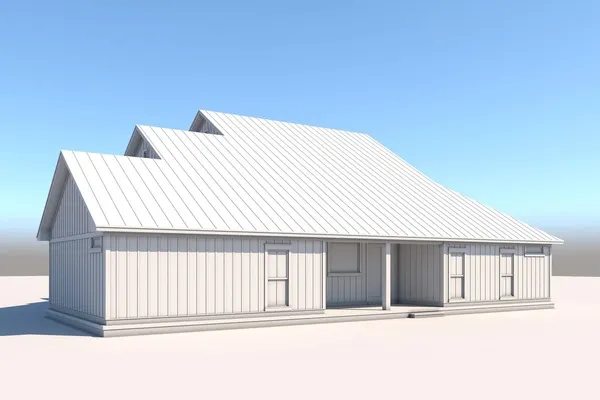

Rear Right Render – westhomeplanners.com
InteriorPhoto for House Plan #308522
 – westhomeplanners.com

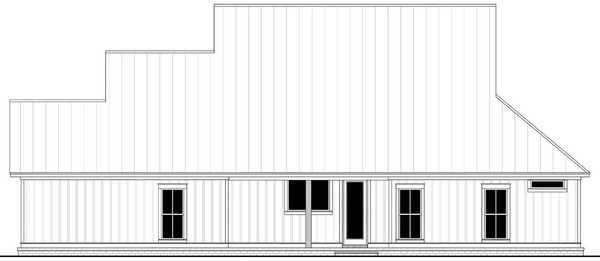

Rear Elevation for House Plan #308522
 – westhomeplanners.com

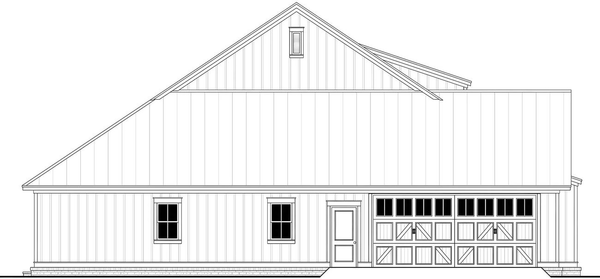

Left Elevation for House Plan #308522
 – westhomeplanners.com

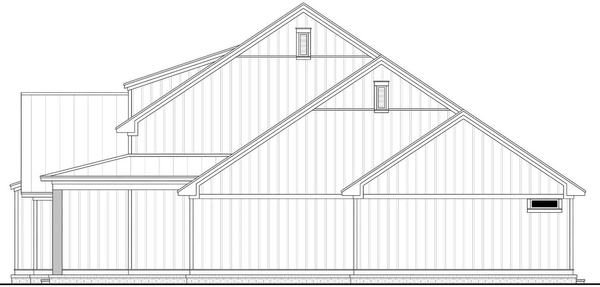

Right Elevation for House Plan #308522
FRONT Elevation – westhomeplanners.com
Other for House Plan #308522
