Plan No.349871

Garage With Apartment

This Craftsman style garage plan can hold up to two cars. Both garage doors are 9' wide and 8' tall. Along the back of the garage is a storage room with mechanical closet. The stairs lead up to the apartment landing. Once inside the second floor there is a loft living area with kitchen and full bathroom.

Specifications

Total 1789 sq ft

  • Main: 988
  • Second: 801
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: Block-MF/2x6-SF
  • Garage Type:
  • Width: 38'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 25'1
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

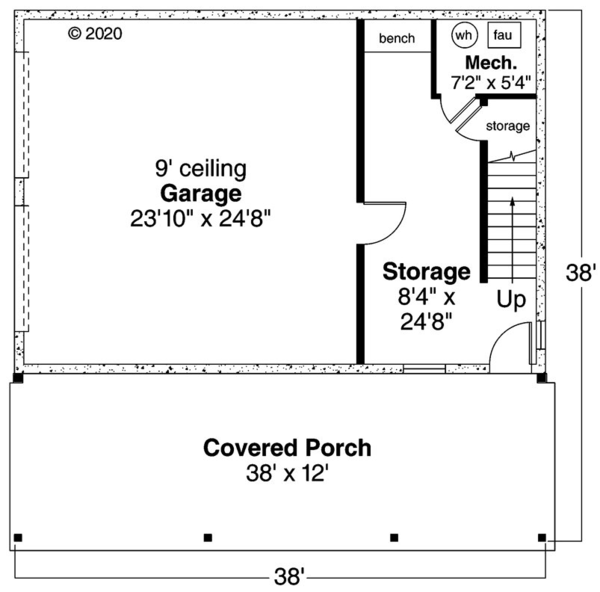

MAIN Plan – westhomeplanners.com

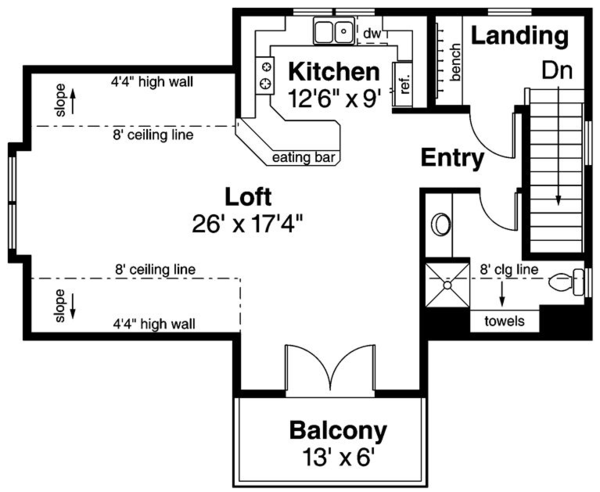

SECOND Plan – westhomeplanners.com

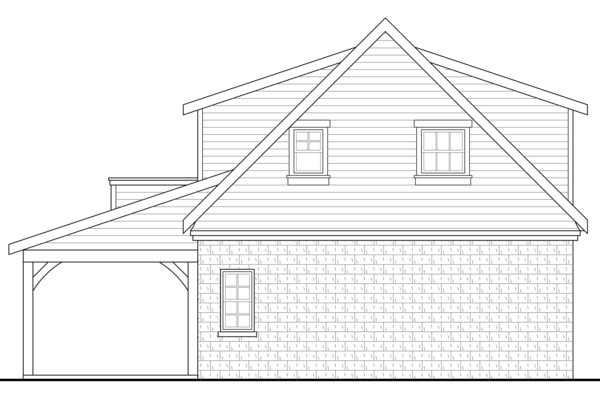

REAR Elevation – westhomeplanners.com

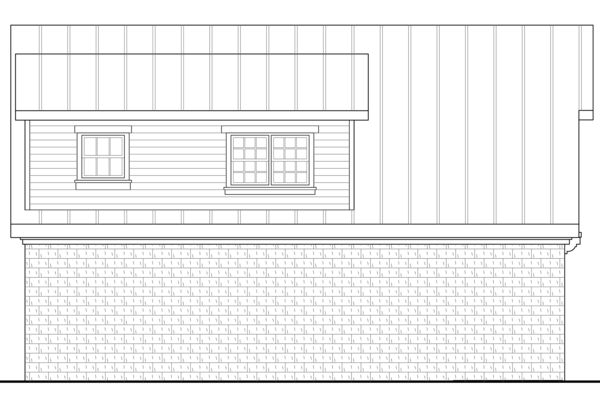

LEFT Elevation – westhomeplanners.com

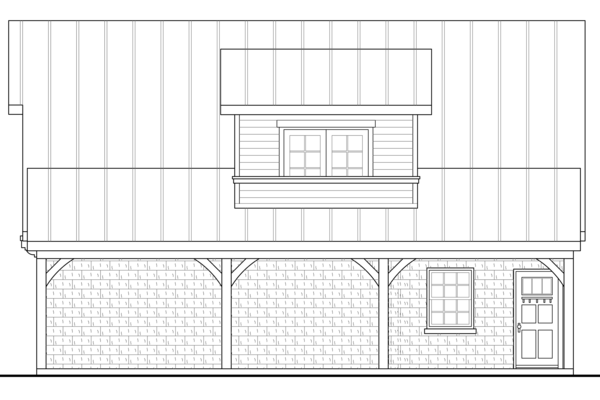

RIGHT Elevation – westhomeplanners.com
