Plan No.345562

Impressive Curb Appeal

With a classic mix of siding, multi-paned windows and interesting front gables, the impressive curb appeal greets you every time you return home to this country house plan. Walking into the house, the first thing you will notice is the open great room to the left comprised of the kitchen, dining area and through a cased opening the vaulted living room. At the end of the living room, double sliding glass doors open the room to up the large covered patio. This three bedroom floor plan offers excellent separation between the sleeping areas. The right side of the home is filled with two bedrooms that share a full size bathroom. On the opposite side of the home, through the great room and down a short hall, passing a generous sized storage closet, is the owners’ suite. Decorated with a vaulted ceiling this spacious retreat offers a private vaulted covered patio along with a large walk-in closet and private bathroom complete with soaking tub and dual vanities. Laundry appliances are just around the corner in the utility room located off the kitchen. Located off the same hallway is a half bath and access to the homes attached 2 car garage with mechanical closet and pull down attic storage access.

Specifications

Total 2037 sq ft

  • Main: 2037
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 618

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 65'0
  • Depth: 68'0

Roof

  • Max Ridge Height: 24'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com
Full Rendering for House Plan #345562
 – westhomeplanners.com

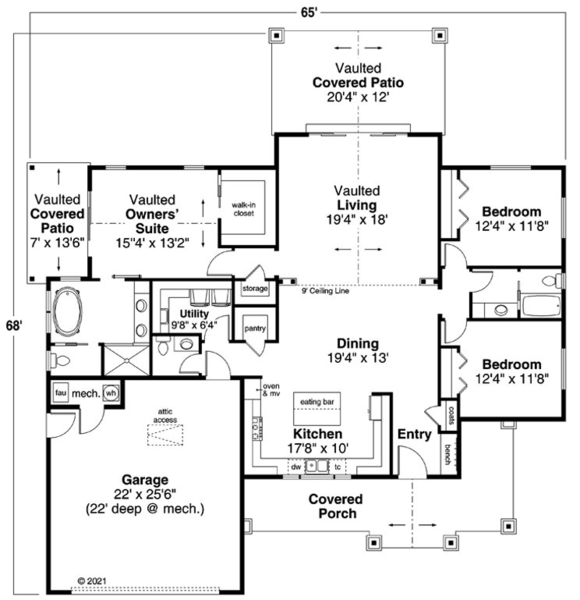

Main Floor Plan for House Plan #345562
Front Photo – westhomeplanners.com
ExteriorPhoto for House Plan #345562
 – westhomeplanners.com

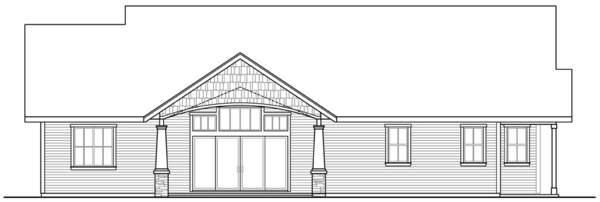

Rear Elevation for House Plan #345562
 – westhomeplanners.com

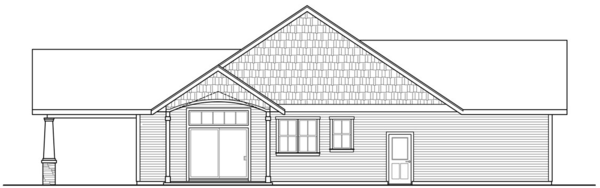

Left Elevation for House Plan #345562
 – westhomeplanners.com

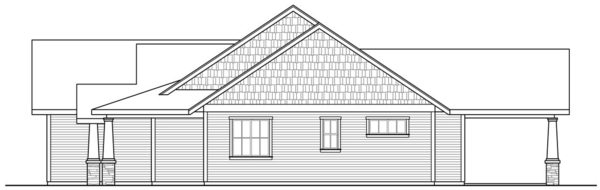

Right Elevation for House Plan #345562
