Plan No.872522

Specifications

Total 2252 sq ft

  • Main: 2252
  • Second: 0
  • Third: 0
  • Loft/Bonus: 1341
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0-12'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 85'0
  • Depth: 64'0

Roof

  • Max Ridge Height: 28'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 3.5/12
 – westhomeplanners.com
Full Rendering for House Plan #872522
 – westhomeplanners.com

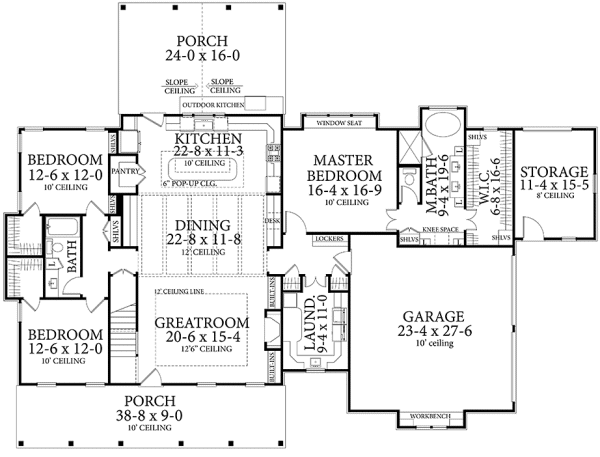

Main Floor Plan for House Plan #872522
 – westhomeplanners.com

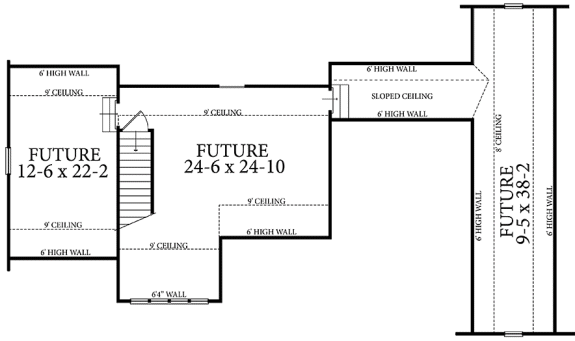

Attic Plan for House Plan #872522

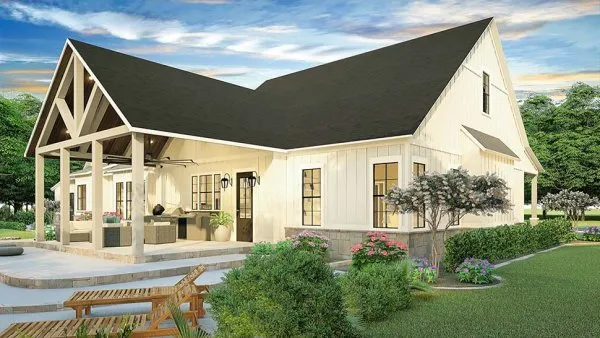

Rear & Left Elevation – westhomeplanners.com
ExteriorPhoto for House Plan #872522
Front & Left Elevation – westhomeplanners.com
ExteriorPhoto for House Plan #872522
Front & Right Elevation – westhomeplanners.com
ExteriorPhoto for House Plan #872522
Rear & Right Elevation – westhomeplanners.com
ExteriorPhoto for House Plan #872522
Great Room – westhomeplanners.com
InteriorPhoto for House Plan #872522

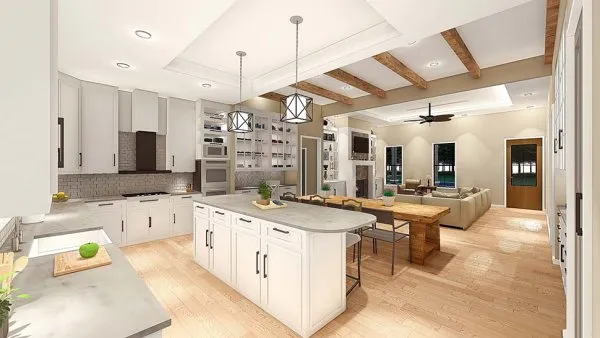

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #872522
Master Suite – westhomeplanners.com
InteriorPhoto for House Plan #872522

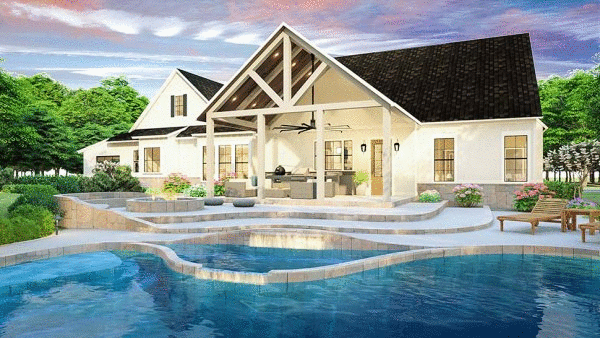

 – westhomeplanners.com
Rear Elevation for House Plan #872522
