Plan No.304002

Many Great Features

This well-appointed Craftsman style house plan offers many great features. Three well-sized bedrooms are offered within the popular split plan design. The large kitchen offers abundant counter space along with a sitting bar and convenient eating area and walk-in pantry close at hand. The master suite is luxurious and spacious, and features a custom shower, jet tub, dual vanities, and expansive closet space. A bonus room is also provided upstairs, and could be anything from an extra bedroom to a media space. Please note, the Bonus Room area is not included in the total square footage. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 2004 sq ft

  • Main: 2004
  • Second: 0
  • Third: 0
  • Loft/Bonus: 492
  • Basement: 0
  • Garage: 544

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 56'8
  • Depth: 66'10

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 12/12
 – westhomeplanners.com

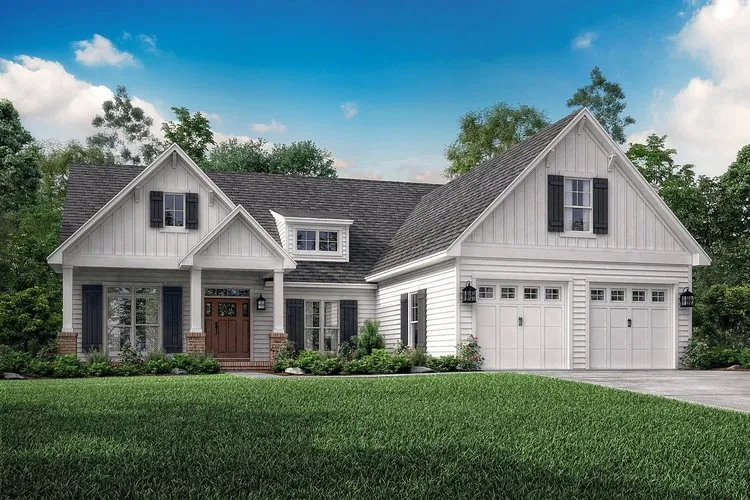

Full Rendering for House Plan #304002
 – westhomeplanners.com

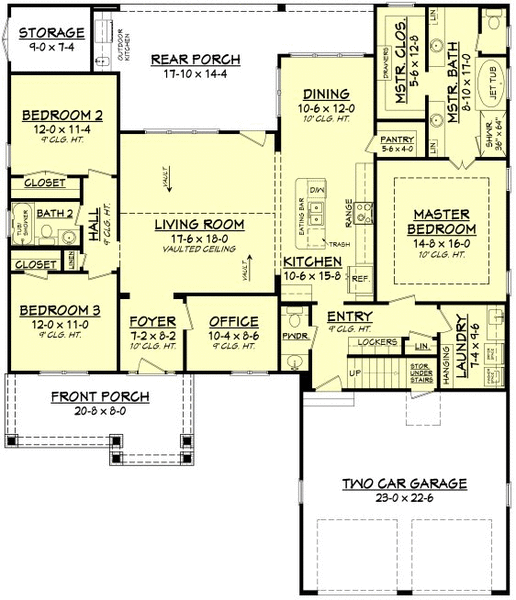

Main Floor Plan for House Plan #304002
 – westhomeplanners.com
Attic Plan for House Plan #304002
Alternate Exterior – westhomeplanners.com

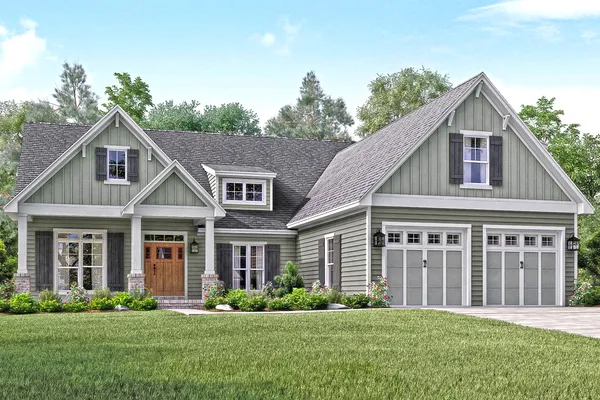

ExteriorPhoto for House Plan #304002
 – westhomeplanners.com
Rear Elevation for House Plan #304002
 – westhomeplanners.com
Left Elevation for House Plan #304002
 – westhomeplanners.com
Right Elevation for House Plan #304002
