Plan No.303702

A Cook's Dream

This contemporary craftsman home offers three bedrooms with a private master suite including a spa-like bath and generous master closet with access to the laundry room. Ten foot ceilings throughout the main living areas create impressive spaces, and the gourmet kitchen with butler's pantry is every home cook's dream while covered outdoor kitchen provides additional space for entertaining. The exposed truss and beams on the front porch and the arbor at the garage are just a few of the details that set this home apart. Please note, the Bonus Room area is not included in the total square footage. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 2073 sq ft

  • Main: 2073
  • Second: 0
  • Third: 0
  • Loft/Bonus: 430
  • Basement: 0
  • Garage: 633

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0-10'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 66'6
  • Depth: 54'0

Roof

  • Max Ridge Height: 24'5
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 12/12
 – westhomeplanners.com
Full Rendering for House Plan #303702
 – westhomeplanners.com

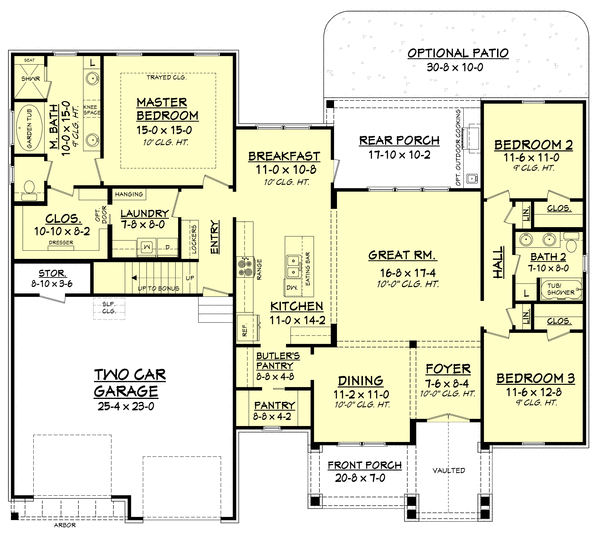

Main Floor Plan for House Plan #303702
 – westhomeplanners.com

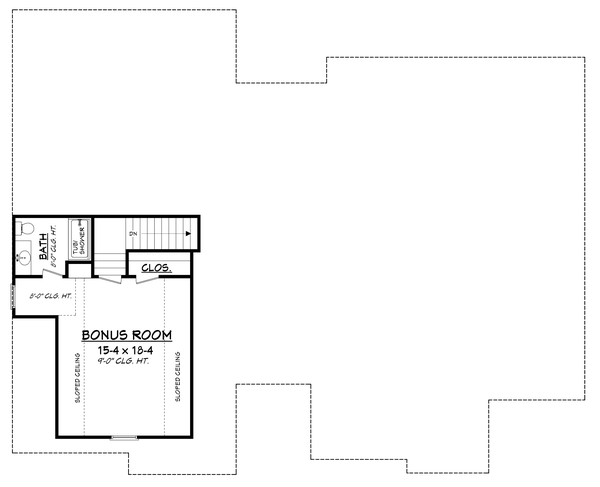

Attic Plan for House Plan #303702
Bonus Room – westhomeplanners.com
InteriorPhoto for House Plan #303702
Bonus Room to Bath – westhomeplanners.com
InteriorPhoto for House Plan #303702

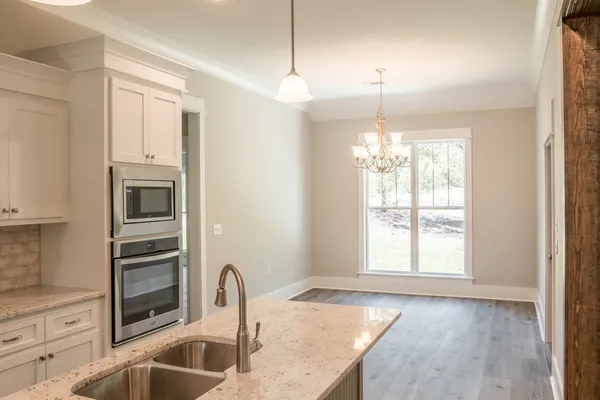

Breakfast Room – westhomeplanners.com
InteriorPhoto for House Plan #303702

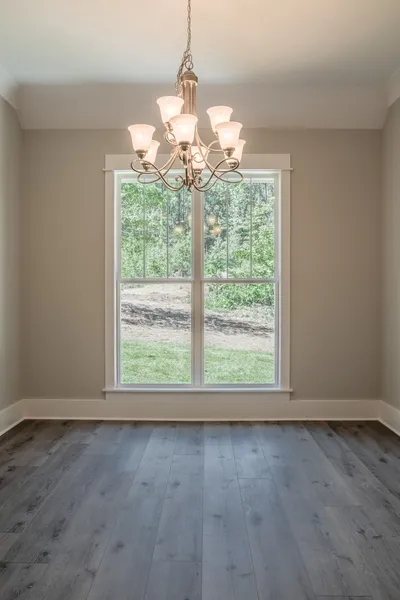

Dining – westhomeplanners.com
InteriorPhoto for House Plan #303702

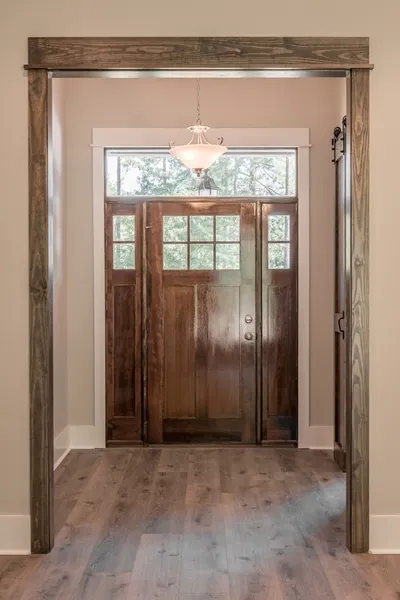

Foyer – westhomeplanners.com
InteriorPhoto for House Plan #303702

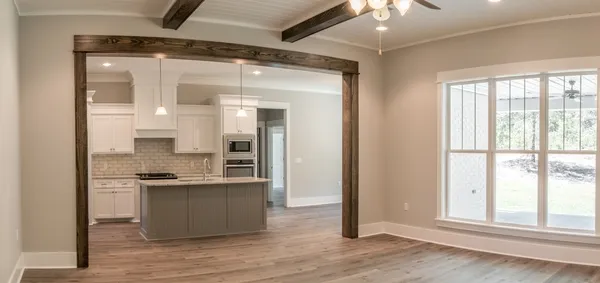

Great Rm to Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #303702

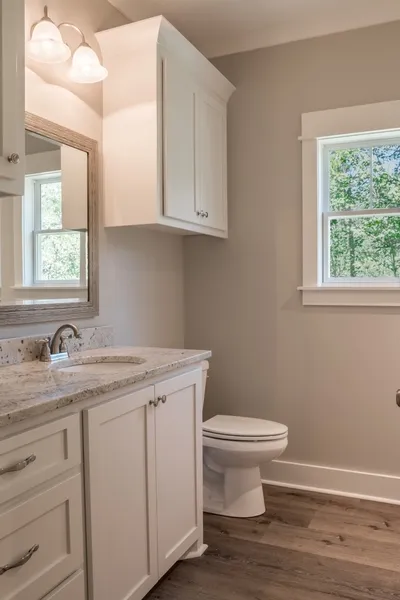

Family Bath – westhomeplanners.com
InteriorPhoto for House Plan #303702

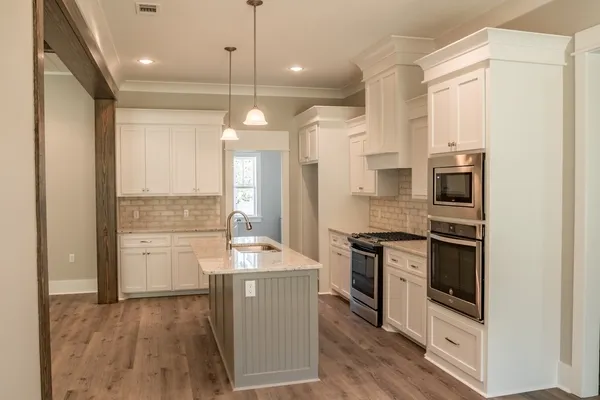

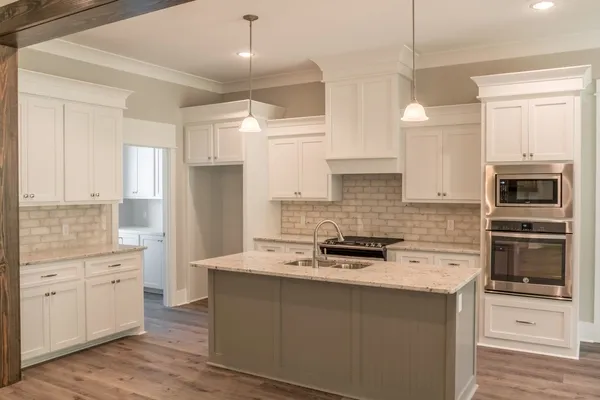

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #303702
Kitchen to Pantry – westhomeplanners.com
InteriorPhoto for House Plan #303702
Laundry – westhomeplanners.com
InteriorPhoto for House Plan #303702

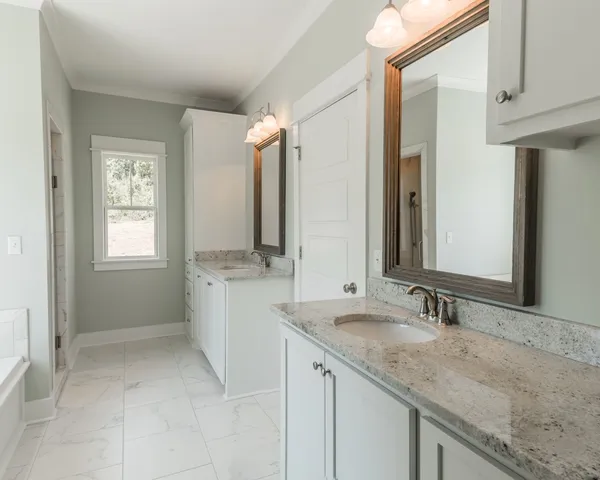

Master Bath – westhomeplanners.com
InteriorPhoto for House Plan #303702

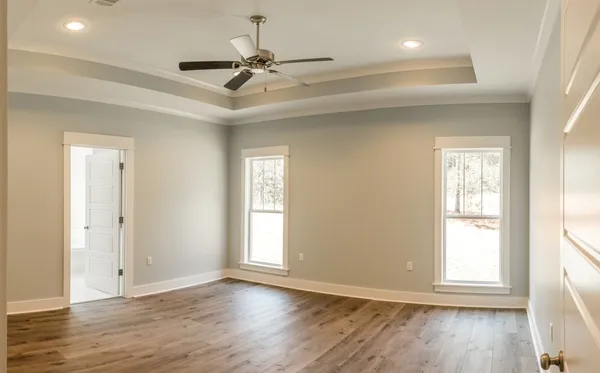

Master Bedroom – westhomeplanners.com
InteriorPhoto for House Plan #303702
Master Walk-in Closet – westhomeplanners.com
InteriorPhoto for House Plan #303702

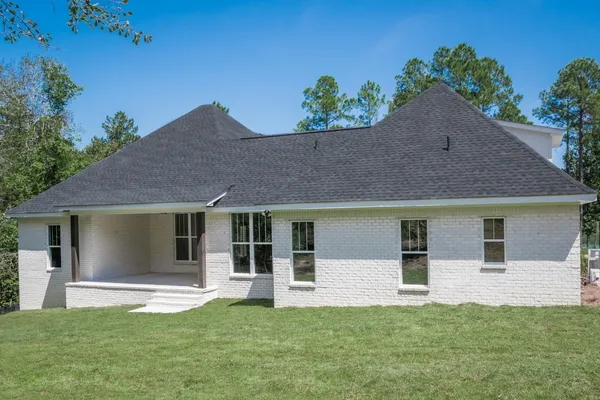

Rear Photo – westhomeplanners.com
InteriorPhoto for House Plan #303702
 – westhomeplanners.com

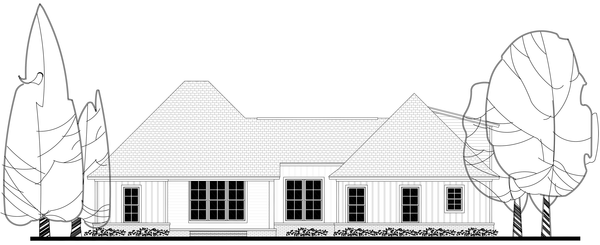

Rear Elevation for House Plan #303702
