Plan No.301022

A Luxurious Master Suite

Featuring an open floor plan with a vaulted Great Room ceiling, a luxurious master suite, and a Bonus Room. Please note, the Bonus Room area is not included in the total square footage. There is also an outdoor entertaining space with outdoor kitchen. An oversized Laundry Room and a huge Kitchen which features an island and walk-in Pantry will make household chores a delight. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 2201 sq ft

  • Main: 2201
  • Second: 0
  • Third: 0
  • Loft/Bonus: 413
  • Basement: 0
  • Garage: 659

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0-10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 59'10
  • Depth: 72'0

Roof

  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 12/12
Full Rendering – westhomeplanners.com

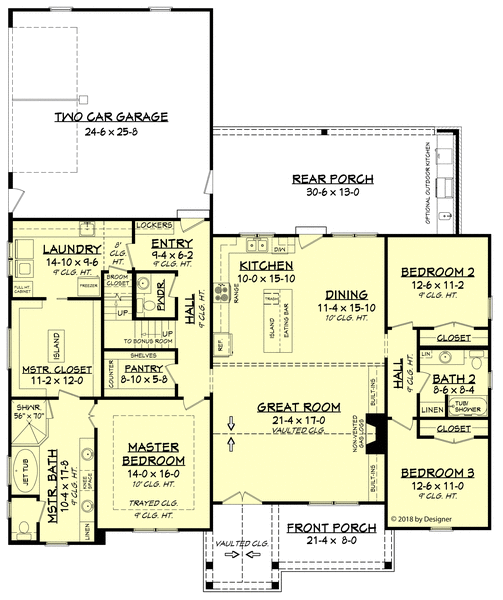

MAIN Plan – westhomeplanners.com

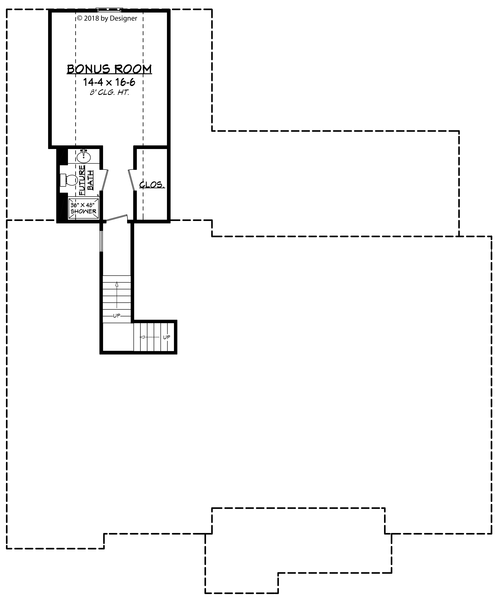

ATTIC Plan – westhomeplanners.com

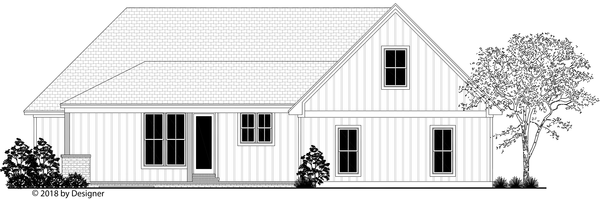

REAR Elevation – westhomeplanners.com
