Plan No.302321

Inviting Atmosphere

This attractive 3 bedroom 2 bath split plan creates a very inviting atmosphere for friends and family. The oversized living room with raised ceilings is certain to be the central entertaining area of your home. The living room opens to a kitchen/dining area with a central island/eating bar. The master suite features a large bedroom with a dedicated bath and walk-in closet. With all these amenities, this plan is sure to be right for your family. Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file.

Specifications

Total 1232 sq ft

  • Main: 1232
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 476

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0-10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 49'8
  • Depth: 41'0

Roof

  • Max Ridge Height: 18'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12

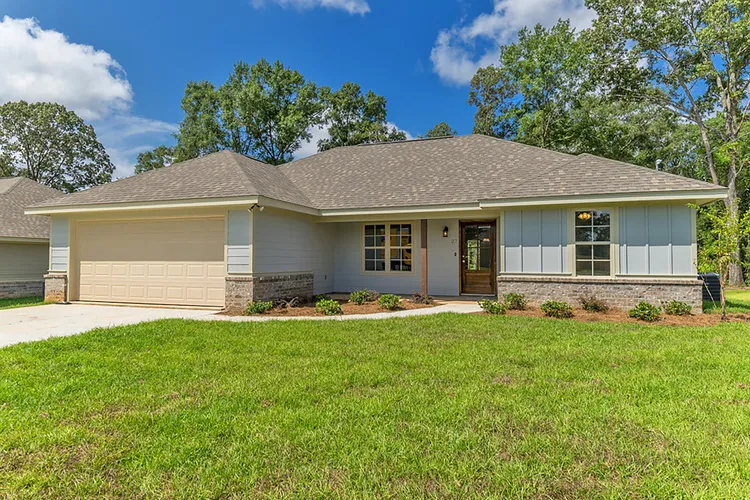

Full Rendering – westhomeplanners.com

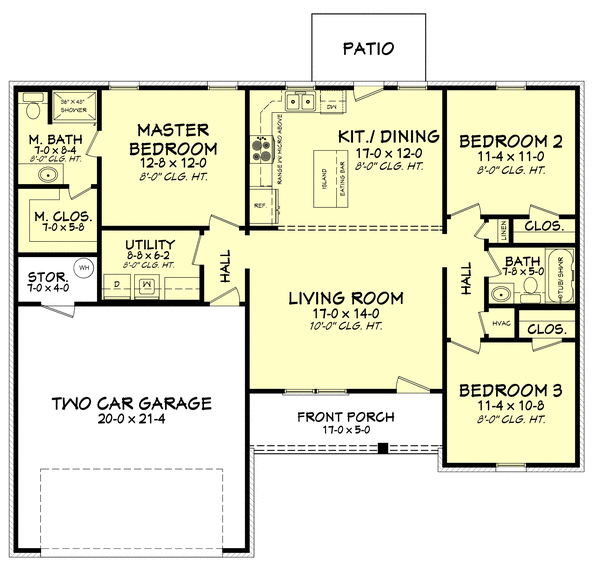

MAIN Plan – westhomeplanners.com

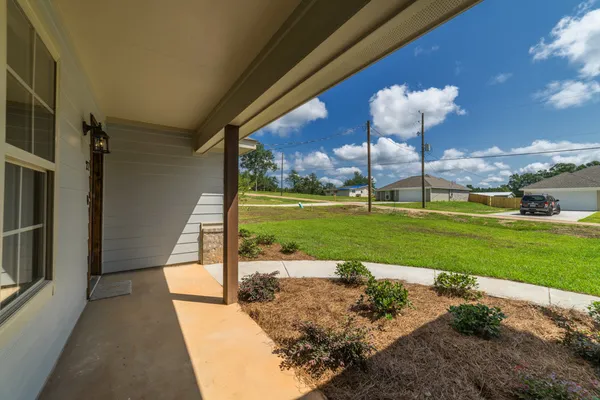

Front Porch – westhomeplanners.com

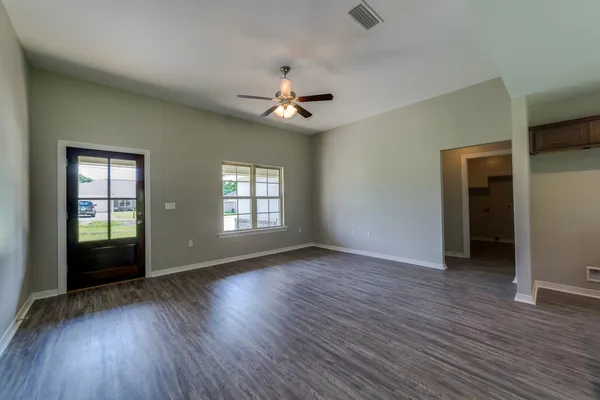

Great Room to Entry – westhomeplanners.com

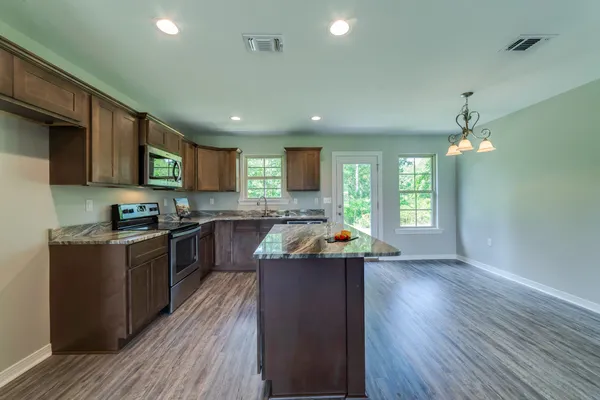

Kitchen – westhomeplanners.com

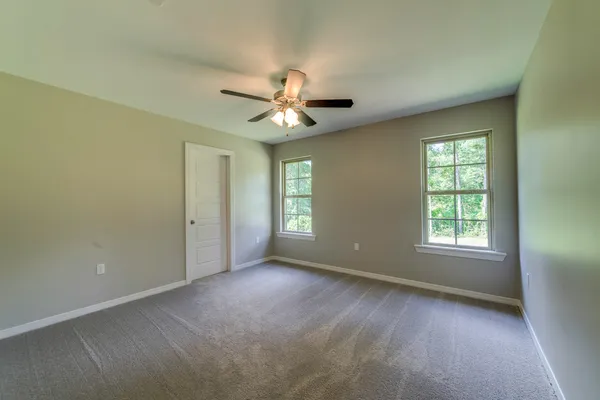

Master Bedroom – westhomeplanners.com

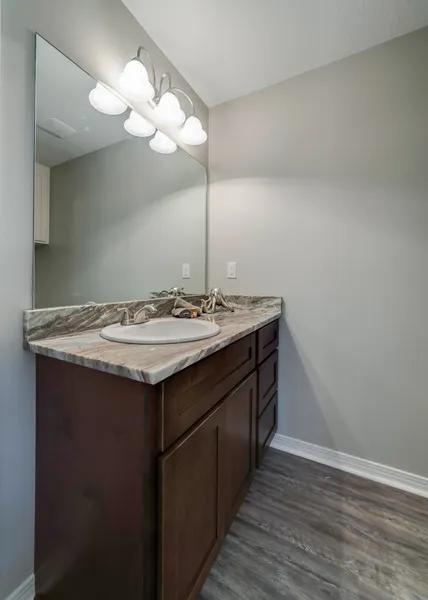

Master Bath – westhomeplanners.com

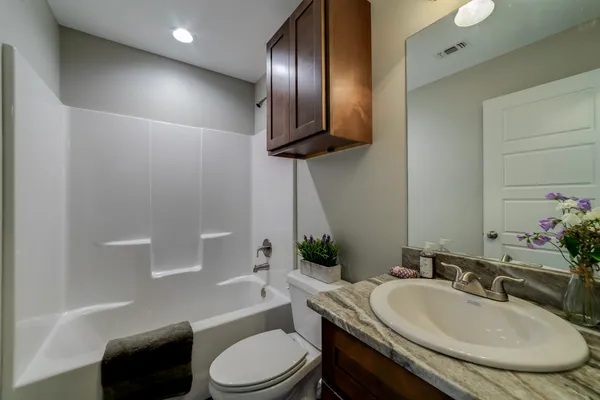

Family Bath – westhomeplanners.com

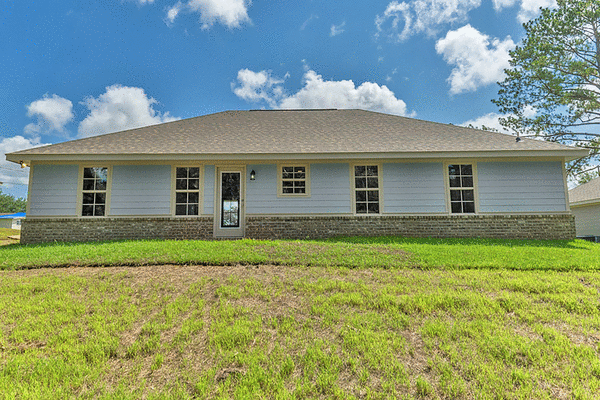

REAR Elevation – westhomeplanners.com
