Plan No.634671

Three-Car Garage With Rear Apartment

This Carriage Home has 2 bedrooms, 1 full bath and 1 half bath. Two-story apartment is disguised with a one-story facade featuring triple garage doors and a roof dormer. Side porch leads to an entry hall which accesses the living room, U-shaped kitchen, powder room and stairs to second floor. The large living room has a fireplace, sliding doors to the rear patio, dining area with bay window and opens to the kitchen with breakfast bar. The second floor comprises of two bedrooms and a bath. The Ground Floor totals 1272 sq. ft., the garage area is 759 sq. ft., the main floor living area is 513 sq. ft. Second Floor living area is 492 sq. ft. The Apartment totals 1005 sq. ft.

Specifications

Total 1764 sq ft

  • Main: 1272
  • Second: 492
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 40'0
  • Depth: 38'0

Roof

  • Max Ridge Height:
  • Comments: ()
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12

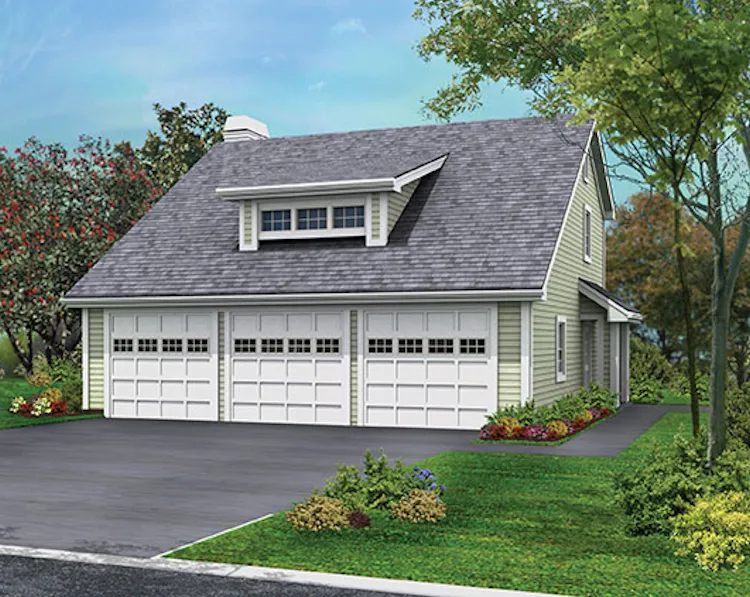

Full Rendering – westhomeplanners.com

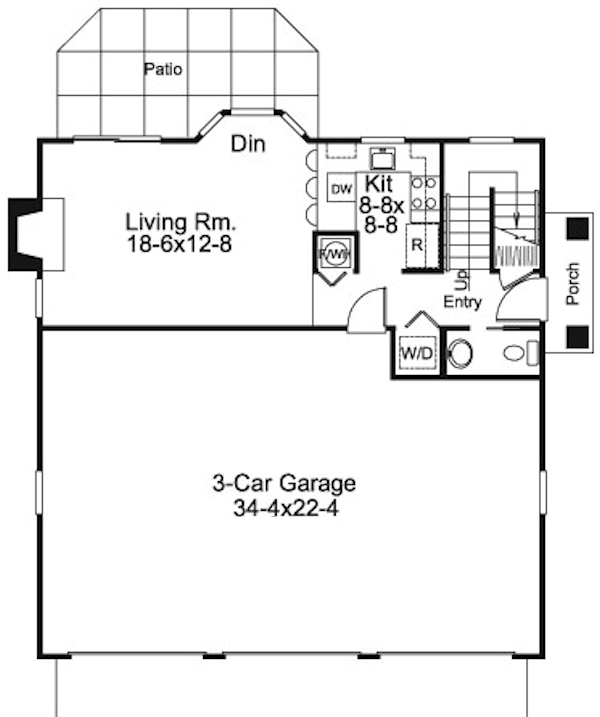

MAIN Plan – westhomeplanners.com

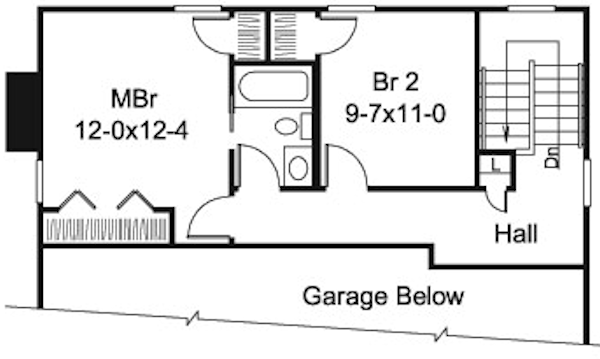

SECOND Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
