Plan No.436902

Two Master Suites and a Split Bedroom Layout for Privacy

Featuring a split bedroom layout for privacy. Large Great Room with built -in cabinets/shelves and ventless gas fireplace. Large Kitchen/ Dining area shares a counter-high snack bar with the Great Room. The Kitchen has lots of storage with a long island, dual pantry cabinets, and French doors in the Dining area. This plan has something not often seen in homes ... a Jack and Jill spa-style bath for the owners! This plan has large separate Master Suit es with huge walk-in closets, and each suite has access to that spa bath! It is perfect for clients who work and sleep at different hours or for couples who need their own sleeping space. Suite 1 is located in the back of the house for privacy and contains a huge walk-in closet with a spa-style bath! The Suite 1 and 2 baths have two separate sinks, a private toilet compartment, a freeĀ­standing tub, and a custom shower. Suit e 2 is large and contains a huge walk-in closet with access to the spa-style bath as well! Bedrooms 2 and 3 are large, they also share a full bath with guests. The Laundry room is lo ca t e d for easy access from the rea r covered porch and has room for a farmhouse sink, washer / dryer area, and cabinets with shelves above for extra storage. This plan also has TWO covered porches. See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.

Specifications

Total 2096 sq ft

  • Main: 2096
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 56'0
  • Depth: 52'0

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

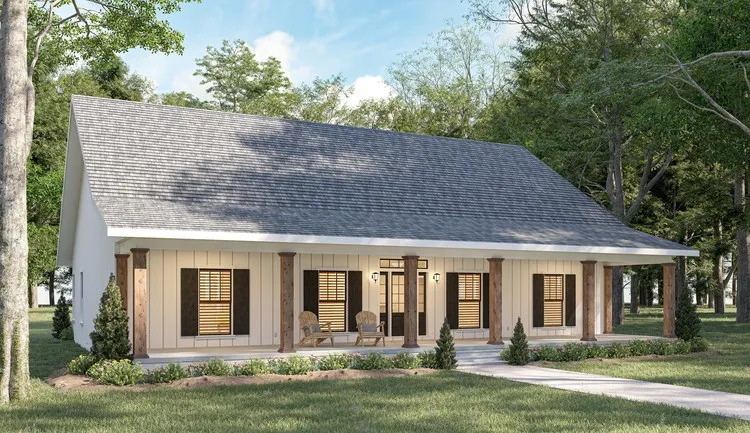

Full Rendering for House Plan #436902
 – westhomeplanners.com

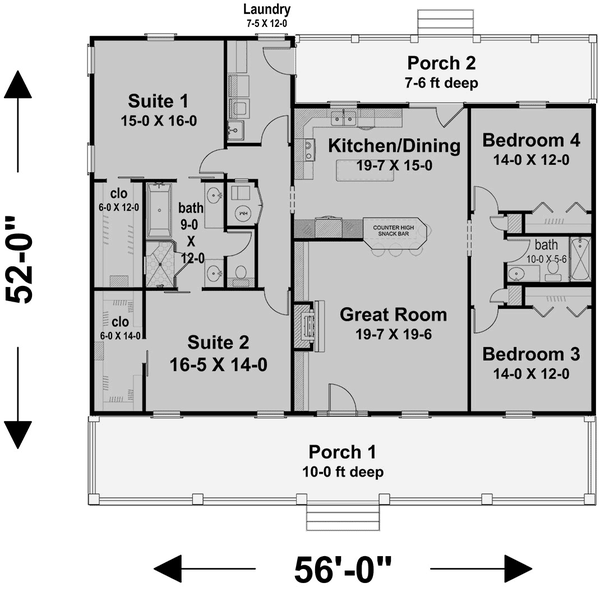

Main Floor Plan for House Plan #436902

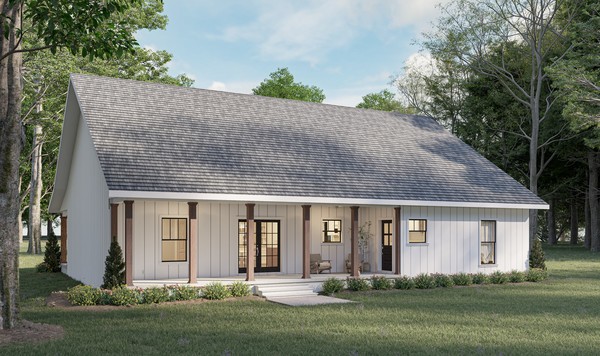

Rear – westhomeplanners.com
ExteriorPhoto for House Plan #436902

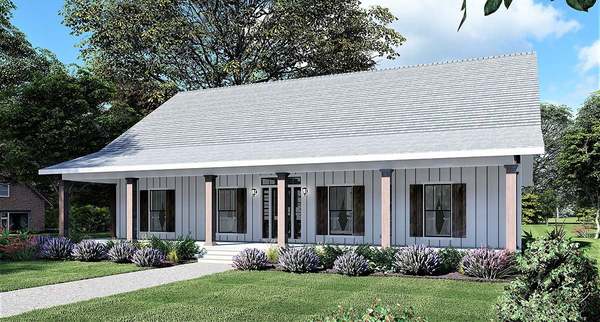

Front – westhomeplanners.com
ExteriorPhoto for House Plan #436902

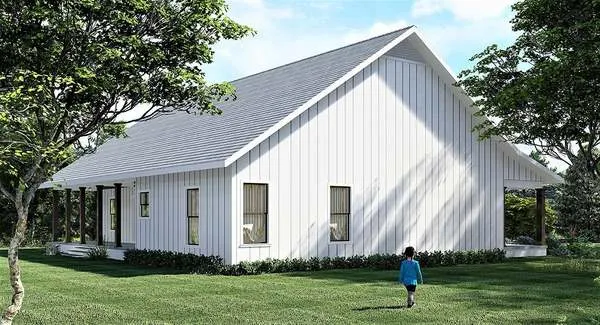

Rear & Left – westhomeplanners.com
ExteriorPhoto for House Plan #436902

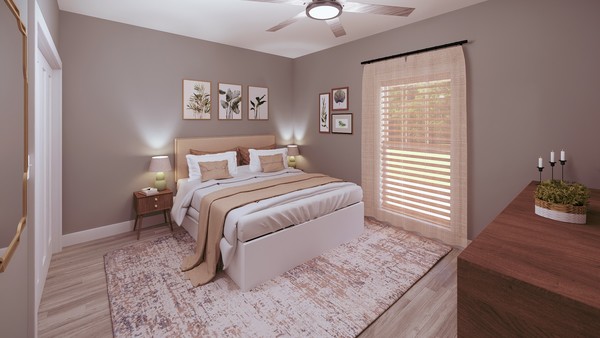

Bedroom 3 – westhomeplanners.com
InteriorPhoto for House Plan #436902

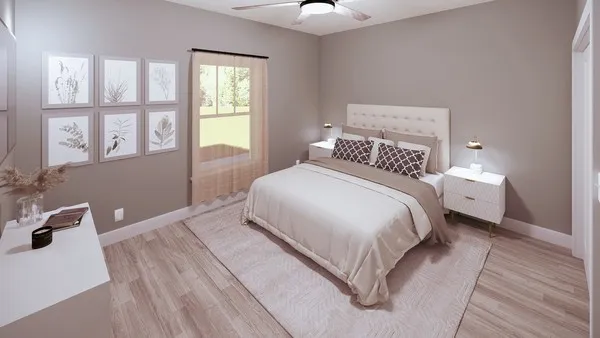

Bedroom 4 – westhomeplanners.com
InteriorPhoto for House Plan #436902

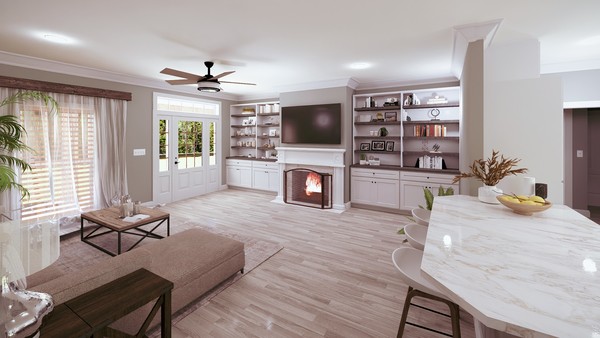

Great Room – westhomeplanners.com
InteriorPhoto for House Plan #436902

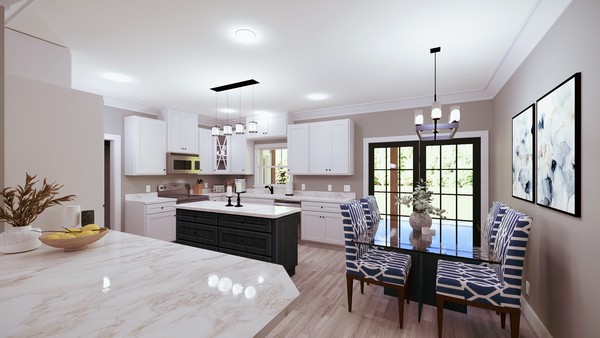

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #436902

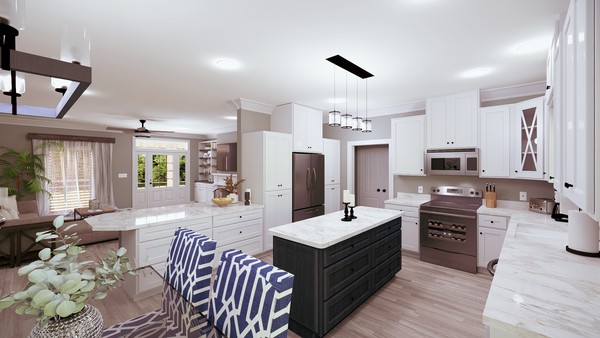

Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #436902

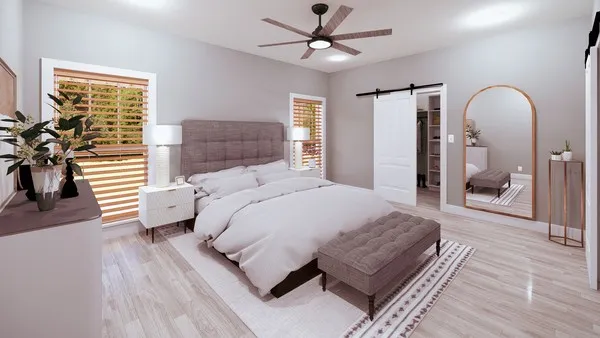

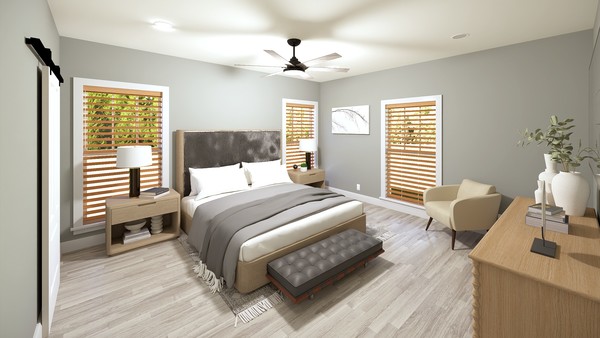

Suite 1 – westhomeplanners.com
InteriorPhoto for House Plan #436902
Suite 2 – westhomeplanners.com
InteriorPhoto for House Plan #436902

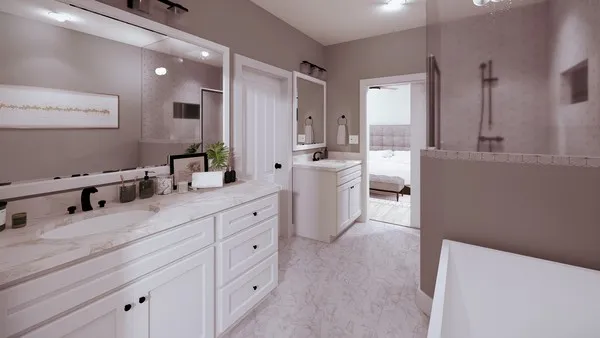

Suite Bath – westhomeplanners.com
InteriorPhoto for House Plan #436902
