Plan No.340661

Vacation Retreat

Designed as a vacation retreat, this cabin home plan has a small footprint and blends easily into a natural setting. Its covered porch and deck offer plenty of outdoor living space as well, spanning the front and one full side. A lofty vaulted ceiling expands the great room, nook and kitchen. This Cape Cod style house plan's upstairs is an unfinished bonus room and deck.

Specifications

Total 1660 sq ft

  • Main: 1120
  • Second: 0
  • Third: 0
  • Loft/Bonus: 540
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 34'0
  • Depth: 52'0

Roof

  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com
Full Rendering for House Plan #340661
 – westhomeplanners.com

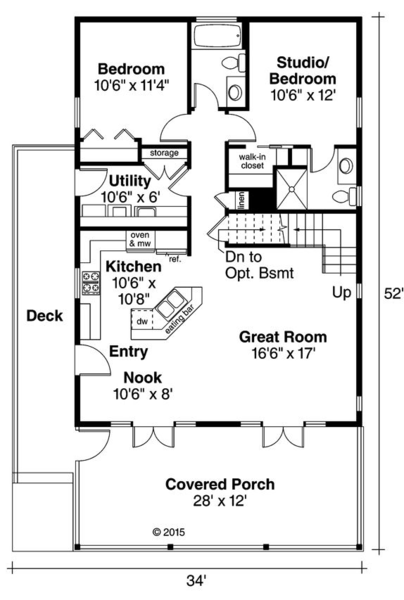

Main Floor Plan for House Plan #340661
 – westhomeplanners.com

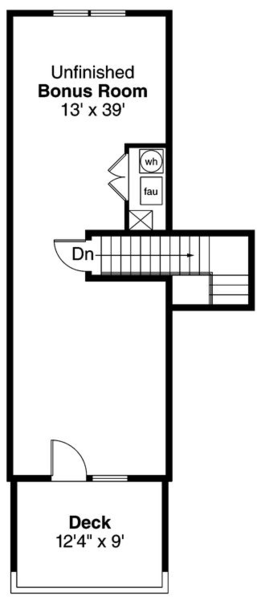

Attic Plan for House Plan #340661
Artist's Rendering – westhomeplanners.com
ExteriorPhoto for House Plan #340661
 – westhomeplanners.com

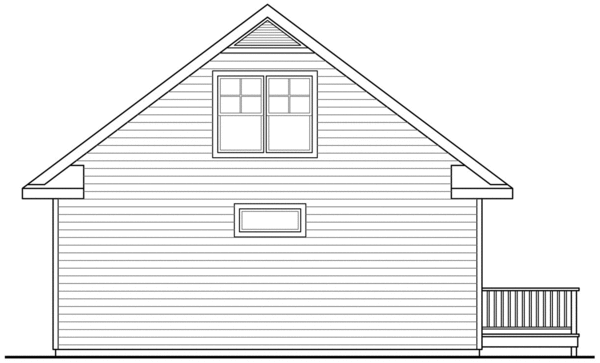

Rear Elevation for House Plan #340661
 – westhomeplanners.com

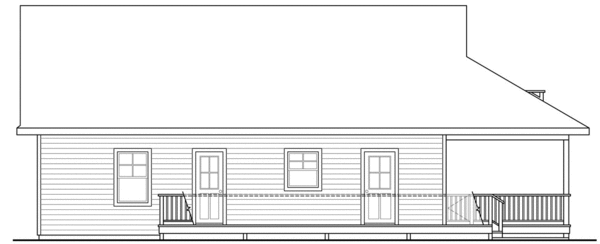

Left Elevation for House Plan #340661
 – westhomeplanners.com

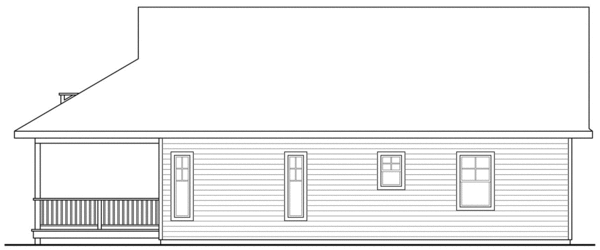

Right Elevation for House Plan #340661
