Plan No.108422

Spacious Economy

This chalet-style home fits everything you need into an attractive little package. The gabled entry opens into a vaulted living area and allows easy access to the kitchen, bedroom and utility areas. Rear access through a mudroom is also provided. Upstairs, twin dormers open up the loft to create a cozy master suite along with attached three-piece bath and balcony. Please note that the width & depth includes the deck & porches, the actual dimension of the house without these is 24'-0" x 42'-0". Non basement versions can have a stacking washer and dryer located under the staircase off the kitchen. No materials list available.

Specifications

Total 1271 sq ft

  • Main: 912
  • Second: 359
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 30'0
  • Depth: 52'0

Roof

  • Max Ridge Height: 23'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

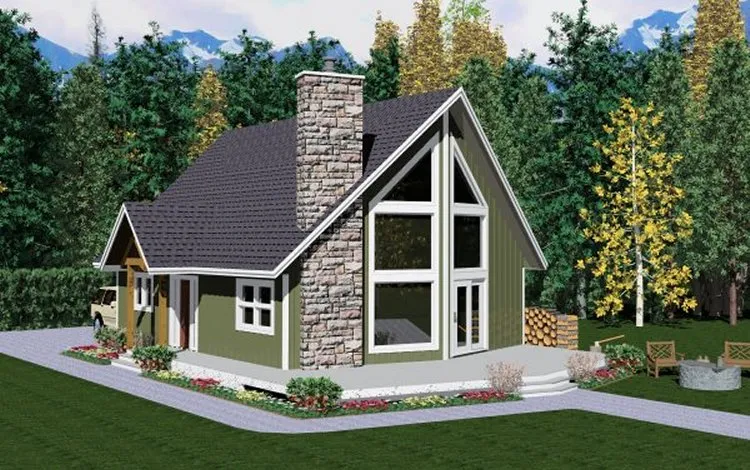

Full Rendering for House Plan #108422
 – westhomeplanners.com

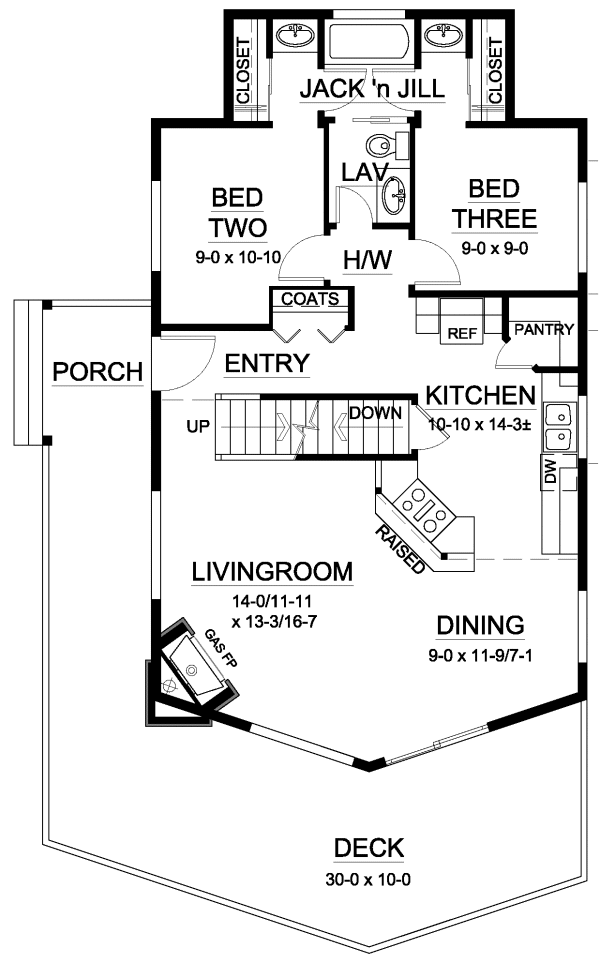

Main Floor Plan for House Plan #108422
 – westhomeplanners.com

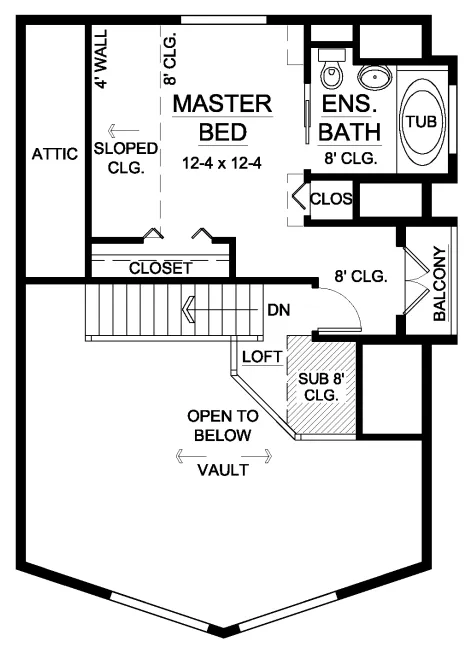

Second Floor Plan for House Plan #108422
Opt. Walkout Basement – westhomeplanners.com
ExteriorPhoto for House Plan #108422
 – westhomeplanners.com

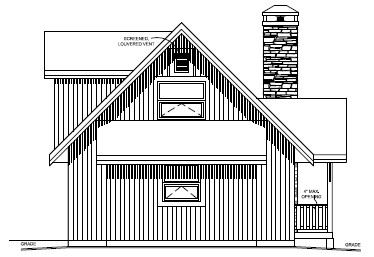

Rear Elevation for House Plan #108422
 – westhomeplanners.com

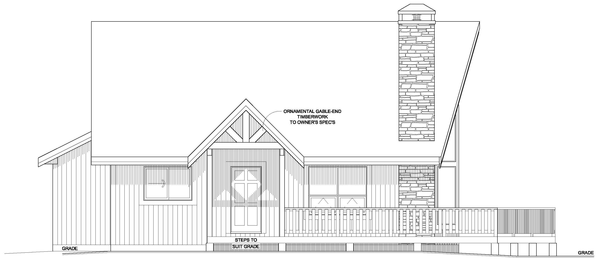

Left Elevation for House Plan #108422
 – westhomeplanners.com

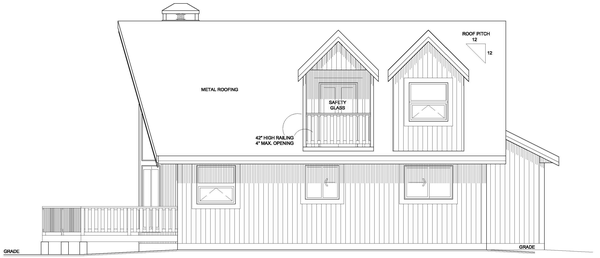

Right Elevation for House Plan #108422
