Plan No.140071

Tiny House Plan

A tiny house plan designed with this new trend in mind where environmental foot print and associated costs are kept to a minimum for first time home buyers without sacrificing the comfort of a 3 bedroom home. The open floor plan of the first level’s 8’6” high ceilings increase the spacious feeling despite the limited square footage. The living room is large enough to accommodate a standard T.V. unit and a 3 seat sofa with 2 matching chairs that can double as extra seating in the dining room when guests arrive! The kitchen island has room for a sink, wine cellar and seating and can even be enlarged if need be. A storage closet beneath the stairs has a powder room and a washer/dryer stack as well. Because this home was originally planned with a screw pile foundation and there is no basement, the mechanical room is on the main level and a large, screened-in porch extends the main living area during the warmer months. Three nicely sized bedrooms upstairs include the master bedroom with walk-in closet and ample closet space in the two others. A full bathroom and a linen closet in the hallway complete the features of this level along with access to a 234 sq. ft. attic storage space The roof has been designed with a pitch that’s ideal for solar panels!

Specifications

Total 976 sq ft

  • Main: 448
  • Second: 528
  • Third: 0
  • Loft/Bonus: 234
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 18'0
  • Depth: 30'0

Roof

  • Max Ridge Height: 28'0
  • Comments: (Top of Fndtn to Peak)
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12

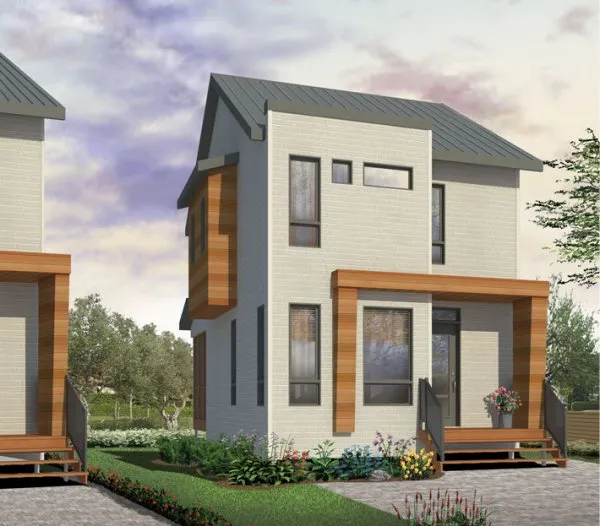

Full Rendering – westhomeplanners.com

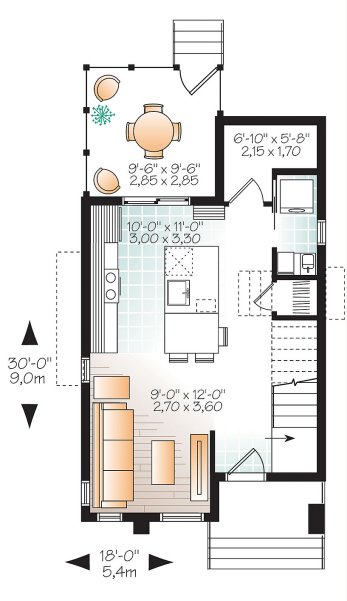

MAIN Plan – westhomeplanners.com

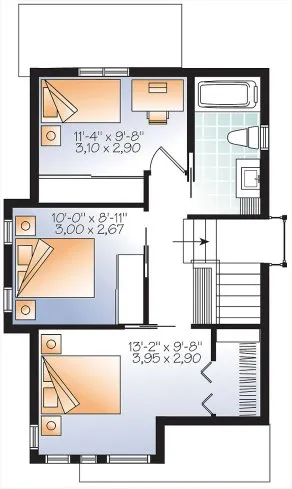

SECOND Plan – westhomeplanners.com

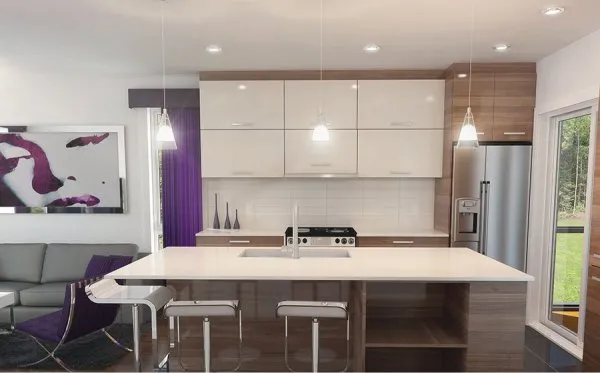

Kitchen – westhomeplanners.com
Livingroom – westhomeplanners.com

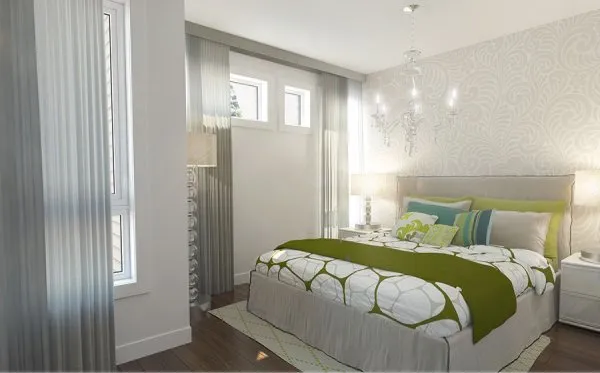

Bedroom One – westhomeplanners.com

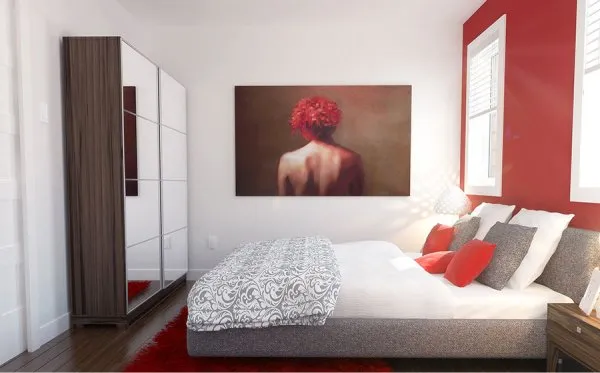

Bedroom Three – westhomeplanners.com

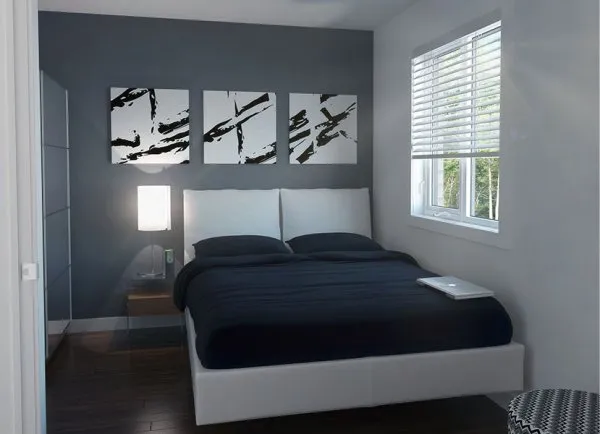

Bedroom Two – westhomeplanners.com

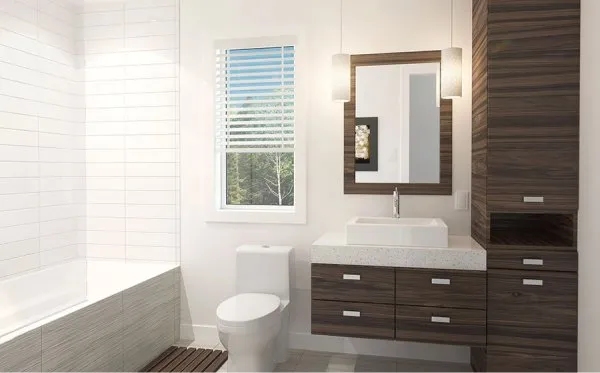

Bath – westhomeplanners.com

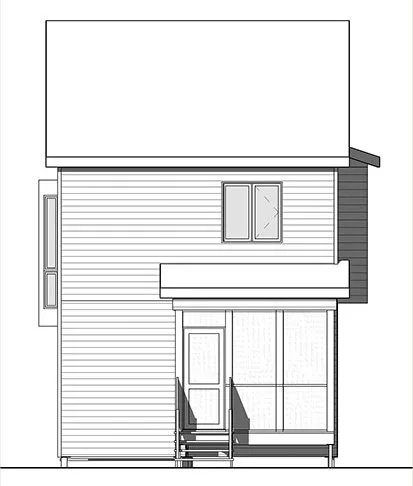

REAR Elevation – westhomeplanners.com
