Plan No.647482

Luxurious Craftsman

If there is no basement, the stairs to the bonus room stay in the same place, and the space under the staircase becomes storage.

Specifications

Total 2847 sq ft

  • Main: 2847
  • Second: 0
  • Third: 0
  • Loft/Bonus: 934
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: tripleGarage
  • Width: 89'0
  • Depth: 85'0

Roof

  • Max Ridge Height: 35'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

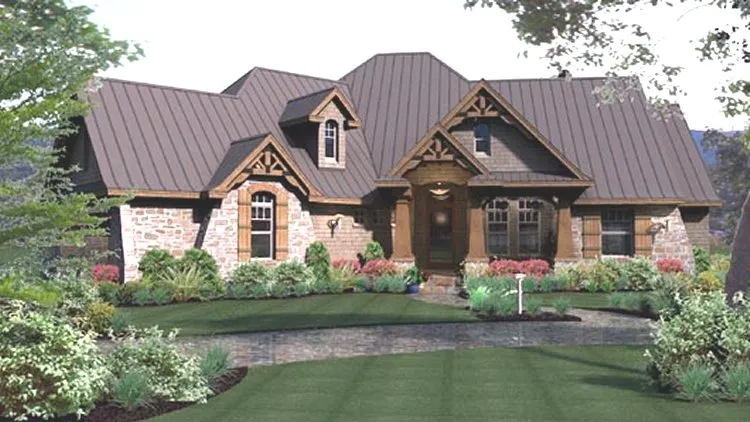

Full Rendering for House Plan #647482
 – westhomeplanners.com

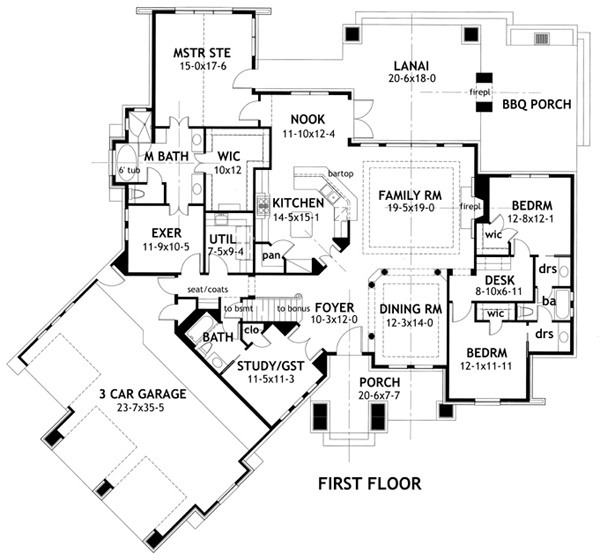

Main Floor Plan for House Plan #647482
 – westhomeplanners.com

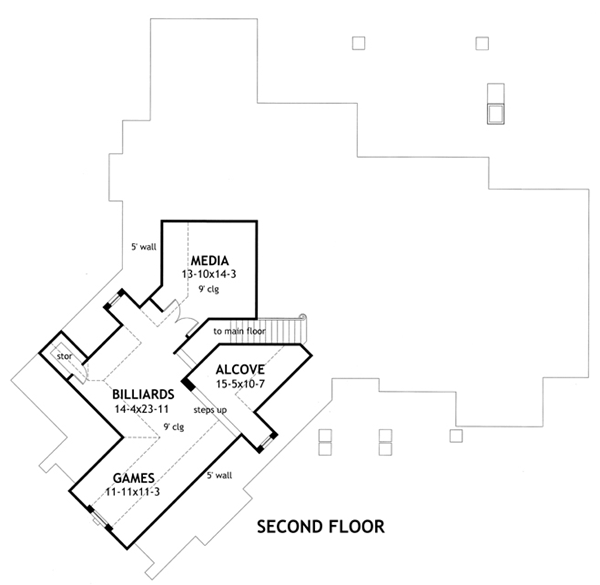

Attic Plan for House Plan #647482

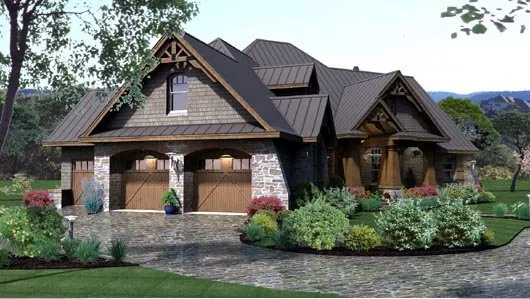

Left Front – westhomeplanners.com
ExteriorPhoto for House Plan #647482

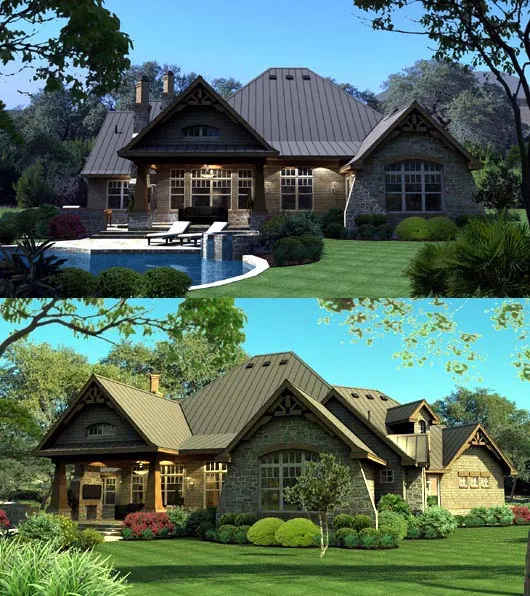

Rear Elevations – westhomeplanners.com
ExteriorPhoto for House Plan #647482
 – westhomeplanners.com

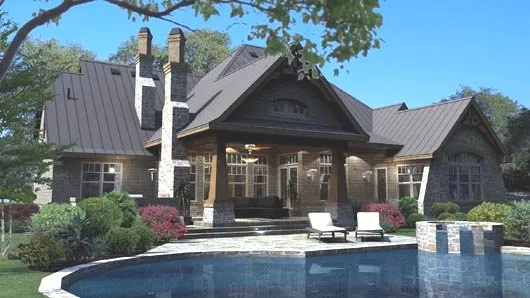

Rear Elevation for House Plan #647482
 – westhomeplanners.com

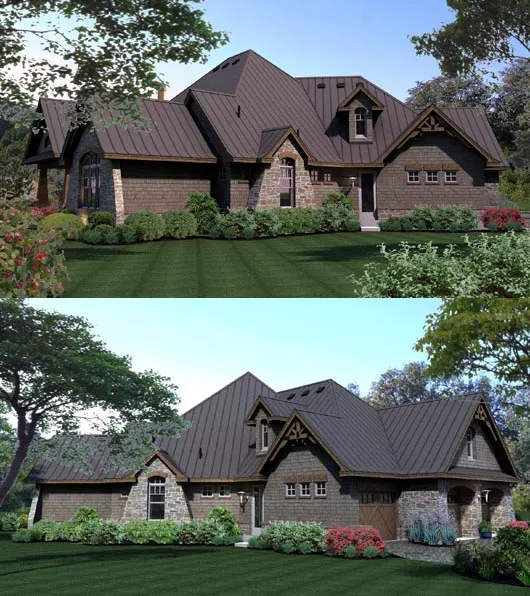

Left Elevation for House Plan #647482
 – westhomeplanners.com

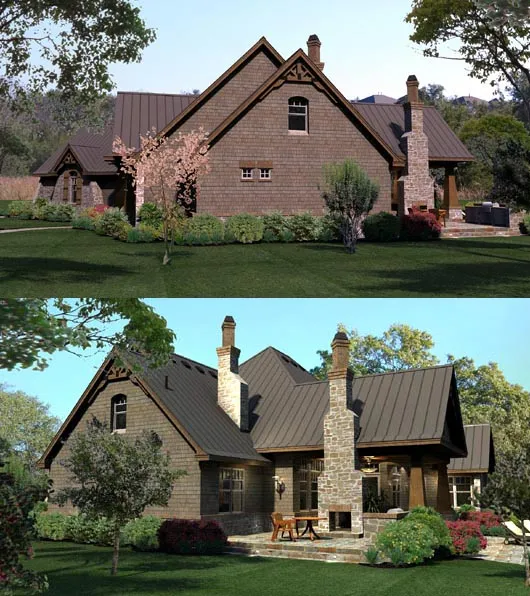

Right Elevation for House Plan #647482
