Plan No.201647

Built-in Gazebo

A built-in gazebo on the front corner expands the usable porch area and gives this home a unique look. The main floor of this plan features 9'-0" high ceilings to add more volume to this already open design, in addition, the living room ceiling is vaulted. Please note, the available Materials List is only for the slab version. The covered deck area is 624 sq. ft. SLAB version can be ordered with a wheelchair assessible en-suite if needed. The Hall is 36 inches wide door to MBR 30 inches wide.

Specifications

Total 1598 sq ft

  • Main: 1598
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1590
  • Garage: 486

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 52'0
  • Depth: 58'0

Roof

  • Max Ridge Height: 23'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 12/12
 – westhomeplanners.com

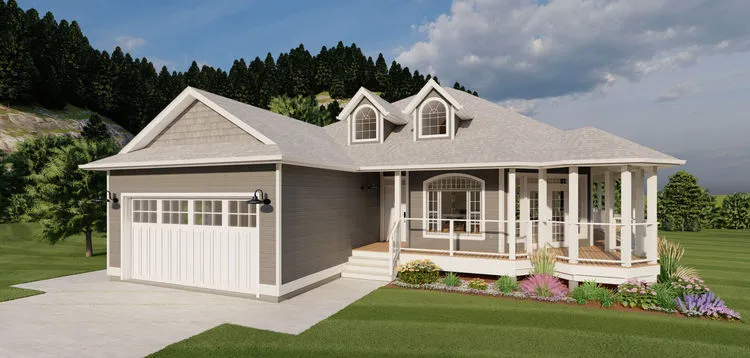

Full Rendering for House Plan #201647
 – westhomeplanners.com

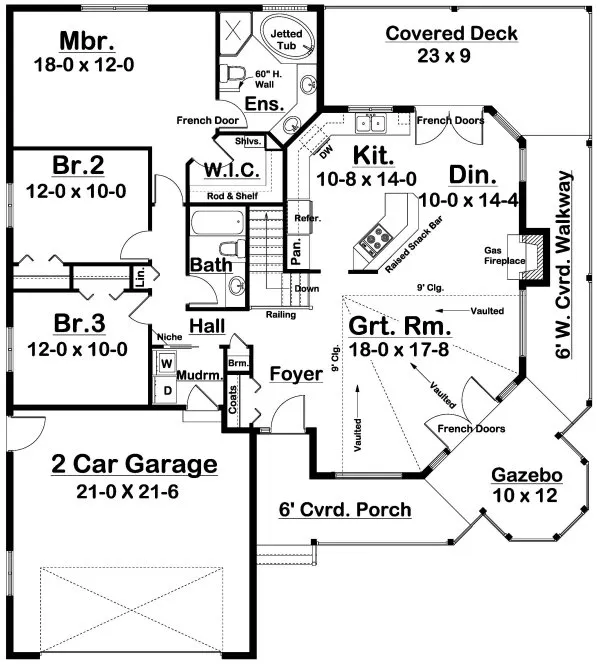

Main Floor Plan for House Plan #201647

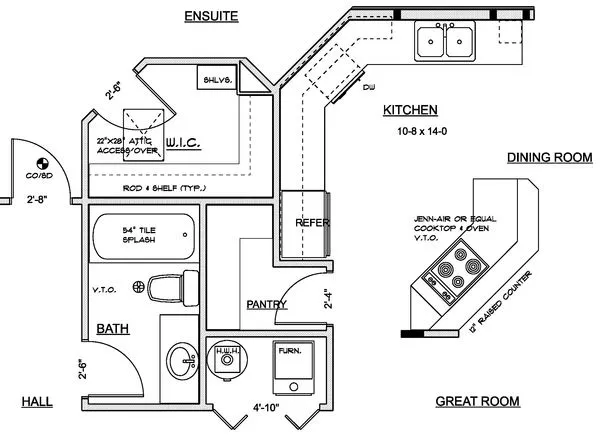

Alt. Slab/Crawlspace – westhomeplanners.com
ExteriorPhoto for House Plan #201647

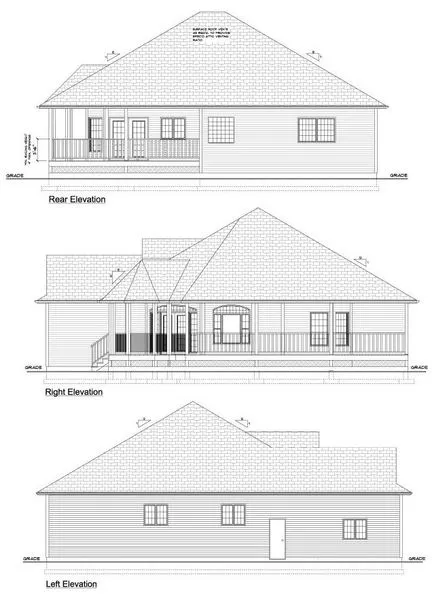

Slab & Crawlspace Elevns – westhomeplanners.com
ExteriorPhoto for House Plan #201647
Kitchen – westhomeplanners.com
InteriorPhoto for House Plan #201647

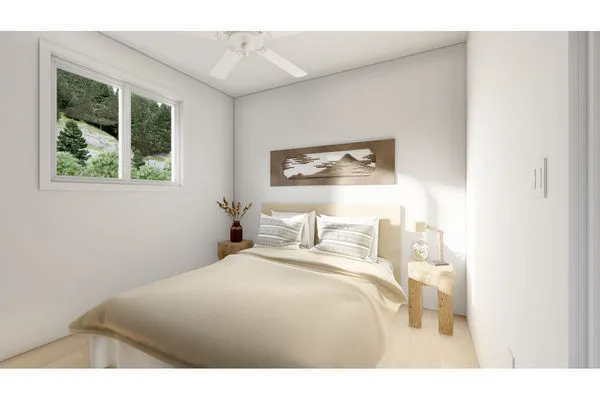

Bedroom 2 – westhomeplanners.com
InteriorPhoto for House Plan #201647

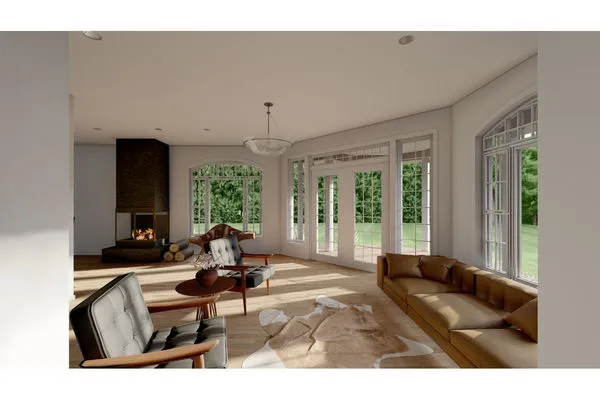

Great Room – westhomeplanners.com
InteriorPhoto for House Plan #201647

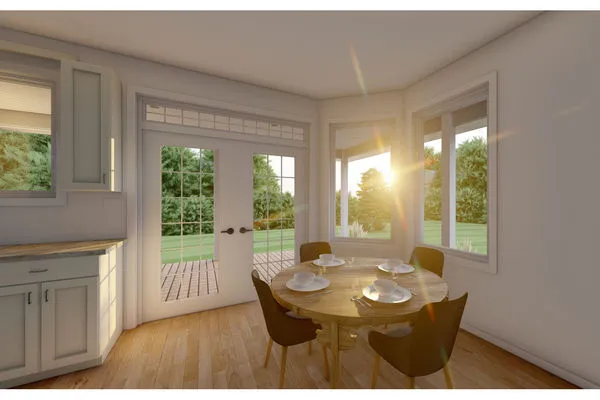

Dining – westhomeplanners.com
InteriorPhoto for House Plan #201647
Bedroom 3 – westhomeplanners.com
InteriorPhoto for House Plan #201647

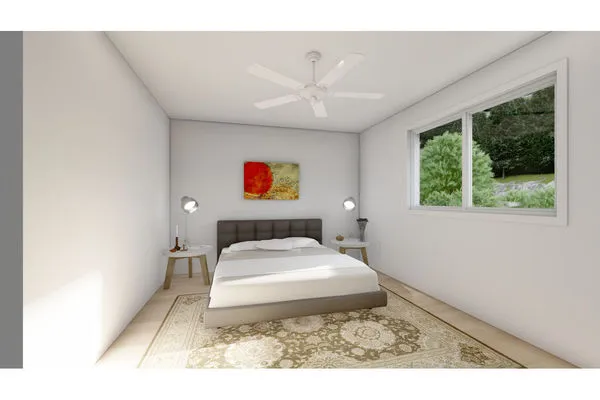

Master Bedroom – westhomeplanners.com
InteriorPhoto for House Plan #201647
Ensuite Bath – westhomeplanners.com
InteriorPhoto for House Plan #201647
Family Bathroom – westhomeplanners.com
InteriorPhoto for House Plan #201647

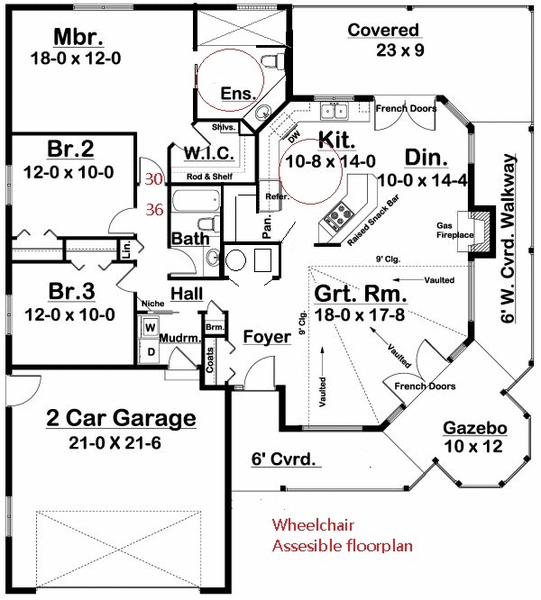

SLAB WCA EN-SUITE – westhomeplanners.com
Left Elevation for House Plan #201647

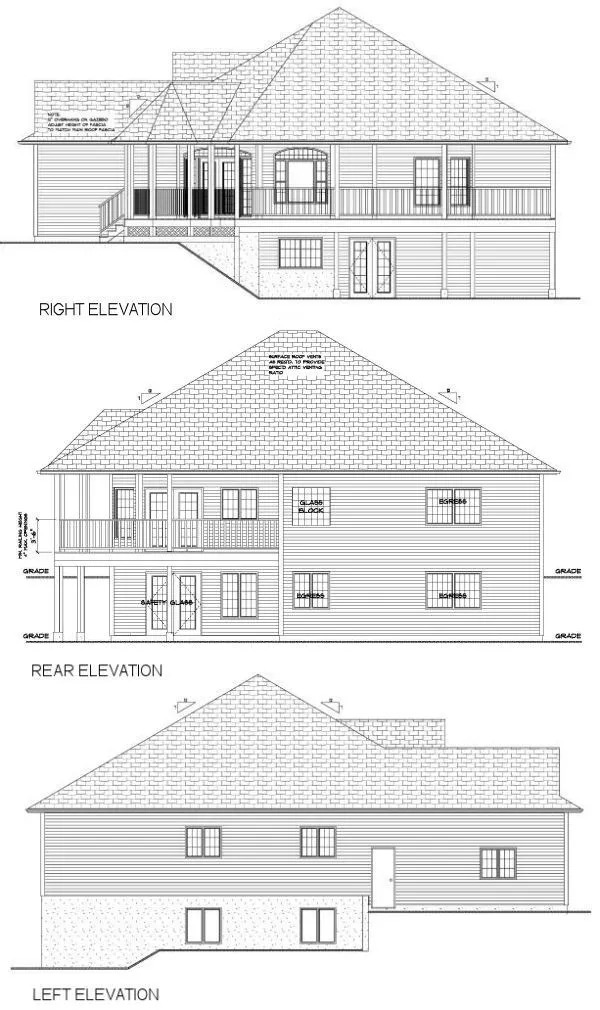

Walkout Basement Elevns – westhomeplanners.com
Other for House Plan #201647

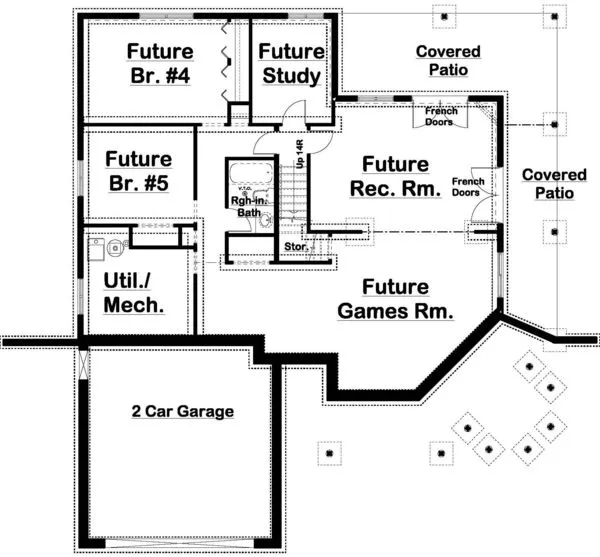

Walkout Basement Plan – westhomeplanners.com
Other for House Plan #201647
