Plan No.510036

Guest House

This plan features a guest house on the main floor of 914 sq. ft. and a double garage with space for workbenches, storage etc. of 546 sq. ft. for a total main floor footprint of 1460 sq. ft. Upstairs, an unfinished bonus loft area of 967 sq. ft. provides plenty of room for future development, storage etc.

Specifications

Total 2427 sq ft

  • Main: 1460
  • Second: 0
  • Third: 0
  • Loft/Bonus: 967
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 40'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 27'0
  • Comments: ()
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com
Full Rendering for House Plan #510036
 – westhomeplanners.com

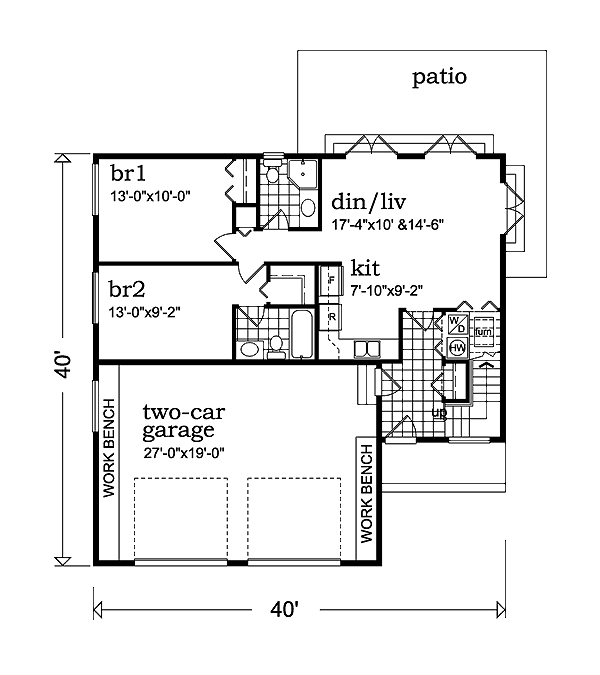

Main Floor Plan for House Plan #510036
 – westhomeplanners.com

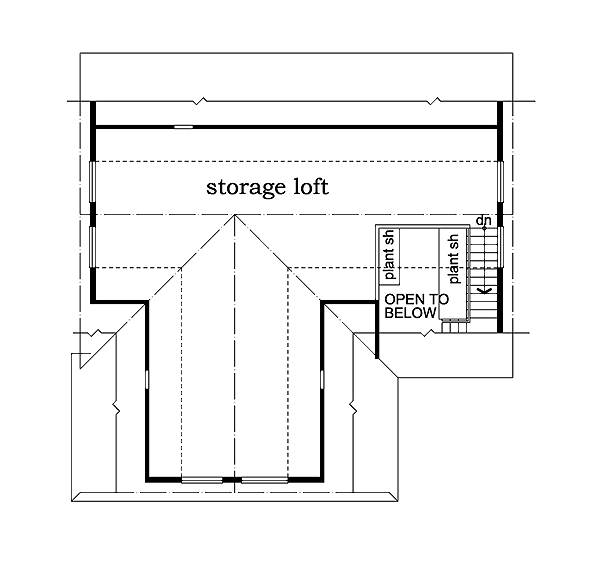

Second Floor Plan for House Plan #510036
 – westhomeplanners.com
Rear Elevation for House Plan #510036
