Plan No.241361

All plans have the following as a part of every plan; Slab foundation is standard (crawl space and basement foundations are available for an additional fee of $195.00 each), 2 x 4 stud construction exterior walls standard (2x6 option $195.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans files are emailed to the customer in PDF or CAD (Softplan, DWG or DXF) format. All plans are Unlimited Build.

Specifications

Total 1631 sq ft

  • Main: 1631
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 452

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 63'0
  • Depth: 48'0

Roof

  • Max Ridge Height: 21'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

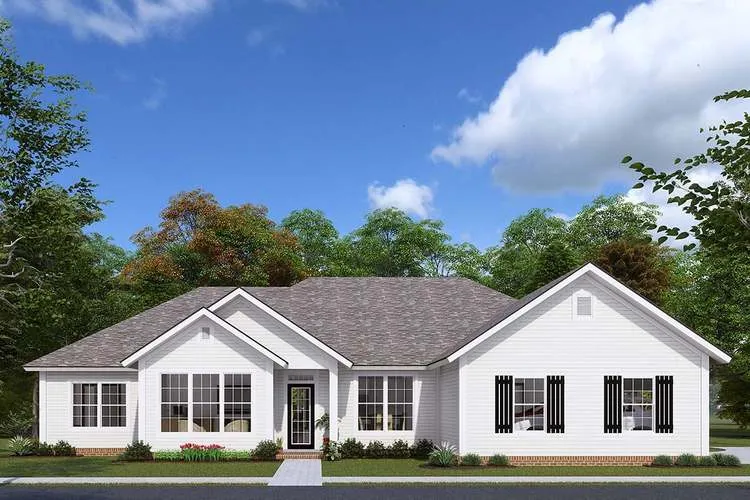

Full Rendering for House Plan #241361
 – westhomeplanners.com

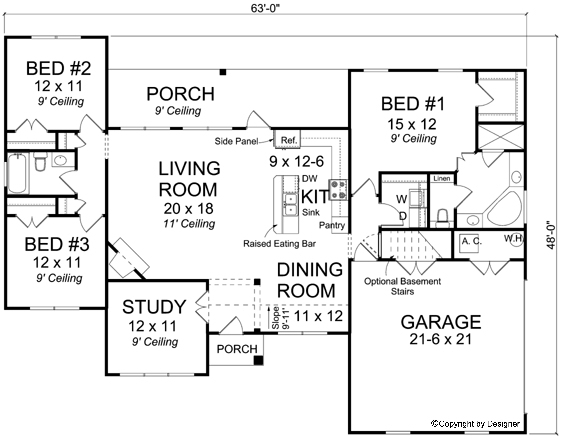

Main Floor Plan for House Plan #241361

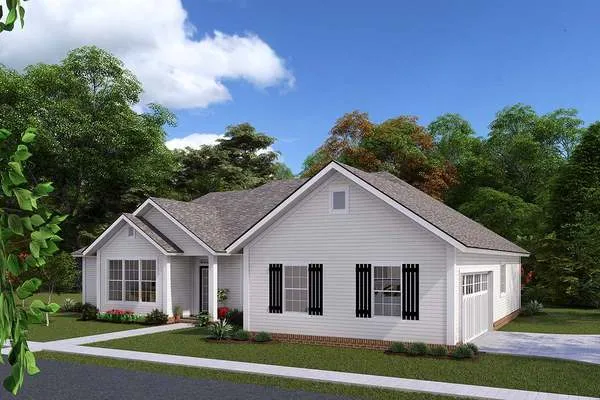

Front & Right – westhomeplanners.com
ExteriorPhoto for House Plan #241361

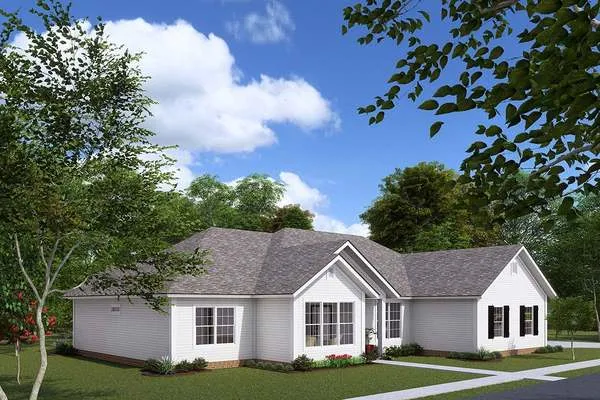

Front & Left – westhomeplanners.com
ExteriorPhoto for House Plan #241361

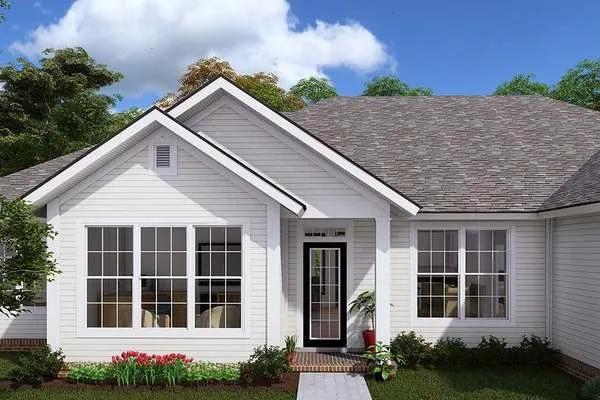

Front Porch – westhomeplanners.com
ExteriorPhoto for House Plan #241361

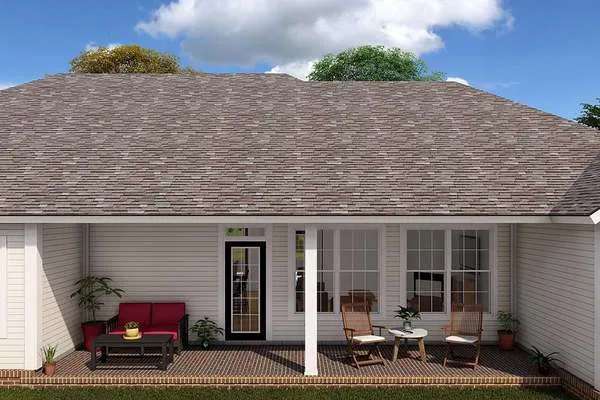

Rear Porch – westhomeplanners.com
ExteriorPhoto for House Plan #241361

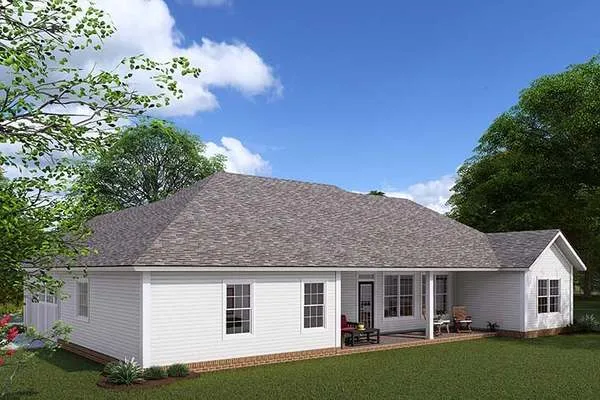

Right & Rear – westhomeplanners.com
ExteriorPhoto for House Plan #241361
From Above – westhomeplanners.com
ExteriorPhoto for House Plan #241361
Rear – westhomeplanners.com
ExteriorPhoto for House Plan #241361
 – westhomeplanners.com

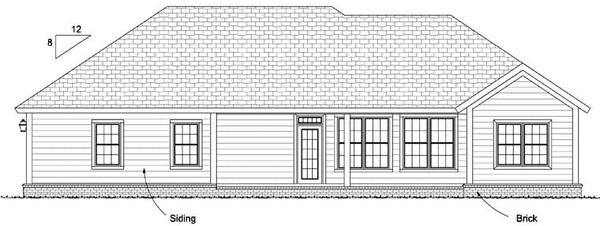

Rear Elevation for House Plan #241361

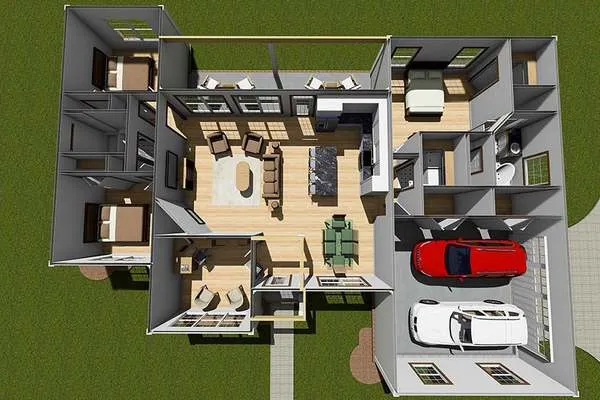

3D Floor Plan – westhomeplanners.com
Other for House Plan #241361
