Plan No.458004

The three bedroom apartment has an area of 1162 sq. ft. while the studio apartment is 523 sq. ft. and the recording studio is 779 sq. ft.

Specifications

Total 5984 sq ft

  • Main: 3520
  • Second: 2464
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 3520

Rooms

  • Beds: 5
  • Baths: 4
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'8
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'8

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 88'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 30'8
  • Comments: ()
  • Primary Pitch: 6/12
  • Secondary Pitch: 12/12
 – westhomeplanners.com
Full Rendering for House Plan #458004
 – westhomeplanners.com

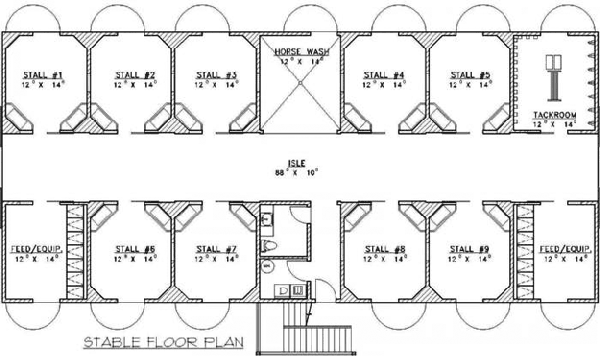

Main Floor Plan for House Plan #458004
 – westhomeplanners.com

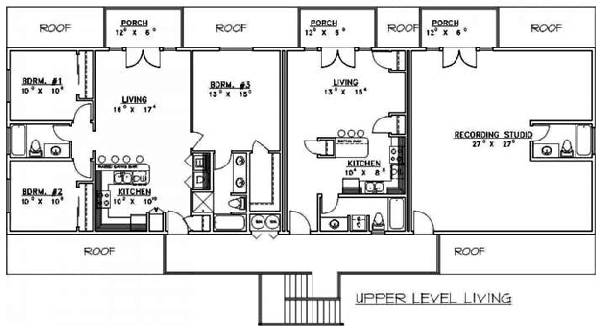

Second Floor Plan for House Plan #458004
 – westhomeplanners.com

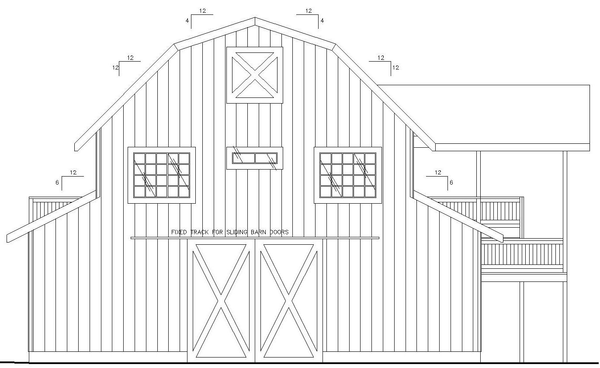

Left Elevation for House Plan #458004

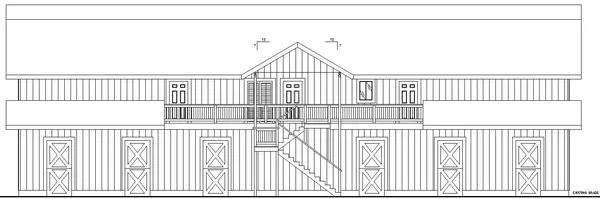

FRONT Elevation – westhomeplanners.com
Other for House Plan #458004
