Plan No.345813

Small Vacation Retreat Home

A wide, partly covered deck wraps around two sides of this small vacation retreat home. The vaulted great room is naturally bright during the day. It is fully open to the nook and partially open to the kitchen along an eating bar that fronts the sink. Two bedrooms are downstairs; a loft, storage, and bathroom are above.

Specifications

Total 1305 sq ft

  • Main: 1047
  • Second: 258
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 42'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 23'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com
Full Rendering for House Plan #345813
 – westhomeplanners.com

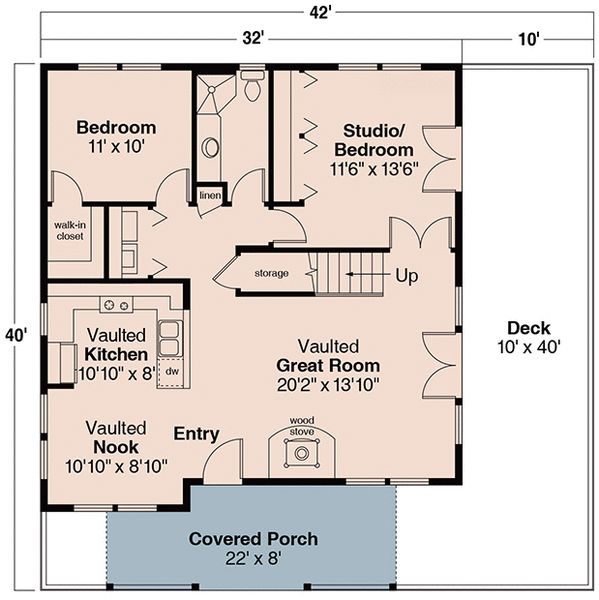

Main Floor Plan for House Plan #345813
 – westhomeplanners.com

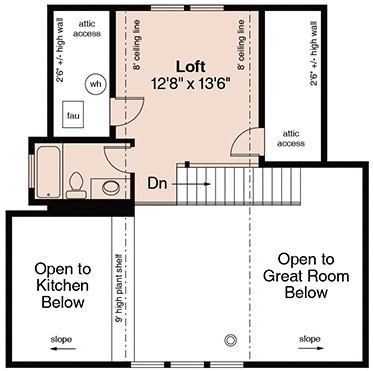

Second Floor Plan for House Plan #345813
Fall Rendering – westhomeplanners.com
ExteriorPhoto for House Plan #345813
 – westhomeplanners.com
Rear Elevation for House Plan #345813
 – westhomeplanners.com
Left Elevation for House Plan #345813
 – westhomeplanners.com
Right Elevation for House Plan #345813
Artists Sketch – westhomeplanners.com
Other for House Plan #345813
