Plan No.343541

Wings Extend Forward

A grand entry framed by classic columns, an arched brick opening, and a half-round sunburst transom sets the tone for this elegant home. The layout is centered around a partially vaulted hexagonal great room, with wings that extend outward to form a welcoming recessed entry courtyard. Even the three-car garage is thoughtfully designed, oriented to maintain refined curb appeal. Inside, a vaulted porch leads into a spacious foyer and the home’s striking hexagonal core. The front half features the kitchen, utility room, and storage tucked under loft stairs, all beneath nine-foot ceilings. The rear half of the open-concept great room rises dramatically with wedge-shaped ceiling segments meeting at a central apex. Multipaned windows fill the space with natural light, while a woodstove and built-in entertainment center anchor the living area. Sliding French doors topped with Palladian windows open to a vaulted covered patio, creating seamless indoor-outdoor living perfect for year-round enjoyment.

Specifications

Total 2958 sq ft

  • Main: 2473
  • Second: 485
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 1064

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 83'4
  • Depth: 88'11

Roof

  • Max Ridge Height: 29'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

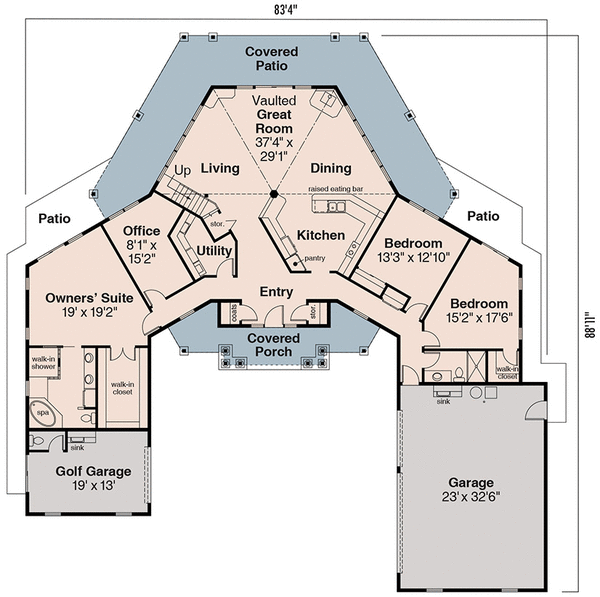

MAIN Plan – westhomeplanners.com

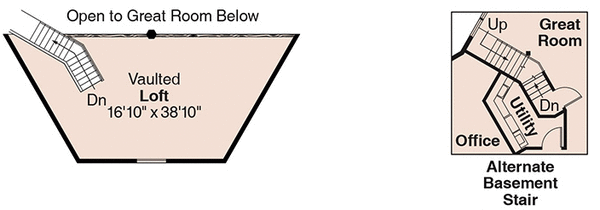

ATTIC Plan – westhomeplanners.com

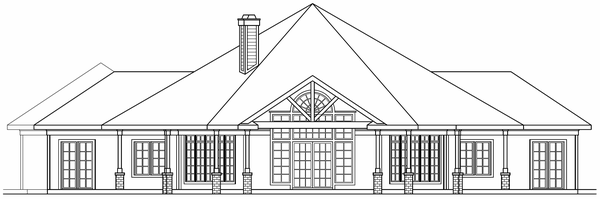

REAR Elevation – westhomeplanners.com

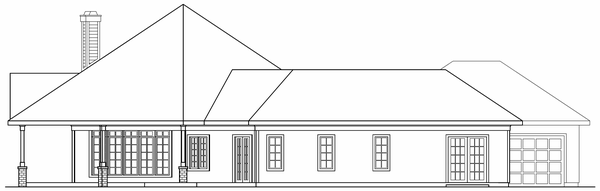

LEFT Elevation – westhomeplanners.com

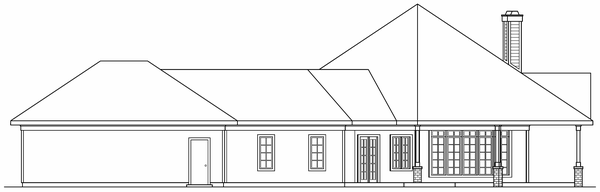

RIGHT Elevation – westhomeplanners.com
