Plan No.297008

Open, Vaulted Spaces Abound

This comfortable, attractive design boasts an open floor plan that is further expanded by vaulted ceilings. The covered entryway leads into the foyer, where the open living spaces come into view immediately. The stunning Great Room is highlighted by a vaulted ceiling, a fireplace and a gorgeous window arrangement. The adjoining dining area, kitchen and breakfast nook are also vaulted. The kitchen features a half-round opening above the sink that faces the dining area. The breakfast nook offers access to an angled deck and a patio for extended living space. The spacious master suite, brightened by a boxed-out window, features a vaulted ceiling in the sleeping area and in the private bath. Two adjacent bedrooms have easy access to another full bath. The third bedroom, with sliding glass doors to the deck, would make a perfect den or hobby room.

Specifications

Total 1368 sq ft

  • Main: 1368
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1368
  • Garage: 412

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 48'4
  • Depth: 51'4

Roof

  • Max Ridge Height: 21'0
  • Comments: ()
  • Primary Pitch: 6/12
  • Secondary Pitch: 8/12
 – westhomeplanners.com

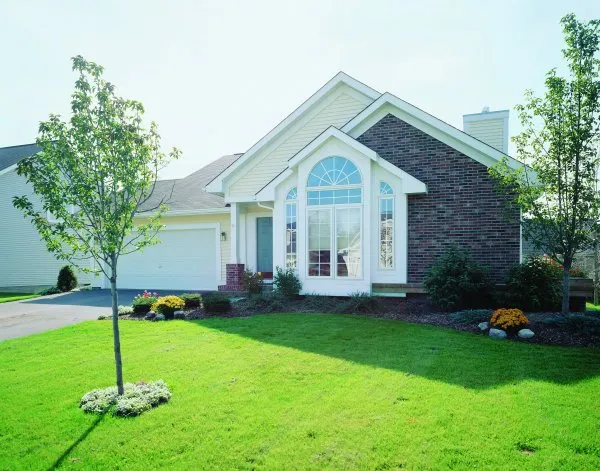

Full Rendering for House Plan #297008
 – westhomeplanners.com

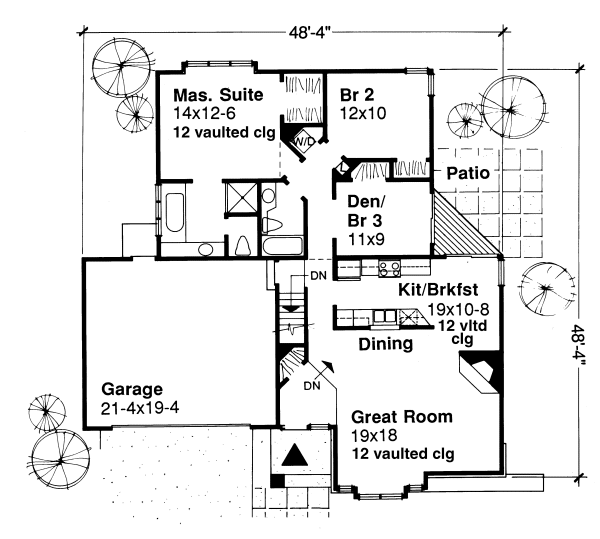

Main Floor Plan for House Plan #297008

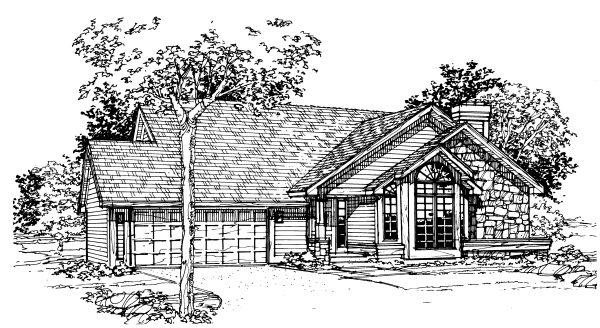

Artist's Sketch – westhomeplanners.com
ExteriorPhoto for House Plan #297008
 – westhomeplanners.com
Rear Elevation for House Plan #297008
