Plan No.144503

Activity area's ceiling height is 8'8", including living room, dining room and kitchen-dinette. A large landing at the entry. Bedroom with adequate storage and comfortable bathroom with bath and corner shower. Garage with good depth and double garden doors at the rear, giving access to the back. Well suited finished basement with large windows. Laundry facility close to the bedrooms. Each unit has a Main Floor of 1100 sq. ft. and a Lower Level of 649 sq. ft. for a total finished area per unit of 1749 sq. ft. x 2 = total finished building area of 3498 sq. ft.

Specifications

Total 3498 sq ft

  • Main: 1100
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 649
  • Garage: 416

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 66'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 30'1
  • Comments: ()
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12

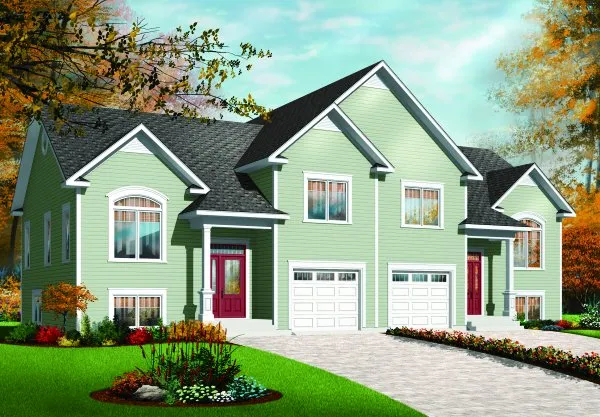

Full Rendering – westhomeplanners.com

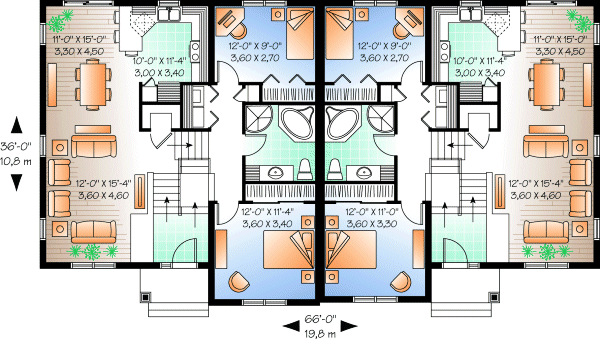

MAIN Plan – westhomeplanners.com

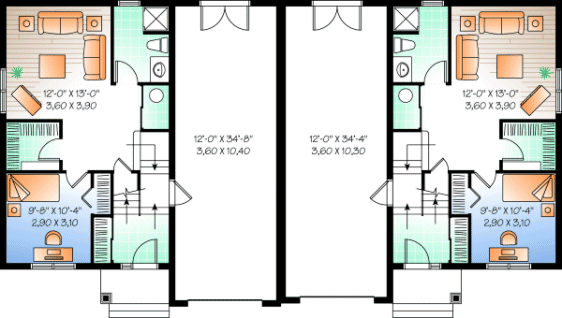

BASEMENT Plan – westhomeplanners.com

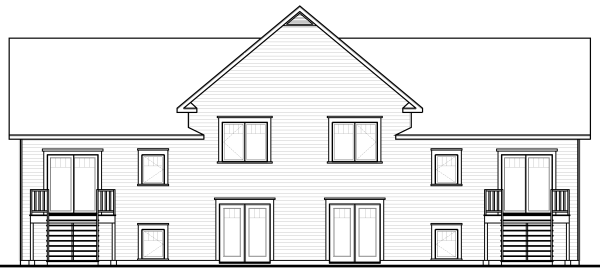

REAR Elevation – westhomeplanners.com
