Plan No.102016

Dormers A Plus For Master Bedroom And Roofline

The width is 24 feet plus the 4 foot covered entry. The large living area has a vaulted ceiling and great view to the front of the house. A full laundry room, full bath, and large bedroom complete the main floor. This large a-frame looks great thanks to the interesting roof line formed by dormers in the loft bedroom. THE MATERIALS LIST IS ONLY AVAILABLE FOR THE CRAWLSPACE FOUNDATION.

Specifications

Total 1677 sq ft

  • Main: 1064
  • Second: 0
  • Third: 0
  • Loft/Bonus: 613
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 28'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 26'6
  • Comments: ()
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
 – westhomeplanners.com

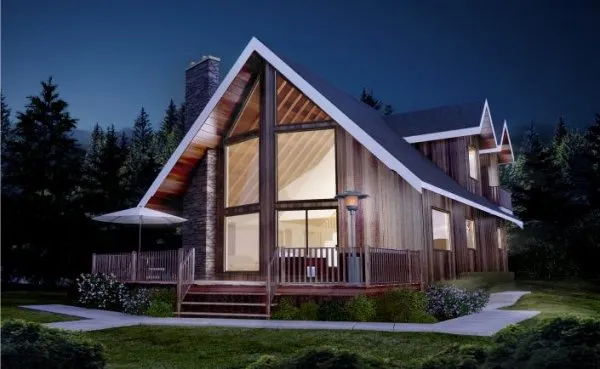

Full Rendering for House Plan #102016
 – westhomeplanners.com

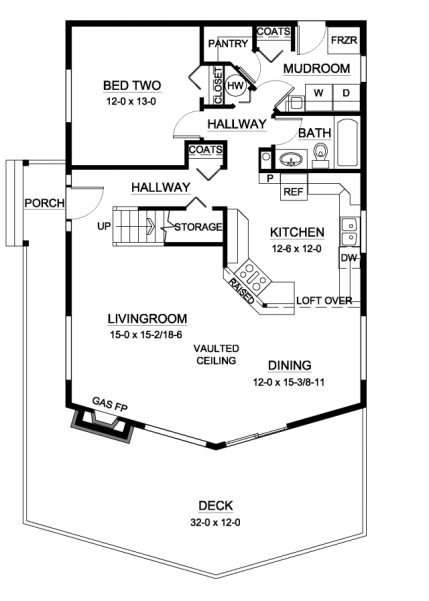

Main Floor Plan for House Plan #102016
 – westhomeplanners.com

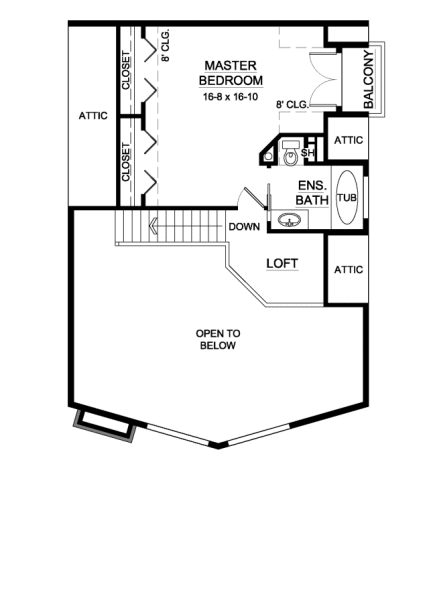

Attic Plan for House Plan #102016

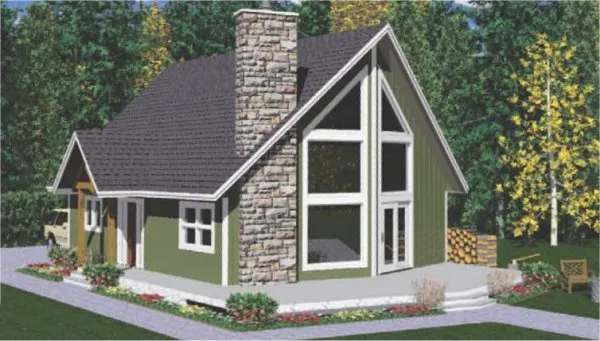

FRONT Rendering – westhomeplanners.com
ExteriorPhoto for House Plan #102016

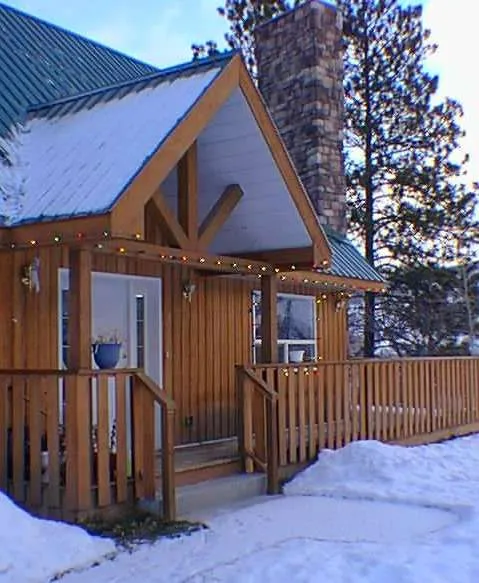

Entry Porch – westhomeplanners.com
ExteriorPhoto for House Plan #102016

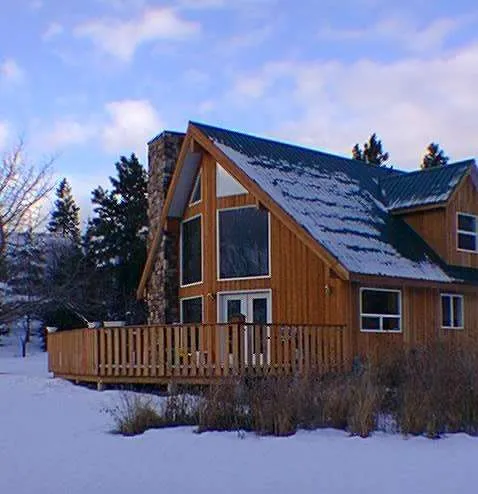

Front – westhomeplanners.com
InteriorPhoto for House Plan #102016
 – westhomeplanners.com

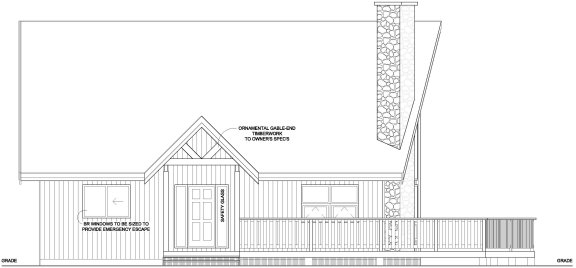

Left Elevation for House Plan #102016
 – westhomeplanners.com
Left Elevation for House Plan #102016
 – westhomeplanners.com
Right Elevation for House Plan #102016
 – westhomeplanners.com
Right Elevation for House Plan #102016
