Plan No.264511

Capture The View

An economical 24' wide by 28' deep footprint is further enhanced with an expansive 10' deep partially covered sundeck, promoting a multitude of outdoor activities and capturing the rear view. Window seats in the sitting / dining areas are warmed by the wood stove and encourages cozy indoor moments. The U-shaped kitchen is brightened with a greenhouse window, perfect for plant enthusiasts. The second story art studio boasts a voluminous 13' high sloped ceiling, open to the sitting room below and the outdoors via a covered balcony. Plans designed with a crawl space foundation plan.

Specifications

Total 1154 sq ft

  • Main: 672
  • Second: 482
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 10'
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 36'0
  • Depth: 42'6

Roof

  • Max Ridge Height: 25'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

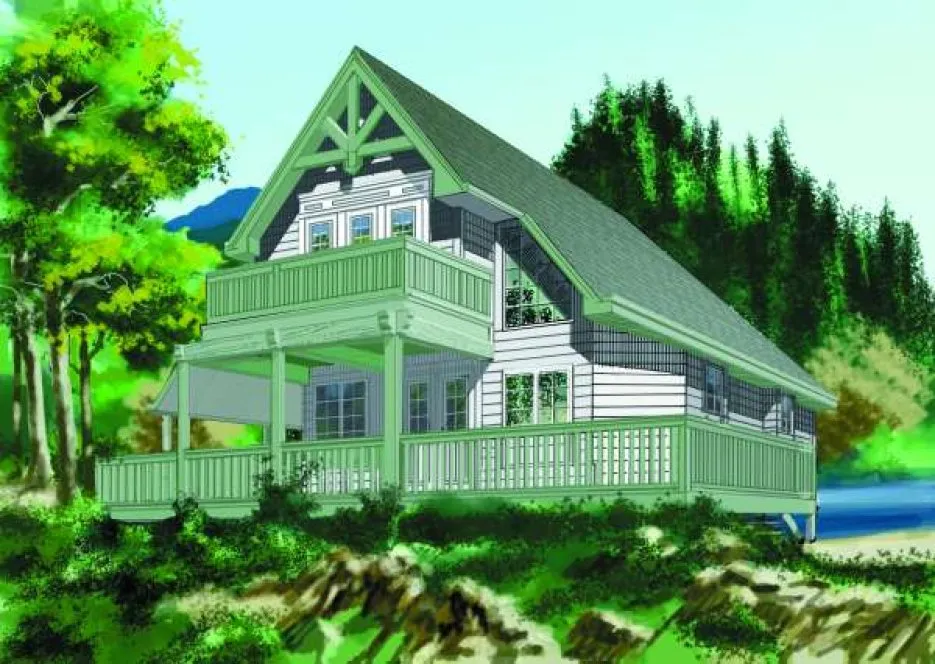

Full Rendering – westhomeplanners.com

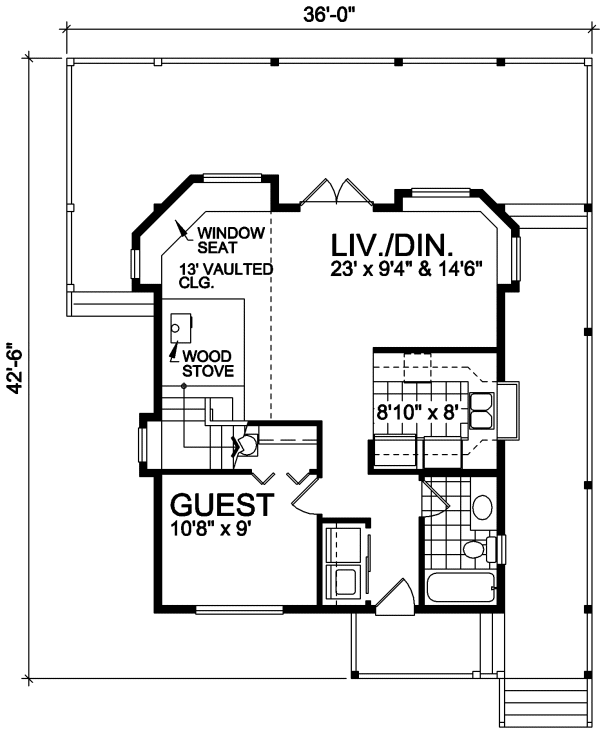

MAIN Plan – westhomeplanners.com

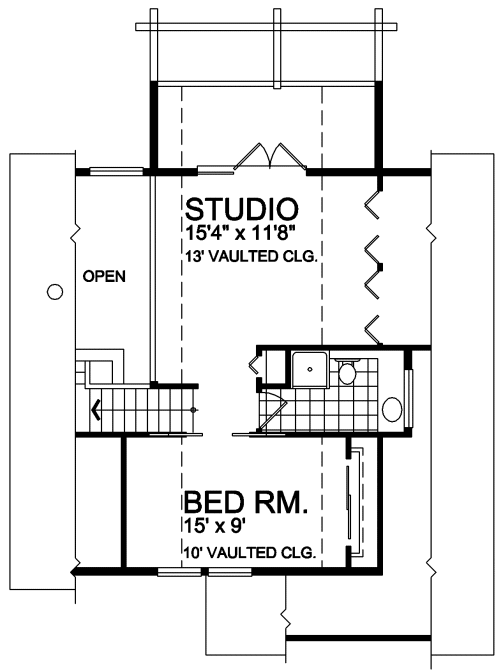

SECOND Plan – westhomeplanners.com

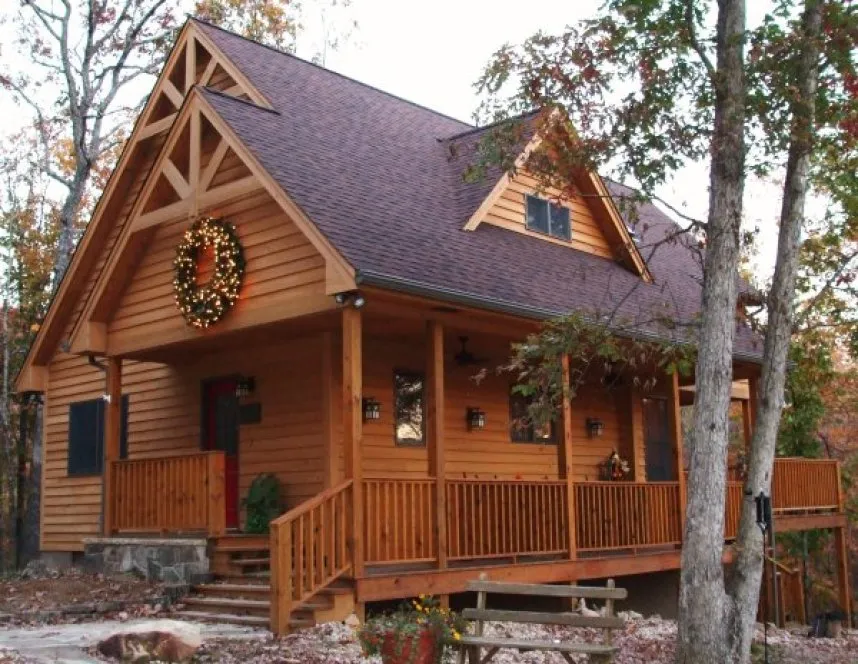

Front Photo 2 – westhomeplanners.com

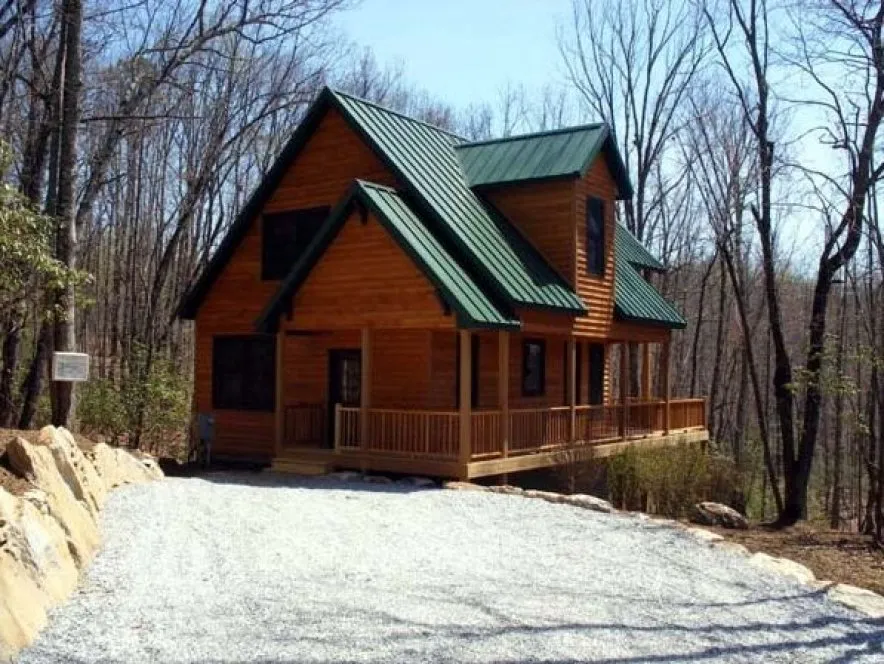

Front Right 1 – westhomeplanners.com

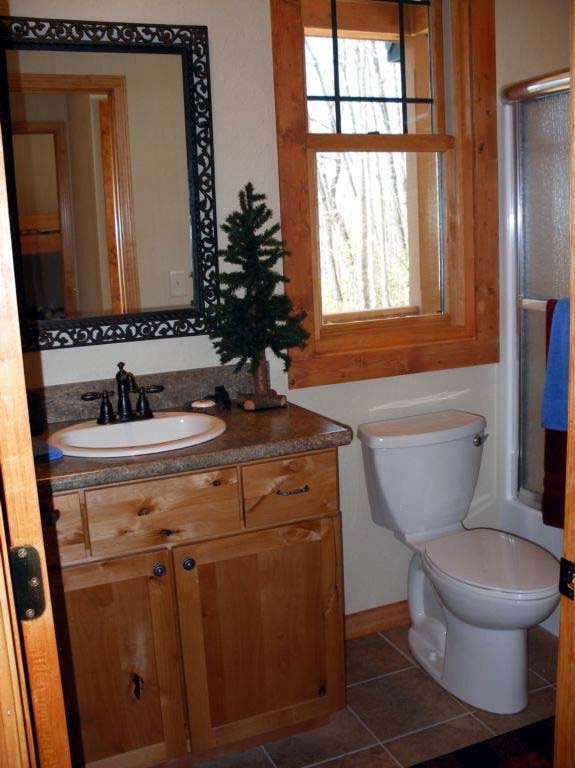

Upstairs Bath – westhomeplanners.com

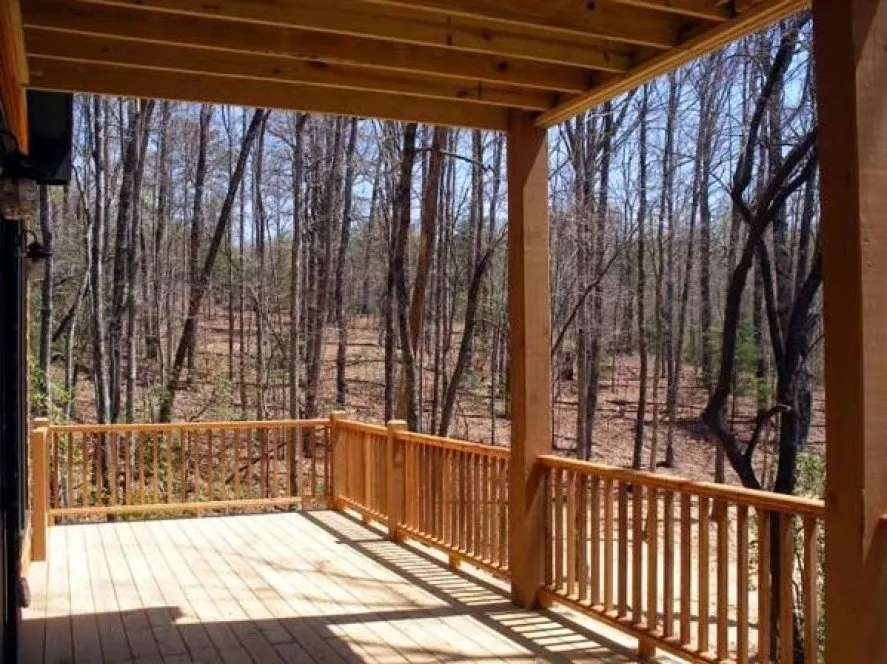

Rear Sundeck – westhomeplanners.com

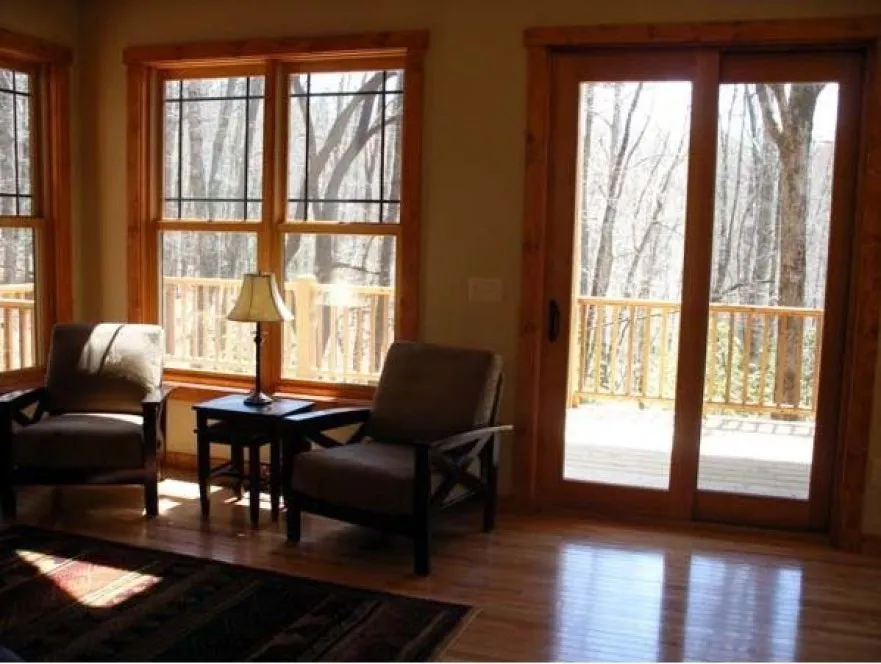

Livingroom to Deck – westhomeplanners.com

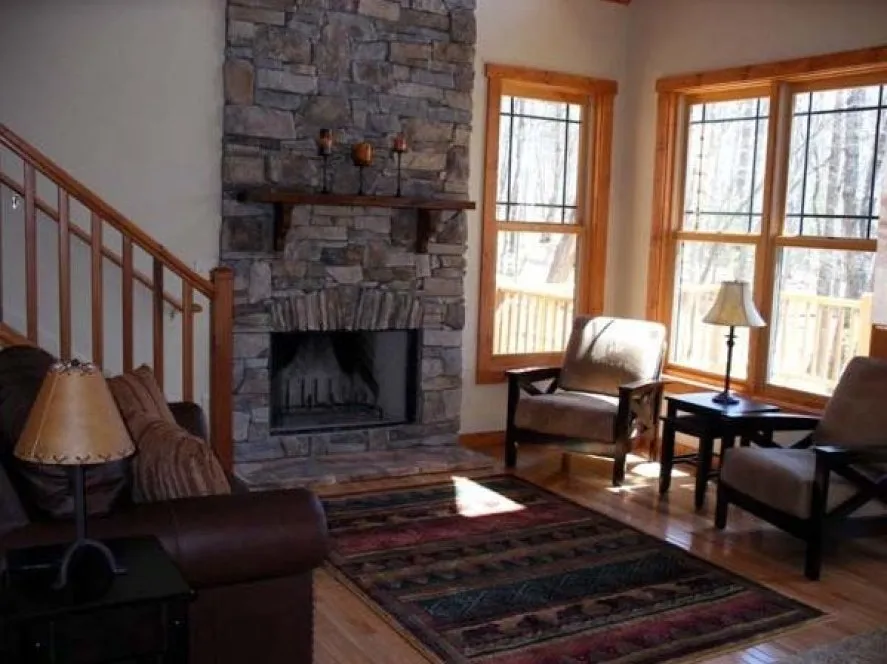

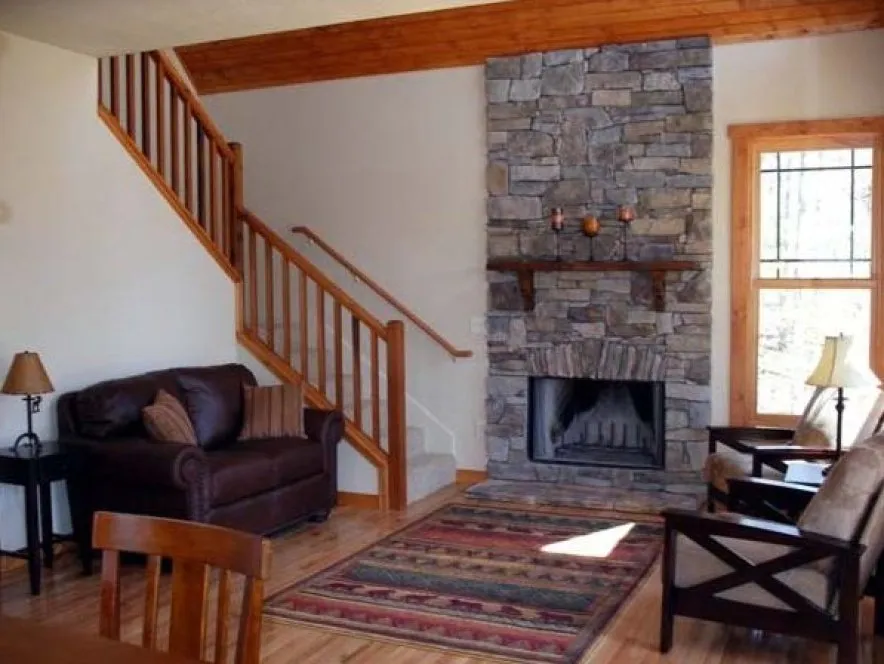

Livingroom (mod. w/FP) – westhomeplanners.com

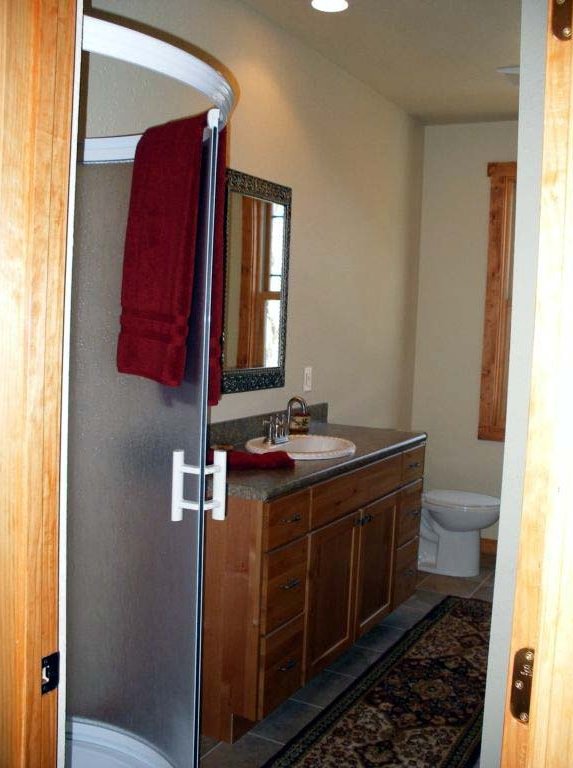

Main Floor Bath – westhomeplanners.com

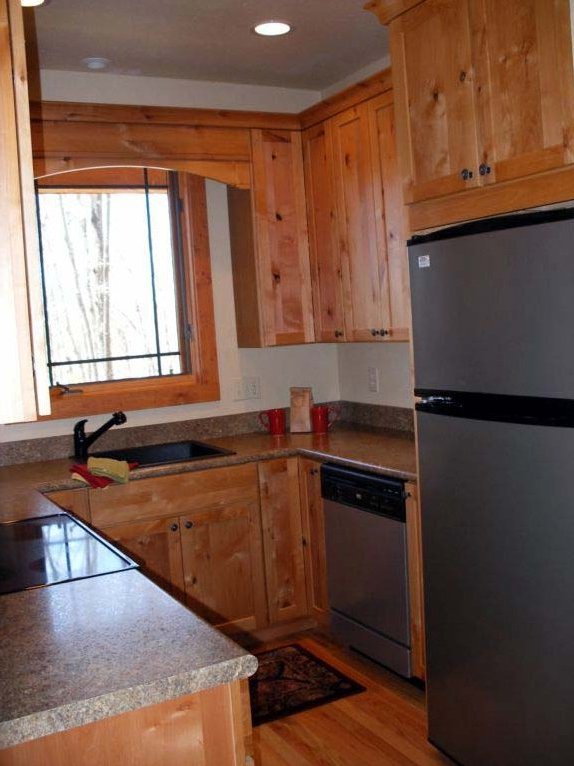

Kitchen – westhomeplanners.com

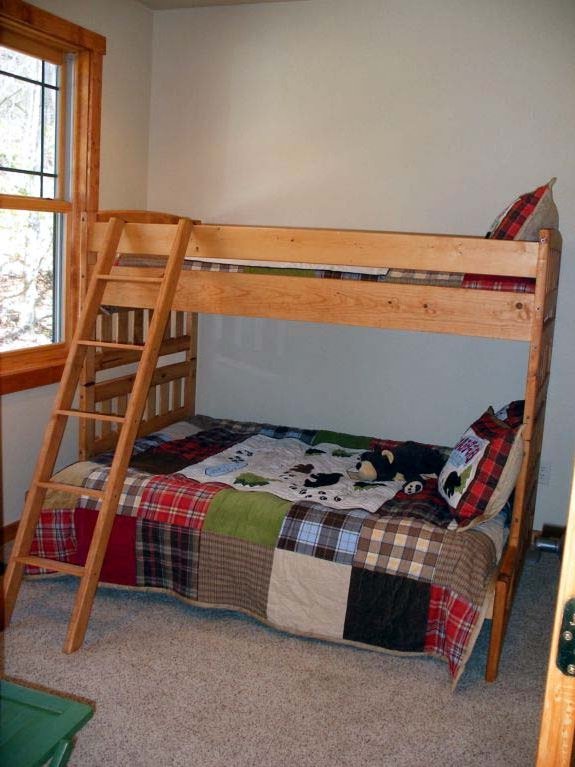

Bedroom – westhomeplanners.com

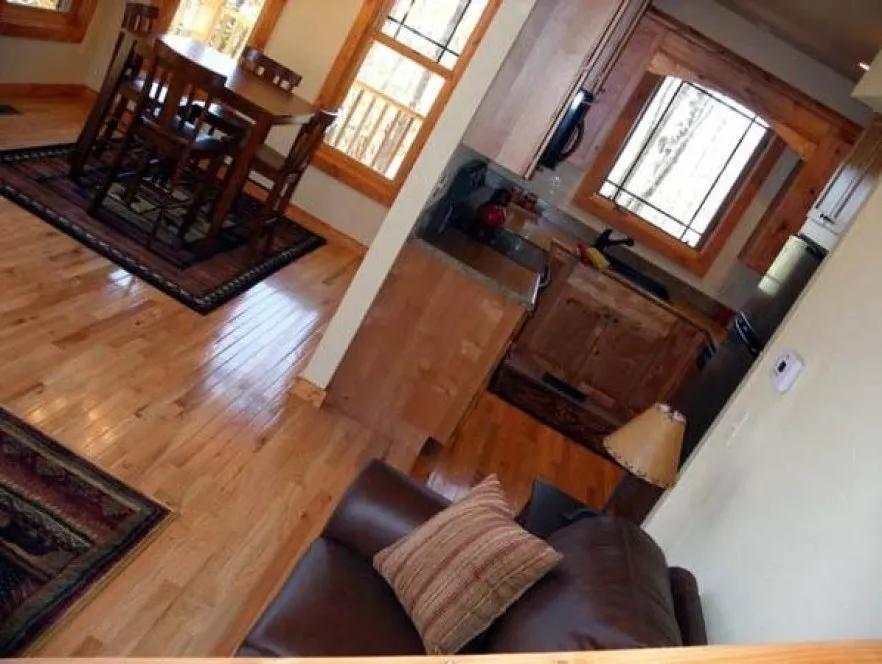

Dining & Kitchen – westhomeplanners.com

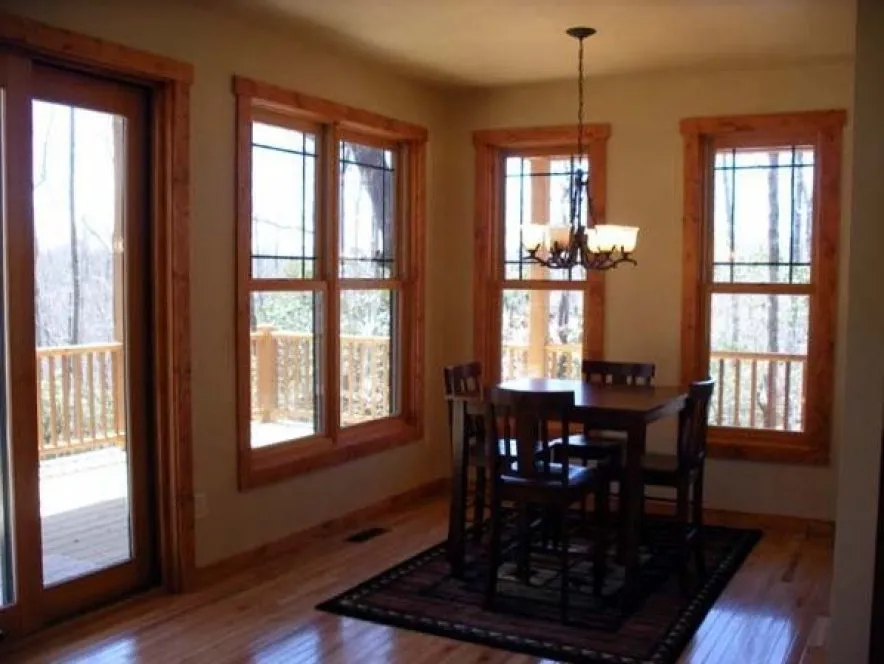

Dining – westhomeplanners.com
Studio towards Br – westhomeplanners.com

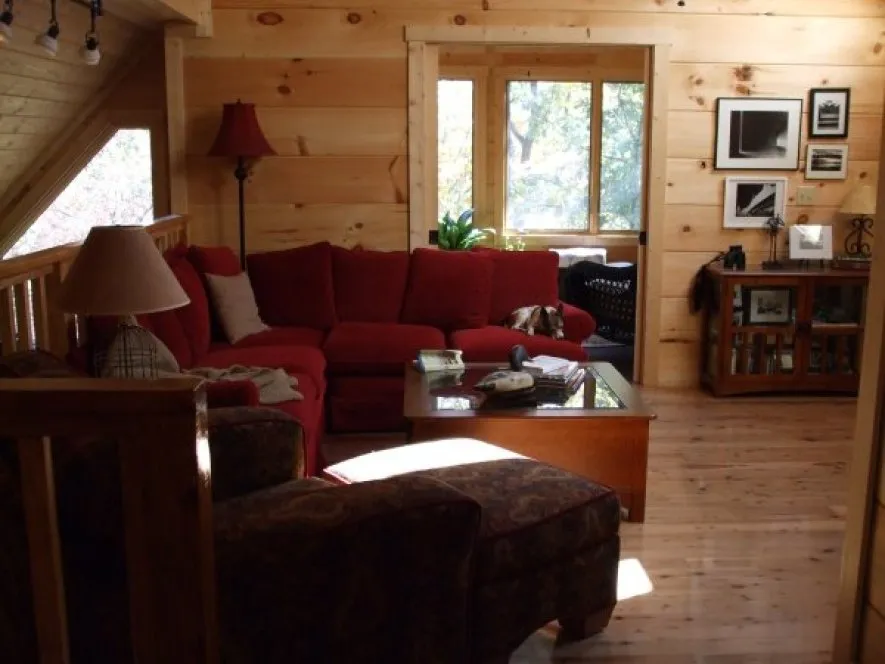

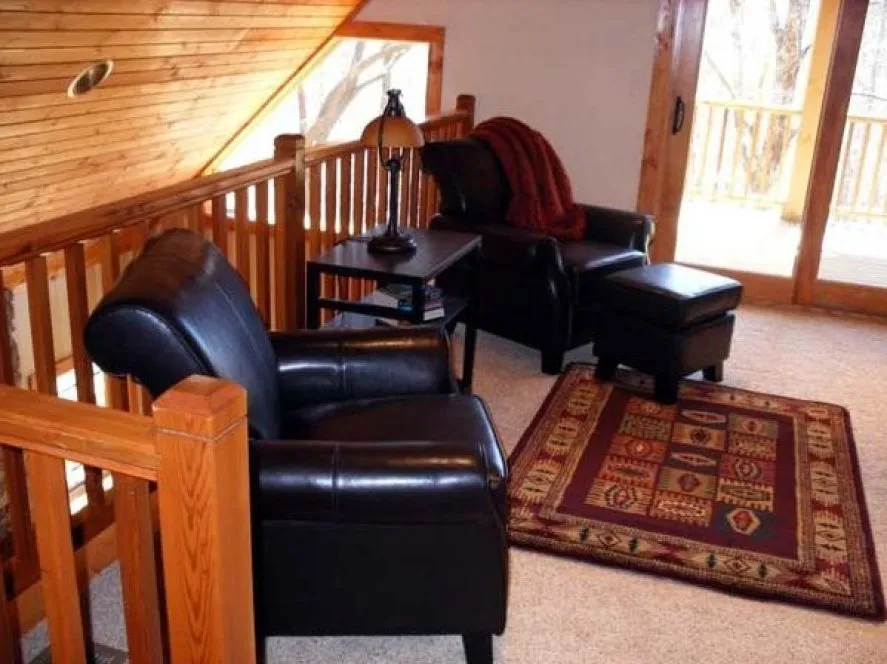

Studio Overlook – westhomeplanners.com
Livingroom (mod. w/FP) – westhomeplanners.com

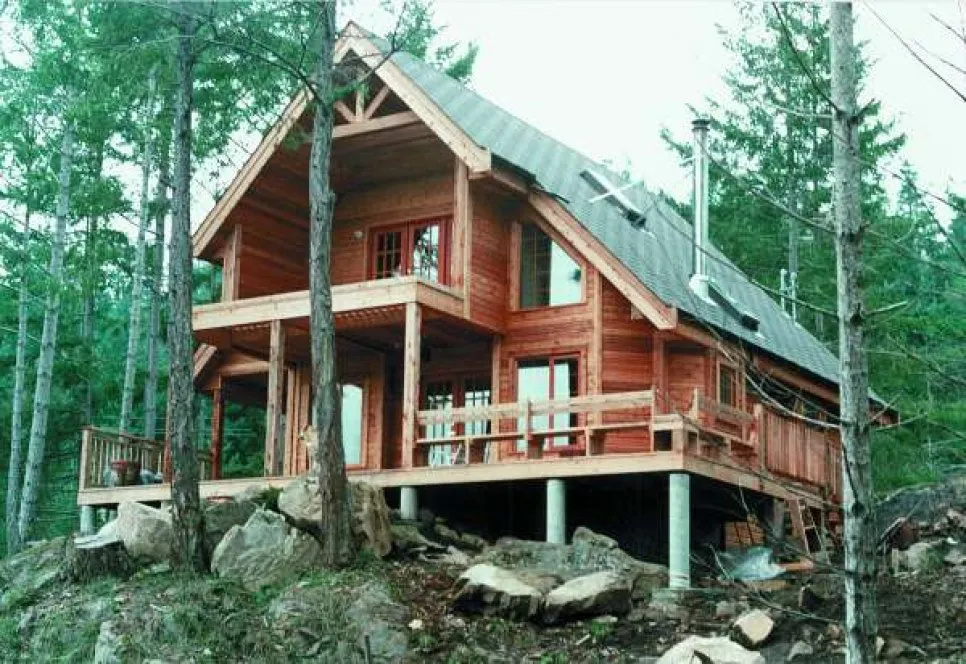

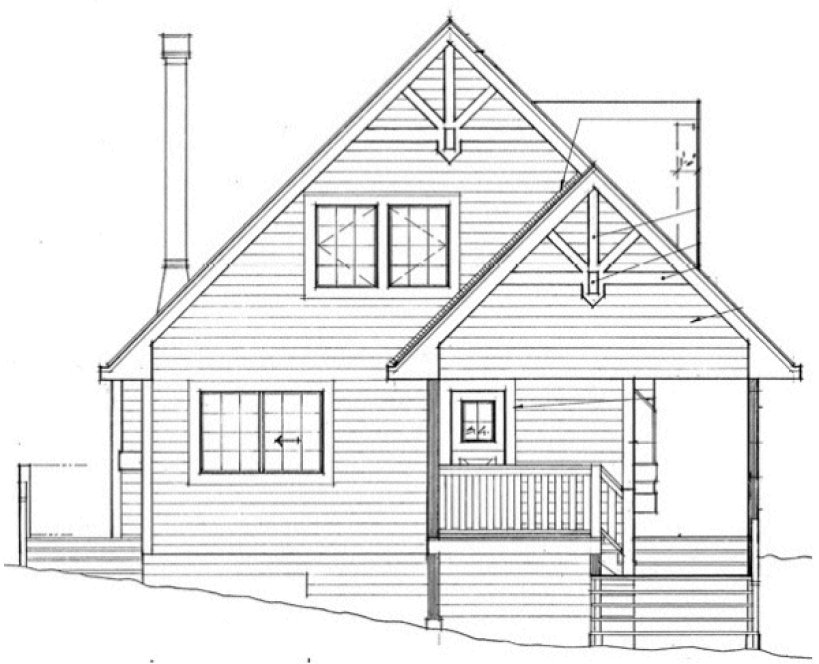

REAR Elevation – westhomeplanners.com
REAR Elevation – westhomeplanners.com
