Plan No.268000

This economical cottage design is ideally suited for a compact or narrow building site. The versatile two storey great room features a window wall enhancing all the available rear views. The second level sleeping loft could easily be partitioned if additional privacy is warranted. The covered front entry is protected from the elements and adds to the curb appeal.

Specifications

Total 796 sq ft

  • Main: 560
  • Second: 236
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 9'6
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 20'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 23'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: 6.00/12

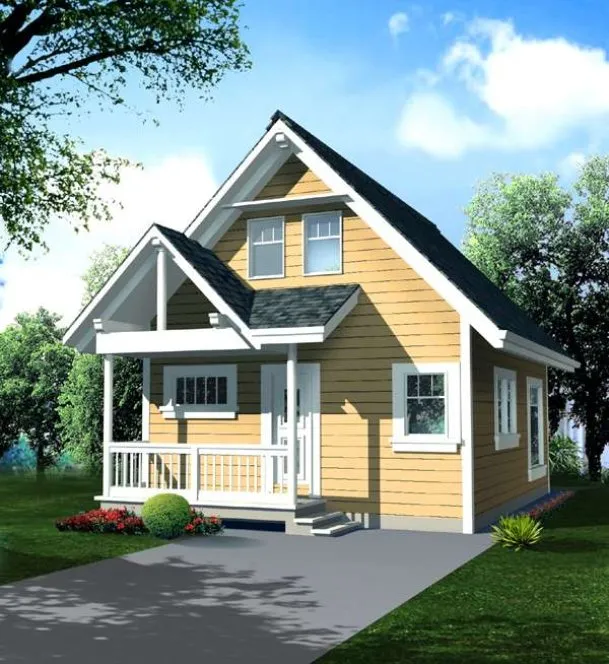

Full Rendering – westhomeplanners.com

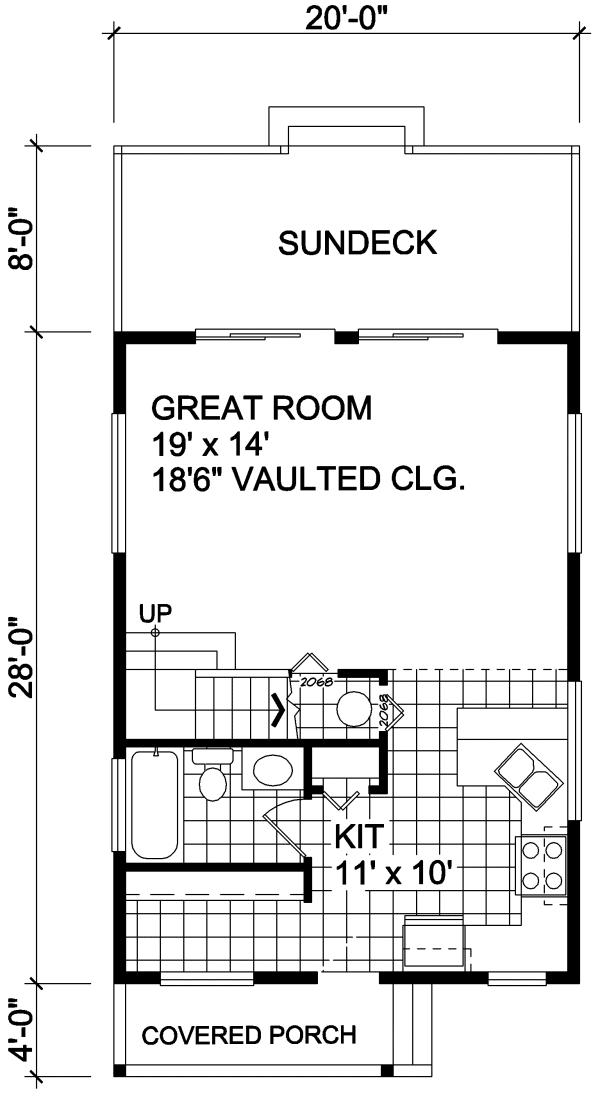

MAIN Plan – westhomeplanners.com

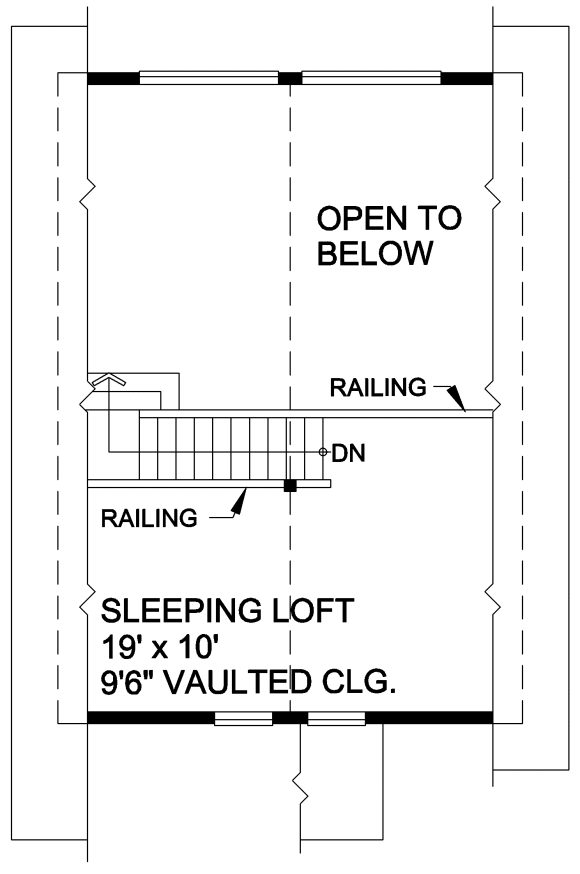

SECOND Plan – westhomeplanners.com
