Plan No.264850

Compact Floor Plan

This economical, compact floor plan is perfectly suited for a narrow lot or would minimize the environmental impact of any piece of property. Even though reduced to bare essentials the living area boasts a two storey high vaulted ceiling. The living area window wall maximizes all the available views and floods the room with natural light. The sleeping loft shares these same sight lines. Plans come with a crawl space foundation plan. Ceiling Heights: 1st Floor 8' to 19', 2nd Floor 3' to 10'.

Specifications

Total 582 sq ft

  • Main: 384
  • Second: 198
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths:
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0
  • Second: 10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 24'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 23'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

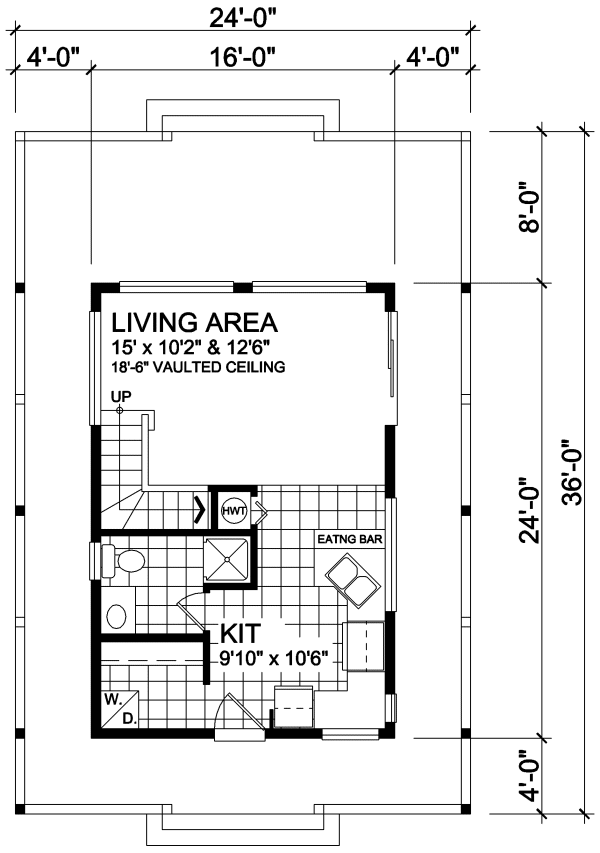

MAIN Plan – westhomeplanners.com

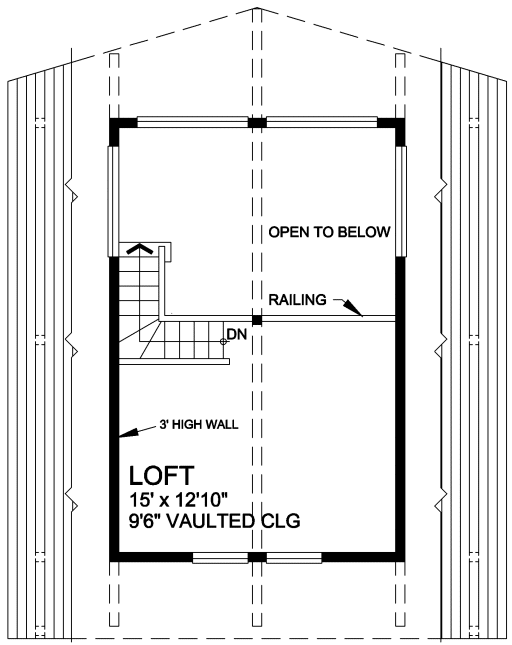

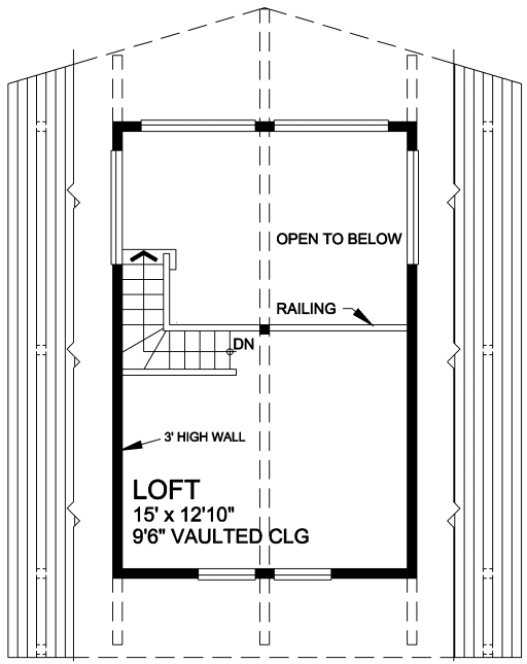

SECOND Plan – westhomeplanners.com
Sundeck – westhomeplanners.com

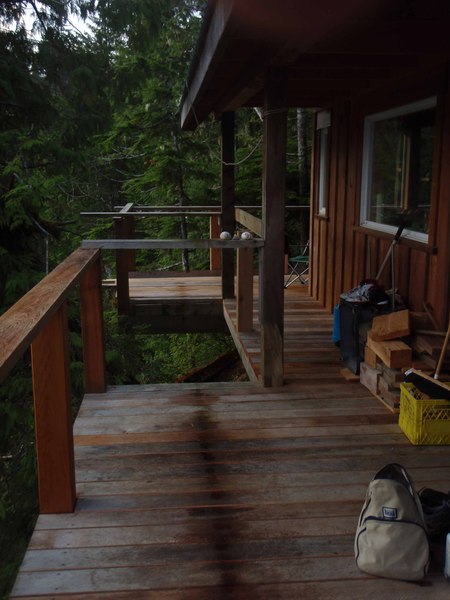

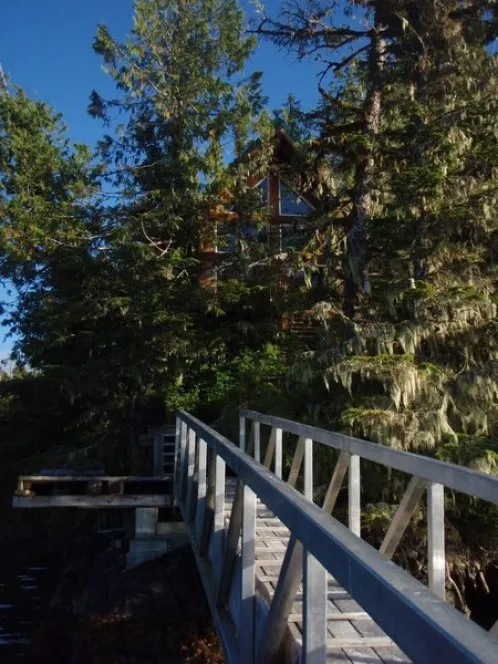

Front from Dock – westhomeplanners.com

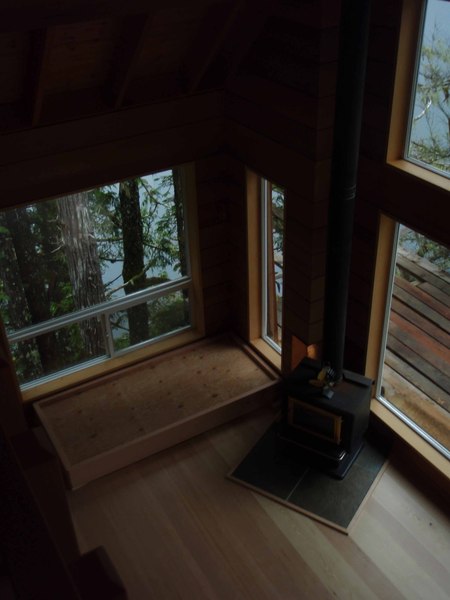

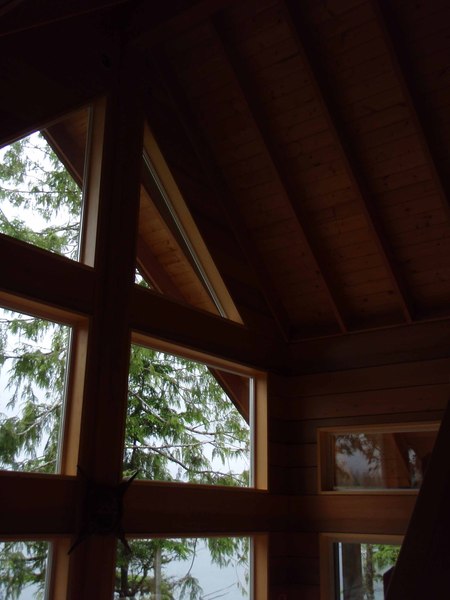

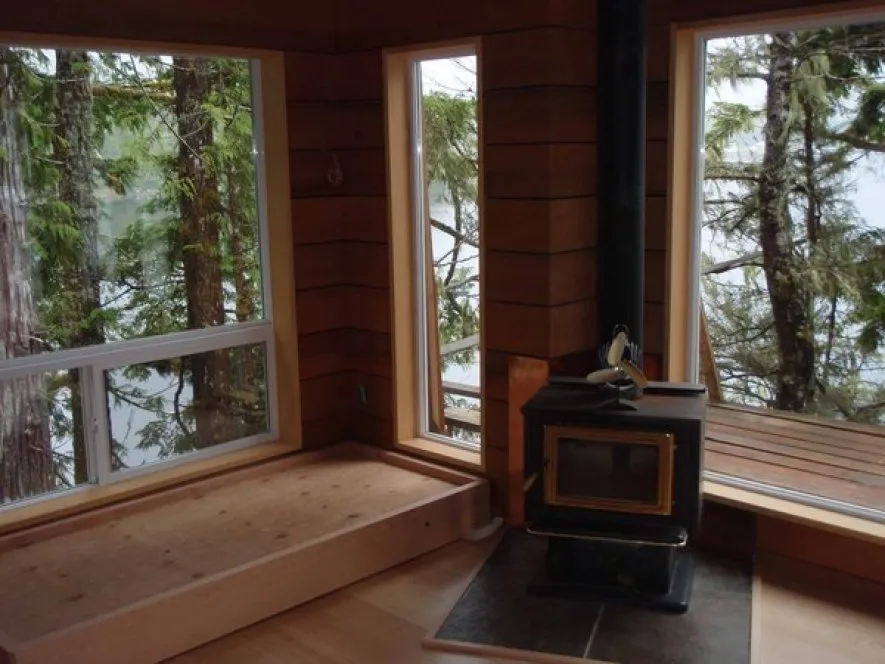

Livingroom Windows – westhomeplanners.com

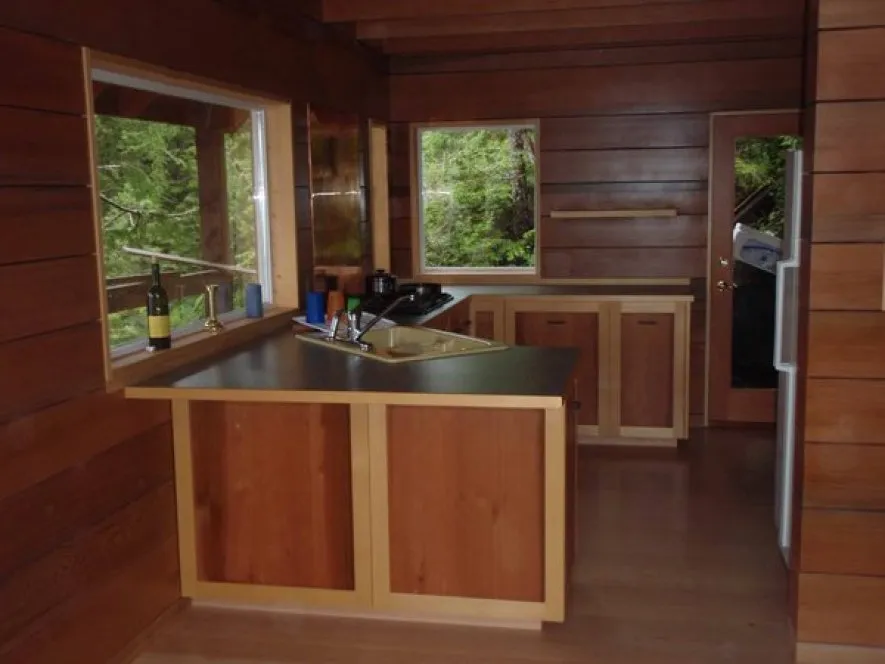

Kitchen to Living – westhomeplanners.com
Living from Loft – westhomeplanners.com
Living – westhomeplanners.com

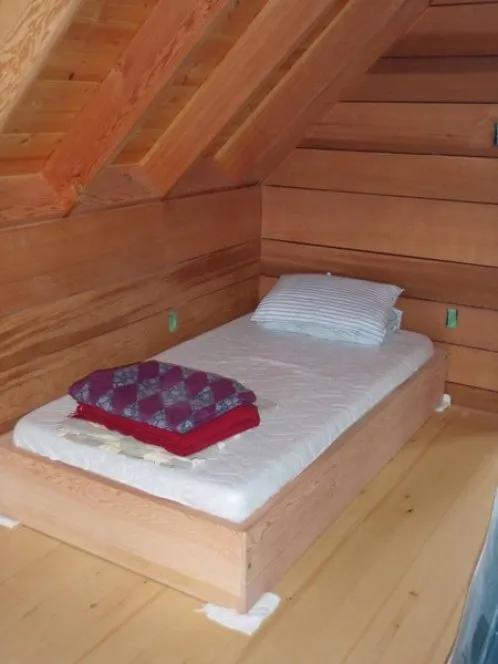

Loft Br – westhomeplanners.com

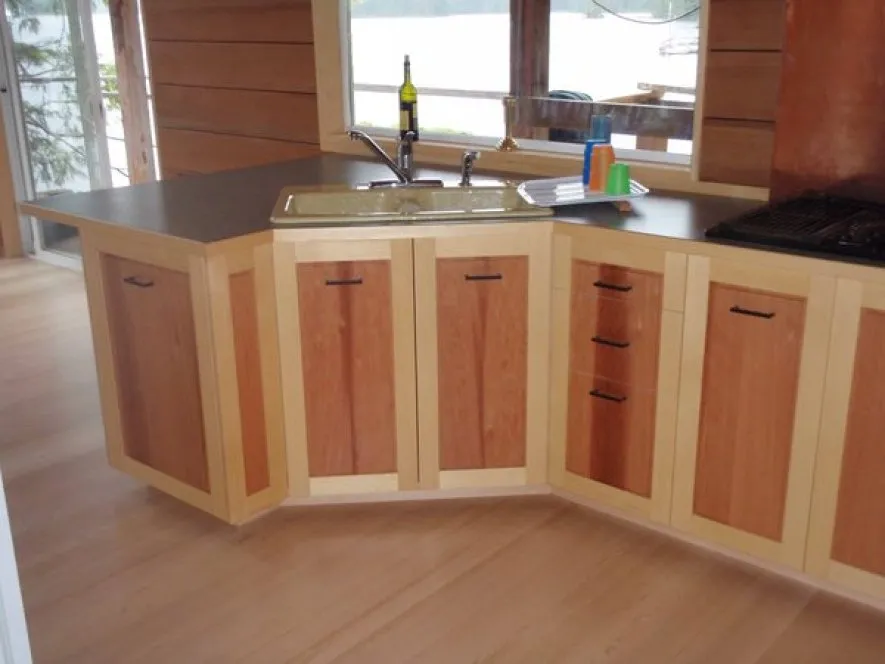

Kitchen – westhomeplanners.com

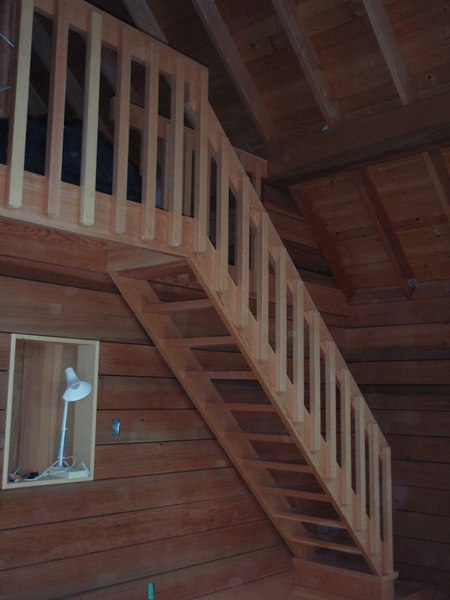

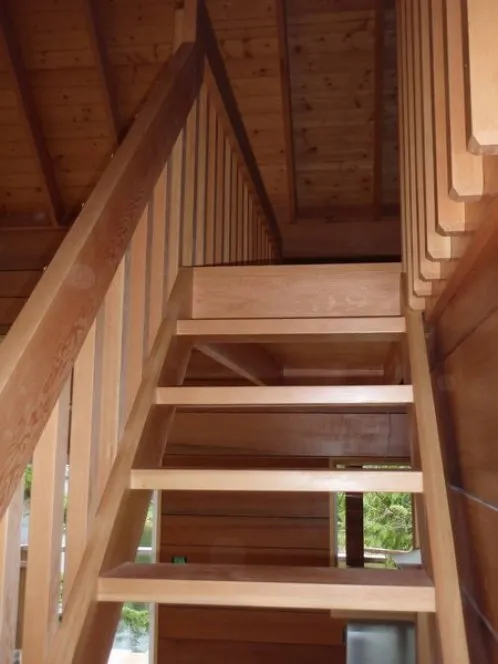

Staircase to Loft – westhomeplanners.com
