Plan No.195150

Triple Garage with Loft

This triple garage plan provides ample room for parking and as use as a workshop with the added feature of a living area over for guests or family. The two spacious bedrooms are well suited for daily living, the kitchen, dining, and living room are combined to give an open feeling as the sloped roof and dormers add character.

Specifications

Total 1032 sq ft

  • Main: 1109
  • Second: 1032
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 40'0
  • Depth: 30'0

Roof

  • Max Ridge Height: 25'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: 6.00/12

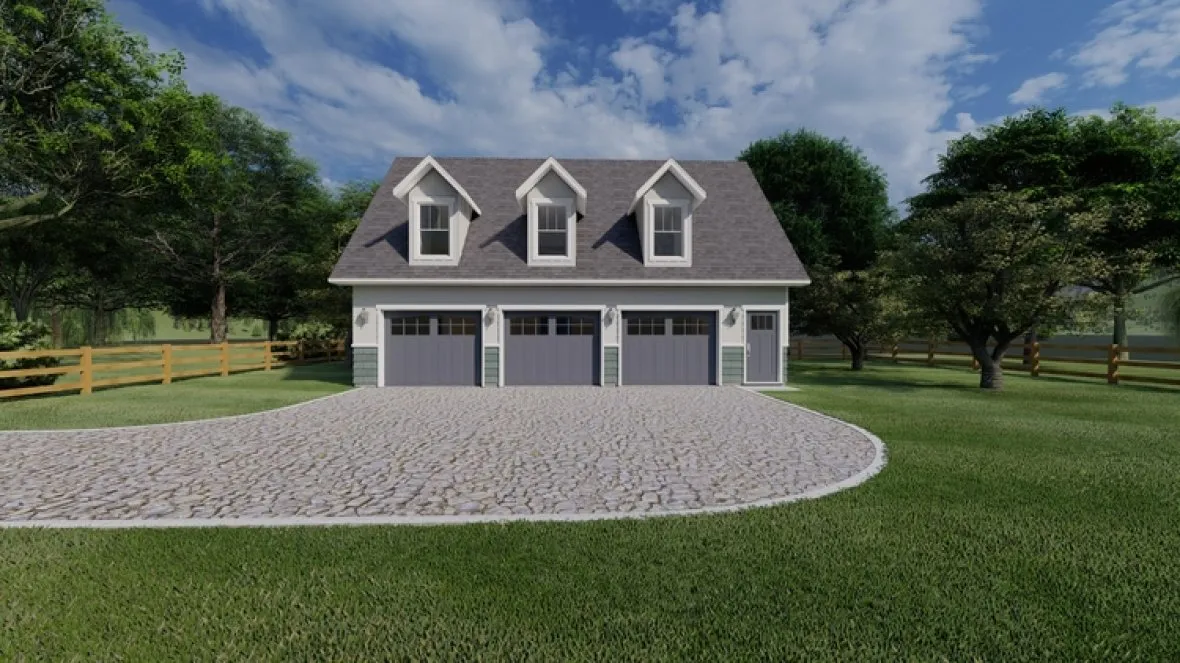

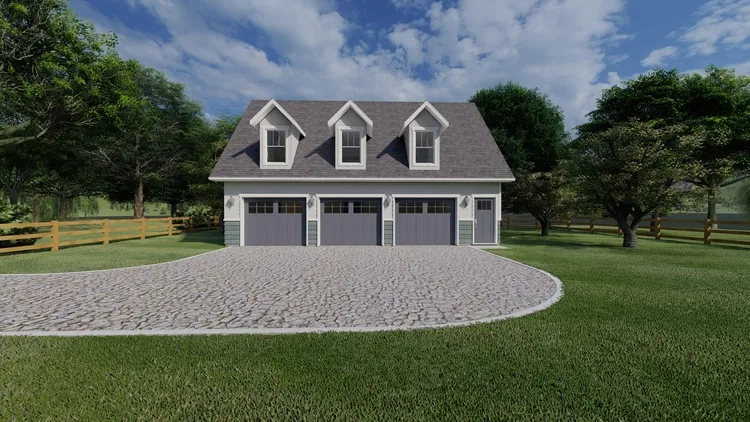

Full Rendering – westhomeplanners.com

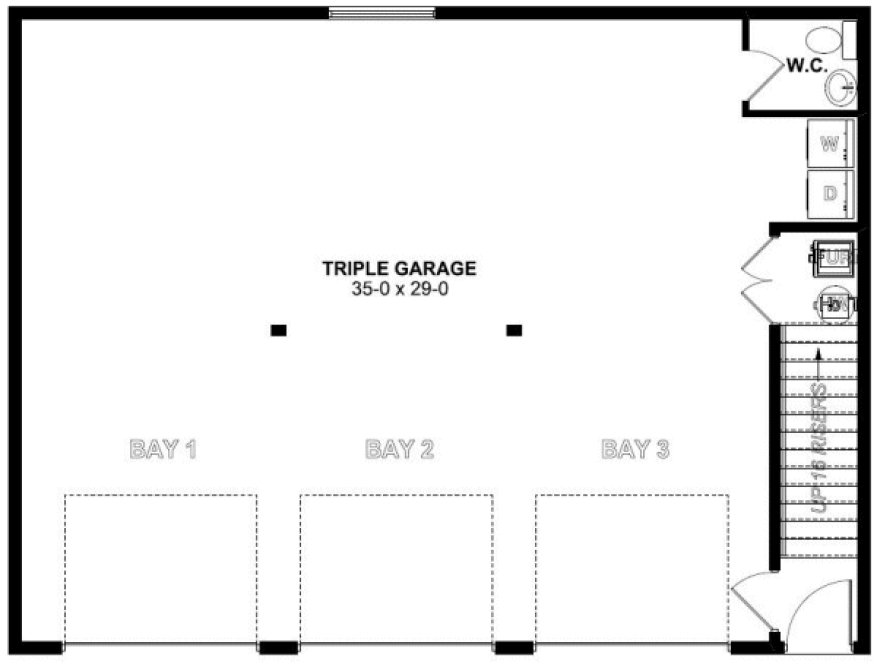

MAIN Plan – westhomeplanners.com

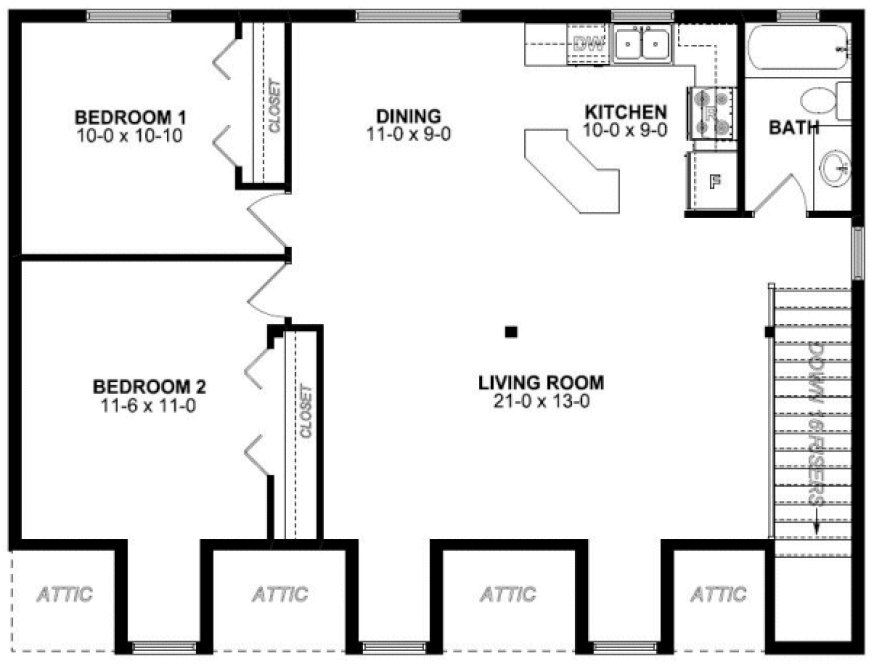

SECOND Plan – westhomeplanners.com

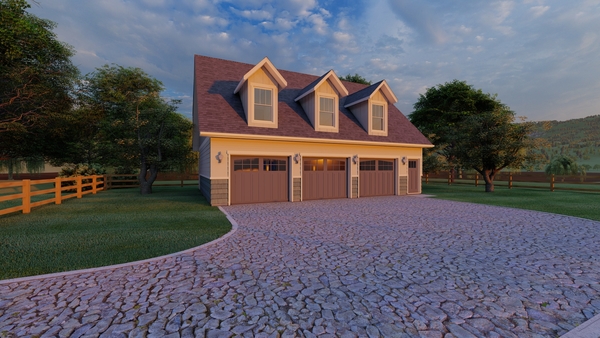

Sunrise – westhomeplanners.com

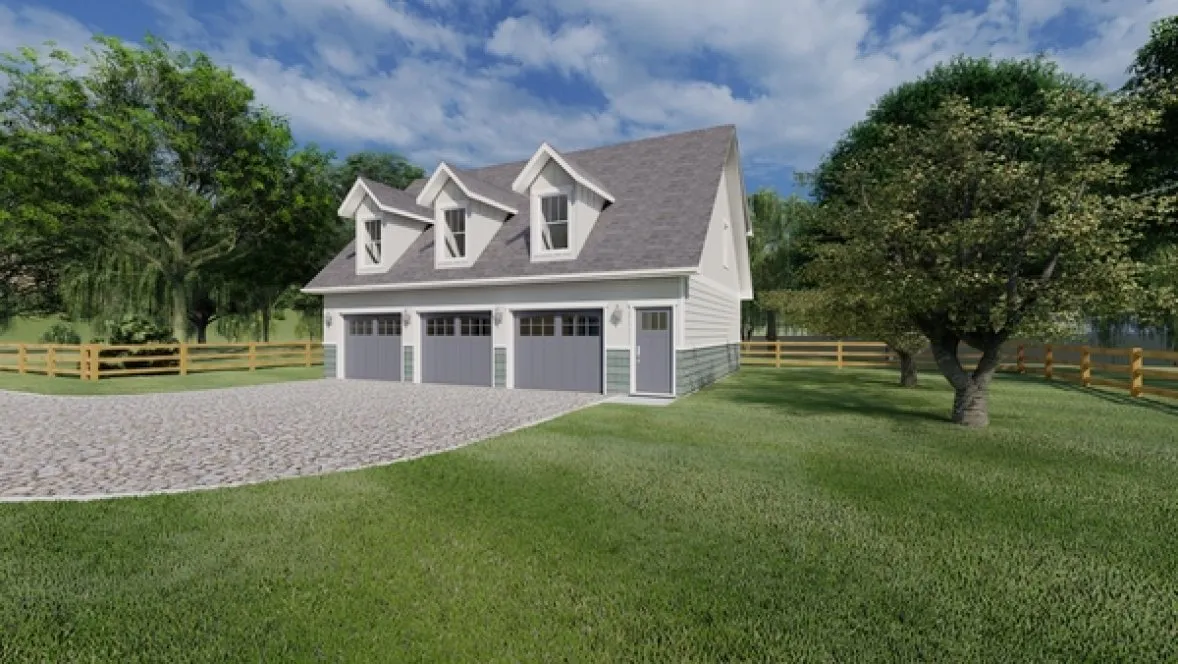

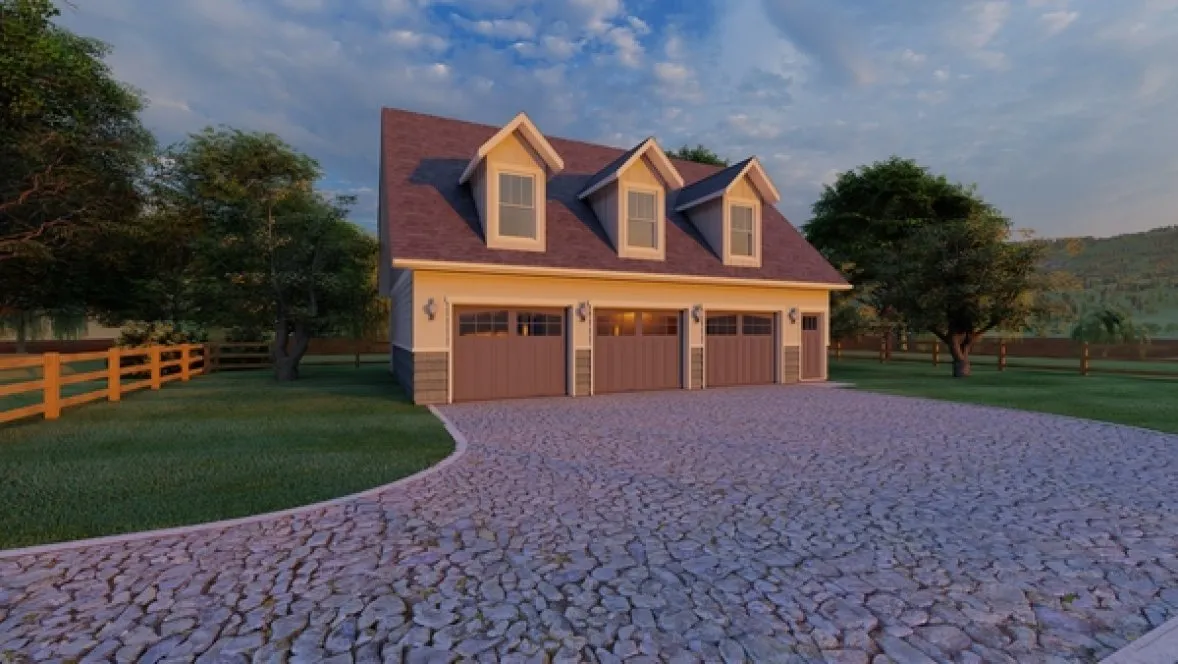

Front & Right – westhomeplanners.com

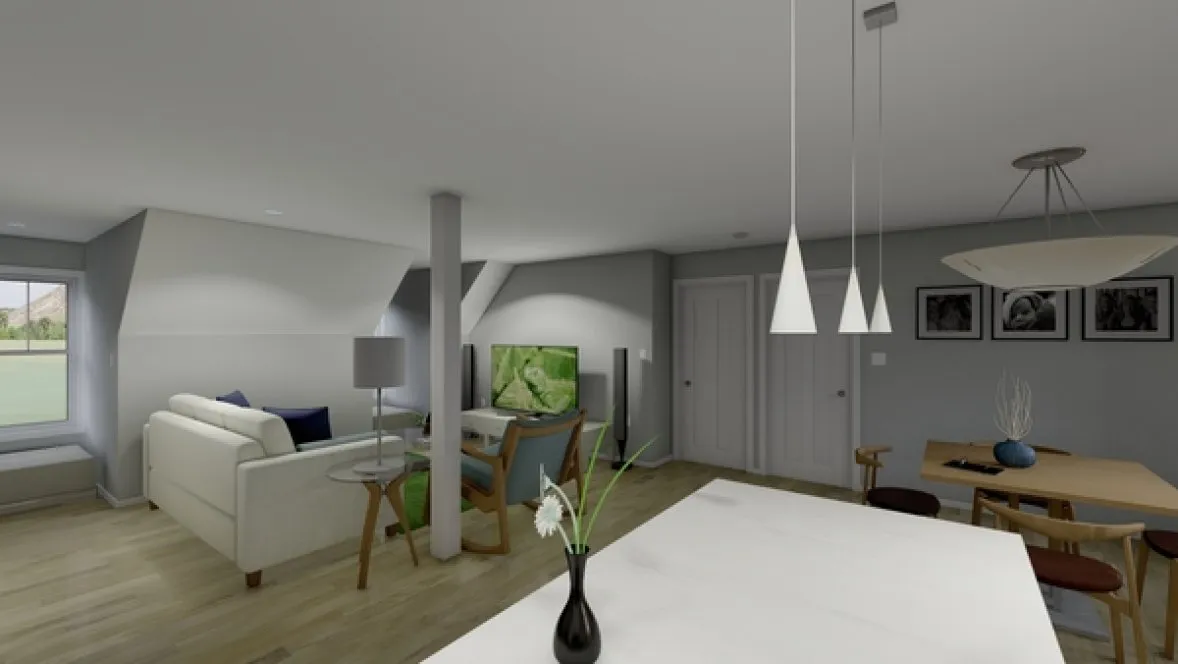

Kitchen – westhomeplanners.com

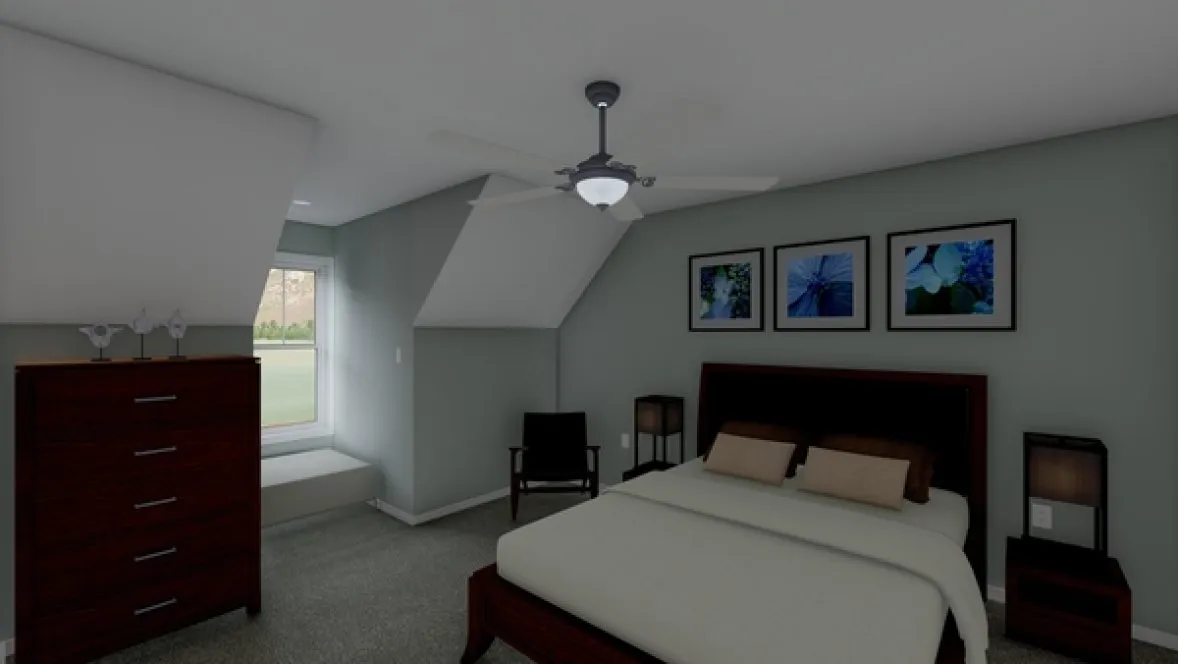

Bedroom 1 – westhomeplanners.com
Livingroom – westhomeplanners.com
Bedroom 2 – westhomeplanners.com
Dining – westhomeplanners.com

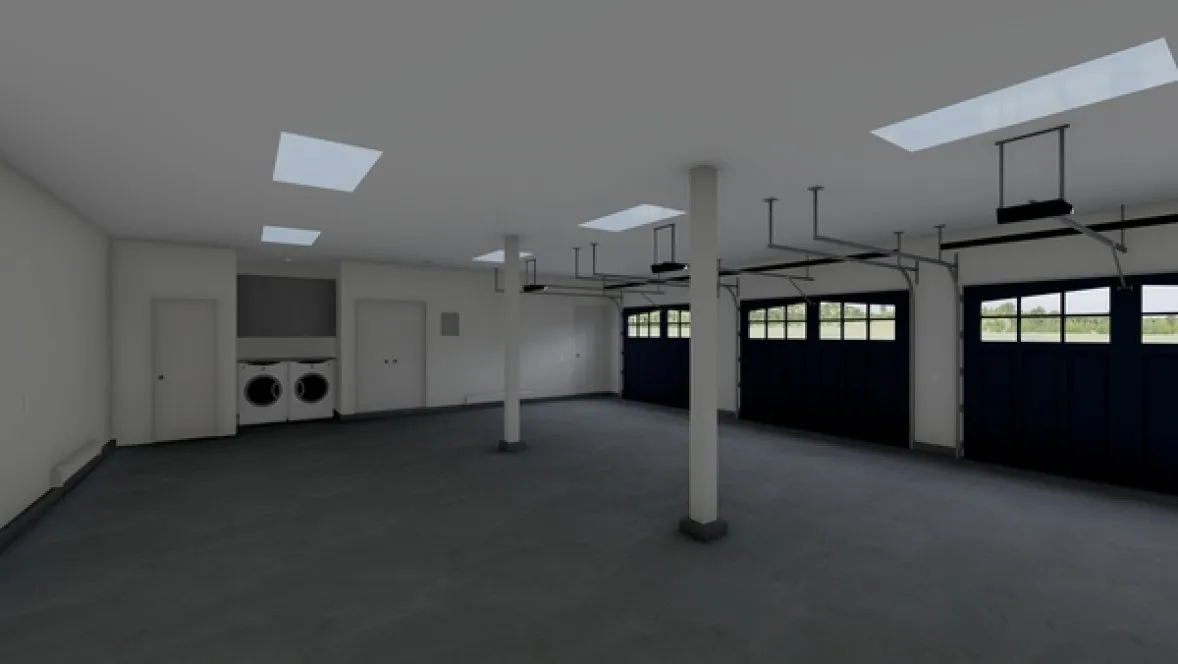

3 Car Garage – westhomeplanners.com

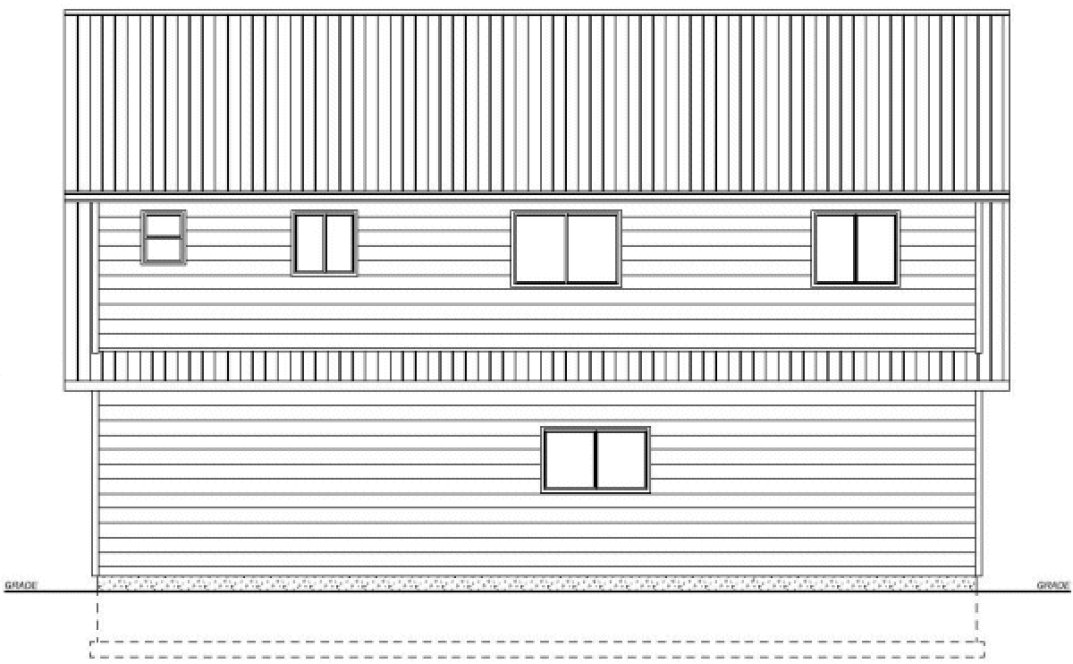

REAR Elevation – westhomeplanners.com
