Plan No.635701

European-style Cottage

Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Specifications

Total 1075 sq ft

  • Main: 718
  • Second: 357
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 251

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: singleGarage
  • Width: 38'0
  • Depth: 34'0

Roof

  • Max Ridge Height: 25'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

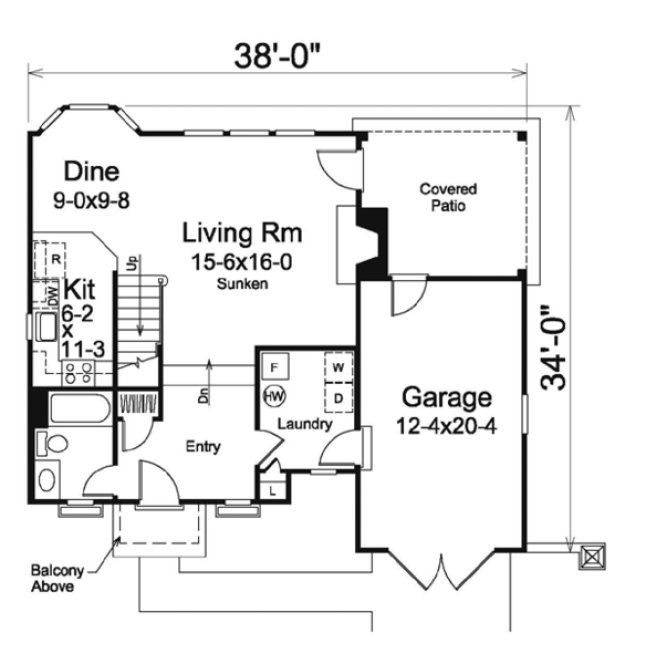

MAIN Plan – westhomeplanners.com

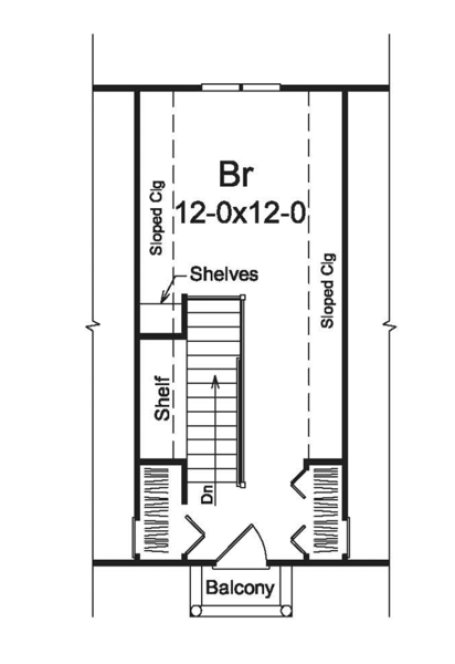

SECOND Plan – westhomeplanners.com

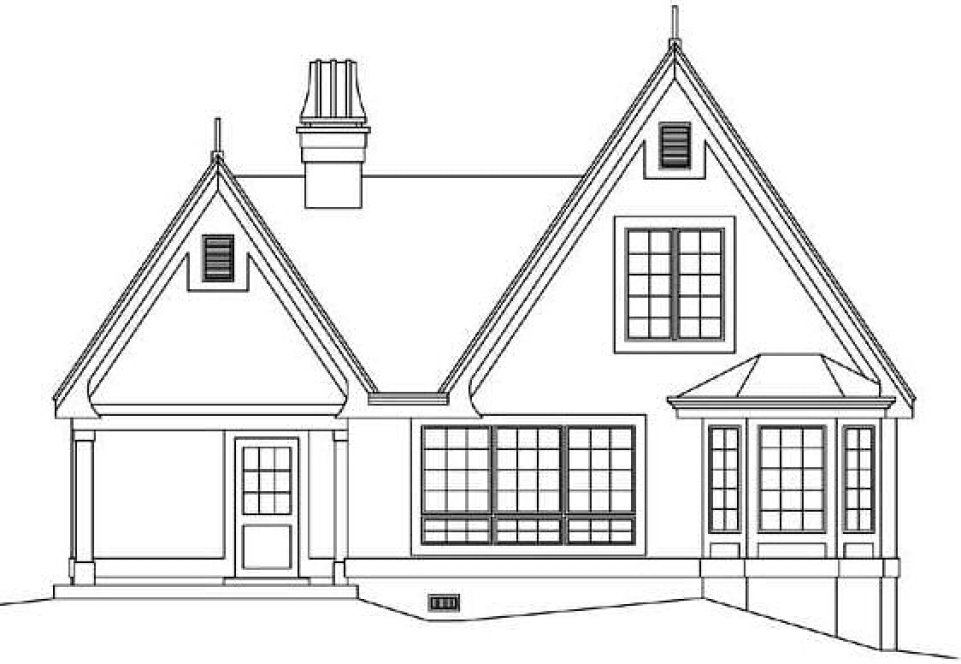

REAR Elevation – westhomeplanners.com

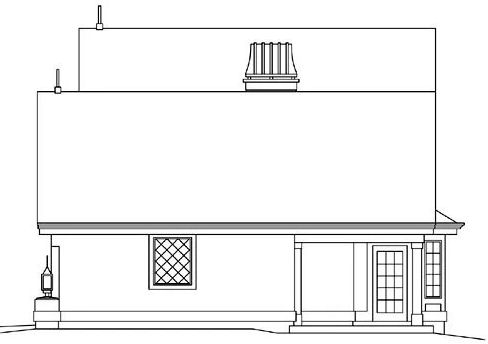

LEFT Elevation – westhomeplanners.com

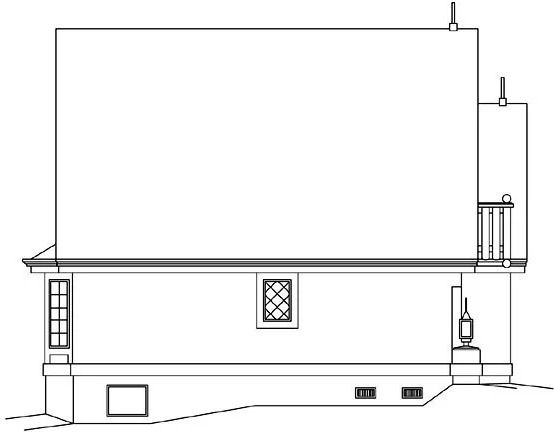

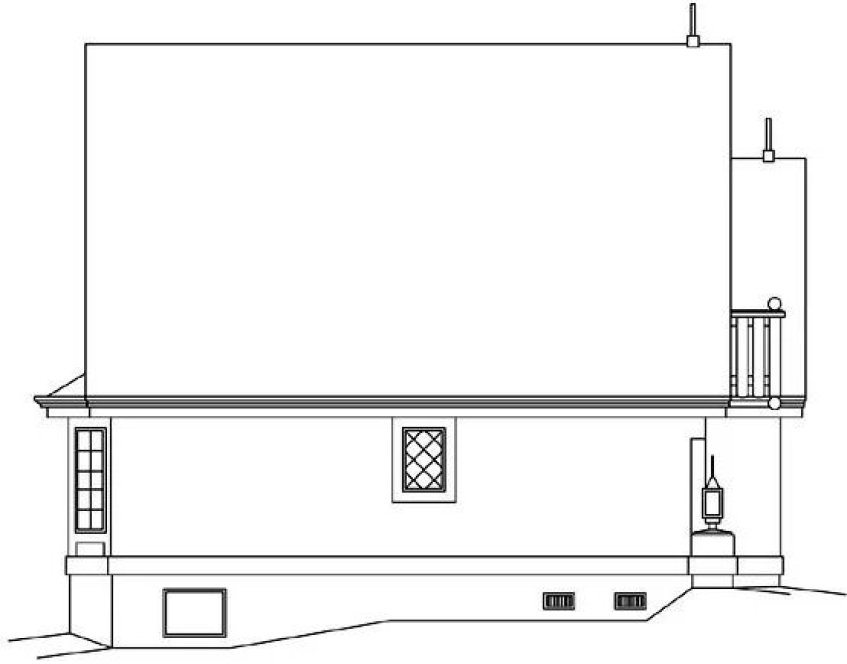

RIGHT Elevation – westhomeplanners.com
