Plan No.581226

Compact Design with Full Sized Amenities

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats up to four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the home create a spacious and open feeling. The pocket doors leading into the master suite and guest room can either be closed for privacy or can provide a large 5' wide opening. The modern walk-in shower in the master suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a dual vanity and a large walk-in closet. This design also features a third bedroom, a covered front porch, an oversized double garage, and a mudroom/laundry room. Also available with 2x4 exterior walls.

Specifications

Total 1226 sq ft

  • Main: 1226
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 522

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'-0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'-4

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 38'-0
  • Depth: 52'-0

Roof

  • Max Ridge Height: 21'-1
  • Comments: (From Grade)
  • Primary Pitch: 8.50/12
  • Secondary Pitch: 4.00/12
Full Rendering – westhomeplanners.com

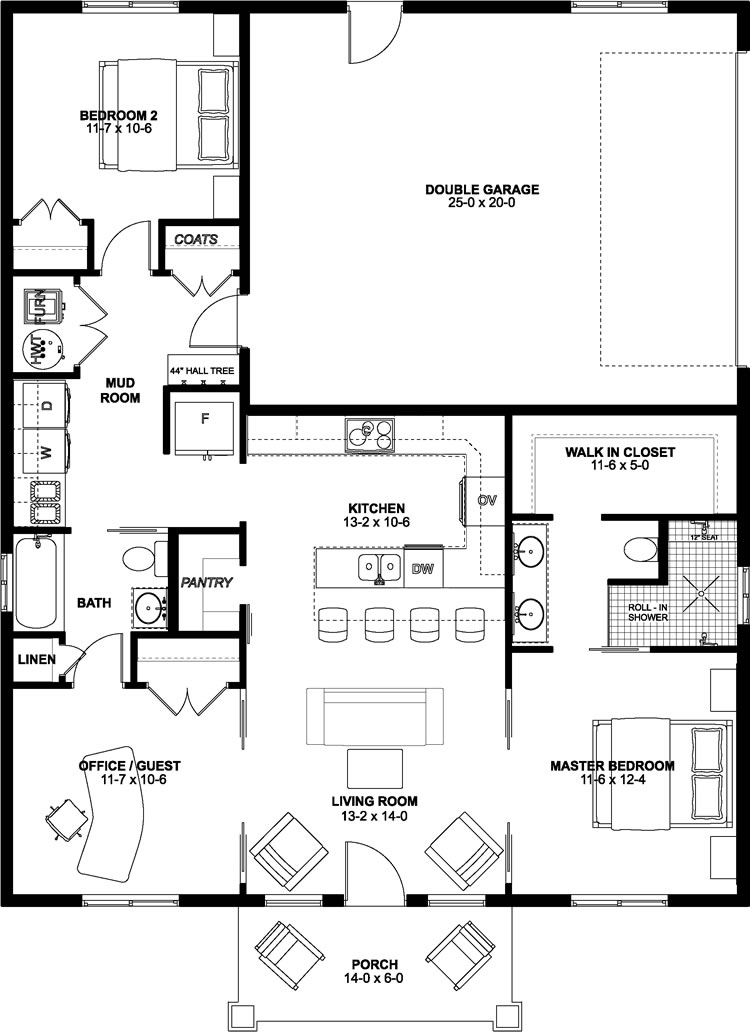

MAIN Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com

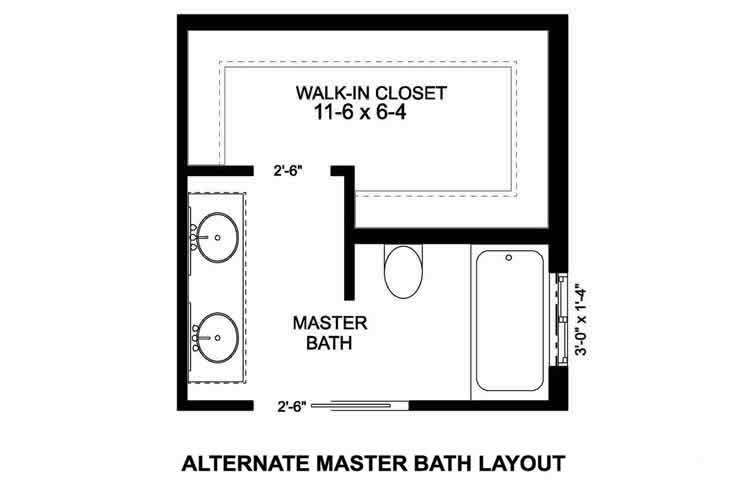

Alternate Master Bathroom – westhomeplanners.com
Laundry Room – westhomeplanners.com

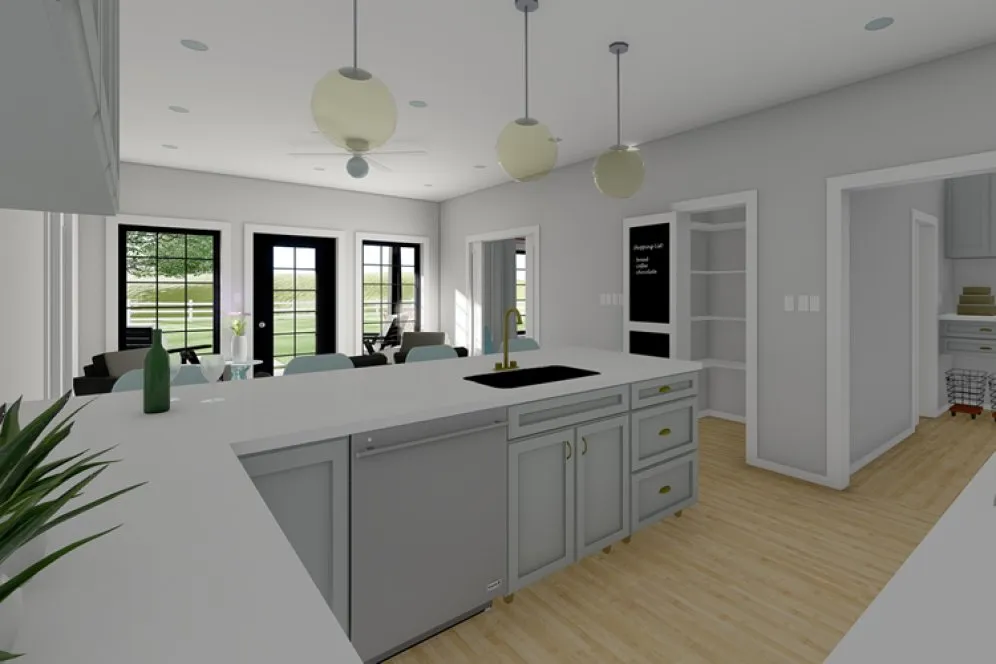

Kitchen – westhomeplanners.com
Office to Living Room – westhomeplanners.com

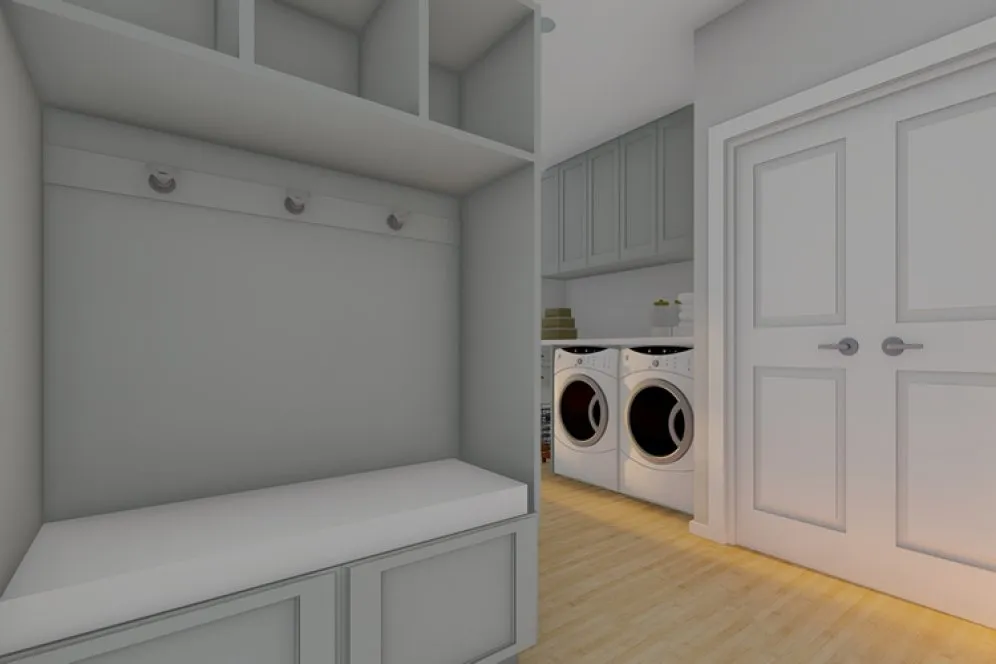

Mudroom – westhomeplanners.com
Kitchen to Mudroom – westhomeplanners.com

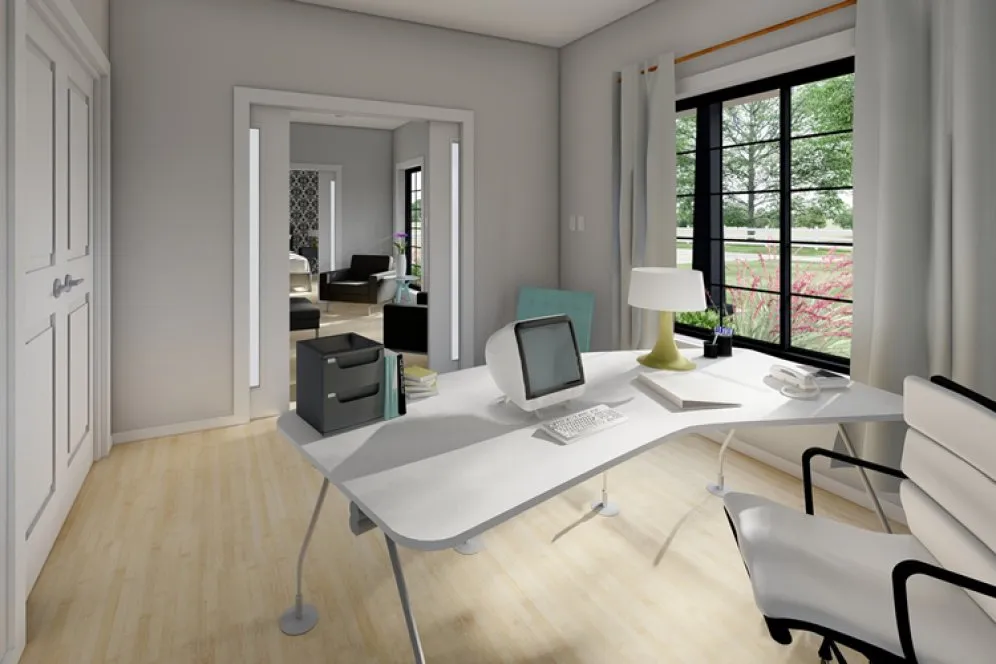

Office / Guest Room – westhomeplanners.com

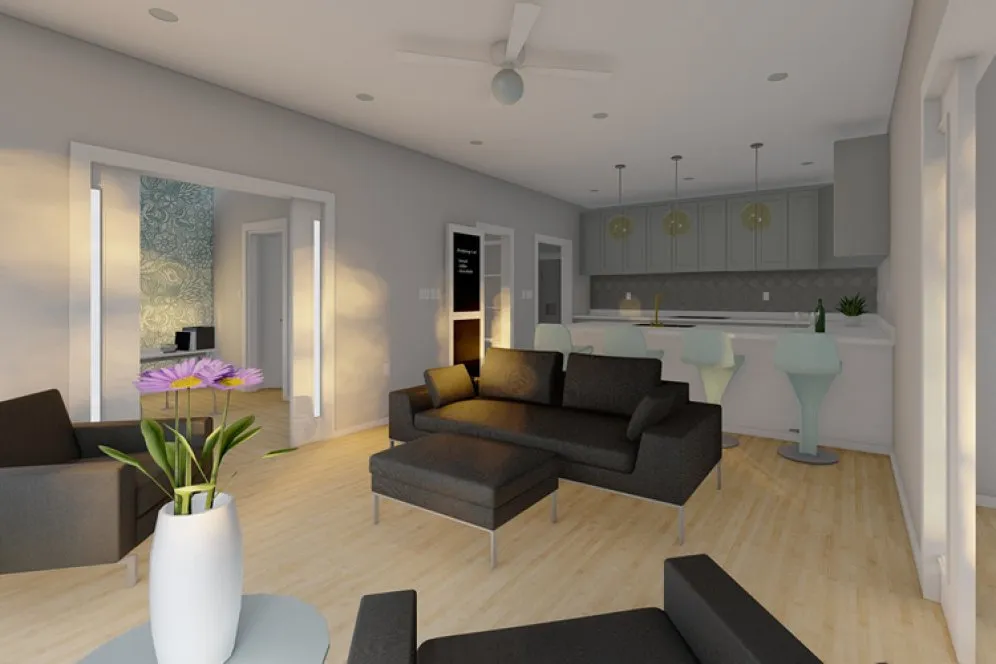

Living Room to Office – westhomeplanners.com

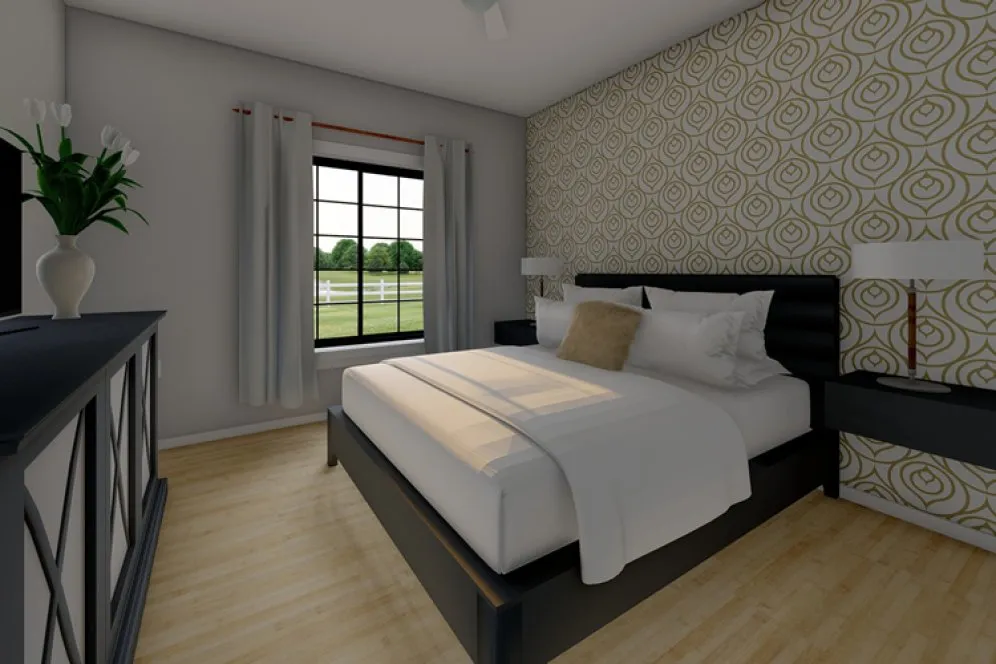

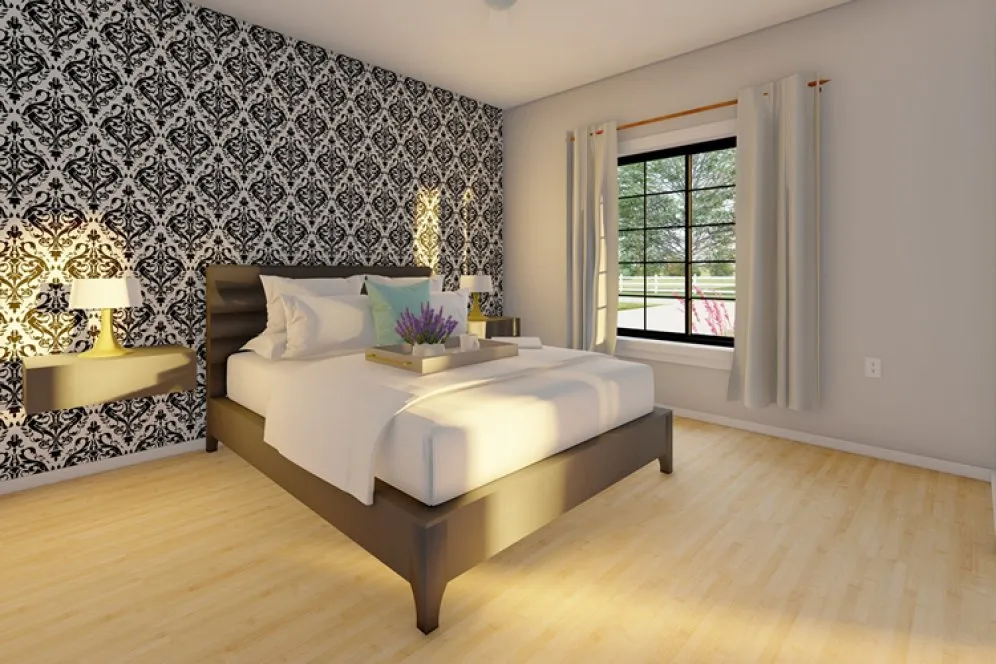

Bedroom 2 – westhomeplanners.com
Master Bedroom – westhomeplanners.com

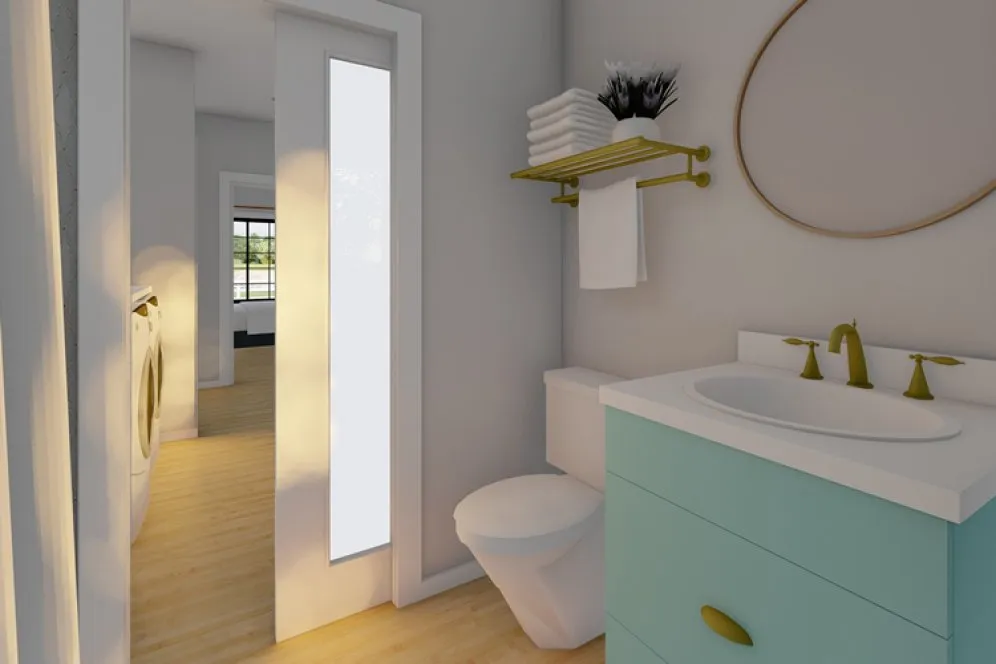

Spare Bathroom – westhomeplanners.com

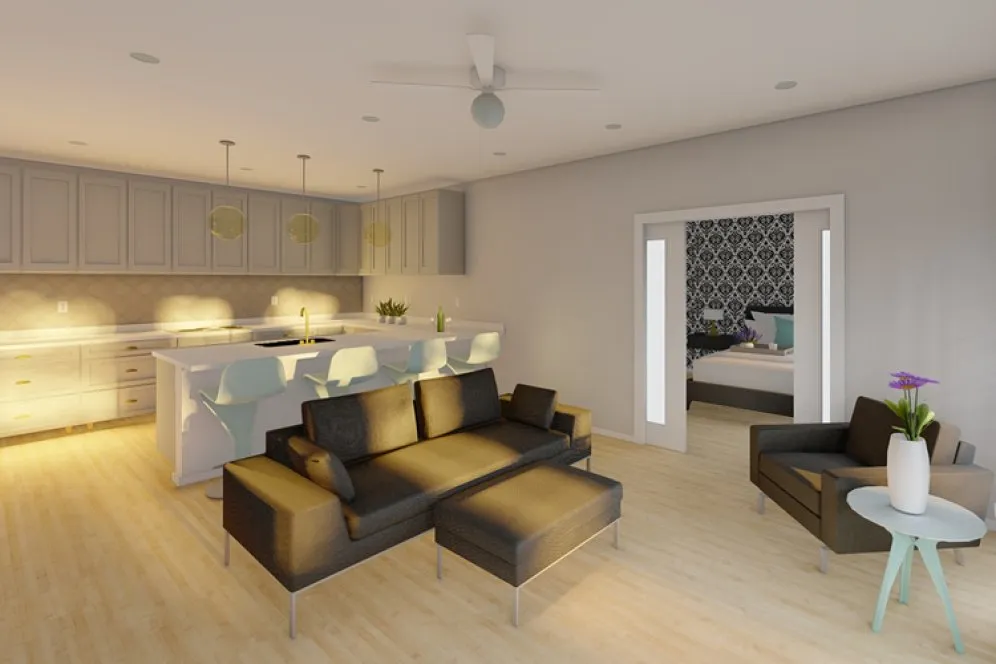

Living Room to Bedroom – westhomeplanners.com

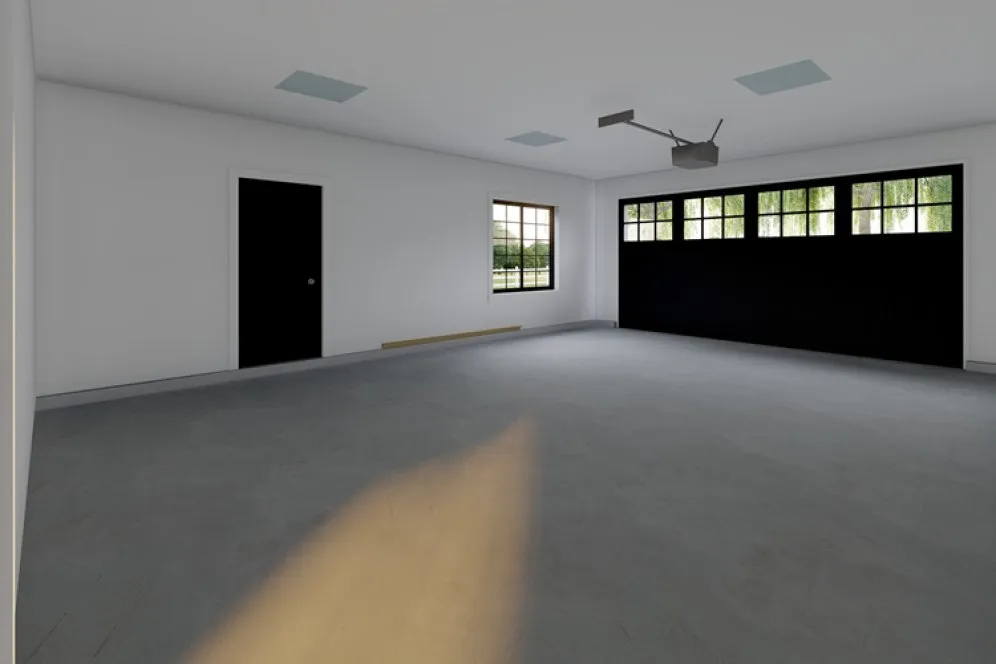

Garage – westhomeplanners.com

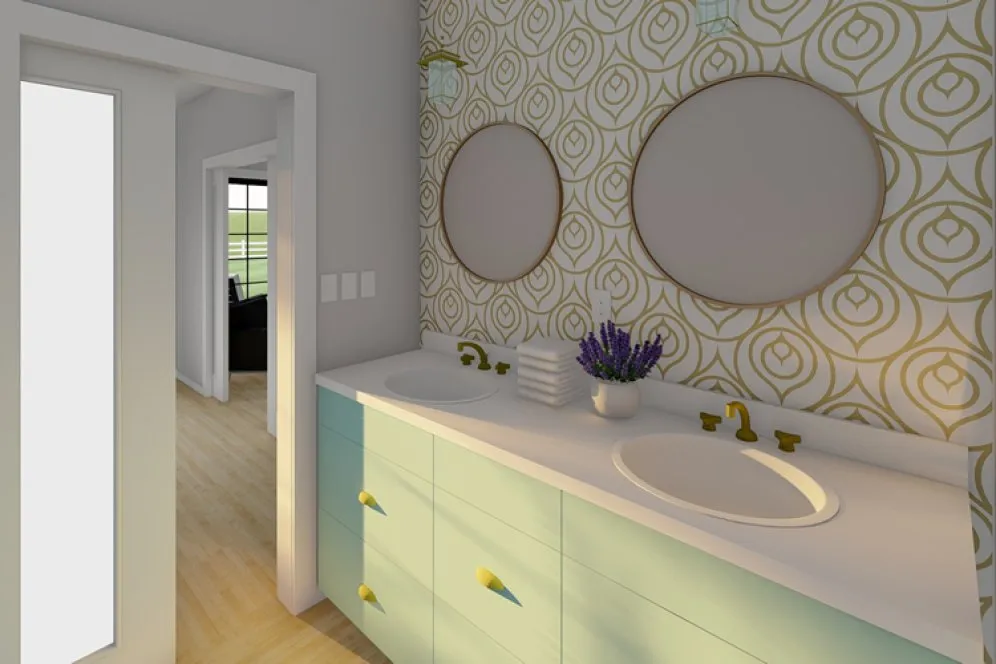

Master Bathroom – westhomeplanners.com
