Plan No.658461

Covered Rear Porch

The covered rear porch is accessible from the kitchen. The Washer/dryer closet reduces laundry noise and provides extra storage for housekeeping supplies. There is a full bath for the main living area and second bedroom. Bedroom 1 has a private full bath. The Living area includes space for informal dining. Wide hallways make this plan readily adaptable for wheelchair accessibility. This design has great curb-appeal and is suitable for young families, single professionals, and retired empty-nesters making this duplex worth considering for your next building project. Total Living Area may increase with Basement Foundation option and may require additional drawing time. Plans can be ordered with a trussed roof system upon request. Please add to order notes. A 2x6 exterior wall option is available for an additional fee, please call for pricing.


Total 1648 sq ft

  • Main: 824
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 48'0
  • Depth: 38'0


  • Max Ridge Height:
  • Comments: ()
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12
Full Rendering –

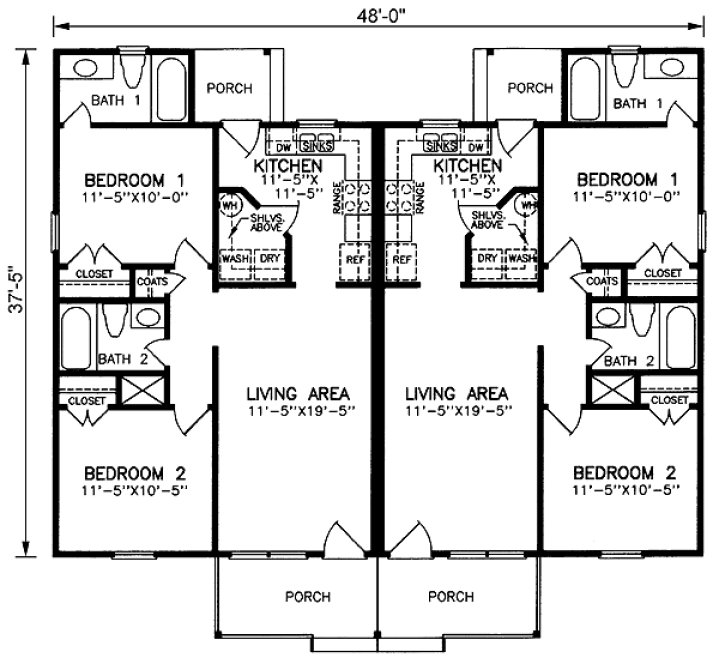

MAIN Plan –

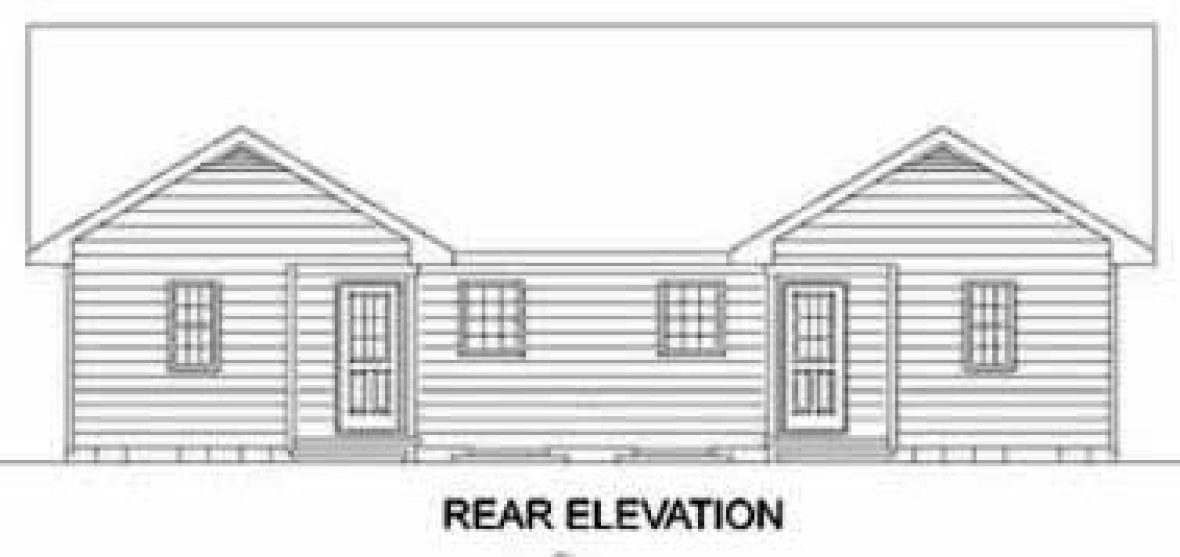

REAR Elevation –

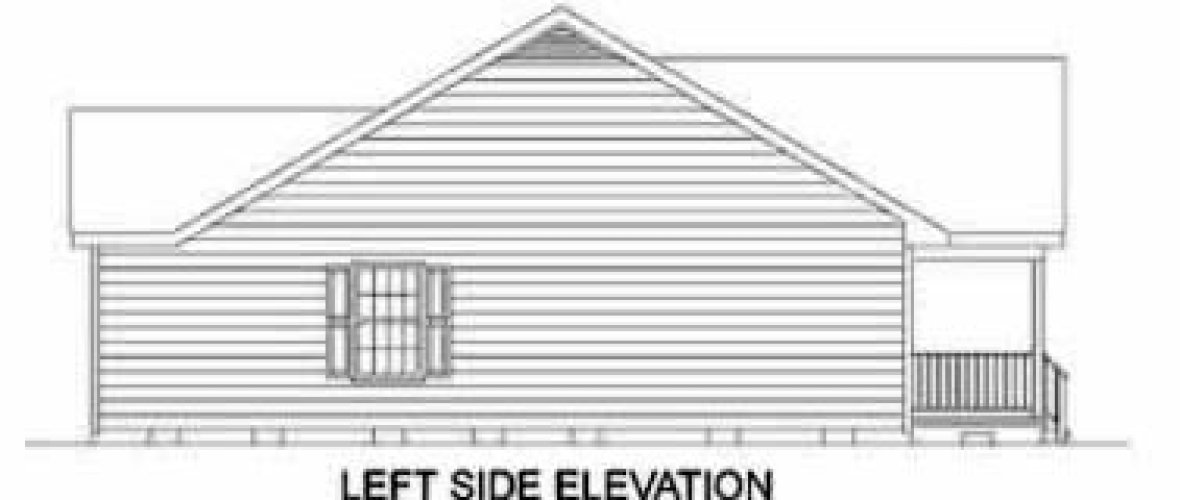

LEFT Elevation –

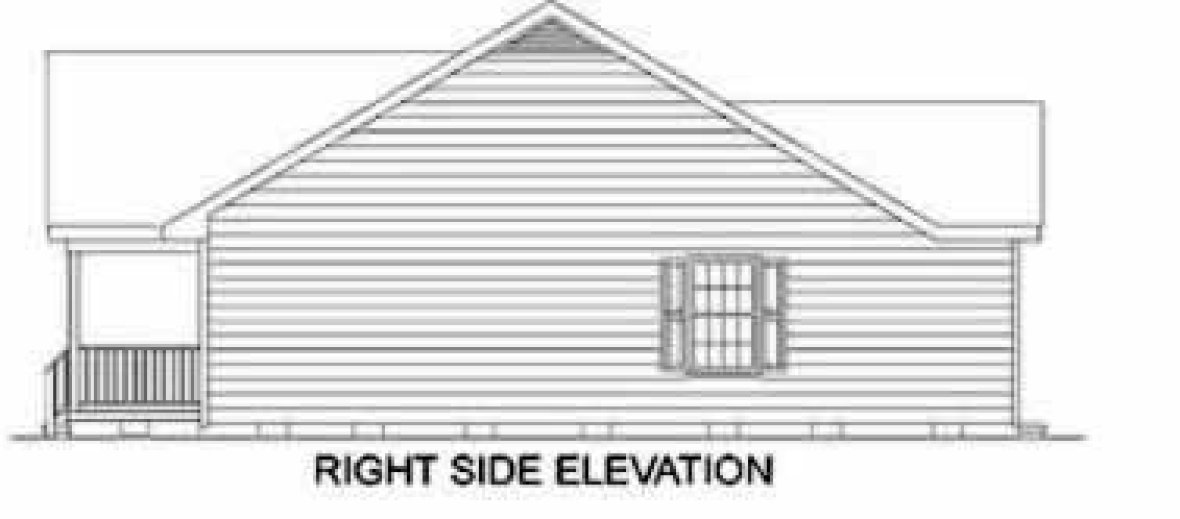

RIGHT Elevation –
