Plan No.580990

Compact Design with Full Sized Amenities

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats up to four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the home create a spacious and open feeling. The pocket doors leading into the master suite and guest room can either be closed for privacy or can provide a large 5' wide opening. The modern roll-in shower in the master suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a double vanity and a large walk-in closet. This design also features a mudroom/laundry room, an ensuite bath for guests and a full width front porch. Also available with 2x4 exterior walls.

Specifications

Total 988 sq ft

  • Main: 988
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'-0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 38'-0
  • Depth: 32'-0

Roof

  • Max Ridge Height: 20'2
  • Comments: (From Grade)
  • Primary Pitch: 8/12
  • Secondary Pitch: 4/12

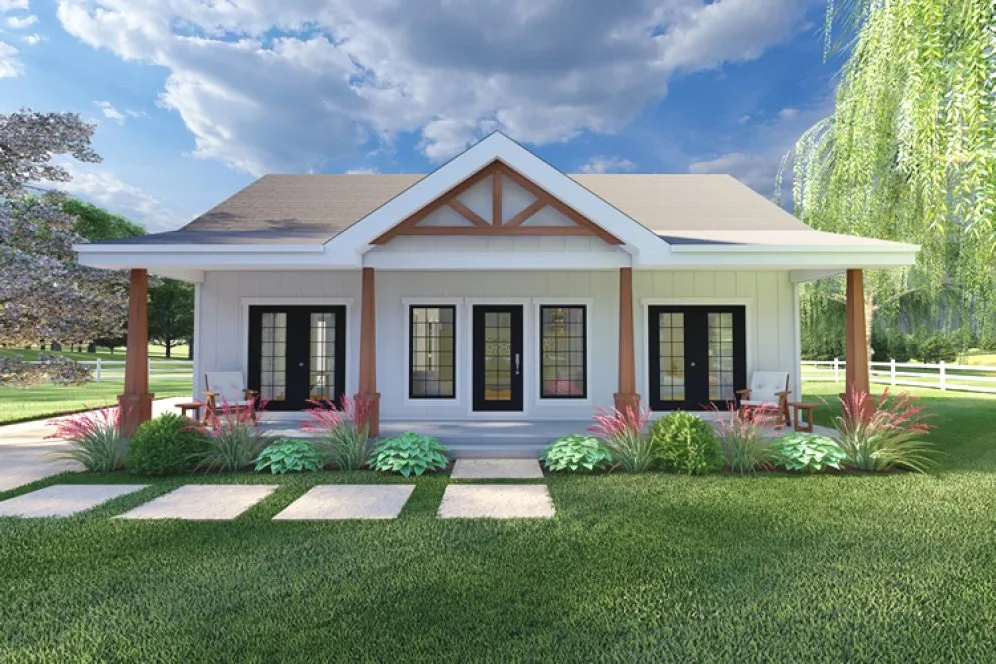

Full Rendering – westhomeplanners.com

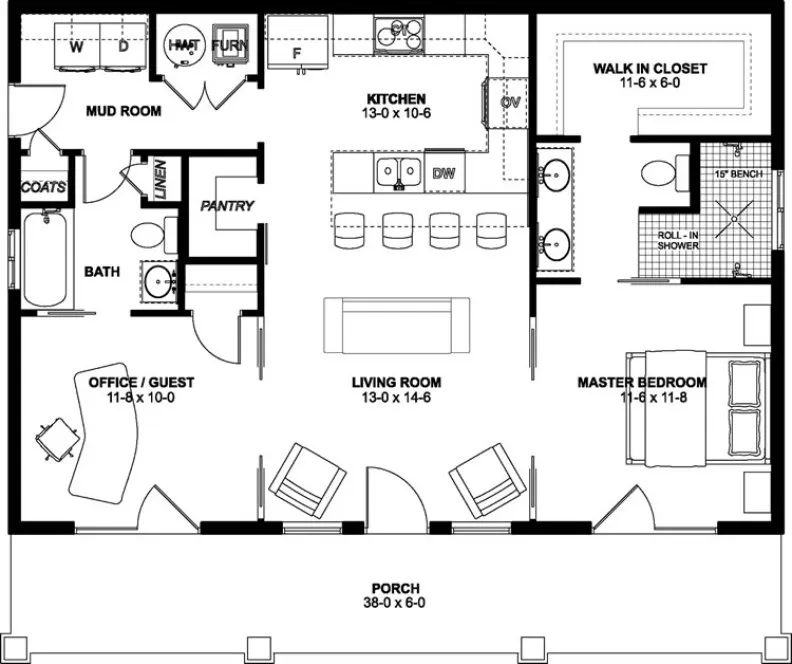

MAIN Plan – westhomeplanners.com

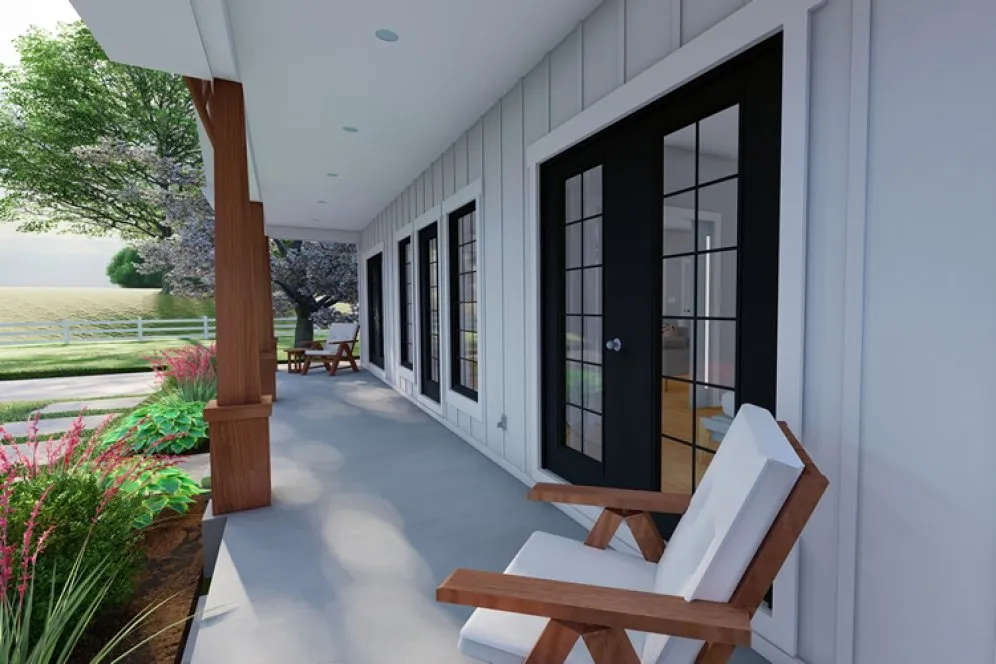

Front Porch – westhomeplanners.com

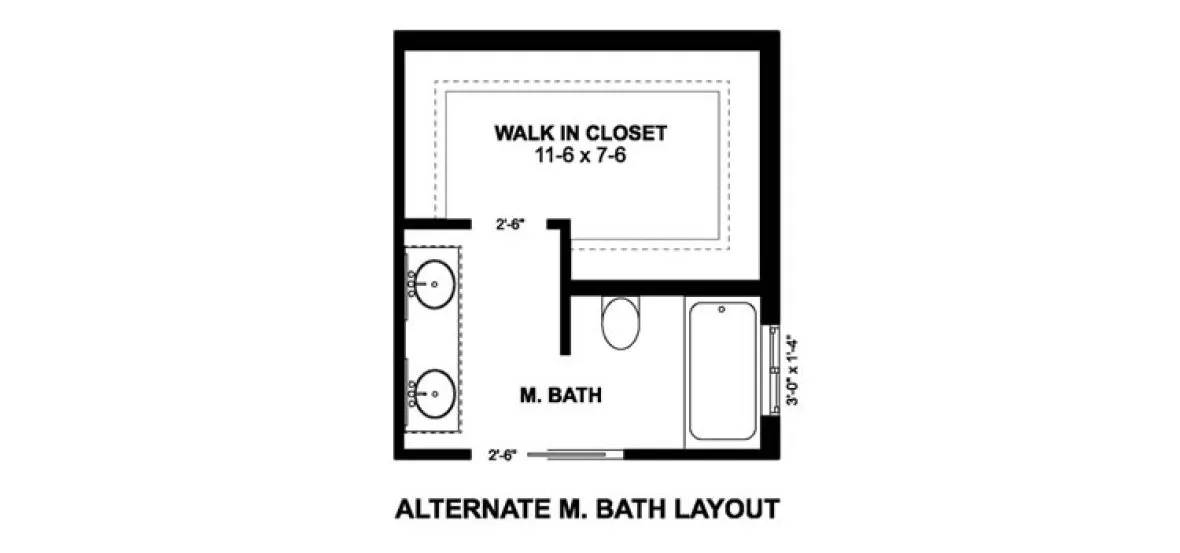

Alternate Bathroom – westhomeplanners.com

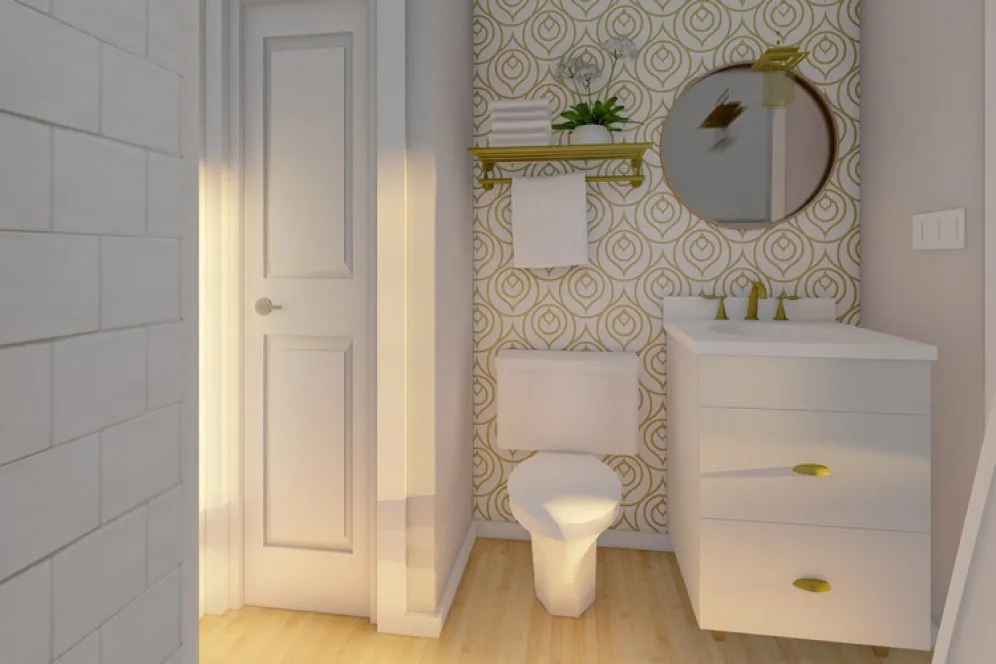

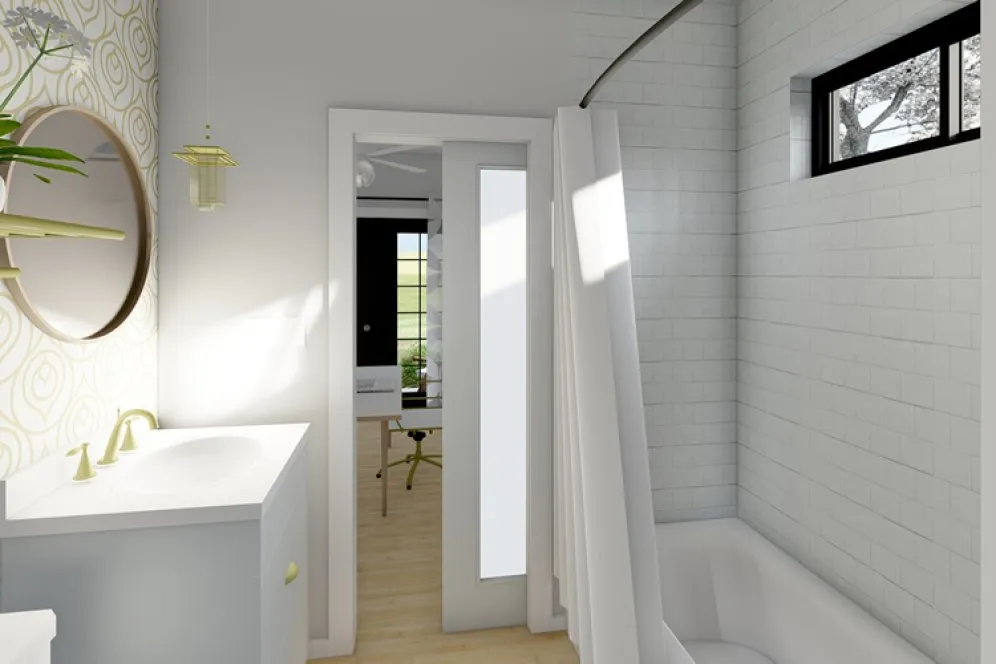

Guest Bathroom – westhomeplanners.com

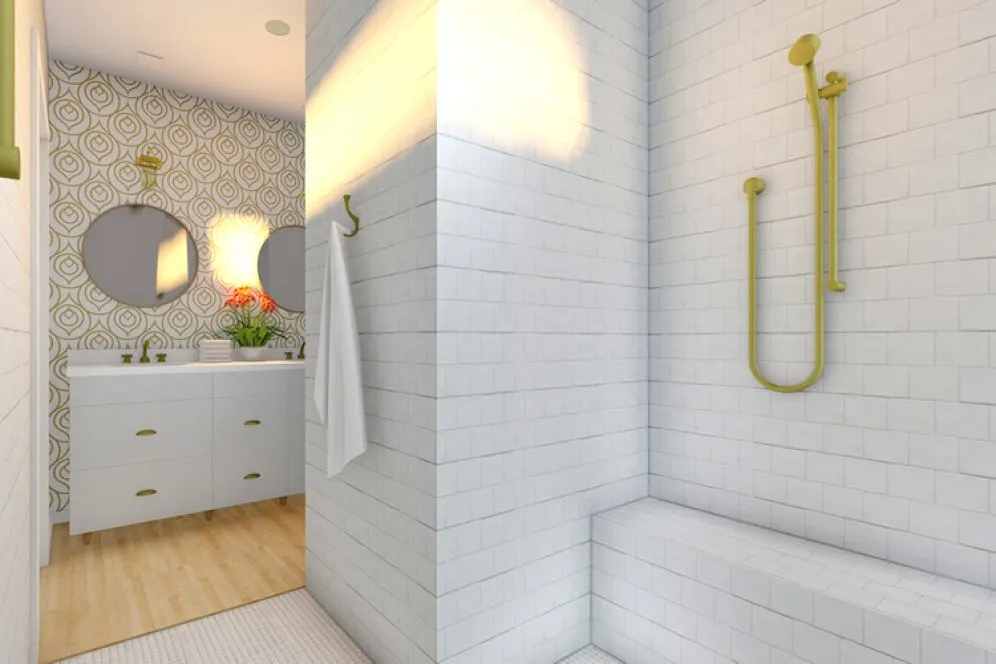

Roll In Shower – westhomeplanners.com

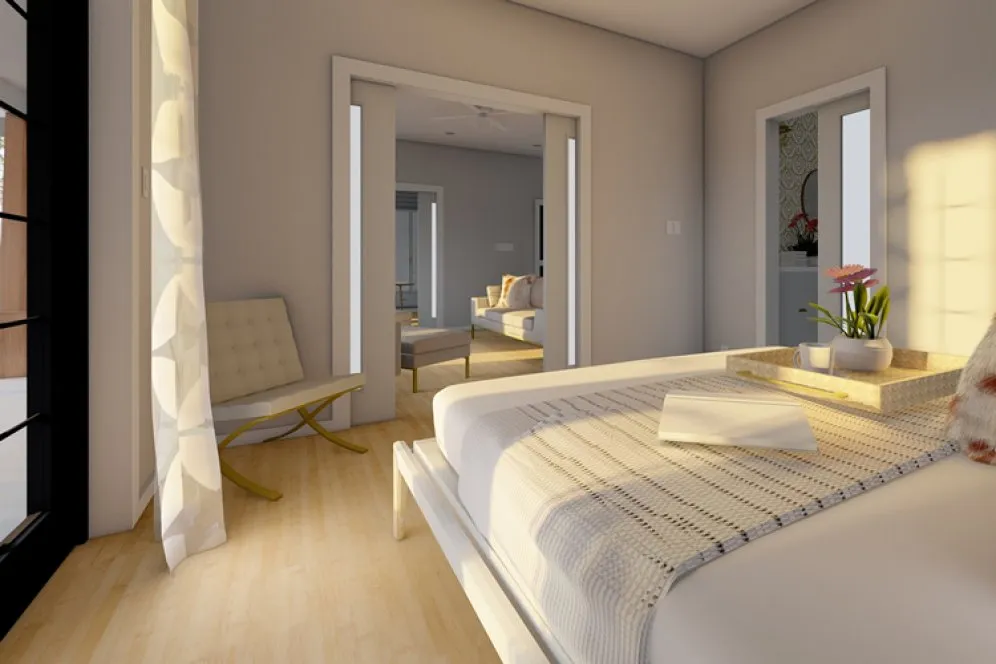

Bedroom to Living Room – westhomeplanners.com

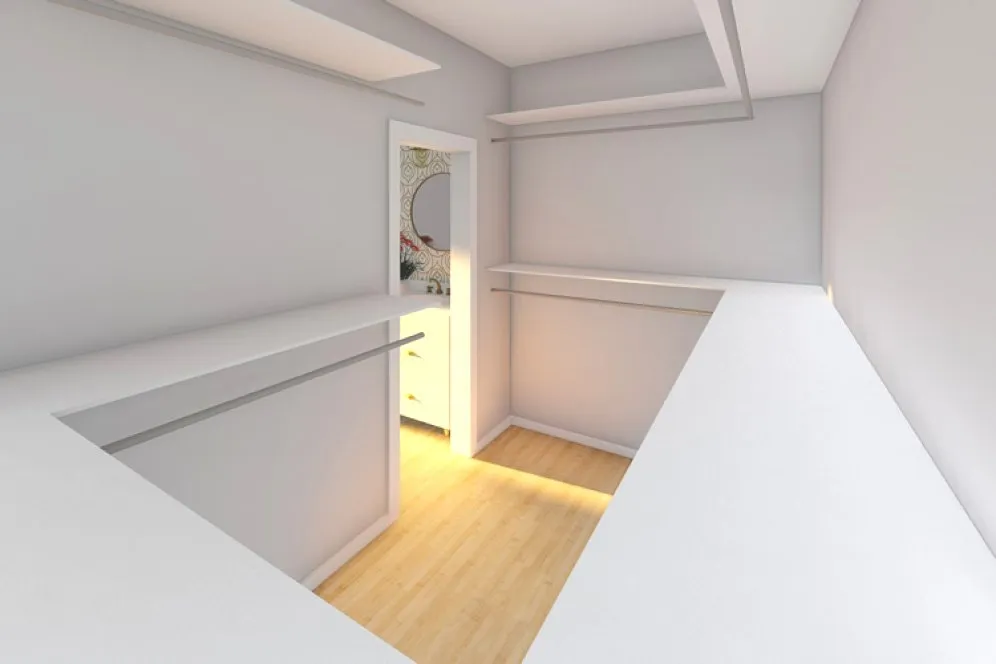

Walk In Closet – westhomeplanners.com

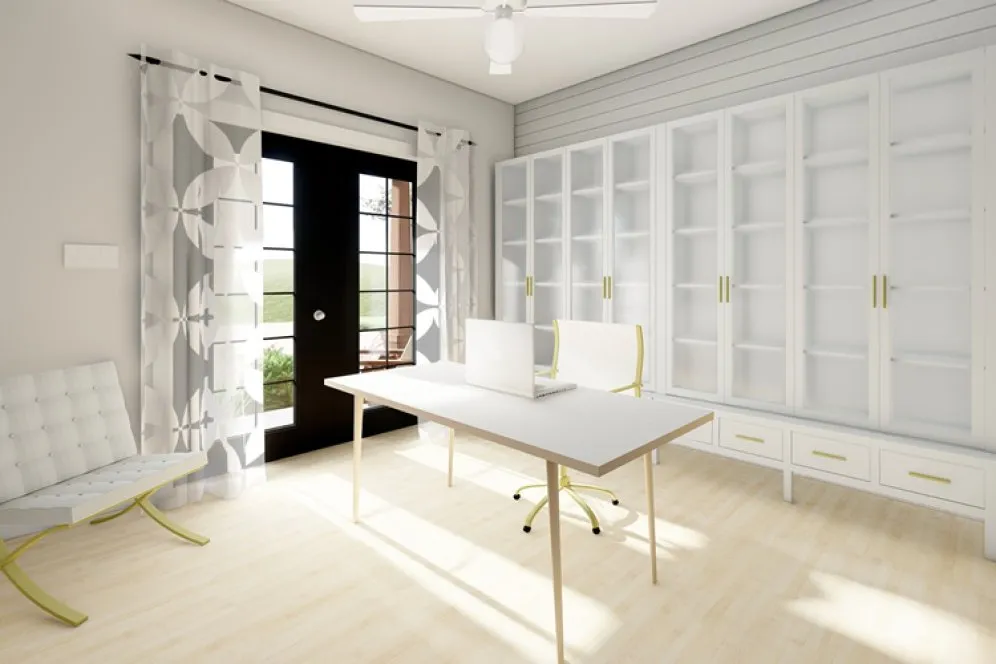

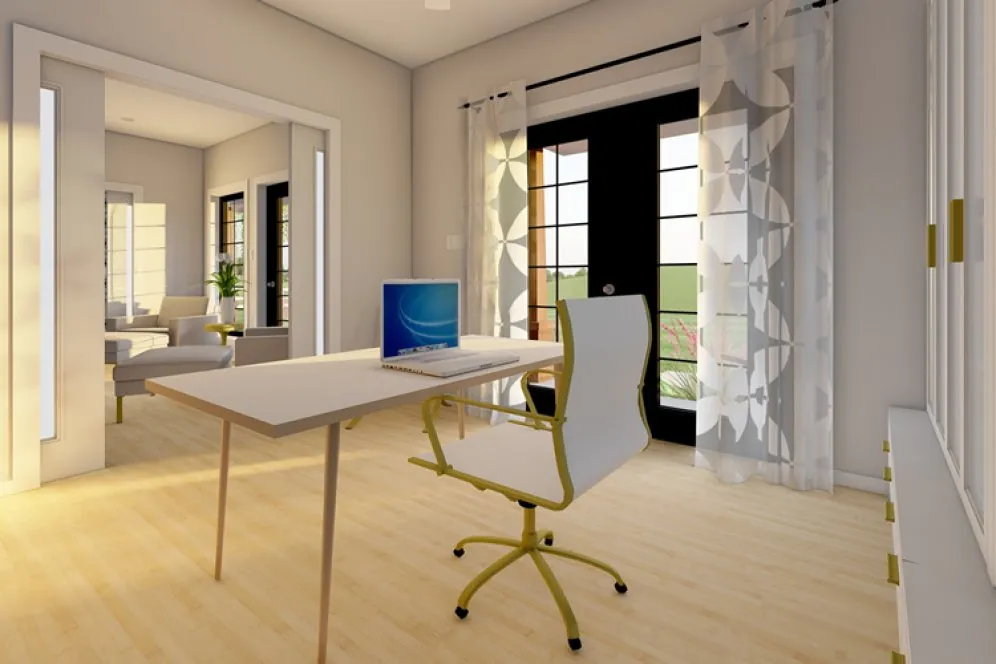

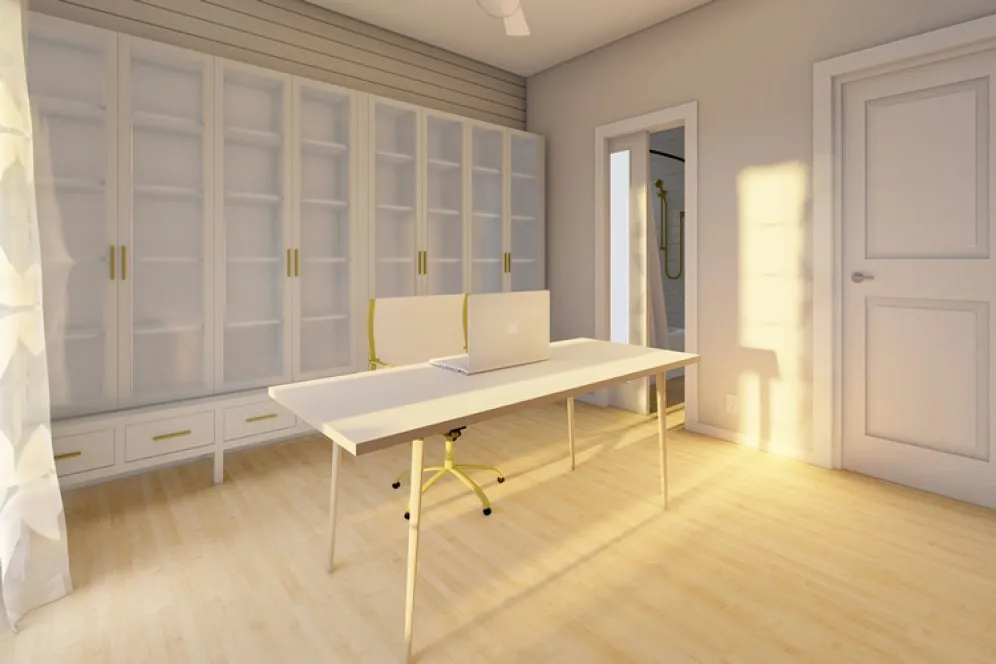

Guest Room / Office – westhomeplanners.com

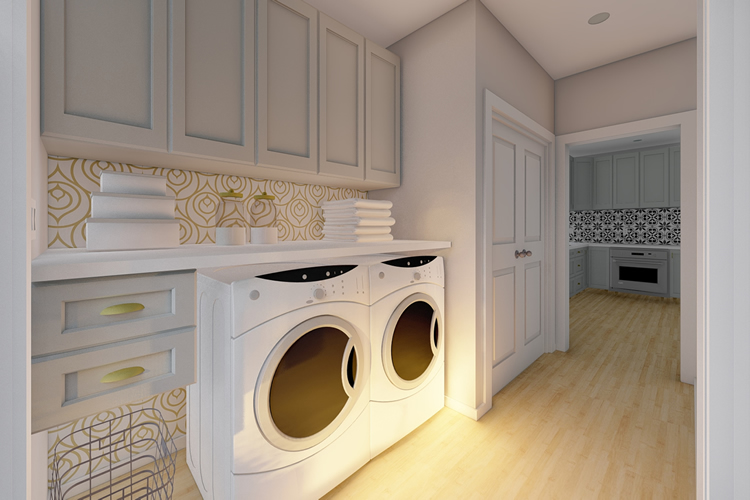

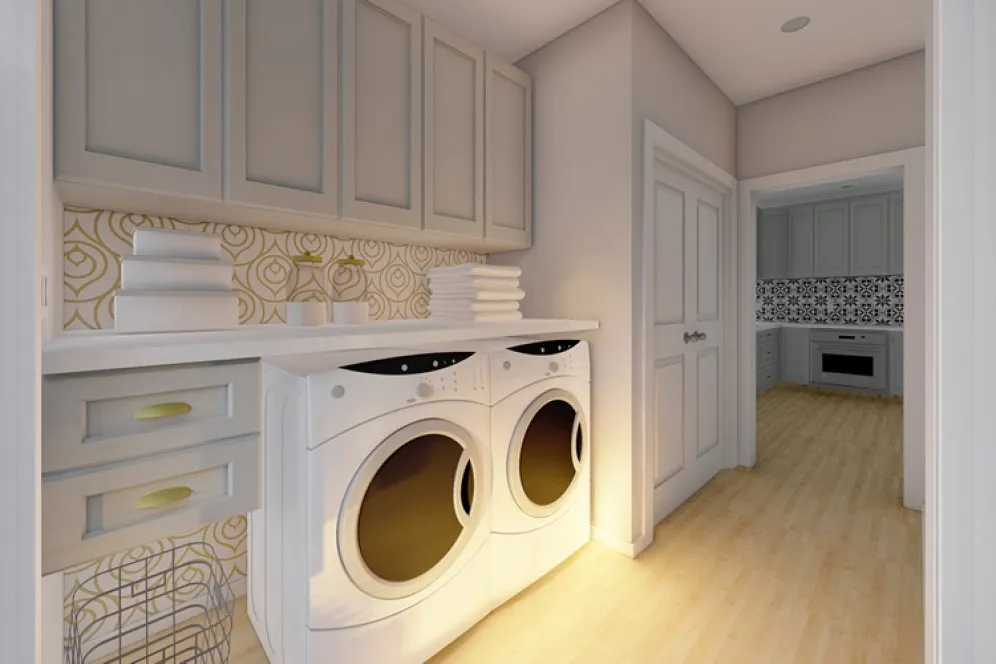

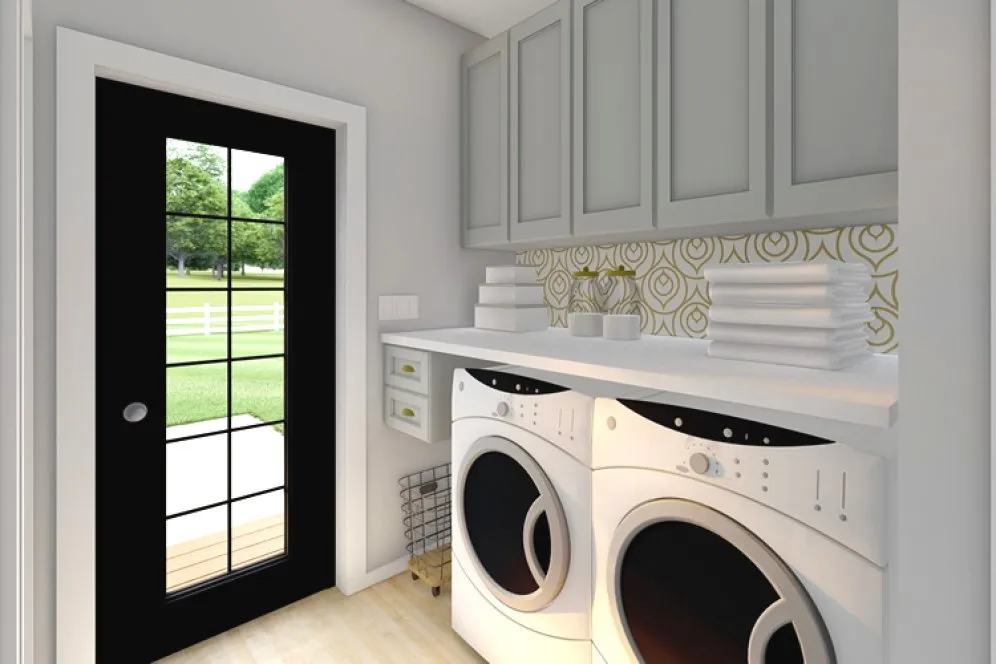

Mudroom – westhomeplanners.com
Mudroom – westhomeplanners.com

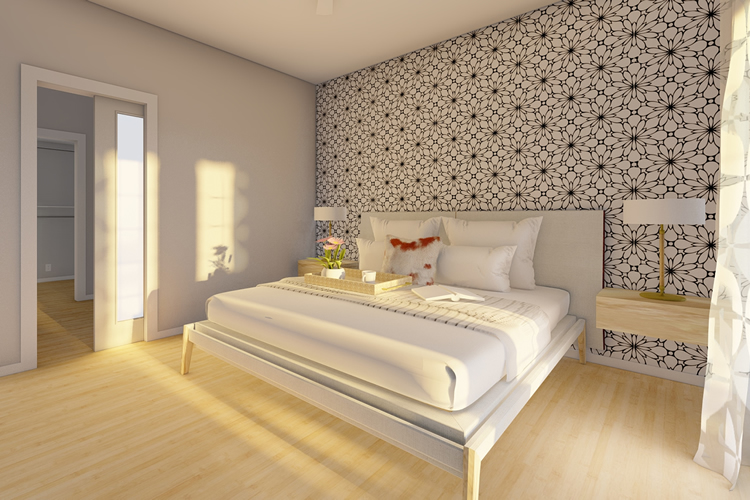

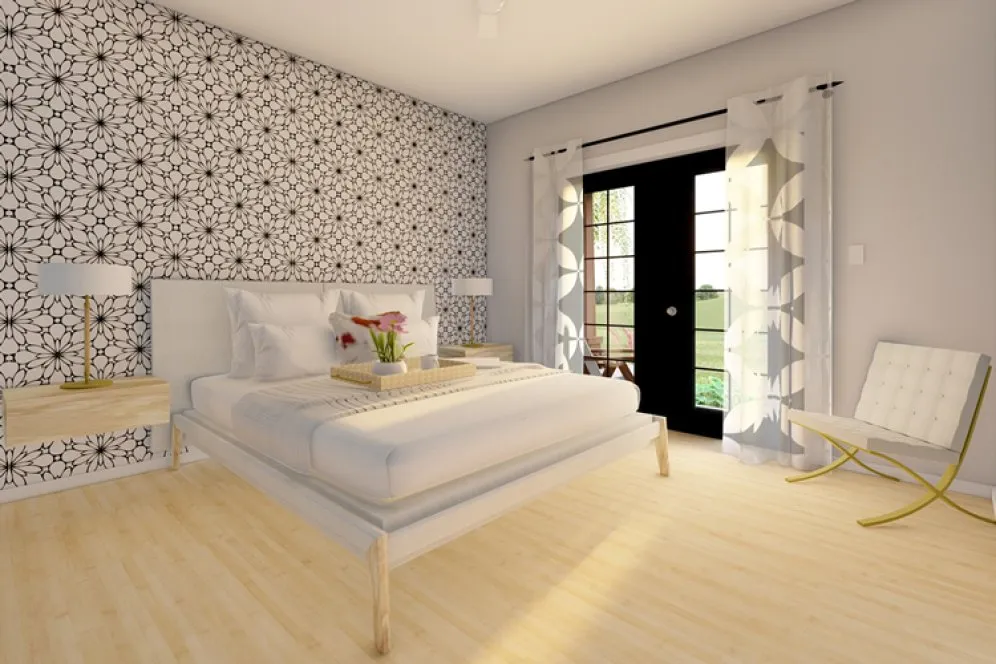

Master Bedroom – westhomeplanners.com
Master Bedroom to Ensuite – westhomeplanners.com

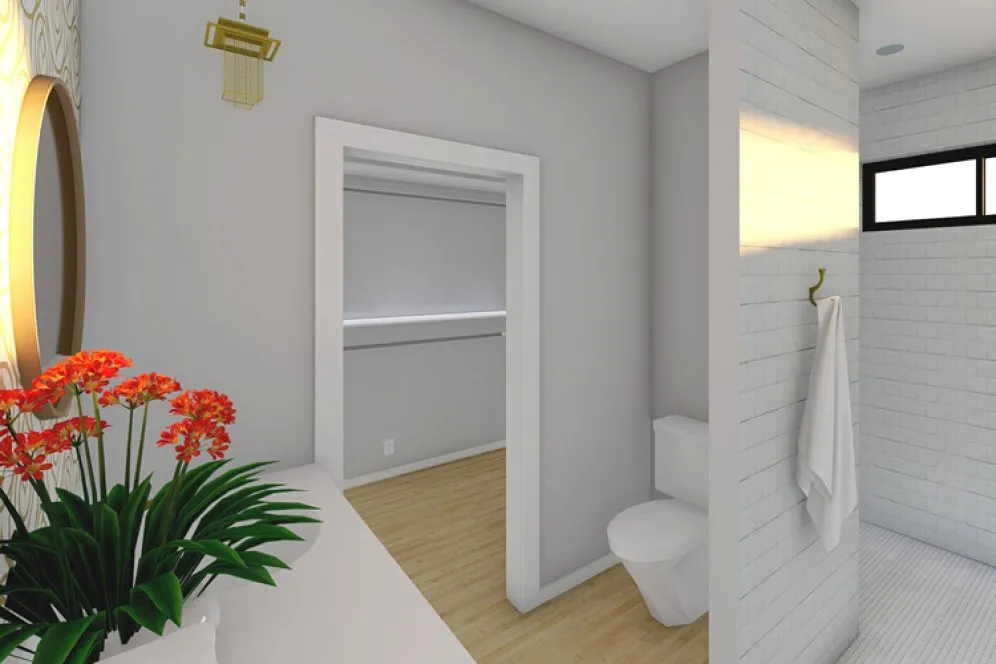

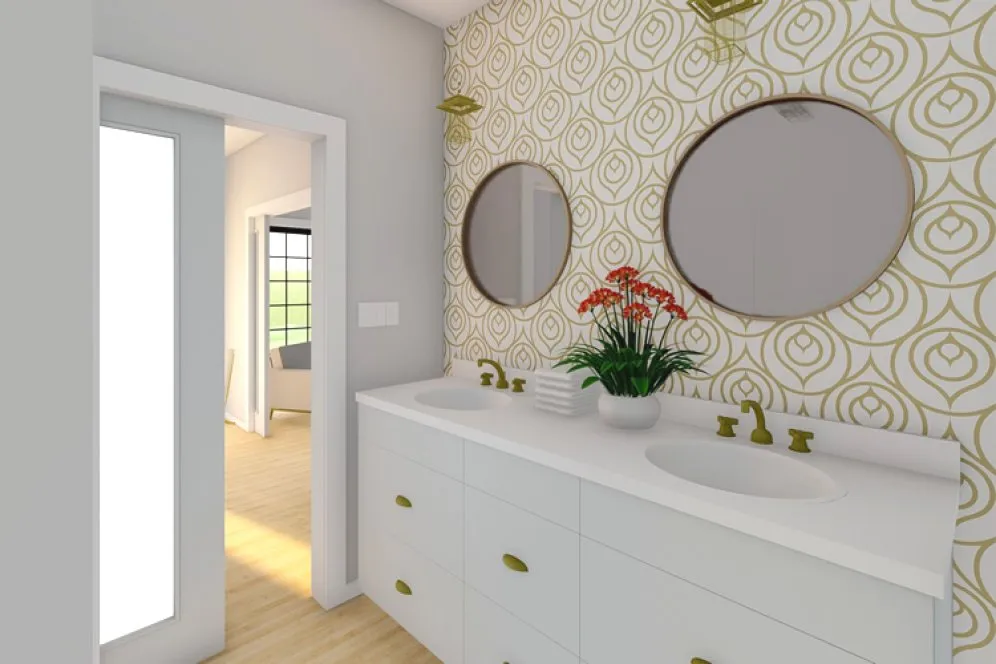

Master Bathroom – westhomeplanners.com
Guest Room / Office – westhomeplanners.com
Master Bathroom – westhomeplanners.com
Guest Bathroom – westhomeplanners.com

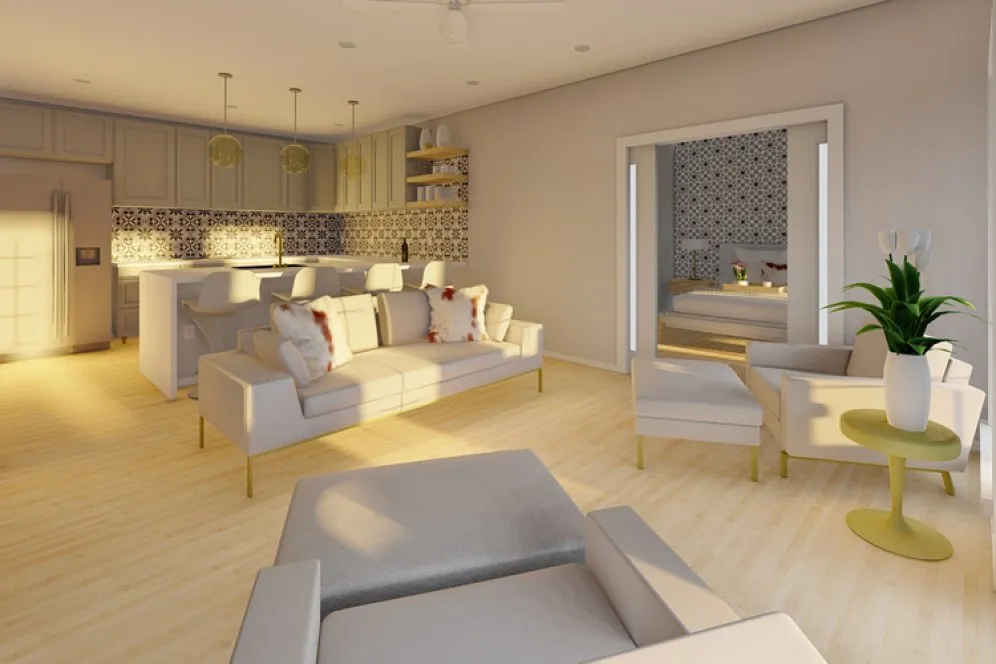

Living Room to Master Bed – westhomeplanners.com
Guest Room / Office – westhomeplanners.com

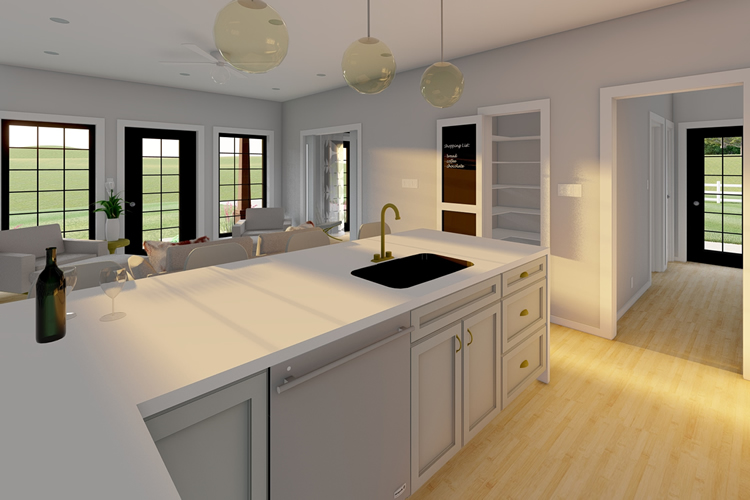

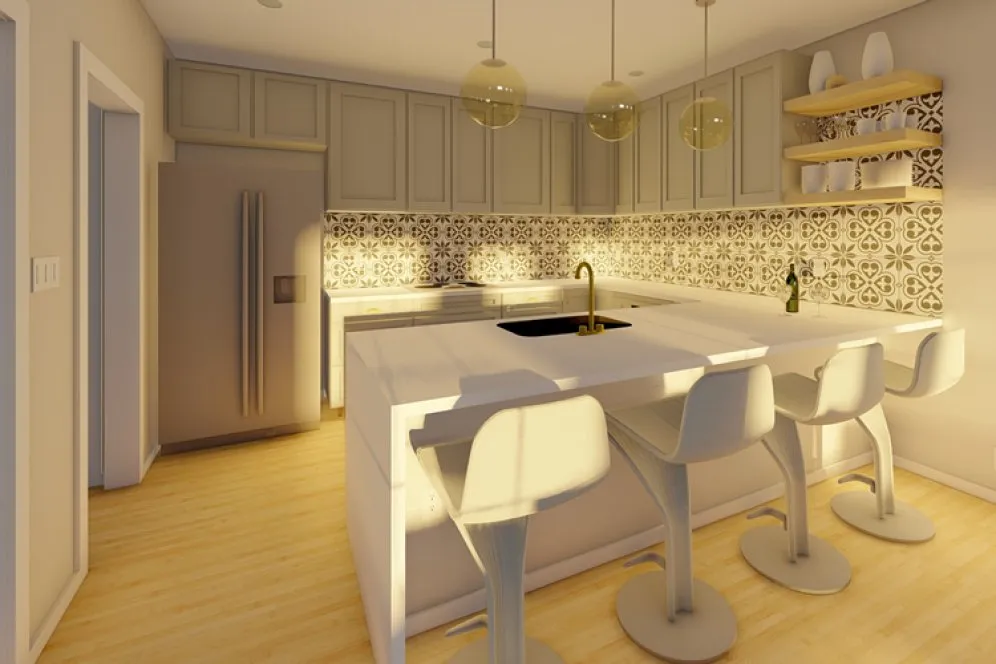

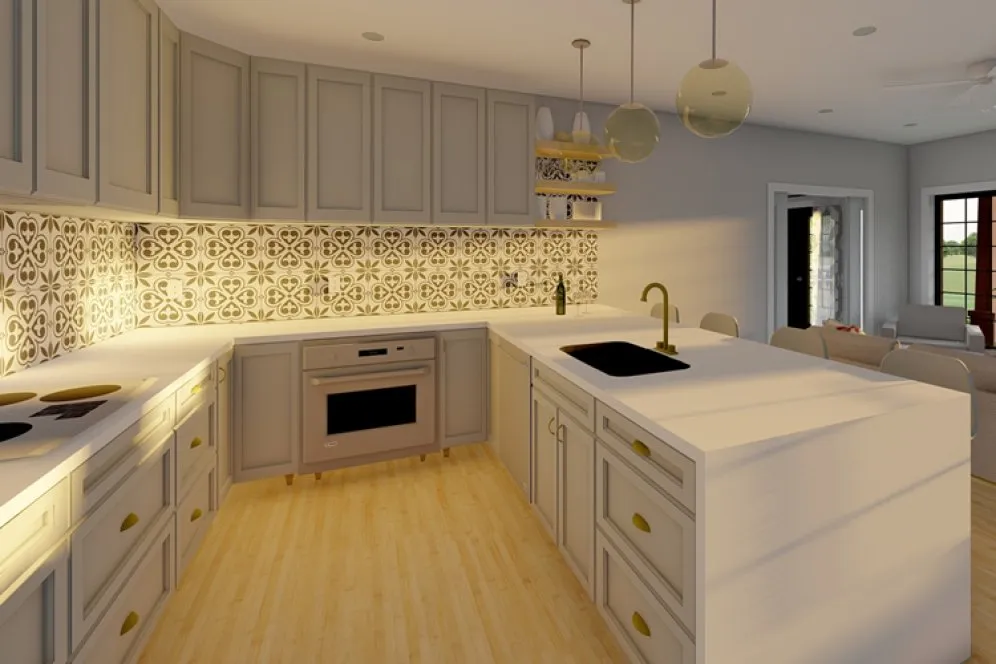

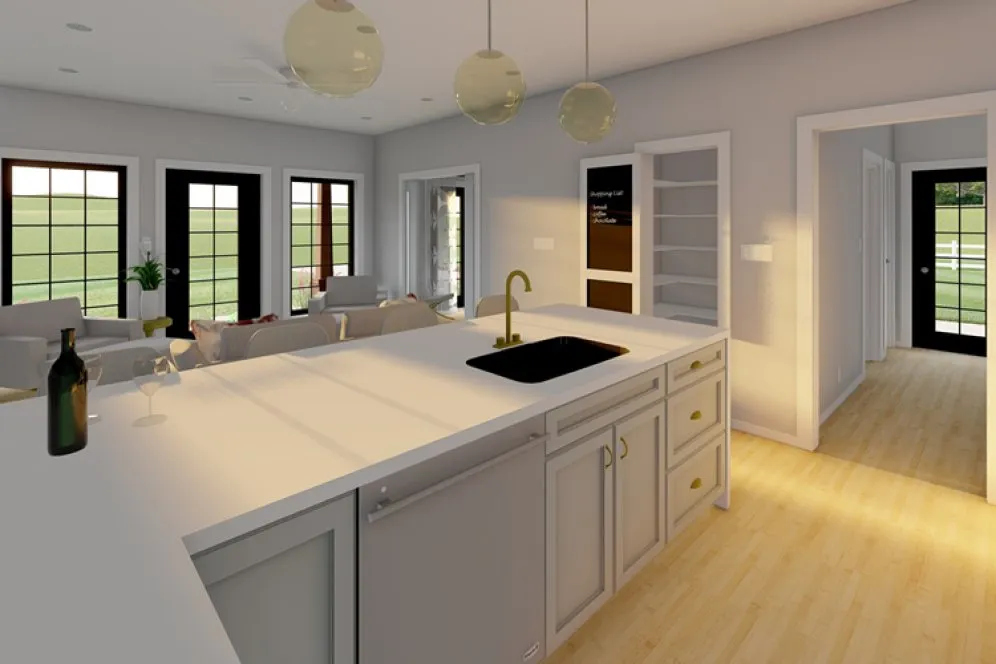

Kitchen – westhomeplanners.com
Kitchen – westhomeplanners.com
Kitchen – westhomeplanners.com

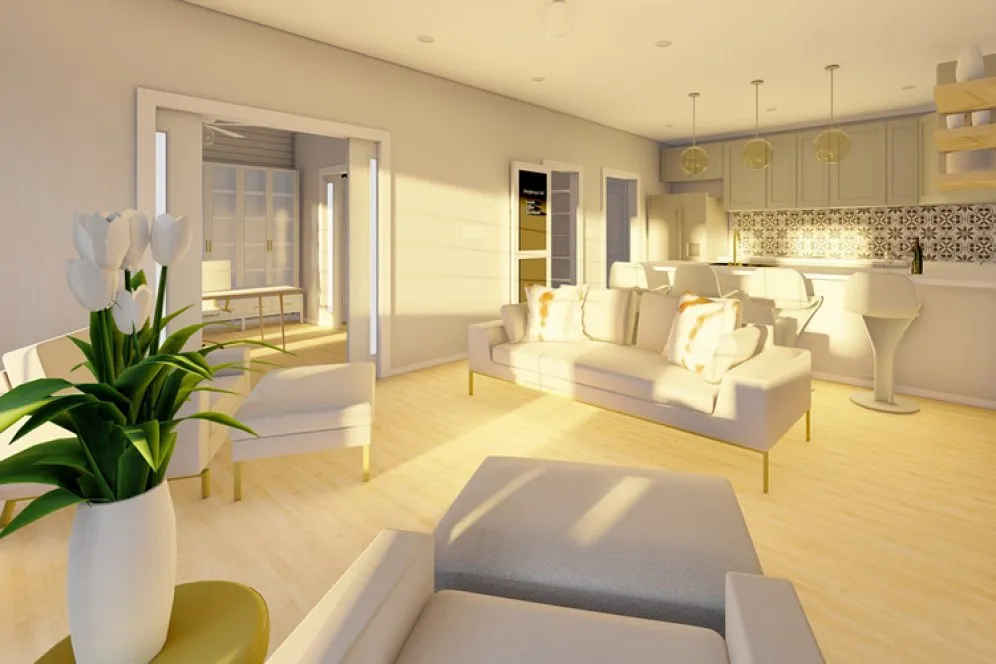

Living Room to Office – westhomeplanners.com
