Plan No.340151

Sweeping Views

This A-frame house plan is designed for a hillside, this 2 bedroom cabin plan offers sweeping views out of the great room. The entry is on the right side of the design an opens into the vaulted great room. A flush eating bar provides some separation between the living area and kitchen. The first floor has one bedroom on the main floor with the study providing homeowners with the flexbility to make this a three bedroom house plan. Upstairs the vaulted owners' loft looks out through the richly windowed a-frame and down to the great room.

Specifications

Total 1509 sq ft

  • Main: 1001
  • Second: 508
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 31'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 30'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

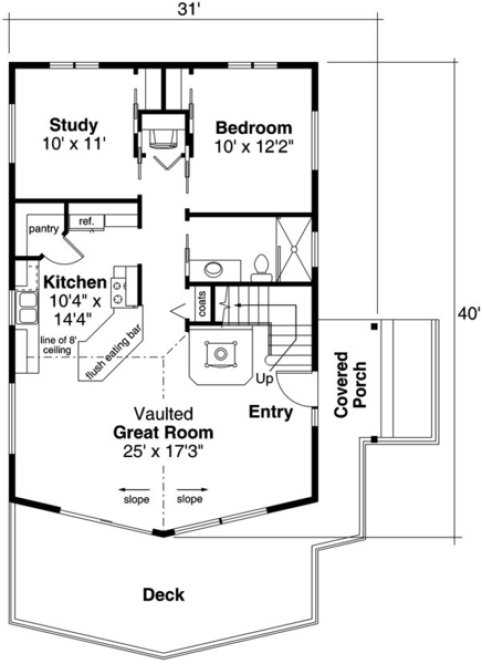

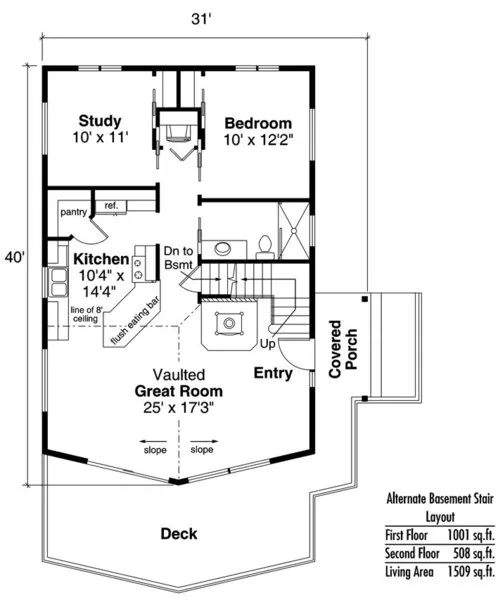

MAIN Plan – westhomeplanners.com

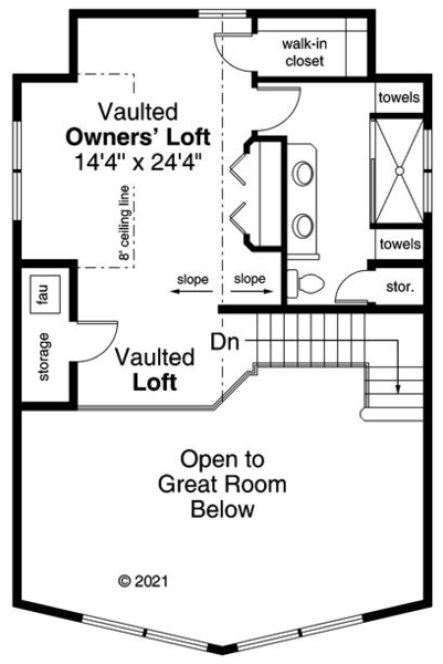

SECOND Plan – westhomeplanners.com

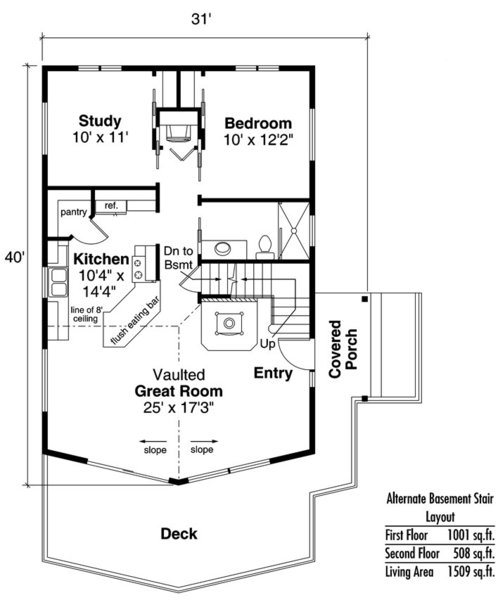

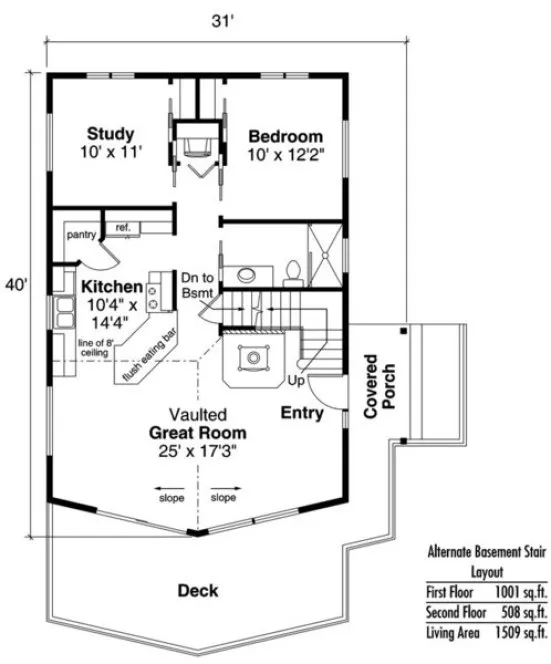

Opt. Basement Stairs – westhomeplanners.com

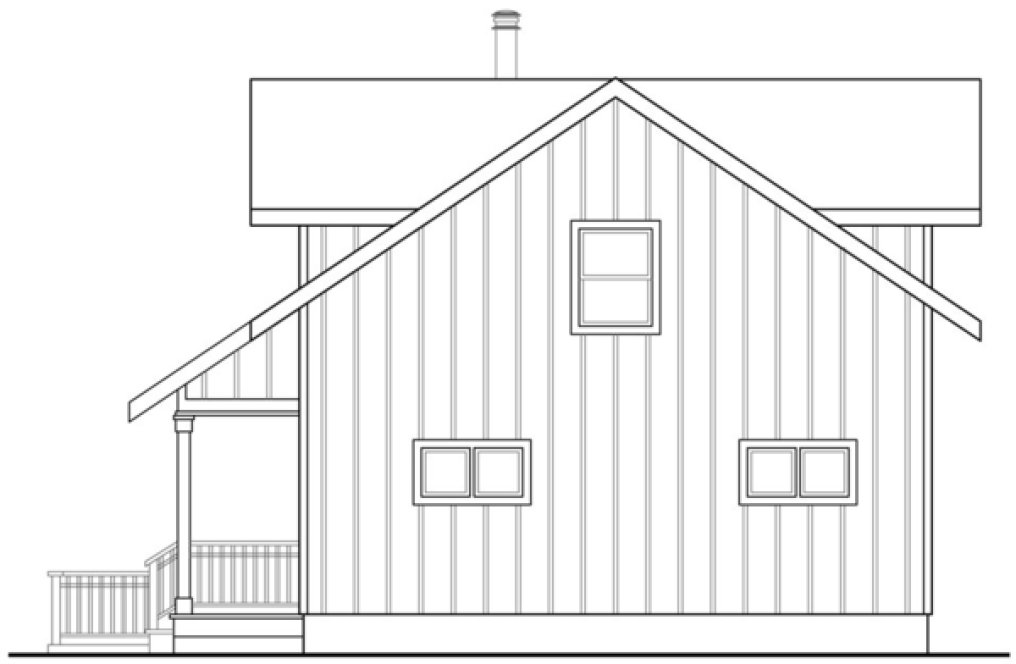

REAR Elevation – westhomeplanners.com

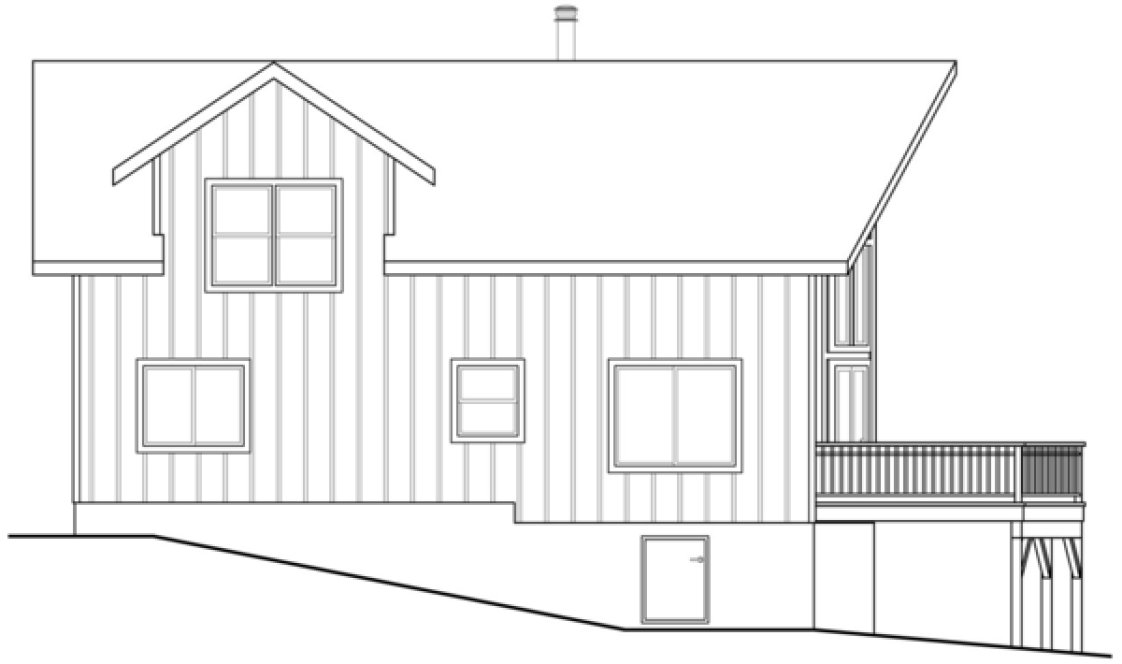

LEFT Elevation – westhomeplanners.com

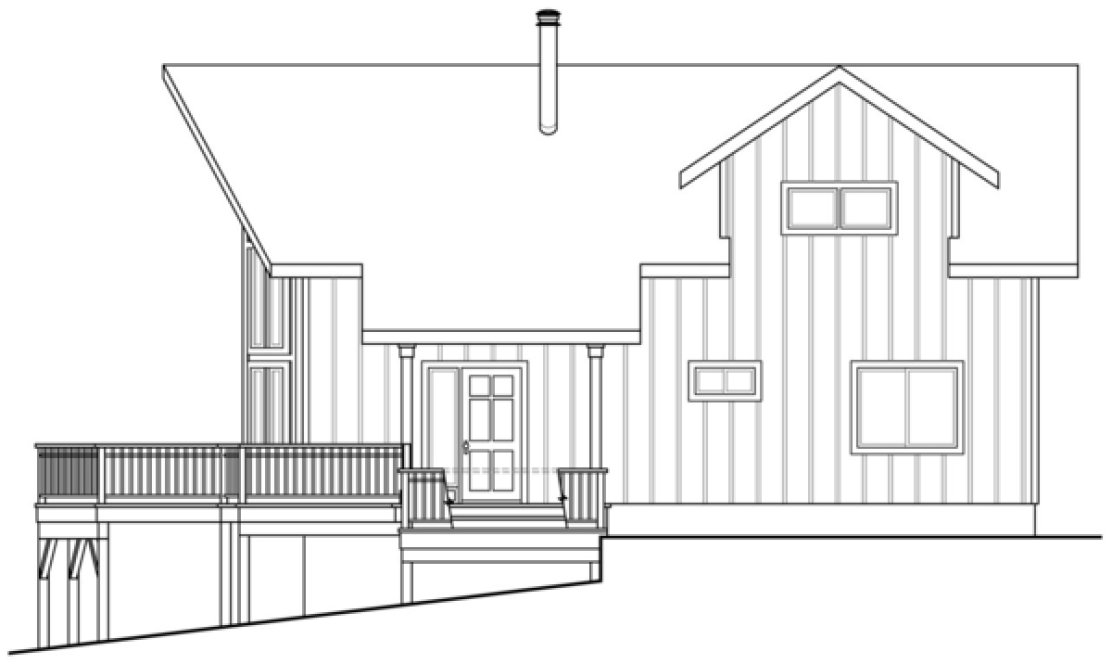

RIGHT Elevation – westhomeplanners.com
