Plan No.146303
Savvy six-plex with 2 beds per unit
This six-unit apartment features two units on each level. Each unit enjoys front or rear access, open living area with independent kitchen and dining area, two bedrooms and independent laundry. Ample windows create an open feeling. Upper suites feature a balcony and the main level steps out to a patio area. Main or First Floor Units are 1081.5 sq. ft. each, Second Floor Units are 1030 each and Third Floor Units are 989 sq. ft. each.
Specifications
Total 6201 sq ft
- Main: 2163
 - Second: 2060
 - Third: 1978
 - Loft/Bonus: 0
 - Basement: 0
 - Garage: 0

Rooms
- Beds: 12
 - Baths: 6
 - 1/2 Bath: 0
 - 3/4 Bath: 0

Ceiling Height
- Main: 8'0
 - Second: 8'0
 - Third: 8'0
 - Loft/Bonus:
 - Basement:
 - Garage:

Details
- Exterior Walls: 2x6
 - Garage Type: none
 - Width: 60'0
 - Depth: 47'8

Roof
- Max Ridge Height: 36'3
 - Comments: ()
 - Primary Pitch: 5/12
 - Secondary Pitch: 0/12

		Add to Cart
		Pricing






	Full Rendering – westhomeplanners.com

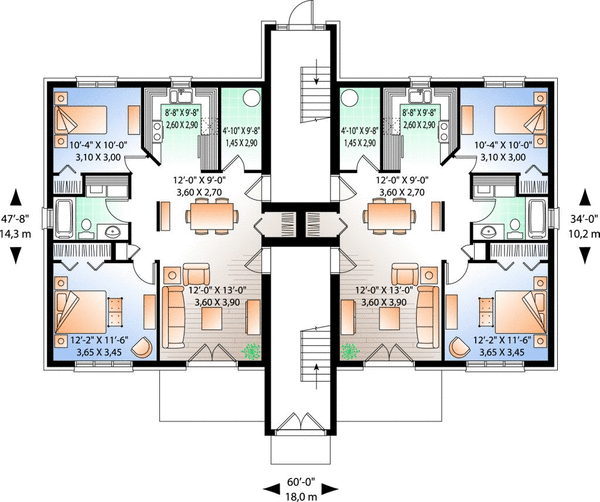

	MAIN Plan – westhomeplanners.com

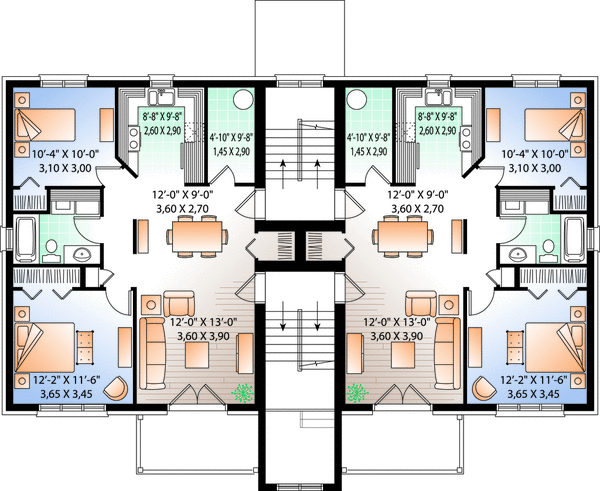

	SECOND Plan – westhomeplanners.com

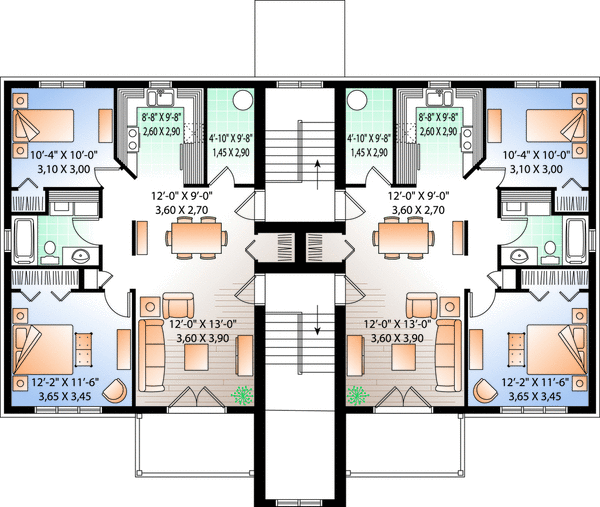

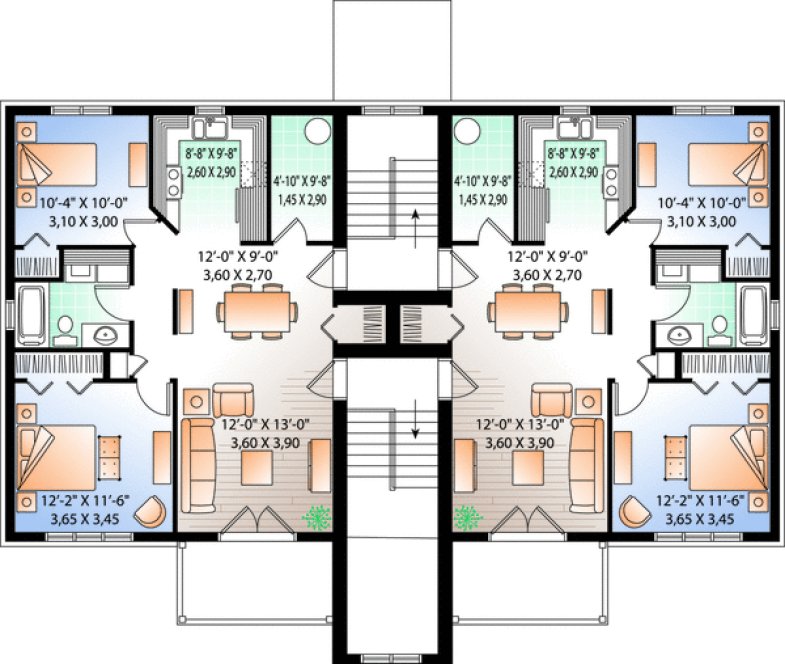

	THIRD Plan – westhomeplanners.com

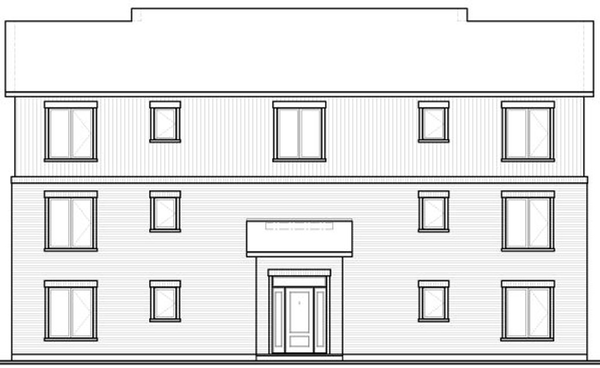

	REAR Elevation – westhomeplanners.com
