Plan No.158912

Much In A Modest Size

This striking Contemporary-style home packs so much in its modest size footprint! There’s a tandem 3-car garage, or fifth bedroom/full bathroom, or a delightful sunroom with two window walls – what will you choose? There’s plenty of room to spread out when entertaining, and the front pocket office answers working from home with much-wanted privacy. The upstairs laundry saves steps when hanging clothes straight out of the dryer, and the compartmented hall bathroom is designed for simultaneous use. Two walk-in closets contribute to the suite life, as does the skylit bathroom with 5-foot shower.

Specifications

Total 2198 sq ft

  • Main: 1079
  • Second: 1119
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 800

Rooms

  • Beds: 4
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 48'0
  • Depth: 58'0

Roof

  • Max Ridge Height: 29'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: 7.00/12
Full Rendering – westhomeplanners.com

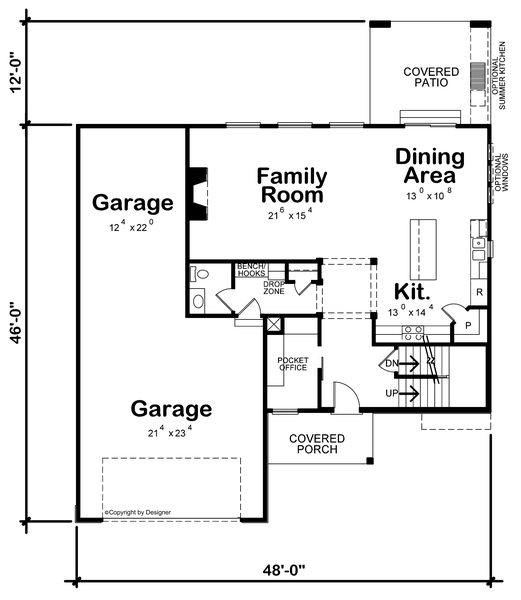

MAIN Plan – westhomeplanners.com

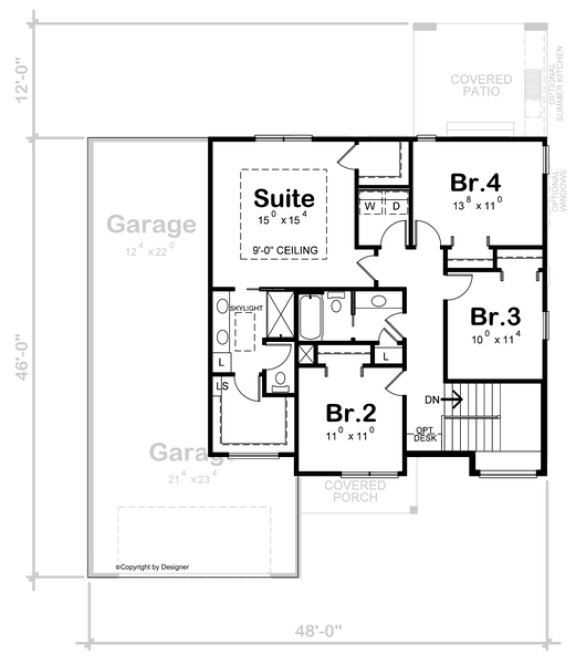

SECOND Plan – westhomeplanners.com

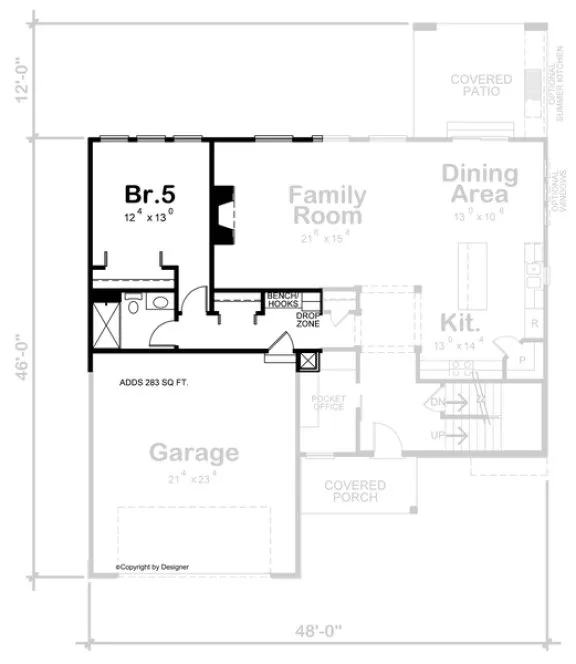

Main Floor option 2 – westhomeplanners.com

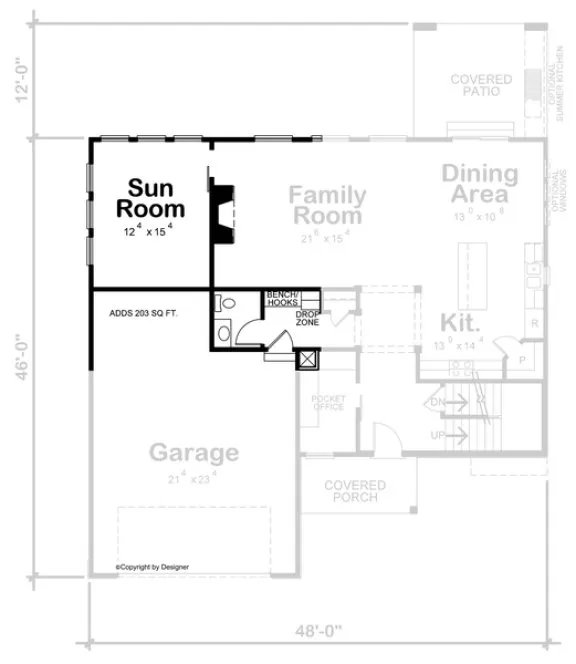

Main Floor Option 1 – westhomeplanners.com

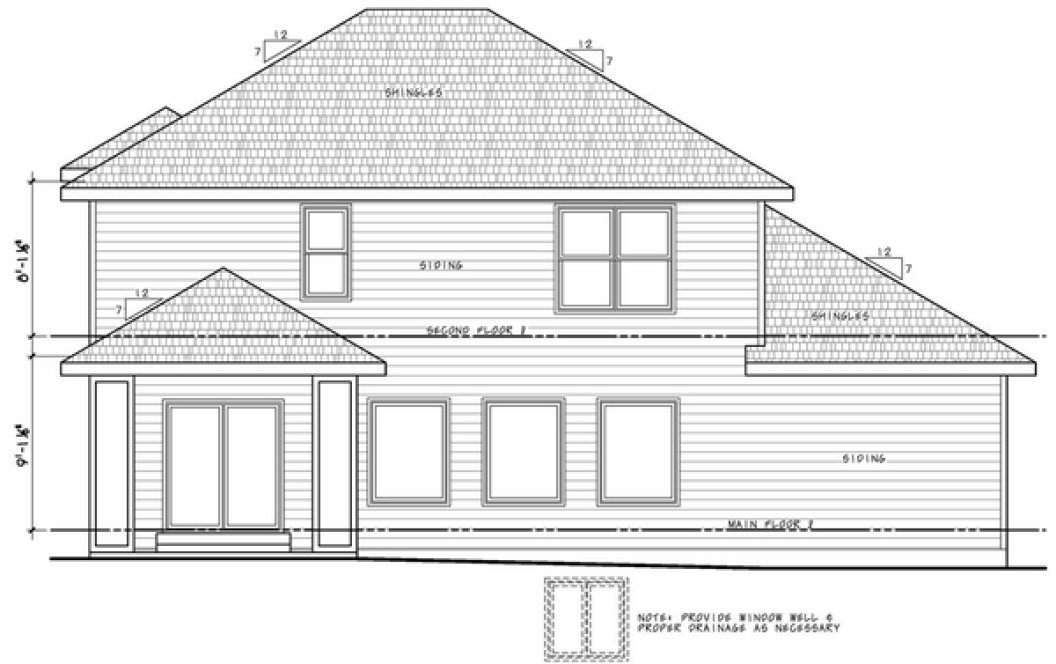

REAR Elevation – westhomeplanners.com

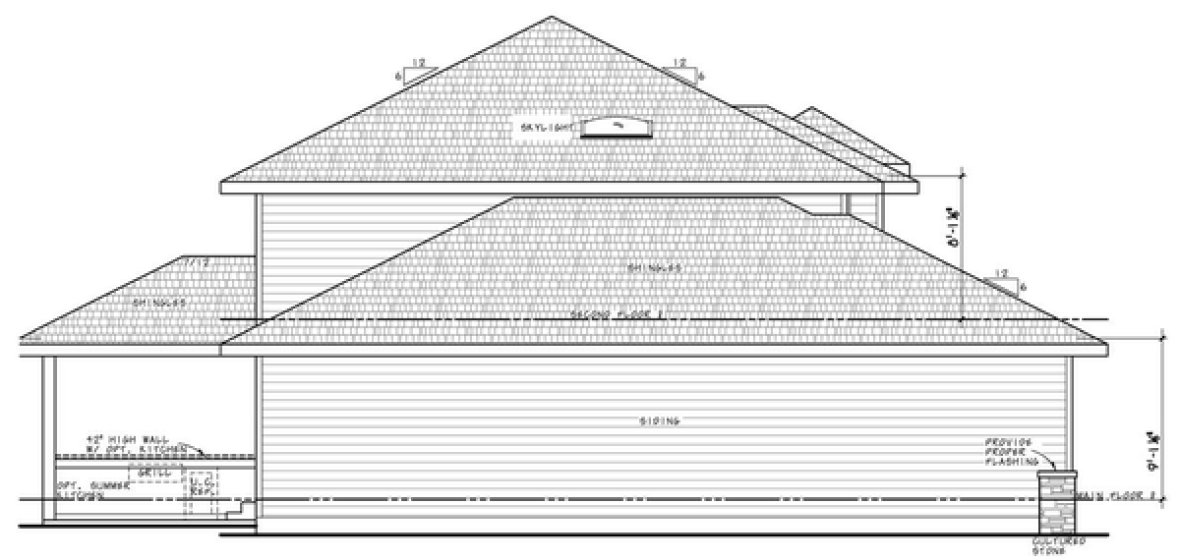

LEFT Elevation – westhomeplanners.com

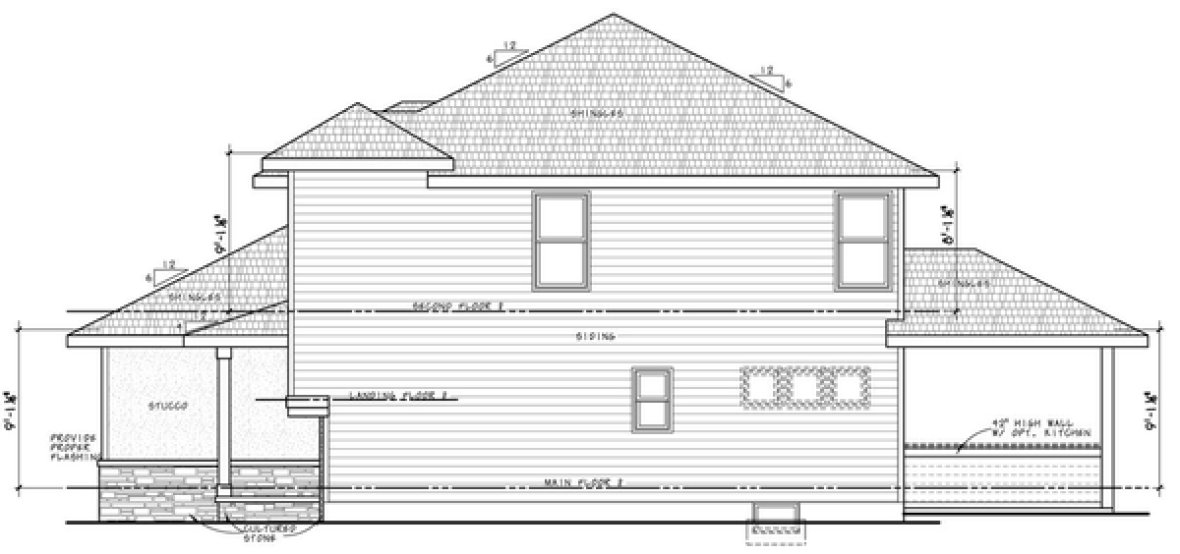

RIGHT Elevation – westhomeplanners.com
